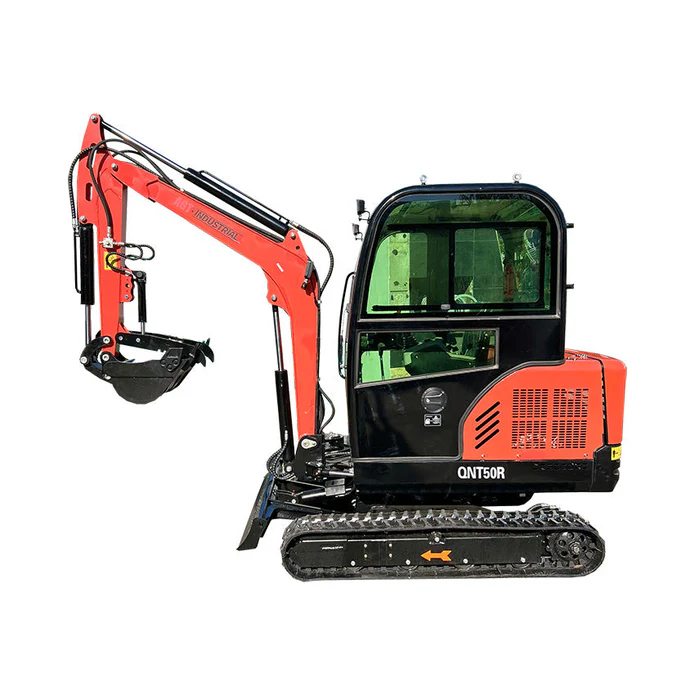

How to Install a Grappleon a Mini Excavator

A mini excavator is already one of the most versatile tools on many job sitesbut adding a grapple takes that versatility to an entirely different level. Agrapple attachment allows you to grab, lift, and move logs, rocks, brush, andother large materials that would not be efficient or practical to move with astandard bucket. lf you are clearing property, sorting debris, or handlinglandscaping materials, a grapple attachment for mini excavators providessuperior control and efficiency, In this guide, we'll walk you througheverything you need to know to install a grapple on your mini excavatorsafely and effectively

Know Your Grapple and ExcavatorCompatibility

Before you start installing a grapple on your mini excavator, it's vital to verifythat your grapple is compatible with your mini excavator. This step helpsprevent damage and ensures safe operation. Here's what to check:

Mounting System or Coupler Type: Confirm whether your excavatoruses a quick coupler or pin-on system, and make sure your grapplematches. This is often the easiest way to identify compatibility.

Pin Size and Spacing: Your grapple pins must also match the size andspacing on the excavator. Using the wrong pin could mean an insecureattachment or potential damage to the excavator.

Hydraulic Flow and Pressure: Verify that your excavator's auxiliaryhydraulics can supply the flow rate and pressure that your grapplerequires. lf the hydraulic system for the grapple is incompatible it canresult in decreased performance, damage to the equipment or safetyissues.

Weight Capacity: Verify that the combined weight of the grapple andthe loads deployed does not exceed the maximum lift capacity of yourexcavator. Overloading can be dangerous and cause equipment failure.

How to lnstall a Grapple on a MiniExcavator: A Step-by-Step Guide

In this guide, we'l use the AGT mini excavator grapple as an example forthe installation process. lf you are using a mini excavator or grapple from adifferent manufacturer, please refer to the specific instruction manual foryour equipment.

The installation will generally be completed in two components: removingthe current attachment and attaching the grapple. lf you follow along withthe instructions and recommended best practices, you will ensure a safe andefficient installation.

Part 1: Removing the Current Attachment

Note: This only provides general guidance on the excavator's currentattachment removal. For more specific information, refer to your excavator'smanual or your attachment's manual.
STEP 1: Start the engine of the excavator following the normal protocols.
STEP 2: Park the excavator on level ground as shown, with the boomhorizontal, the arm vertical, and lowering the attachment to the ground.

STEP 3: Shut off the engine.
STEP 4: Wait until the engine and hydraulic oil have cooled to ambienttemperature.
STEP 5: Remove the bolts from the two pins connecting the attachment.

STEP 6: Tap out the pins with a hammer, keeping them clean.
STEP 7: Start the engine, raise the boom, and remove the currentattachment.

Part 2: Attaching the Mini Excavator Grapple

STEP 1: Remove the upper hinge pin with its nut and the lower hinge pin withits bolt and nut on the grapple.
STEP 2: Use 2 or more people or a hoist to stand the grapple up on a levelsurface.
STEP 3: Start the engine of the excavator following the normal protocols.
STEP 4: Drive the excavator to the rear of the grapple.
STEP 5: Align the upper hinge pin holes with the eye of the excavator's armcylinder, and align the lower hinge pin holes with the hole on the bottom ofthe excavator's arm by moving the boom and arm.
STEP 6: Shut off the engine.
STEP 7: Insert the removed upper hinge pin through the link holes, upperhinge pin holes, and the eye of the arm cylinder, and secure the pin with itsremoved nut.
STEP 8: Insert the removed lower hinge pin through the lower hinge pinholes and the hole on the bottom of the arm, and secure the pin with itsremoved bolt and nut.
STEP 9: Restart the engine and test the grapple by opening and closing its
jaws.

Safety Checks and Maintenance Tips

Once you have securely connected your grapple to the mini excavator, it isimportant to conduct some preliminary safety inspection on the grapplebefore working. Doing so will help ensure that you are safe, and yourequipment will operate well:

Tighten all connections: Verify that all pins, bolts, and couplers aretight and locked. Loose parts can cause accidents or damage during use.

Inspect hydraulic hoses: Carefully inspect all hydraulic hoses for anyleaks, cracks, or indications of wear. Failure due to damaged hoses canlead to a hydraulic failure, so replace any questionable hoses beforeoperating.

Test movement carefully: Gently operate the grapple controls to open,close, and, if your grapple rotates, rotate it slowly, This helps you confirmeverything moves smoothly without unusual noises or resistance

Grease moving parts: Regularly lubricate the pivot points and anyother moving parts as recommended by the manufacturer's maintenanceguide. Proper greasing reduces wear and keeps the grapple working well.

Ready to Handle Your Job

With your new grapple attachment installed, your mini excavator is ready tohandle tougher, more difficult jobs, from clearing fallen trees to sortingscrap or lifting awkward materials. This single upgrade can help yousubstantially improve efficiency while minimizing manual labor on your jobsite. Make sure to follow the manufacturer's safety and maintenancerecommendations, and your grapple will last for years.
