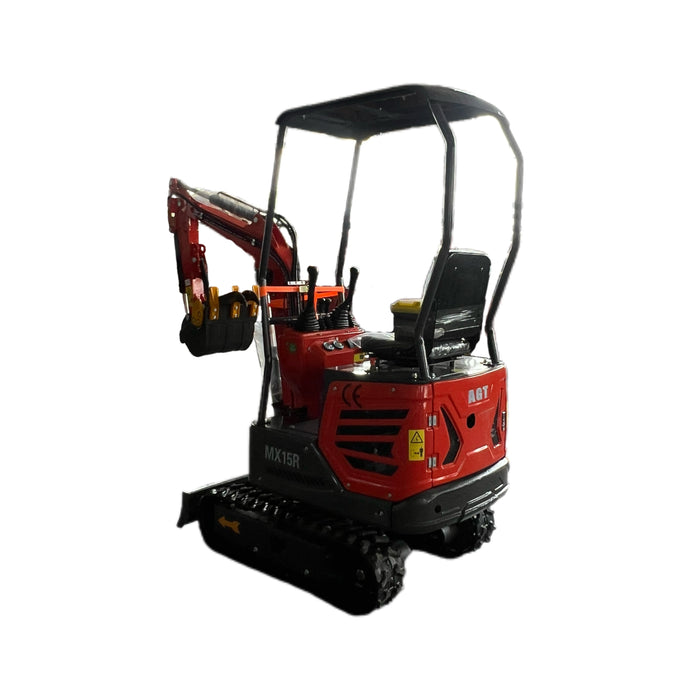

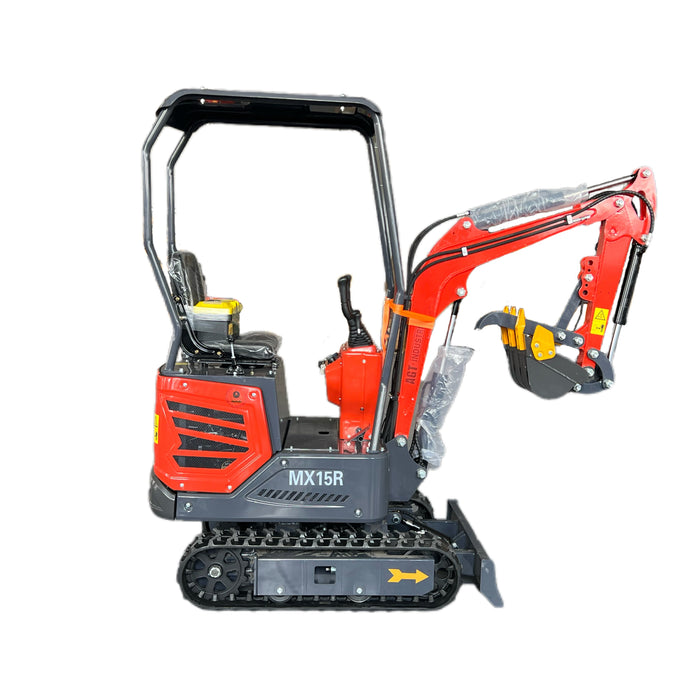

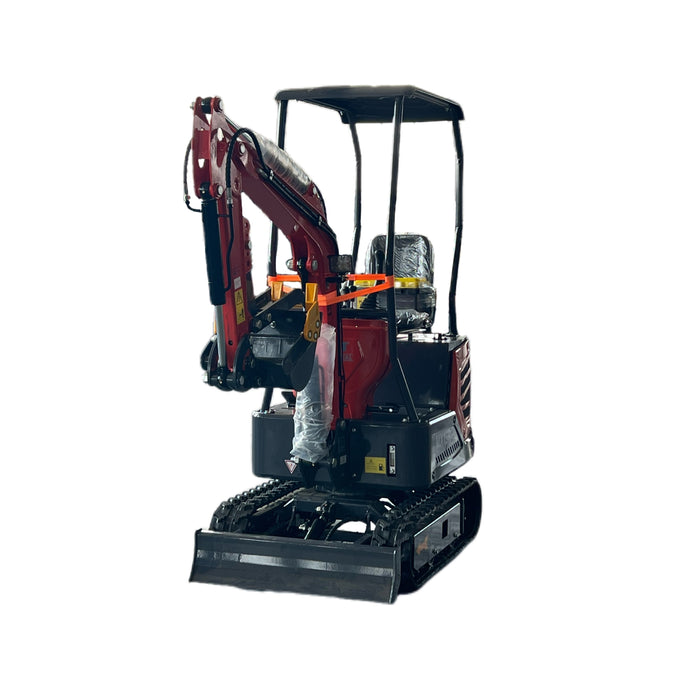

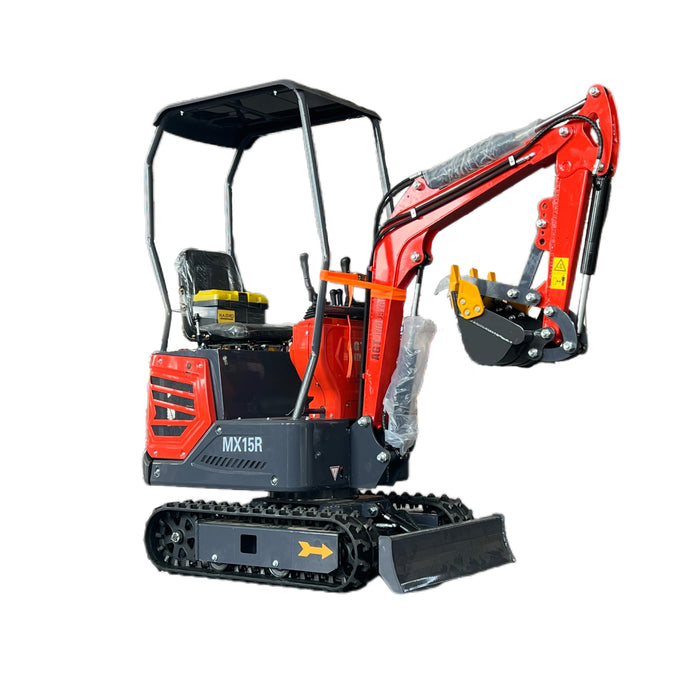

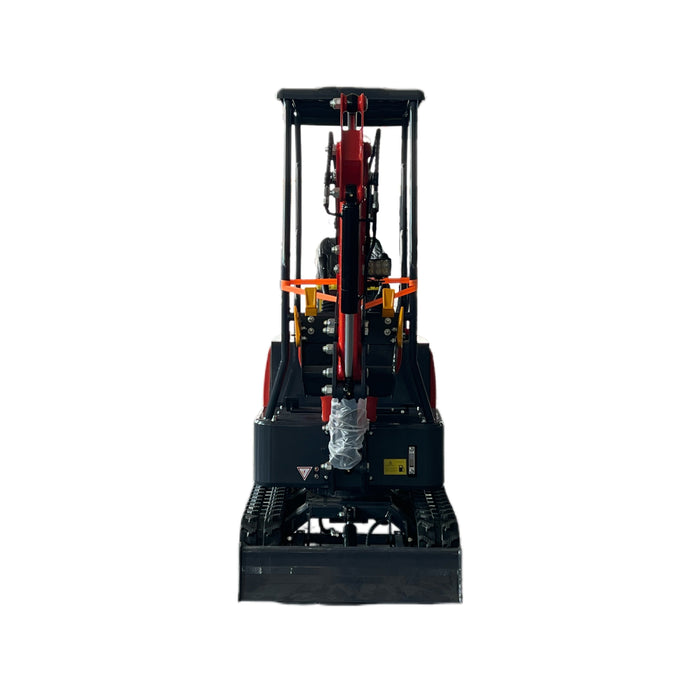

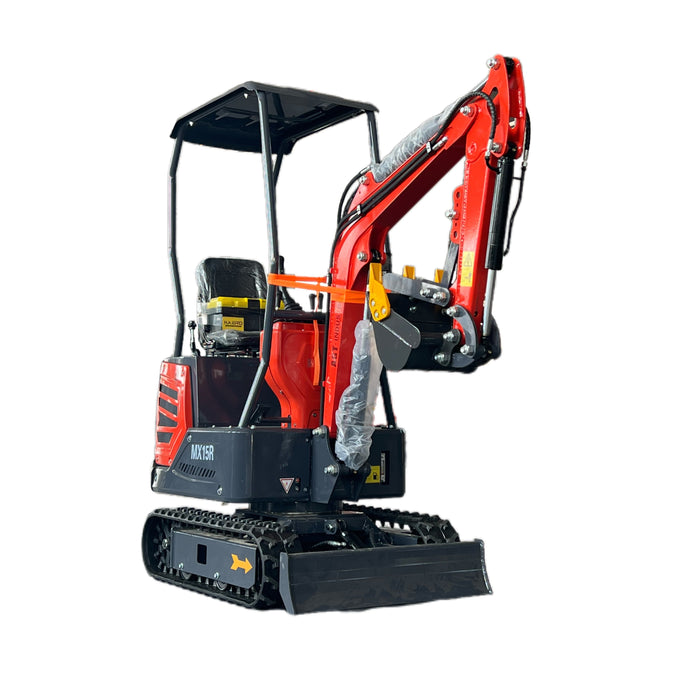

1 Ton, RATO Engine Mini Excavator | AGT-MX15R

Designed for small to medium-sized projects. With a compact design, 940 kg operating weight, and a digging depth of 5.8 feet, the AGT MX15R delivers reliable power and efficiency in tight workspaces like farms, gardens, orchards, and construction sites. Powered by a 9.8 kW gasoline engine, the MX15R features a 3-cylinder system, rubber tracks, and a reinforced structure built for daily use.

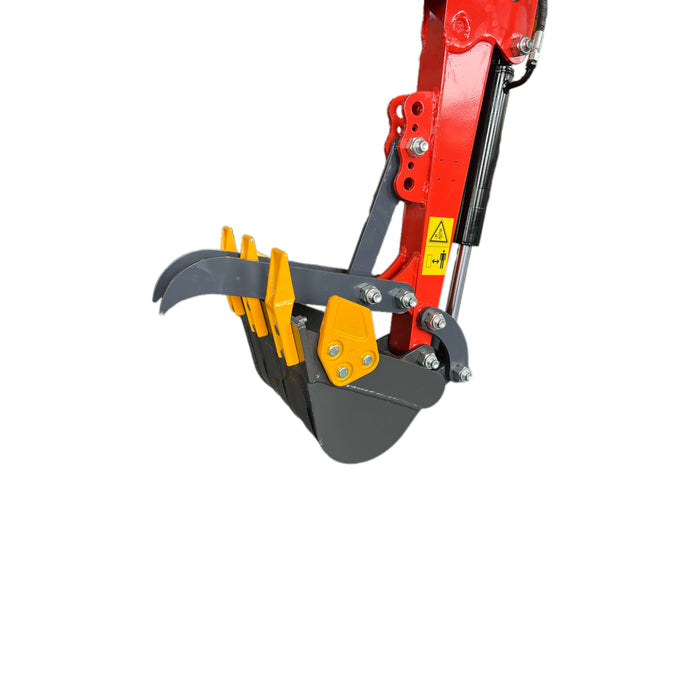

The hydraulic blade and side-swing boom provide versatility, while the factory-installed manual thumb and auxiliary line make it attachment-ready. Ideal for augers, rakes, tilt buckets, grapples, and more.

Technical Data:

• Operating Weight: 940 kg ?

• Engine: 9.8 kW gasoline engine ?

• Max Horsepower: 13.1 hp ?

• Fuel Tank: 6.6 L (92# Gasoline) ?

• Hydraulic Tank: 23 L ?

• Bucket Capacity: 0.025 m3 ?

• Travel Speed: 0¨C3 km/h ?

• Climbing Ability: 30% ?

• Turning Speed: 10 rpm ?

• Bulldozer Width/Height: 1000 mm / 180 mm ?

Working Range:

• Max Digging Height: 2583 mm ?

• Max Unloading Height: 1850 mm ?

• Max Digging Depth: 1769 mm ?

• Max Vertical Excavation Depth: 1600 mm ?

• Max Excavation Radius: 3041 mm ?

• Min Gyration Radius: 1584 mm ?

• Min Tail Radius: 849 mm ?

• Max Blade Lift: 288 mm ?

• Max Blade Dig Depth: 146 mm ?

Dimensions:

• Overall Length: 3200 mm ?

• Overall Width: 936 mm ?

• Overall Height: 2210 mm?
