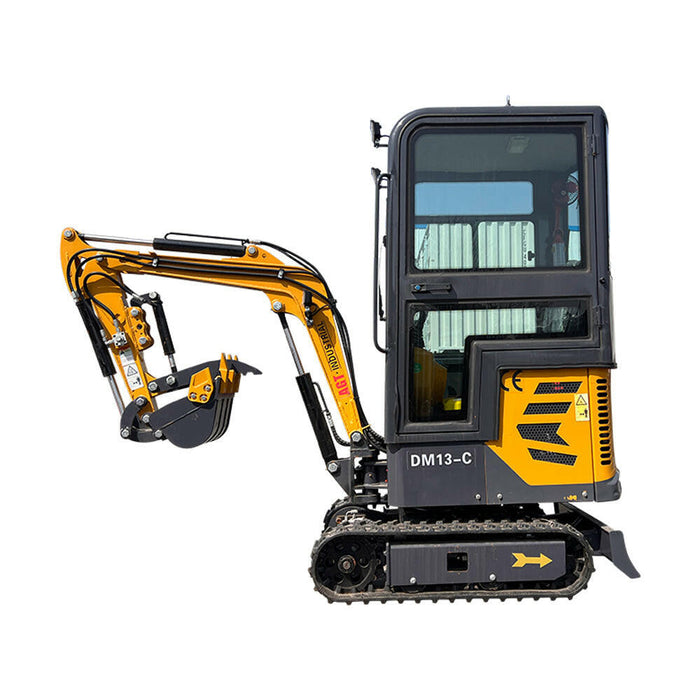

1 Ton, B&S Engine Mini Small Cab Excavator w/ Hydraulic Thumb & Swing Boom | AGT-DM13-C
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$8,029.00
$8,029.00
-
$8,029.00
Current price
$8,029.00
The AGT-DM13C is a compact and versatile 1.3-ton mini excavator designed for various excavation tasks.
Technical Data:
Engine:
- Brand: Briggs & Stratton (B&S)
- Model: 13.5 HP
- Power Output: 9.8 kW
- Maximum Speed: 3,600 RPM
- Cylinders: 1
- Cooling Method: Fan cooling
- Engine Oil Capacity: 1.1 liters
- Fuel Type: Gasoline
- Fuel Grade: 92#
- Theoretical Fuel Consumption: 0.5-1.2 liters per hour
Performance:
- Operating Weight: 2,150 lbs (975 kg)
- Maximum Digging Depth: 1,650 mm
- Maximum Digging Height: 2,400 mm
- Maximum Digging Radius: 3,080 mm
- Maximum Climbing Ability: 30¡ã
Hydraulic System:
- Main Pump Type/Model: Gear pump/06
- Main Pump Brand: Tianjin Xingzou
- Rated Set Pressure: 16 MPa
- Maximum Flow Rate of Main Pump: 21.6 liters per minute
- Multi-way Valve: 8 multi-way valves
- Multi-way Valve Brand: Bei Fang
Dimensions:
- Overall Length: 2,738 mm
- Overall Width: 935 mm
- Overall Height: 2,209 mm
- Bulldozer Width/Height: 907 mm / 210 mm
Undercarriage:
- Track Type: 7-inch rubber tracks
Additional Features:
- Cabin: Enclosed cab (no air conditioning)
- Boom: Articulating/swing boom with a 30¡ã angle
- Attachments: Hydraulic thumb installed, 13-inch digging bucket, push blade
- Auxiliary Hydraulics: Yes
Specific Data:
| Basic Performance Parameters |
Working Weight(kg) | 940 |
| Bucket capacity(m3) | 0.03 | |
| Travel speed low/high speed(Km/h) | 0-0.2 | |
| Climbing ability(%) | 30 | |
| A Maximum Digging Height(mm) | 2795 | |
| B Maximum Unloading Height(mm) | 1863 | |
| C Maximum Digging Depth(mm) | 1684 | |
| E Max. digging radius(mm) | 3112 | |
| Side Swing | ¡Ì | |
| Side Swing Angle (L/R) | 30¡ã | |
| undercarriage expansion | ¡Á | |
| Body | J? Overall Length(mm) | 2738 |
| K? Overall Width(mm) | 935 | |
| L? Overall Height(mm) | 2209 | |
| Bulldozer Width/Height | 907/210 | |
| Engine | Engine Brand | B&S |
| Engine Model | 13.5HP | |
| Max. power(Kw) | 9.8 | |
| Max. speed(rpm) | 3600 | |
| Cylinders | 1 | |
| Cooling method | fan cooling | |
| Engine oil change quantity(L) | 1.1 | |
| Fuel Type | Gasoline | |
| Fuel Grade | 92# | |
| Theoretical fuel consumption(L/h) | 0.5-1.2 | |
| Hydraulic system |
Main pump type/model | gear pumps/06 |
| Main pump brand | (Tianjin Xingzou) | |
| Rated set pressure(Mpa) | 16 | |
| Maximum flow rate of main pump(L/min) | 21.6 | |
| Multi-way valve | 8 multi-way valves | |
| Brand of Multi-way valve | (Bei Fang) | |
| Rated Set Pressure(Mpa) | 16 | |
| Hydraulic Linear Motor type | BM6-310 | |
| Linear Motor Brand | (Li Yuan) | |
| Hydraulic Servo Motor type | BM2-250 | |
| Excavator tracks | ¡÷-Rubber (bandwidth*pitch*number of sections) | 180*72*37 |
| Configuration | Cab | ¡Ì |
| Roof | ¡Á | |
| Handrail | ¡Á | |
| Thumb Clip | ¡Ì | |
| Counterweight | ¡Á | |
| Tensioning Forms | Mechanical tensioning | |
| Air Conditioning | ¡Á | |
| Fuel tank | Fuel tank(L) | 6.6 |
| Hydraulic oil tan£¨L£© | 18 |
