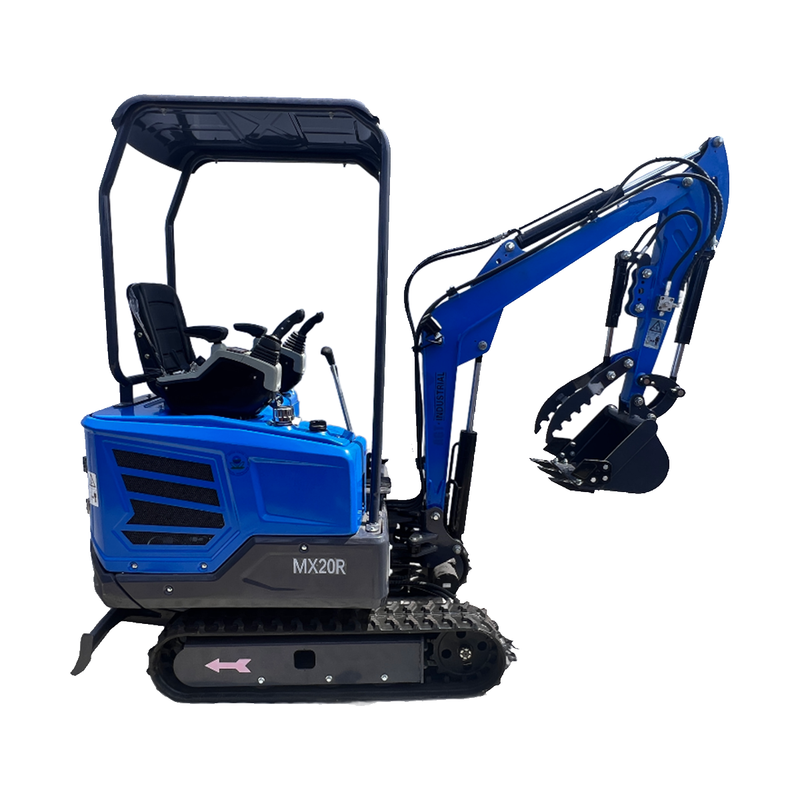

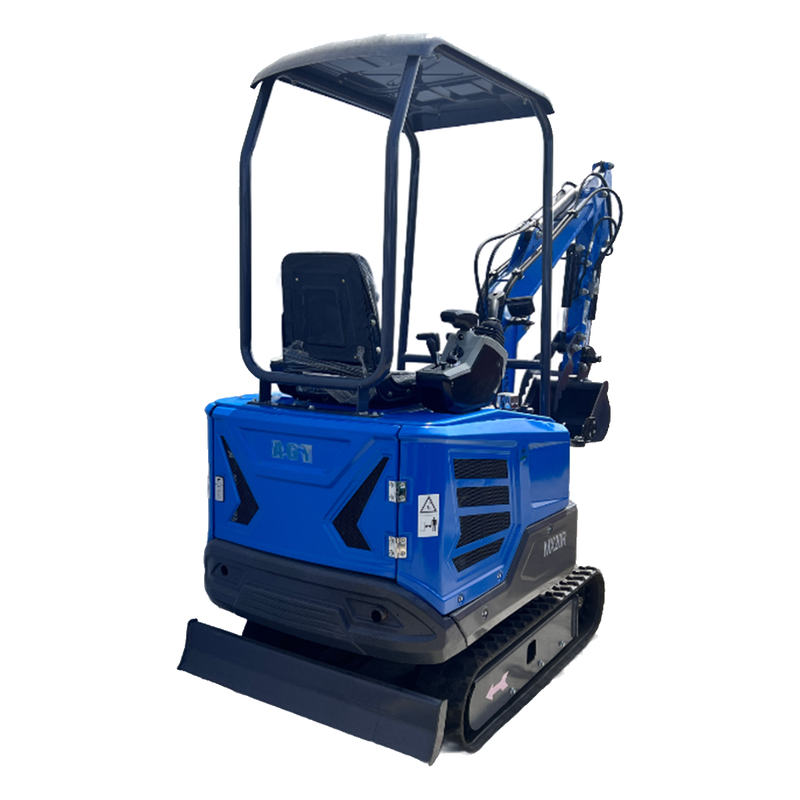

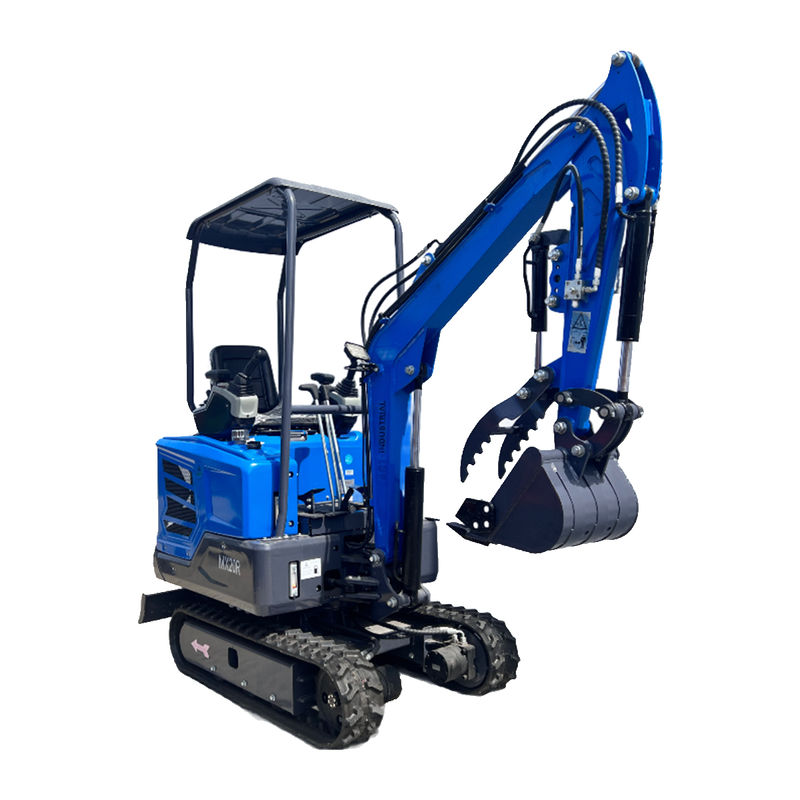

1.2 Ton 23 HP Mini Excavator W/ Hydraulic Thumb | MX20R

Save 5% Save 5%
Original price $7,188.00
Original price $7,188.00 - Original price $7,188.00
Original price $7,188.00
Current price $6,828.60
$6,828.60 - $6,828.60
Current price $6,828.60
Phone Icon
773-927-8098
Sales Contact Number
Phone Icon
agrotkindustrial@gmail.com
Sales Contact Email

Dig, load, and maneuver confidently with the MX20R mini excavator powered by a high-output Rato gasoline engine. Engineered for tight job sites, urban tasks, and precision work, the MX20R delivers excellent digging performance, durable hydraulics, and operator comfort¡ªwithout compromising on power.

Dimension

  • Operating Weight: 1.2 Ton (2,400 lbs)
  • Overall Length: 3,200 mm (126 in)
  • Overall Width: 936 mm (37 in)
  • Overall Height: 2,210 mm (87 in)
  • Track Size: 180*72*41 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 2,257 mm (89 in)
  • Max Digging Height: 2,890 mm (114 in)
  • Max Dumping Height: 1,958 mm (77 in)
  • Max Reach at Ground: 3,305 mm (130 in)
  • Blade Width: 1000 mm (39.5 in)
  • Blade Height: 180 mm (7 in)
  • Blade Max Lifting Height: 288 mm (11 in)
  • Blade Max Drop Depth: 146 mm (5.5 in)

Engine

  • Engine Brand: Rato
  • Fuel Type: Gasoline
  • Model: R740D
  • Rated Power: 17 kW (23 HP)
  • Displacement: 740 cc
  • Fuel Capacity: 8.7 L (2.3 gal)
  • Hydraulic Tank Capacity: 14.2 L (3.7 gal)

Features

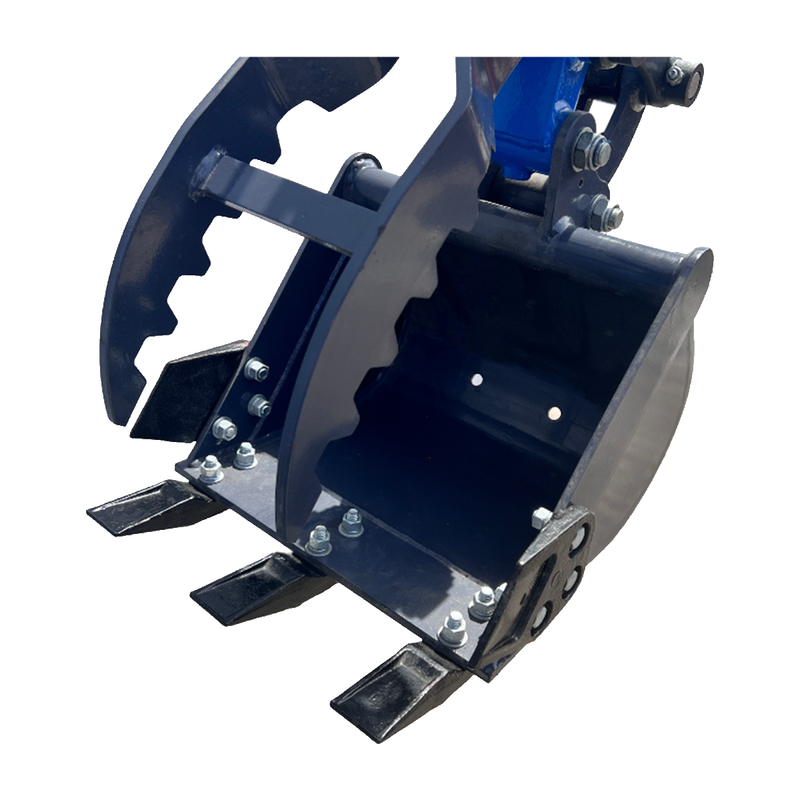

  • Hydraulic Thumb

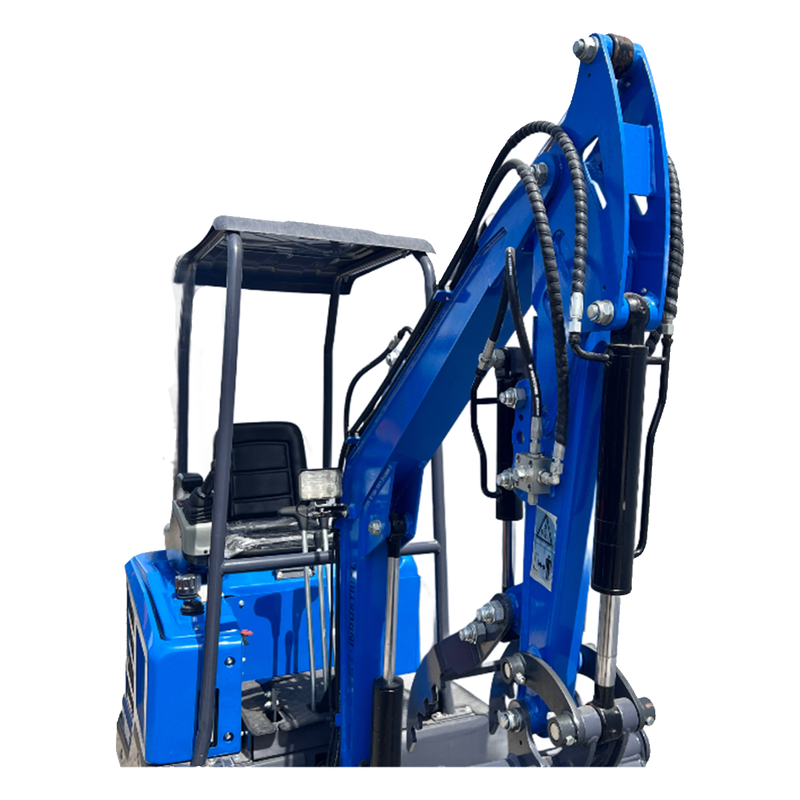

  • Side Swing Boom
  • LED Light
  • Pilot Control
  • 849mm Min. Tail Radius
