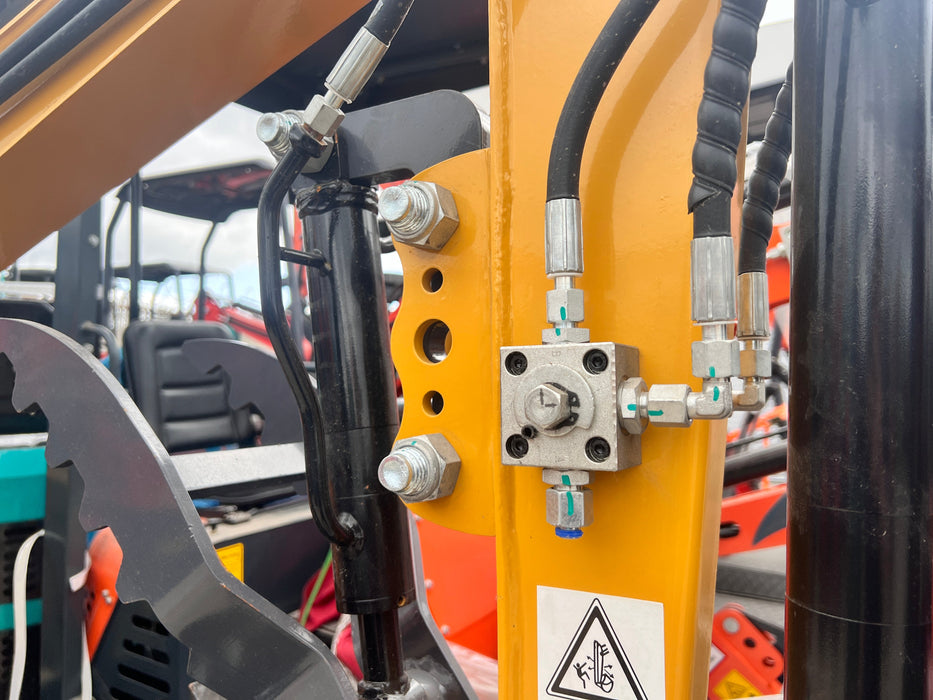

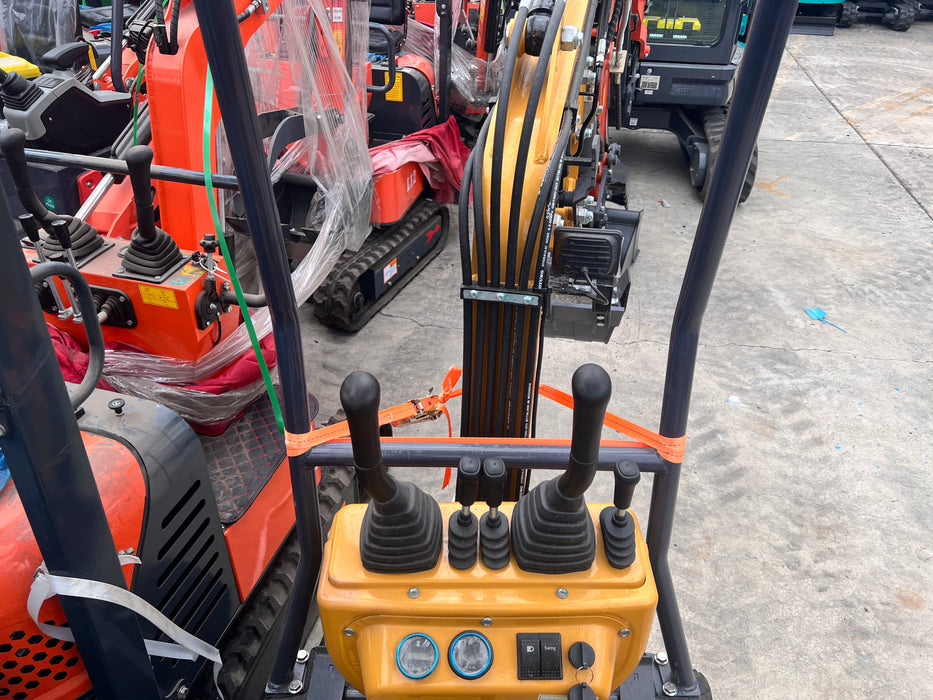

1 Ton, 13.5 HP Gasoline Engine (B&S) Mini Excavator w/ Hydraulic Thumb & Side Swing Boom | AGT-DM12-C

1 Ton, 13.5 HP Gasoline Engine (B&S) Mini Excavator w/ Hydraulic Thumb & Side Swing Boom | AGT-DM12-C

Save 10% Save 10%
$6,899.00
$6,899.00 - $6,899.00
$6,899.00
$6,209.10
$6,209.10 - $6,209.10
$6,209.10
Phone Icon
773-927-8098
Sales Contact Number
Phone Icon
agrotkindustrial@gmail.com
Sales Contact Email

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Equipped with a hydraulic thumb and side swing boom.

Manual

Technical Data:

  • Operation Weight: 0.959 Ton
  • Engine: B&S

  • Max Angle: 30 Degree


Dimension

  • Operating Weight: 0.9 Ton (1,985 lbs)
  • Overall Length: 2,260 mm (89 in)
  • Overall Width: 958 mm (37.7 in)
  • Overall Height: 2,200 mm (86.5 in)
  • Track Size: 180*72*37 (Width*Pitch Length*Link)

Working Range

  • Max Digging Depth: 1,764 mm (69.5 in)
  • Max Digging Height: 2,670 mm (105 in)
  • Max Dumping Height: 1,900 mm (75 in)
  • Max Reach at Ground: 3,400 mm (134 in)
  • Dozer Blade Width: 910 mm (36 in)
  • Dozer Blade Height: 200 mm (8 in)

Engine

  • Engine Brand: B&S
  • Fuel Type: Gasoline
  • Model: XR
  • Rated Power: 10.5 kW (13.5 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Fuel Consumption: 0.5-1.2 L/hr
  • Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
  • Hydraulic Pressure: 16 MPa (2300 PSI)
  • Hydraulic Tank Capacity: 18 L (4.8 gal)
  • Traveling Hydraulic Motor Type: BM6-310
  • Rotary Hydraulic Motor Type: BM2-250
  • Battery: 12V, 45–60Ah

Features

  • Swing Boom
  • Hydraulic Thumb
  • LED Worklight
  • Foot Pedal
