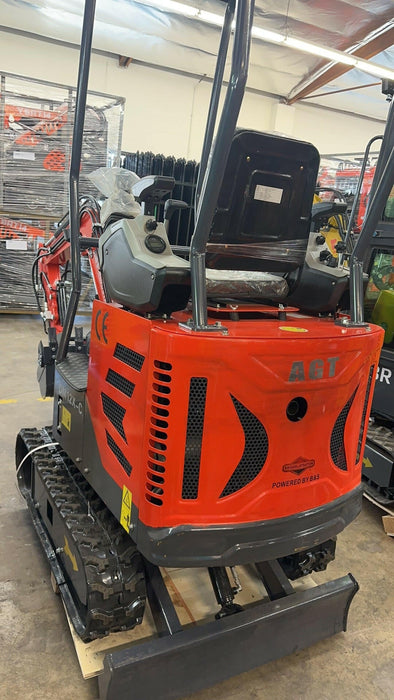

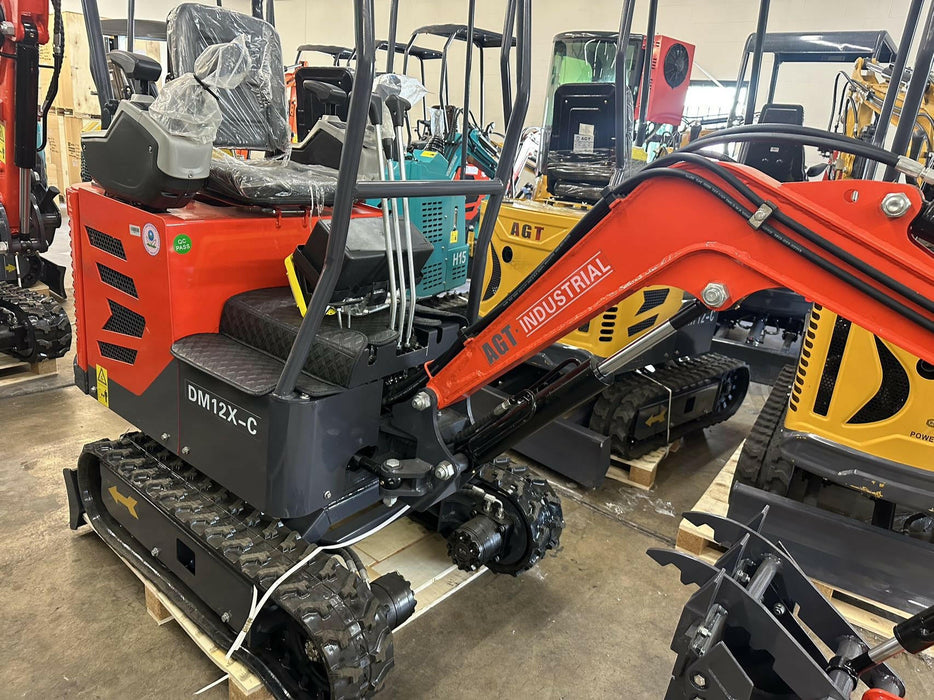

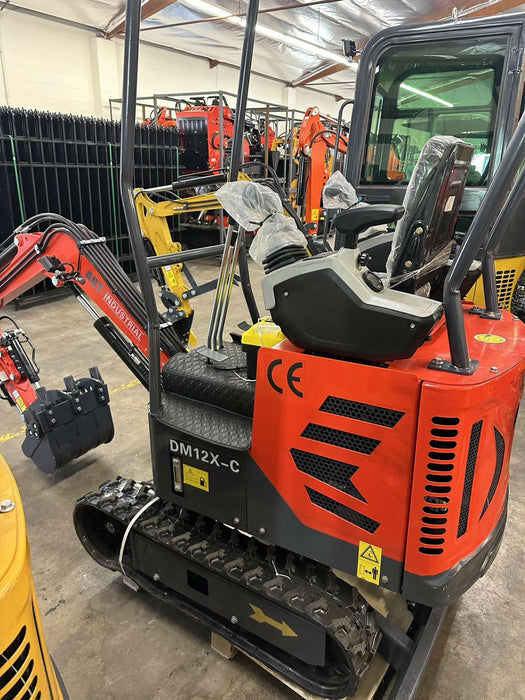

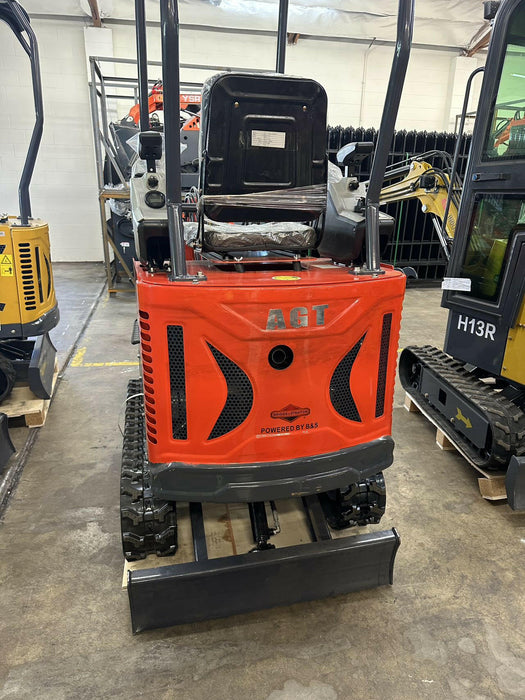

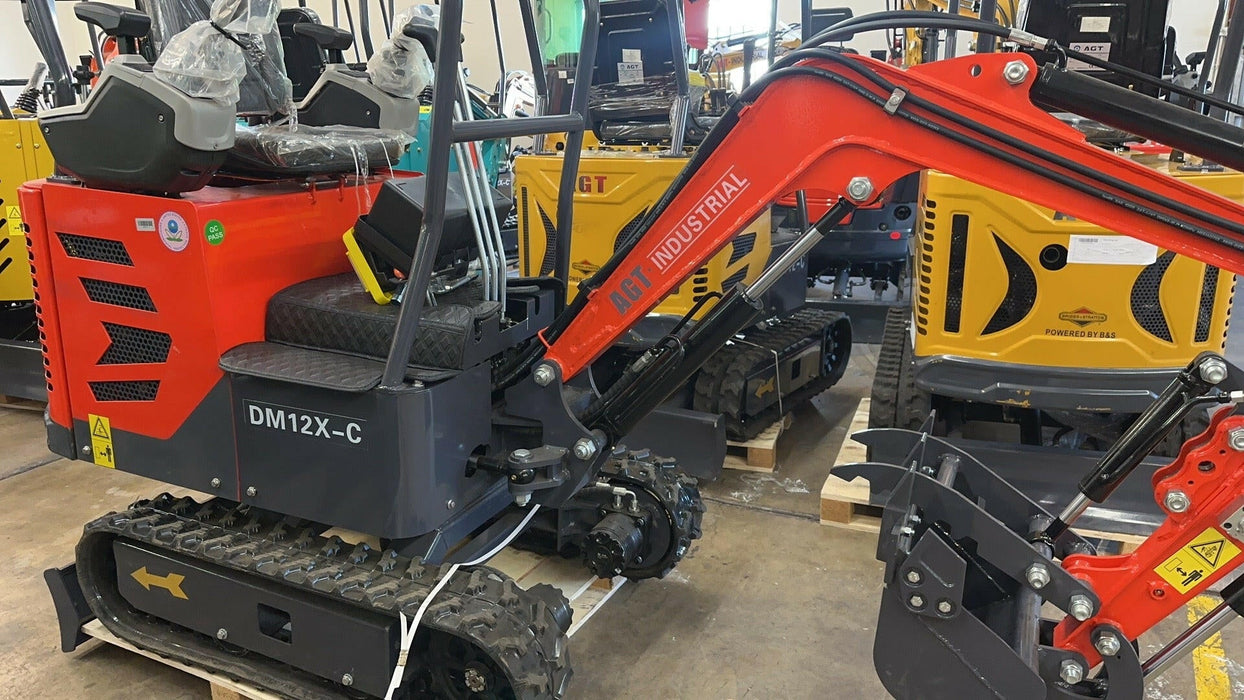

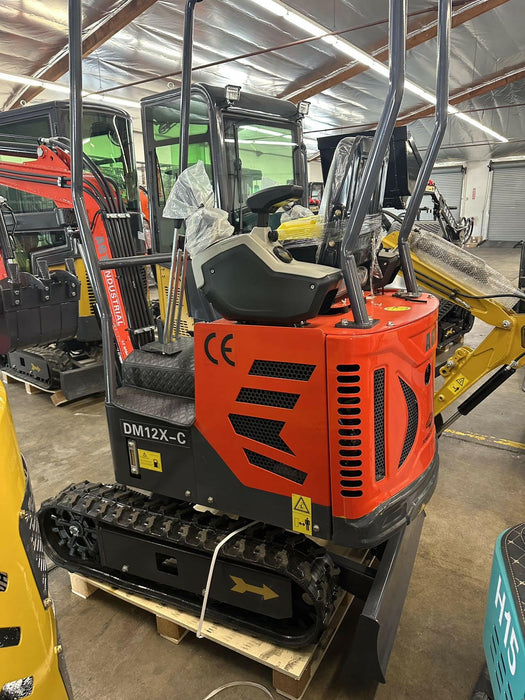

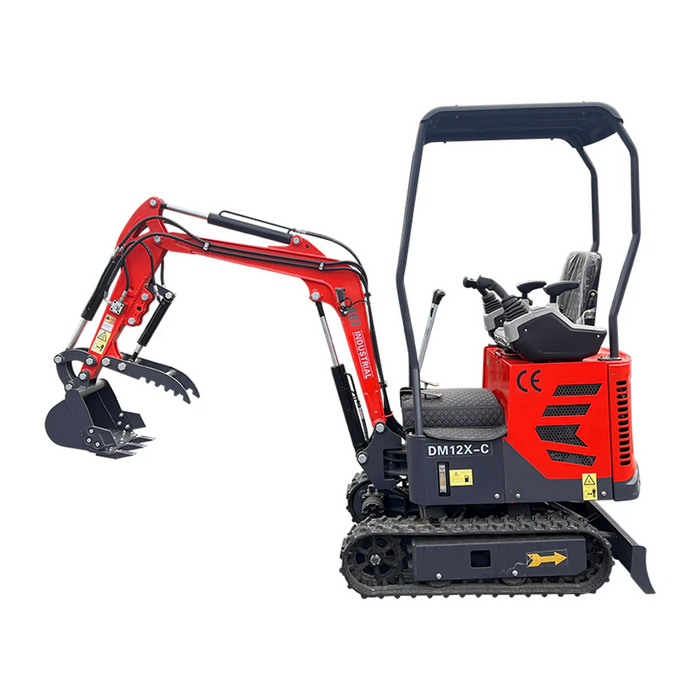

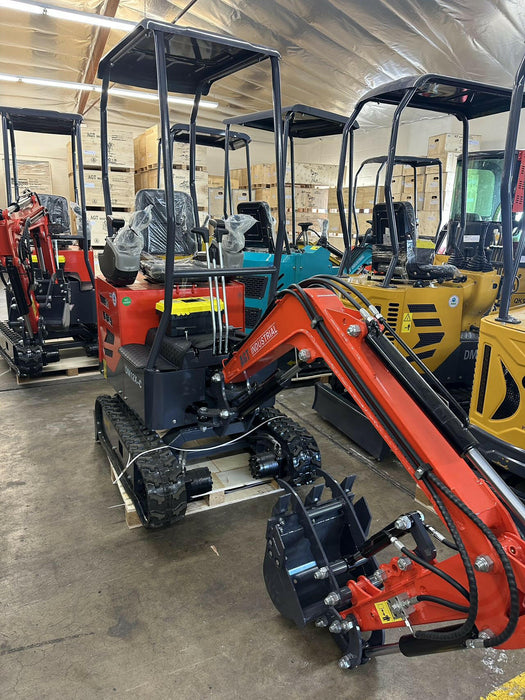

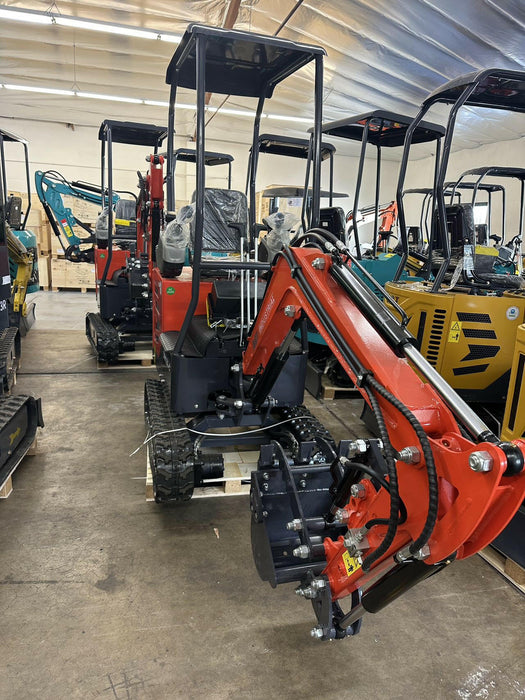

1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb | AGT-DM12X-C

1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb | AGT-DM12X-C

Save 10% Save 10%
$7,699.00
$7,699.00 - $7,699.00
$7,699.00
$6,929.10
$6,929.10 - $6,929.10
$6,929.10
Phone Icon
773-927-8098
Sales Contact Number
Phone Icon
agrotkindustrial@gmail.com
Sales Contact Email

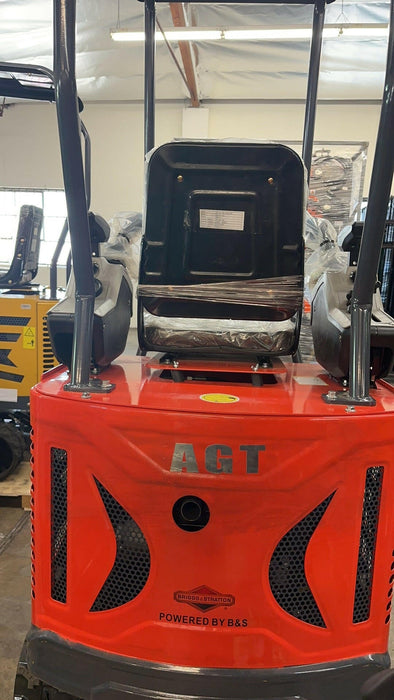

The DM 12X-C is a cutting-edge mini excavator with upgraded components to eliminate overheating issues. It's an upgrade from our QH12 and H12 with a side swing boom, pilot controls and hydraulic thumb. Enjoy easy maintenance with convenient back bay engine access.

In Action Video

Technical Data:

  • Operation Weight: 1.1 Ton
  • Engine: B&S
  • Max Angle: 30 Degree

Dimension

  • Operating Weight: 1.1 Ton (2,425 lbs)
  • Overall Length: 2,260 mm (89 in)
  • Overall Width: 965 mm (38 in)
  • Overall Height: 2,210 mm (87 in)
  • Track Size: 180*72*37 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 1,753 mm (69 in)
  • Max Digging Height: 2,667 mm (105 in)
  • Max Dumping Height: 1,905 mm (75 in)
  • Max Reach at Ground: 3,073 mm (121 in)
  • Dozer Blade Width: 900 mm (35 in)
  • Dozer Blade Height: 200 mm (8 in)

Features

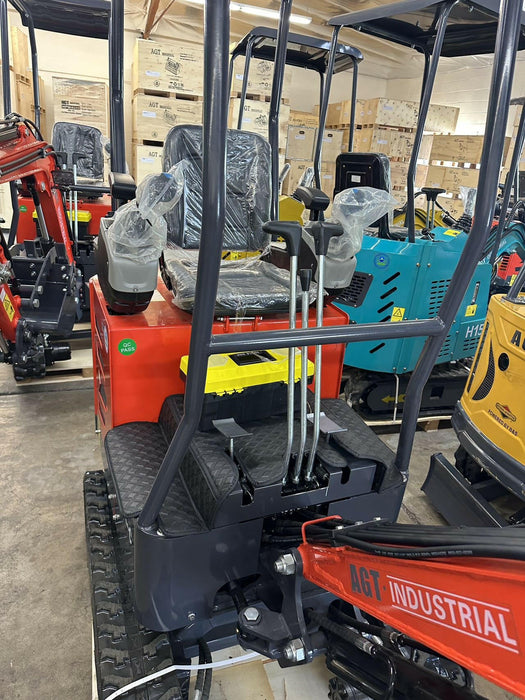

  • Pilot Control
  • Swing Boom
  • Hydraulic Thumb

Engine

  • Engine Brand: B&S
  • Fuel Type: Gasoline
  • Model: XR
  • Rated Power: 10 kW (13.3 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Fuel Consumption: 0.5-1.2 L/hr
  • Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
  • Hydraulic Pressure: 16 MPa (2320 PSI)
  • Hydraulic Tank Capacity: 18 L (4.75 gal)
  • Travel Hydraulic Motor Type: BM6-310
  • Swing Hydraulic Motor Type: BM2-250
