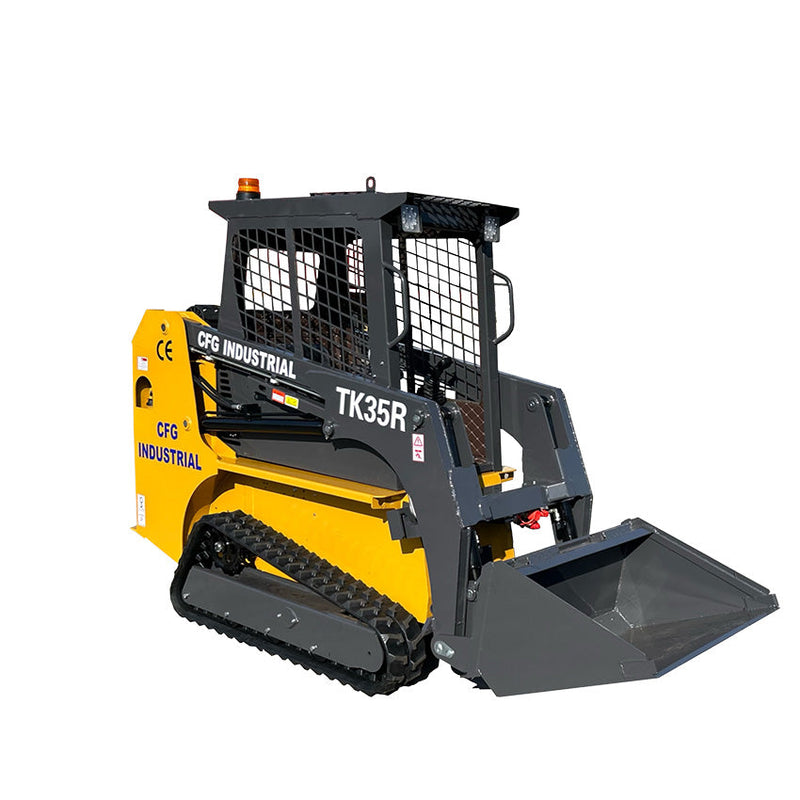

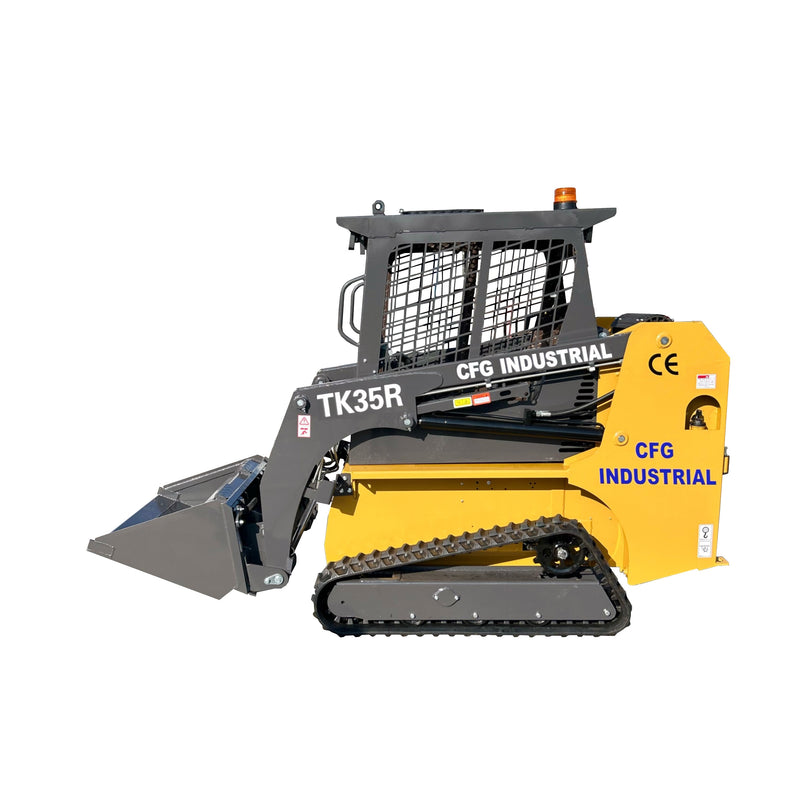

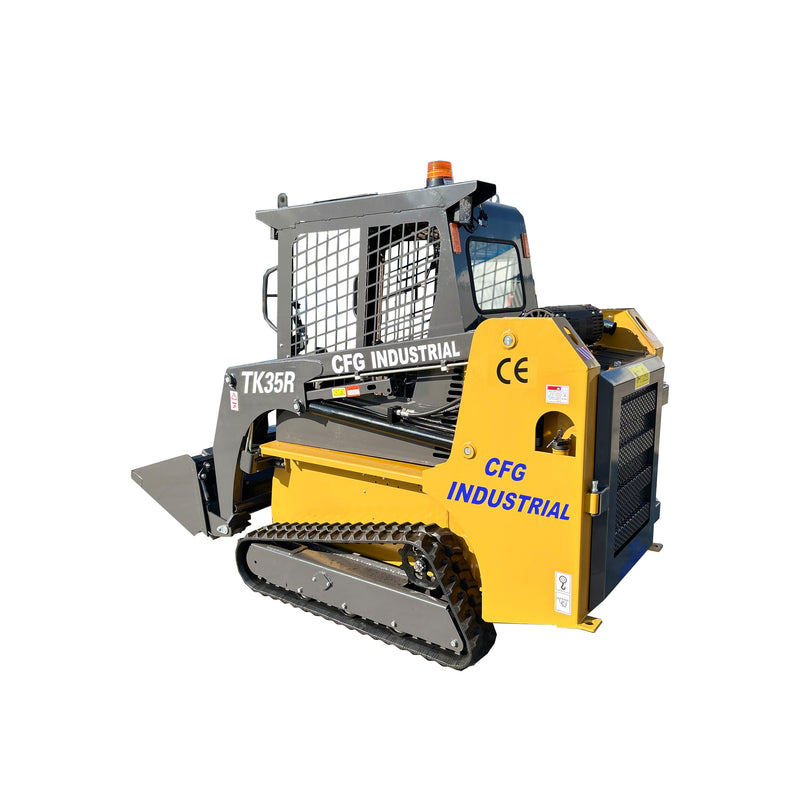

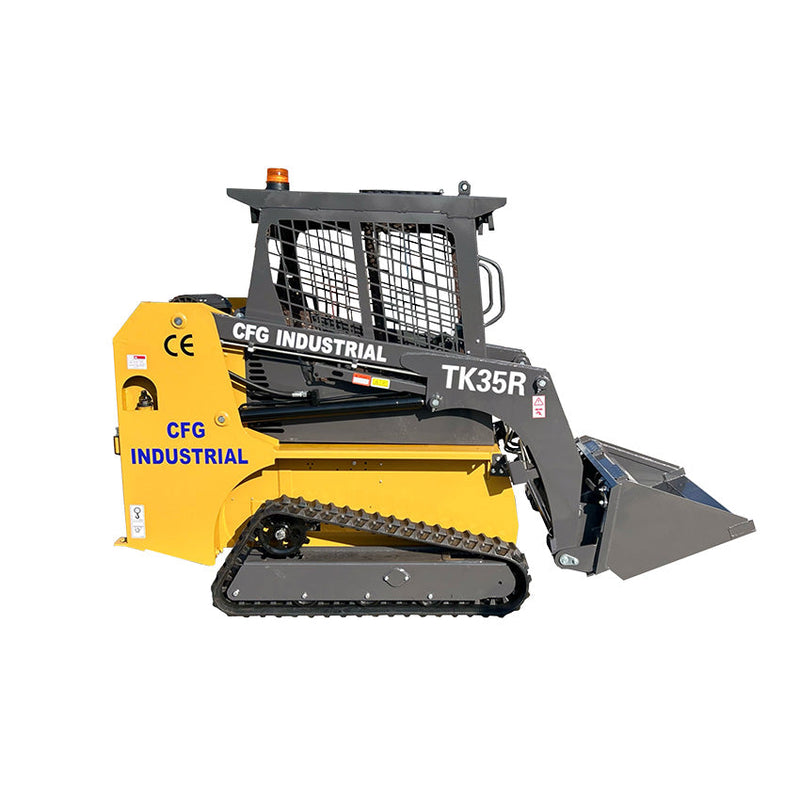

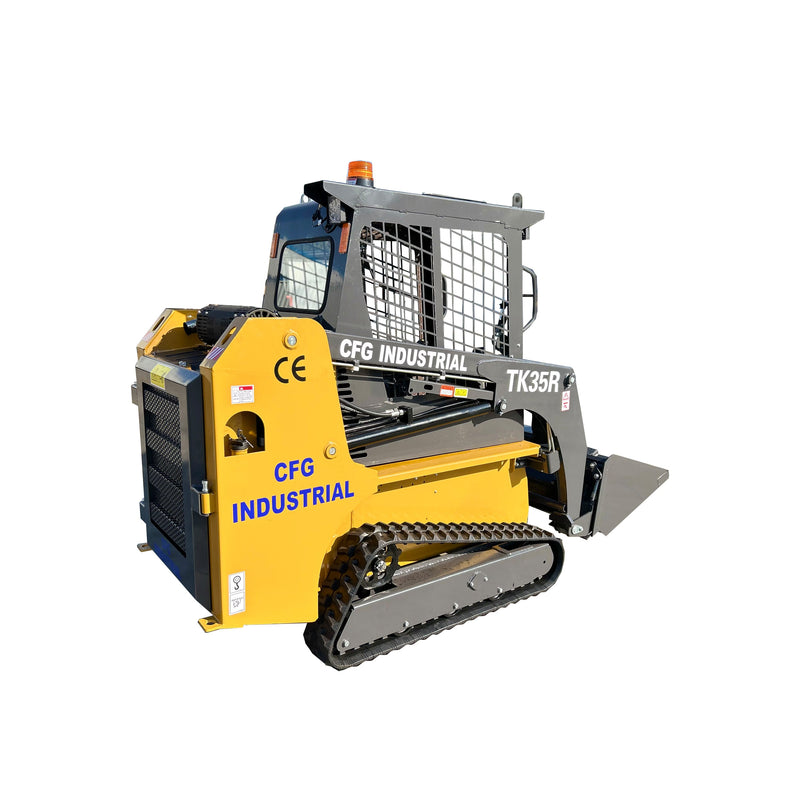

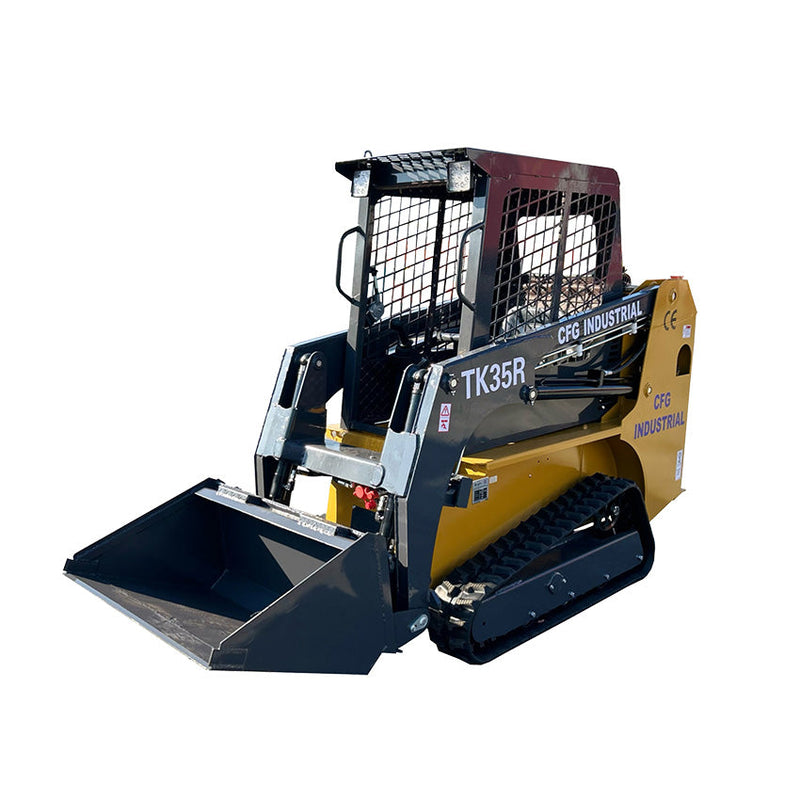

1.5 Ton, RATO Engine Skid Steer | CFG-TK35R

The AGT TK35R is a compact and powerful skid steer loader engineered for tight job sites and versatile operations. With a 1,550 kg operating weight, 380 kg lift force, and a 0.16 m³ bucket, it’s ideal for landscaping, site prep, and farm use. The TK35R features a high-discharge bucket with a 40° tipping angle, making it efficient for loading and dumping.

Technical Data:

• Bucket Capacity: 0.16 m³

• Max Lifting Force: 380 kg

• Max Working Height: 3,686 mm

• Max Unloading Height: 1,933 mm

• Reach at Max Unloading Height: 650 mm

• Wheelbase: 1,127 mm

• Ground Clearance: 145 mm

• Bucket Discharge Angle: 40°

DIMENSION

• Operating Weight: 1.5 Ton (3,307 lb)
• Overall Length: 2,911 mm (114.5 in)

• Overall Width: 912 mm (36 in)

• Overall Height: 910 mm (36 in)

• Bucket Width: 914 mm (36 in)

• Bucket Capacity: 0.16 m³ (0.2 yd³)
• Tracks Size: 200*72*45 (W*P*L)

WORKING RANGE

• Max Working Height: 3,686 mm (145 in)
• Max Unloading Height: 1,933 mm (76 in)
• Max Lifting Force: 380 kg (838 lb)
• Max Travel Speed: 9 km/h (5.6 mph)

ENGINE

• Brand / Model: Rato 999D
• Fuel Type: Gasoline
• Max Power: 18.2 kW (24.4 HP)
• Displacement: 999 cc
• Fuel Tank: 28 L (7.4 gal)
• Hydraulic Tank Capacity: 40 L (10.5 gal)
