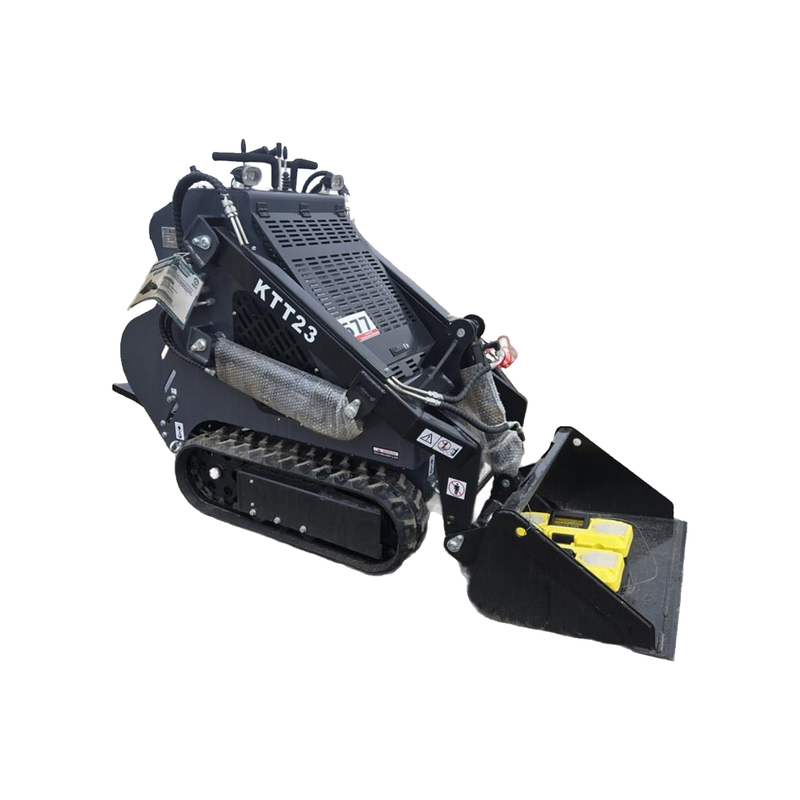

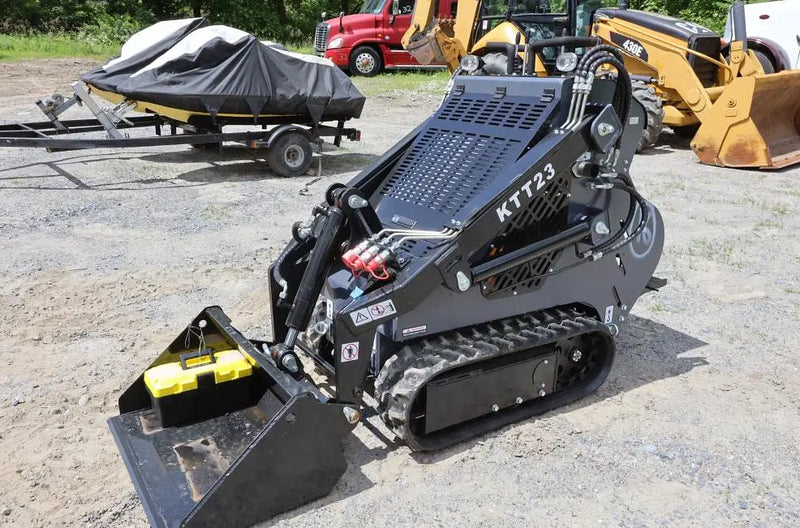

1 Ton, RATO Engine Mini Stand On Skid Steer Track Loader | AGT-KTT23
Save 10%
Original price
$6,598.00
Original price
$6,598.00
-
Original price
$6,598.00
Original price
$6,598.00
Current price
$5,938.20
$5,938.20
-
$5,938.20
Current price
$5,938.20
773-927-8098
Sales Contact Number
agrotkindustrial@gmail.com
Sales Contact Email
The compact and powerful skid steer features a maximum load capacity of 220 kg, a bucket capacity of 0.15 m³, and a RATO gasoline engine with 16.8KW output power.
DIMENSION
- Operating Weight: 0.9 Ton (1,800 lbs)
- Overall Length: 2,160 mm (85 in)
- Overall Width: 1,270 mm (50 in)
- Overall Height: 889 mm (35 in)
- Bucket Width: 890 mm (35 in)

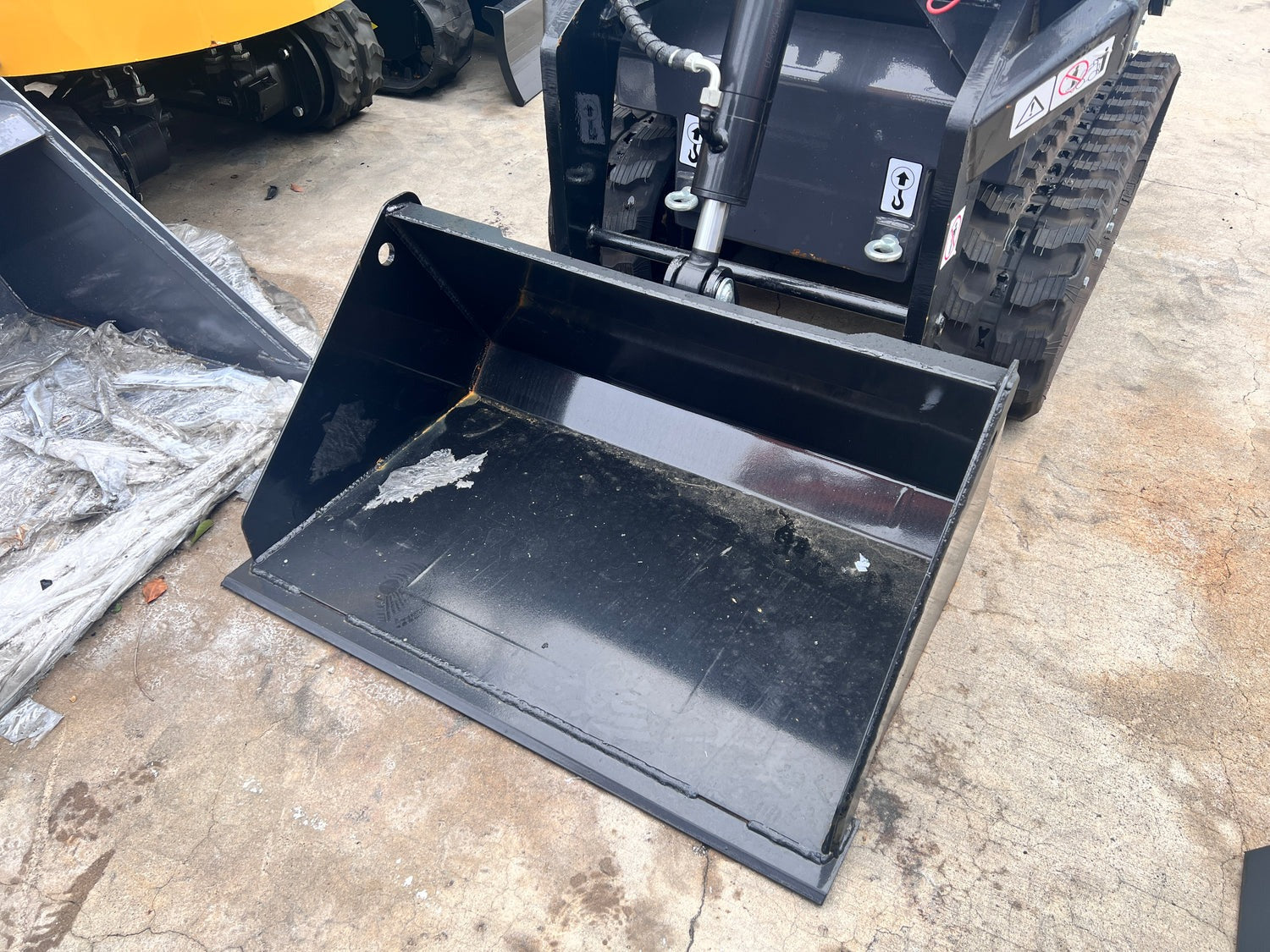

- Bucket Capacity: 0.12 m³ (0.16 yd³)
- Track Size: 200*72*32 (Width*Pitch Length*Links)
WORKING RANGE
- Max Working Height: 2,450 mm (96.5 in)
- Max Unloading Height: 1,428 mm (56 in)
- Max Lifting Force: 220 kg (485 lb)

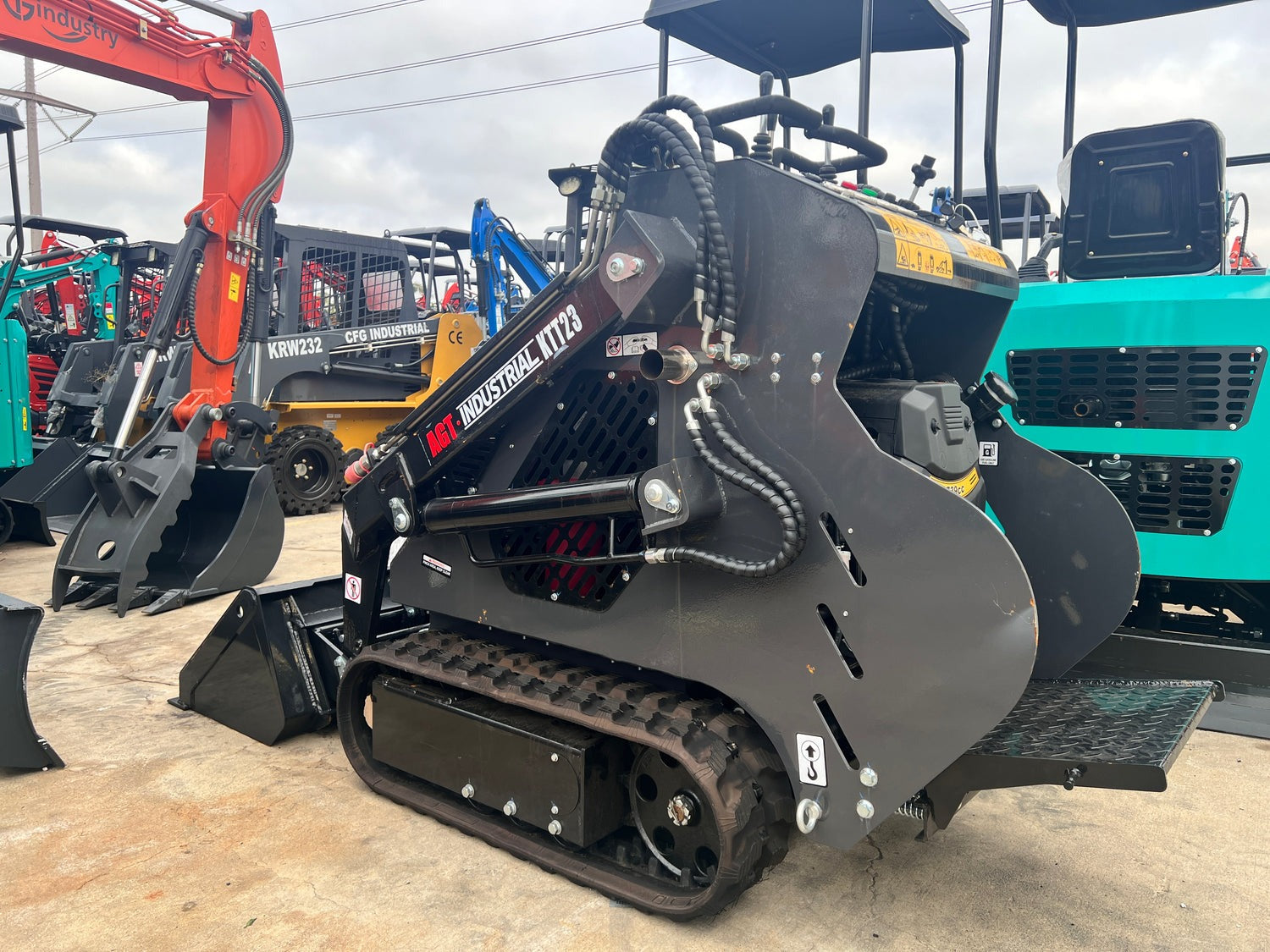

- Travel Speed: 5.5 km/h (3.4 mph)
ENGINE

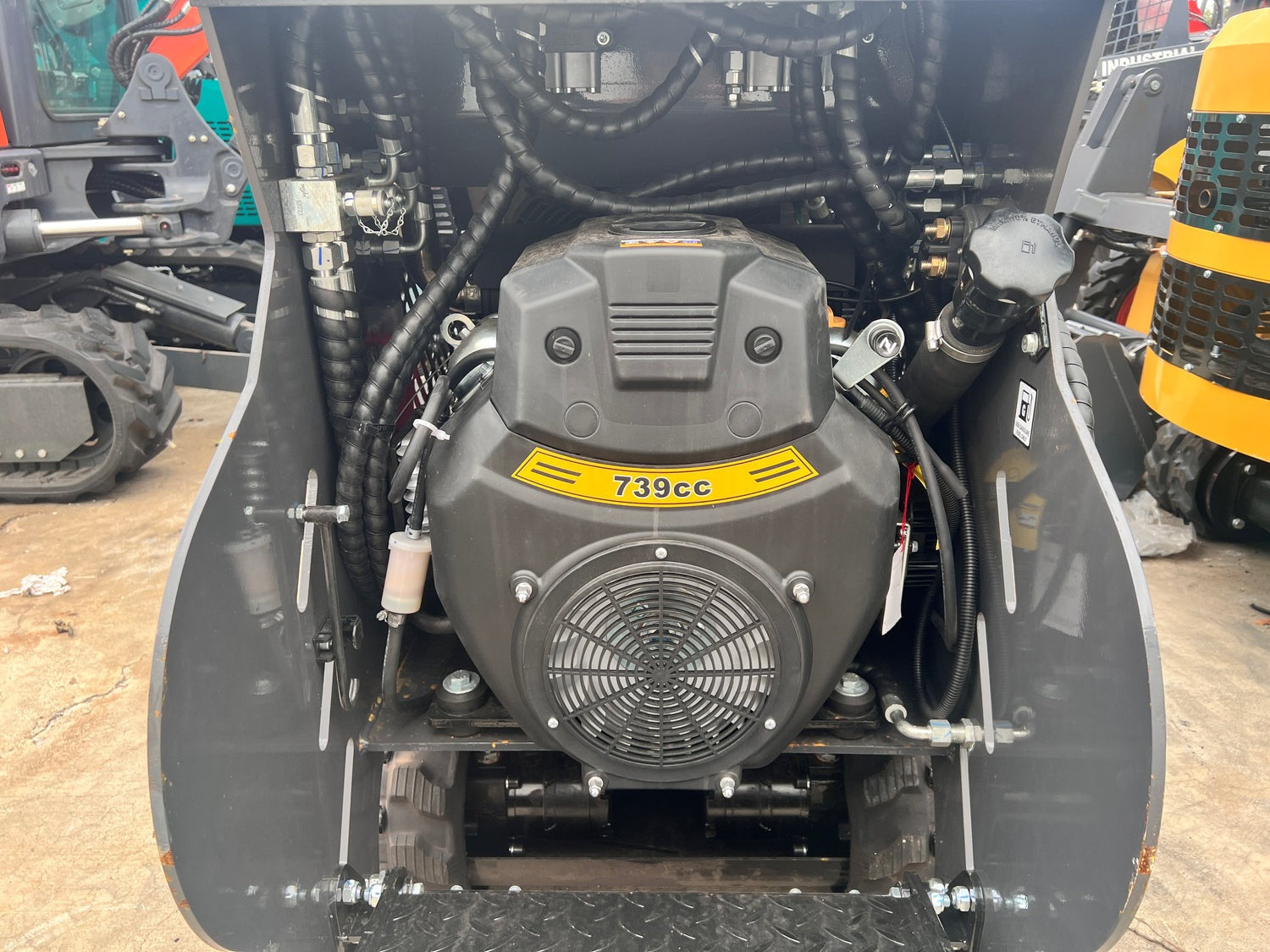

- Brand / Model: Rato R740D
- Fuel Type: Gasoline
- Max Power: 17 kW (23 HP)
- Displacement: 740 cc
- Fuel Tank: 25 L (6.6 gal)
- Hydraulic Flow Rate: 43.2 L/min (11.4 GPM)
- Hydraulic Pressure: 16 MPa (2,320 PSl)
- Hydraulic Tank Capacity: 25 L (6.6 gal)
FEATURES
- R740D Engine
- PGP51088G3LP 2-Stage Pump

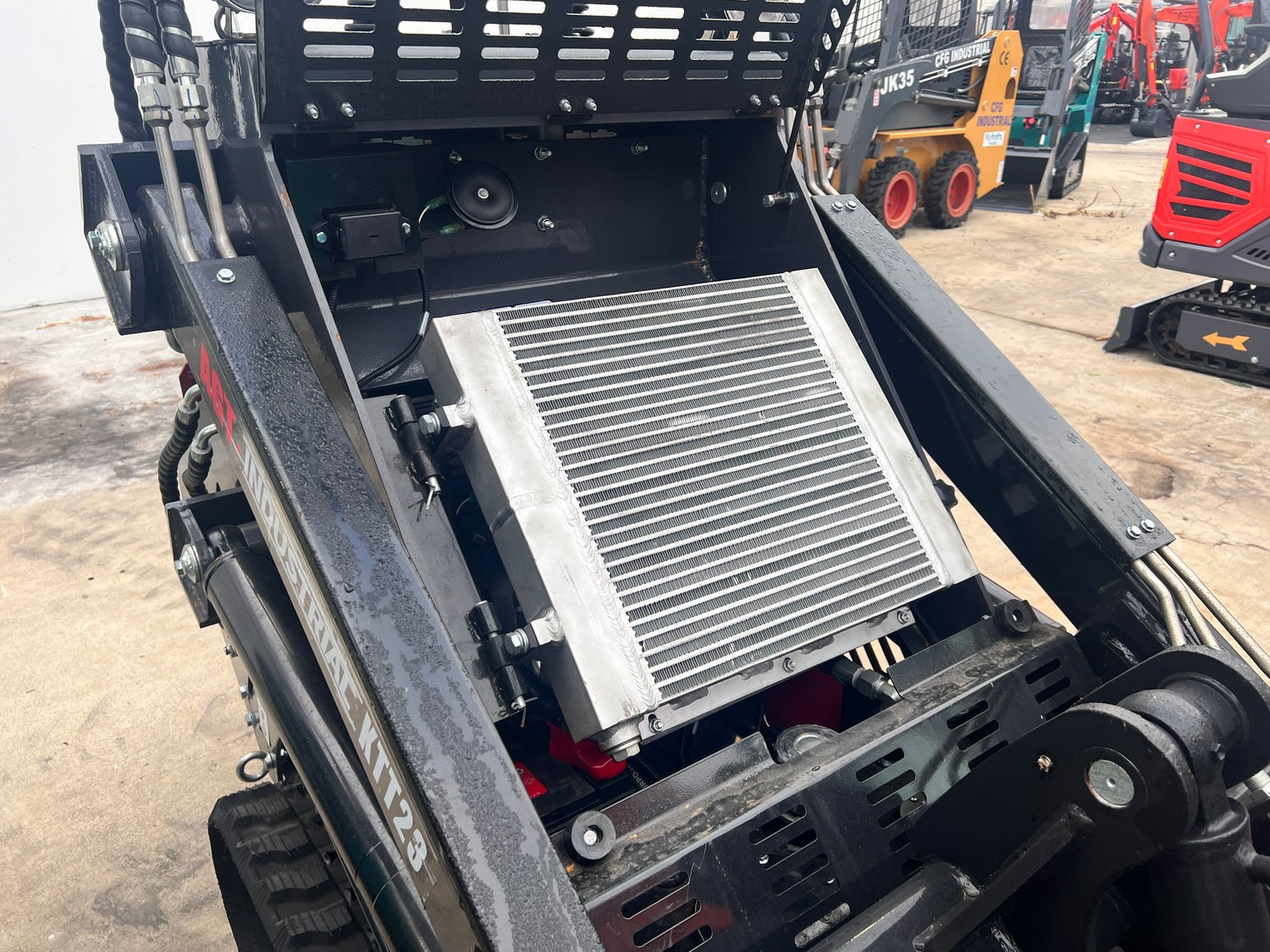

- ORMSR23 Hydraulic Cooler
- Toro Dingo mounting plate
