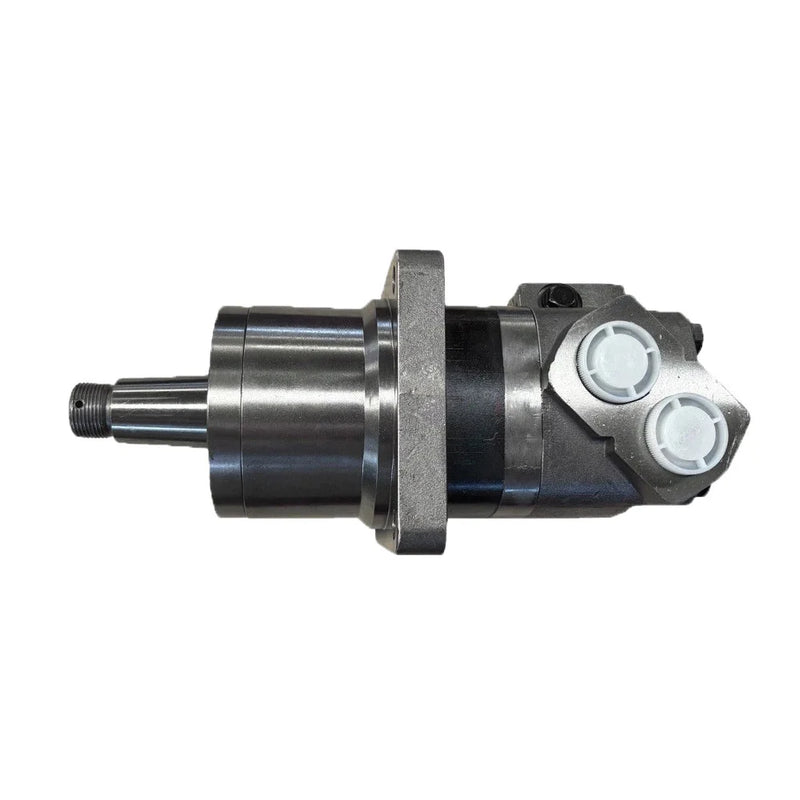

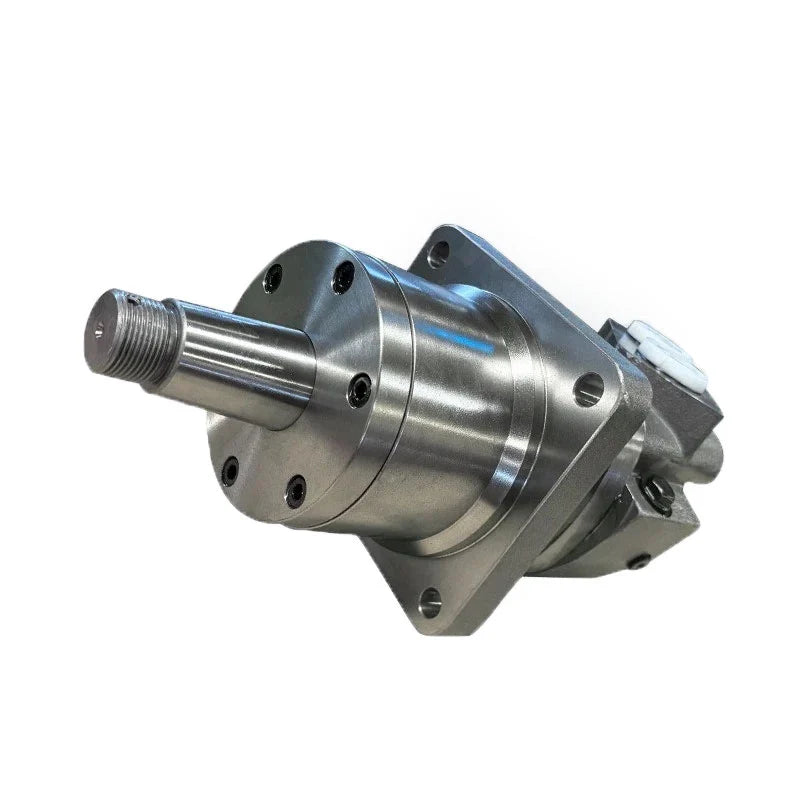

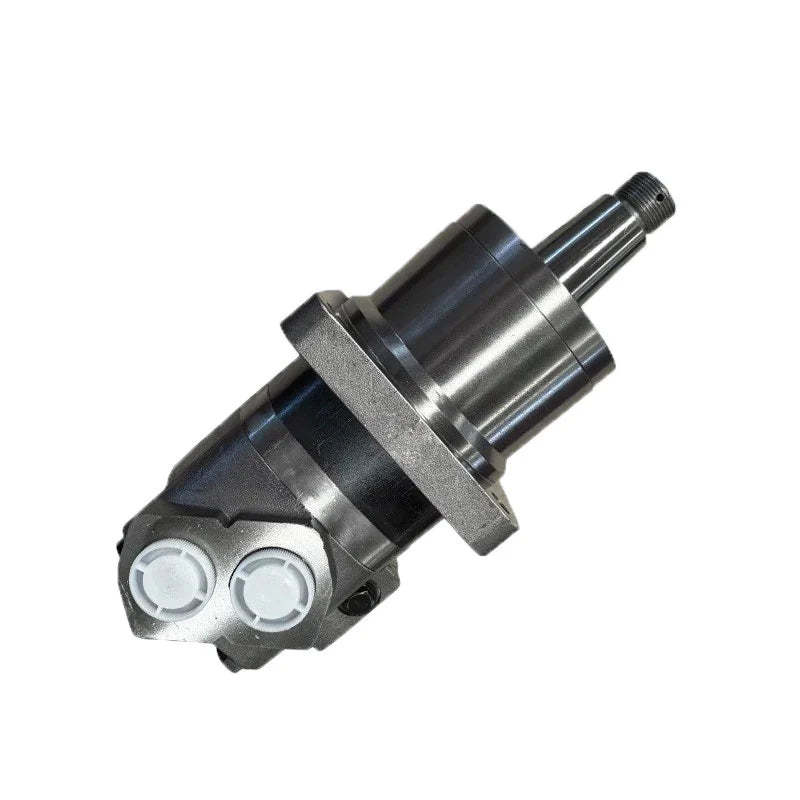

AGT 630cc Low Speed High Torque Cycloid Motor | BXMD-BM6-630
The BM6-630 Series Orbital Hydraulic Motor is an advanced, heavy-duty disc valve (end-flow distribution) cycloid motor engineered for demanding high-pressure, high-torque applications. Utilizing an insert-column rotating stator/rotor design, this motor features exceptionally high working efficiency, a low starting pressure, and stable low-speed performance.
Equipped with robust tapered roller bearings on the output shaft, the BM6-630 can withstand substantial axial and radial forces, allowing it to directly drive heavy machinery mechanisms without extra support bearings. It is the ultimate heavy-duty powertrain component for agricultural, construction, and industrial machinery.
Key Features
-
High Torque & Deep Displacement (630cc): Delivers continuous, smooth, pulsated-free rotational force even at extremely low RPMs.
-
Superior Loading Capacity: Dual tapered roller bearings allow the motor to bear massive radial and axial loads, ideal for heavy vehicle traction and direct attachment drives.
-
Advanced Shaft Seal Design: Engineered to tolerate high back-pressure capacity, reducing the need for external drain lines in standard setups.
-
Bidirectional Rotation: Delivers identical torque and seamless efficiency in both clockwise (CW) and counter-clockwise (CCW) operations.
Technical Specifications
| Item / Parameter | Specification / Value |
| Model | BXMD-BM6-630 / BM6-630 |
| Motor Type | Disc Valve, Geroler / Cycloid Orbital Motor |
| Displacement | 623 cc/rev ~ 630 cc/rev (38.01 in³ / rev) |
| Max Speed (RPM) | Continuous: 240 RPM | Intermittent: 360 RPM |
| Max Torque | Continuous: 1,200 ~ 1,380 N·m (10,723 in·lbf) |
| Max Flow Rate | Continuous: 150 L/min | Intermittent: 225 L/min |
| Max Pressure Drop | Continuous: 120-140 Bar | Intermittent: 170-200 Bar |
| Net Weight | Approx. 30 kg (66 lbs) |

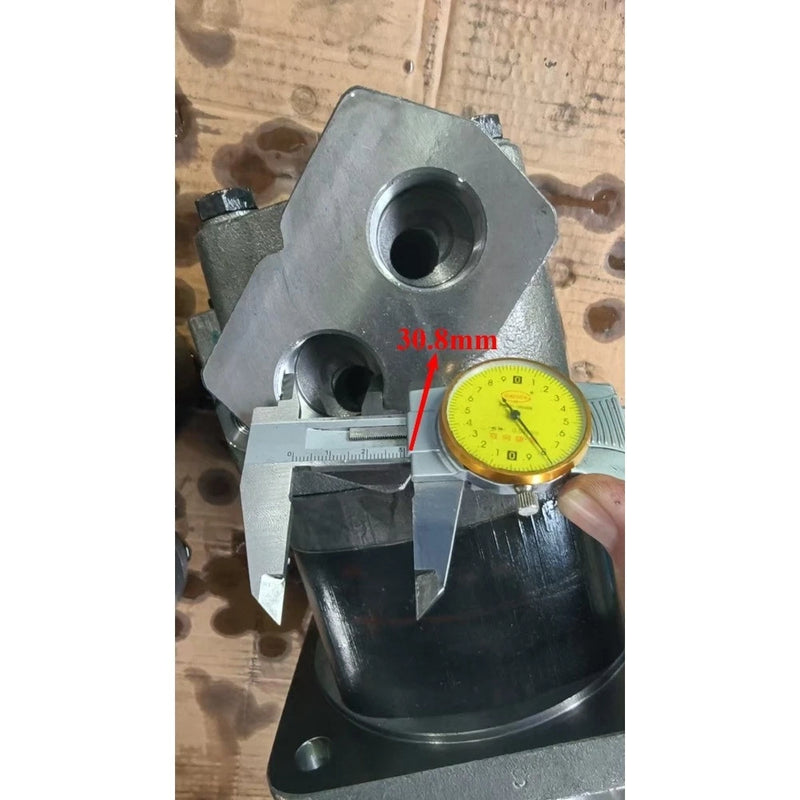

| Standard Ports | G 3/4" or SAE-16 (Depending on final batch configuration) |
| Drain Port | G 1/4" or SAE-6 |
