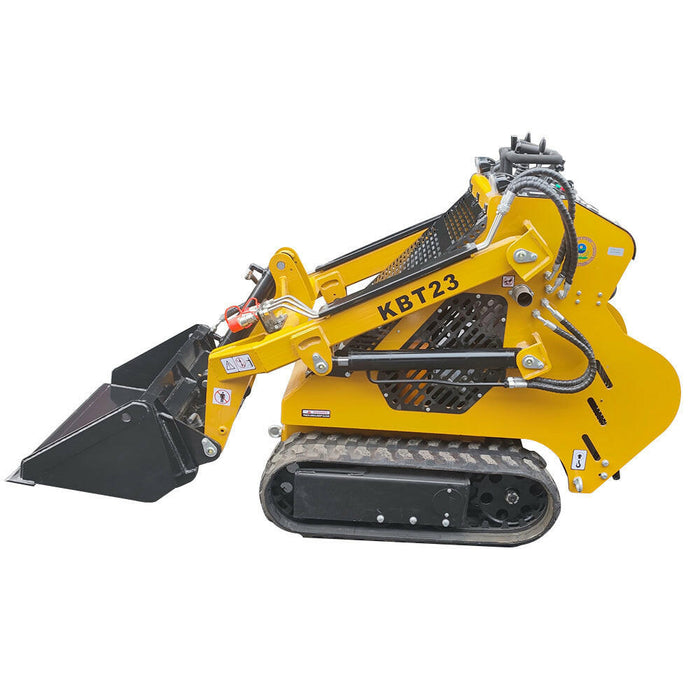

1 Ton, Mini Stand On Skid Steer Track Loader | CFG-KBT23
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$7,699.00
$7,699.00
-
$7,699.00
Current price
$7,699.00
Learn about the KBT23 mini skid steer loader - a versatile power loader tailored to accomplish challenging tasks in tight spaces! This powerful machine is a compact 860kg machine that can effortlessly maneuver through tight project areas at speeds of up to 5.5km/hour and conquer slopes of up to 30¡ã.
Technical Data:
- Operation Weight: 0.95 Ton
- Engine: B&S
- Max Angle: 30 Degree
Specific Data:
| Max Load Capacity | 200 kg |
| Bucket Capacity | 0.15 m3 |
| Maximum Lift | 375 kg |
| Traveling Speed | 0-5.5 km/h |
| Rated Pressure | 16Mpa |
| Lifting Time | 4.3 s |
| Descent Time | 3.3 s |
| Tipping Time? | 1.5 s |
| Maximum Angle of the climb | 30¡ã |
| Total Weight | 860 kg |
Engine parameter
| Engine | B&S engine |
| Engine type | gasoline, V-double cylinder |
| Output power | 16.8KW(23HP)/3600rpm |
| Fuel consumption | ¡Ü6.7 L/h |
| Starting mode | Electric start |
Tank capacity
| Fuel Tank Capacity | 25 L |
| Hydraulic Tank Capacity | 25L |
| Engine oil tank capacity | 1.7 L |
