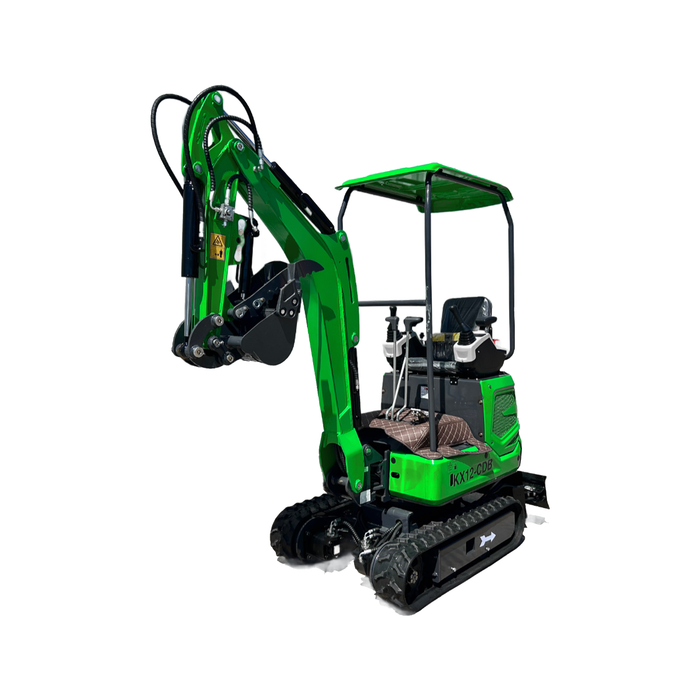

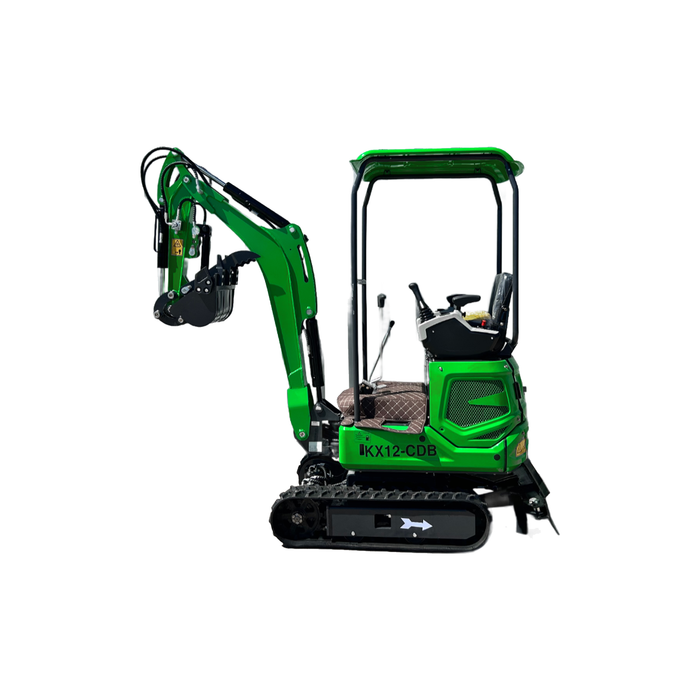

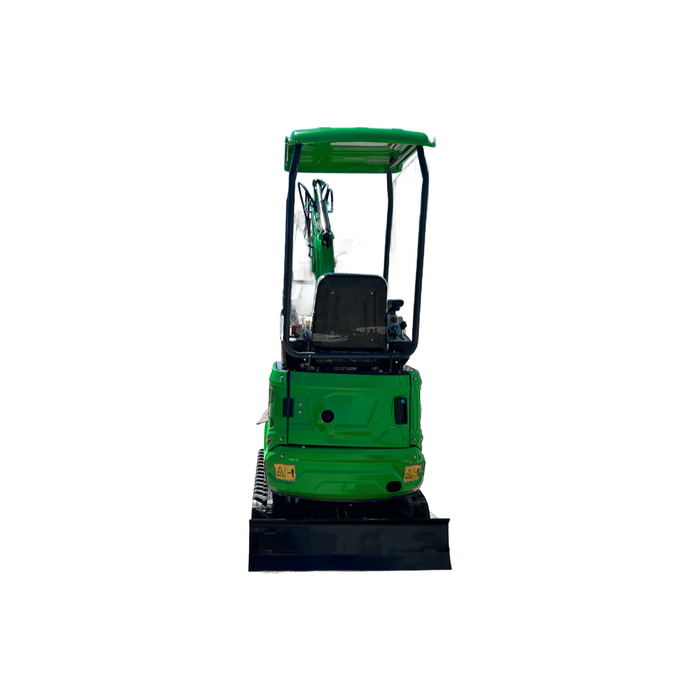

1 Ton, B&S Engine Mini Small Excavator w/ Retractable Tracks & Hydraulic Thumb | KX12-CDB

1 Ton, B&S Engine Mini Small Excavator w/ Retractable Tracks & Hydraulic Thumb | KX12-CDB

Save 11% Save 11%
$5,300.00
$5,300.00 - $5,300.00
$5,300.00
$4,699.00
$4,699.00 - $4,699.00
$4,699.00

The AGT-KX12-CD(B) is a side-swing capable mini excavator powered by a reliable 13.5 HP Briggs & Stratton gasoline engine. Built for maneuverability and light construction work, it offers increased digging reach, a 0.03 m3 bucket, and a compact design suited for tight-access job sites. dual blade lifting functions, and a simple hydraulic system, the KX12-CD(B) delivers essential performance in an affordable, easy-to-maintain package.

  • Bucket Capacity 0.03 m3
  • Climbing Ability 11%
  • Tail Minimum Turning Radius 800 mm

Dimension

  • Operating Weight: 0.9 Tons (1,984 lbs)
  • Overall Length: 3,240 mm (127.5 in)
  • Overall Width: 990 mm (39 in)
  • Overall Height: 2,200 mm (86.5 in)
  • Track Size: 180*72*37 (Width*Pitch Length*Links)

Working Range

  • Max Digging Height: 2,900 mm (114 in)
  • Max Dumping Height: 2,100 mm (82.5 in)
  • Max Reach at Ground: 3,250 mm (128 in)
  • Blade Width: 950 mm (37 in)
  • Blade Height: 230 mm (9 in)
  • Blade Max Lifting Height: 190 mm (7.5 in)
  • Blade Max Drop Depth: 190mm (7.5 in)

Engine

  • Engine Brand: B&S
  • Fuel Type: Gasoline
  • Model: XR
  • Rated Power: 10 kW (13.3 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
  • Hydraulic Pressure: 16 MPa (2320 PSI)
  • Hydraulic Tank Capacity: 18 L (4.7 gal)
  • Battery: 12V, 45–60Ah

Features

  • Swing Boom
  • Hydraulic Thumb
  • Pilot Control
  • Expandable Tracks
