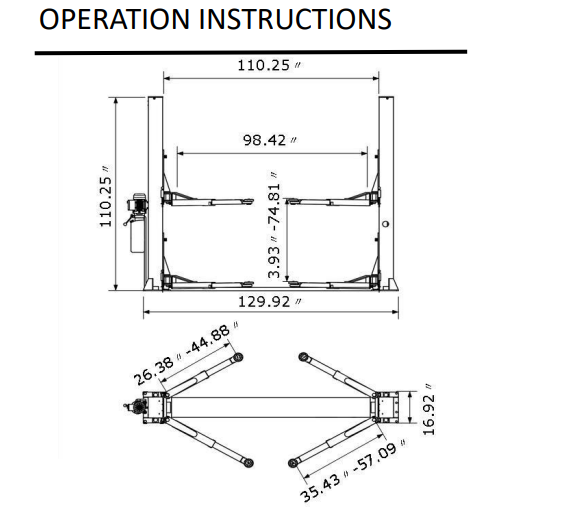

Note: The standard arm length ranges from 26.38" to 44.88". A longer arm length option (35.53" to 57.09") is available upon request as a custom order.
Specifications
Maximum Lifting Height-72"
Maximum Working Width-100"
Minimum Height-4-1/2"
TL Certified Motor 3 HP-220V
No Load Speed-3360 RPM
Maximum Working Pressure-2600 PSI
Fuel Tank Capacity-11 Liter
ISO certification
Packed with boxes A and B
Details
1. 2 of-Stage arms and 2 of 3-Stage arms

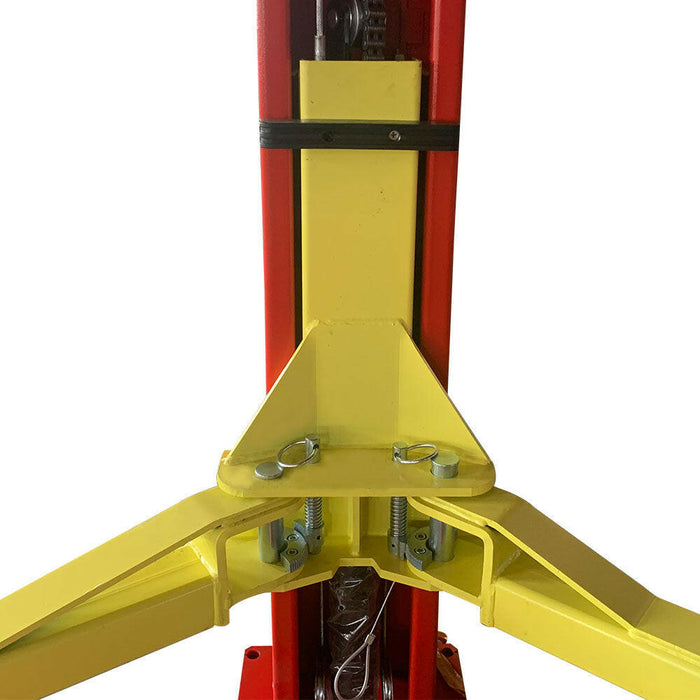

2. Whole-Plate structure reinforced carriage
3. Service (inspection) hole

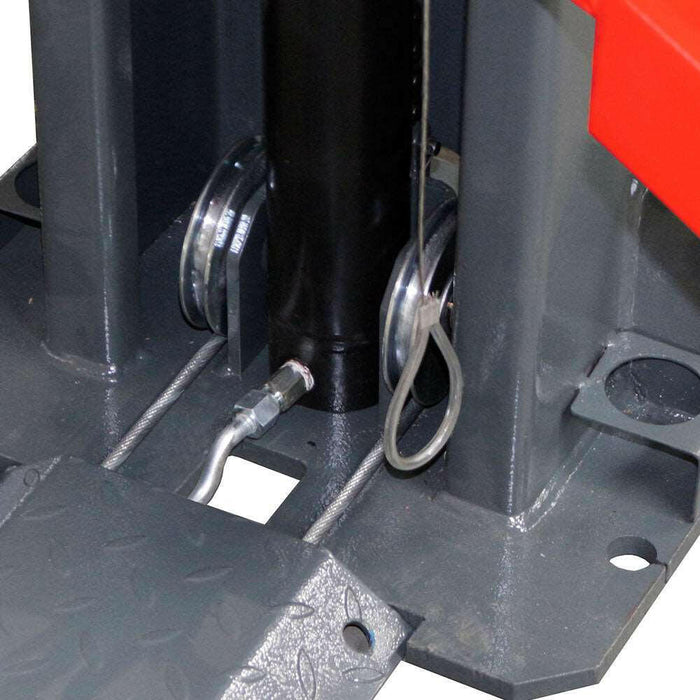

4. Over-Sized pulley

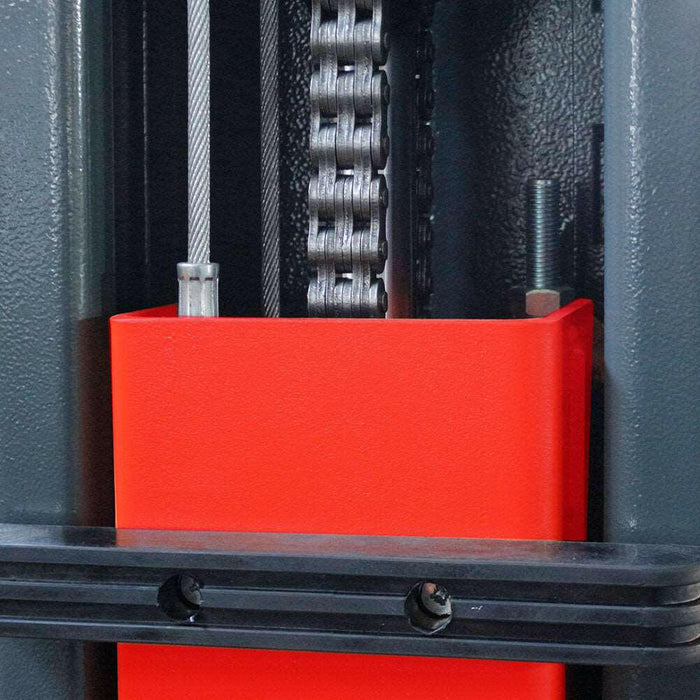

5. Multi-strand non-rotary non-stretchy cable

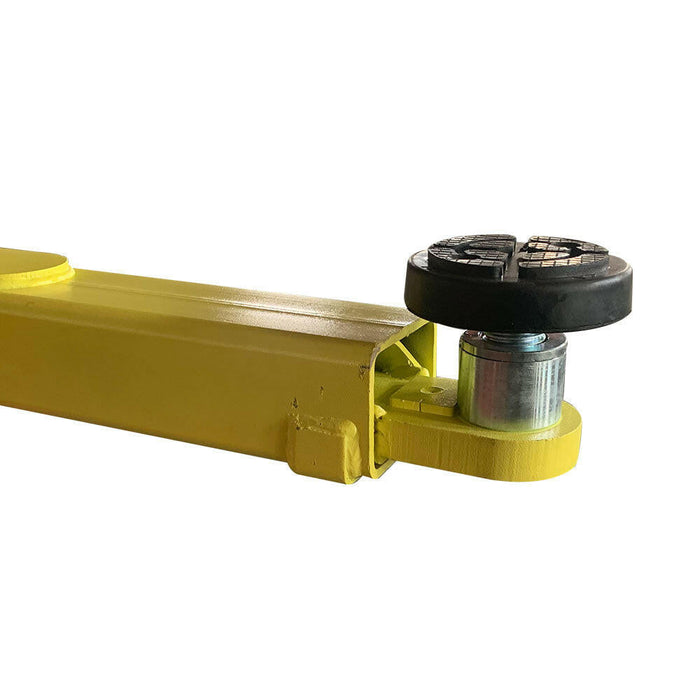

6. 4 Screw-Up rubber pads and 8 truck adapters
