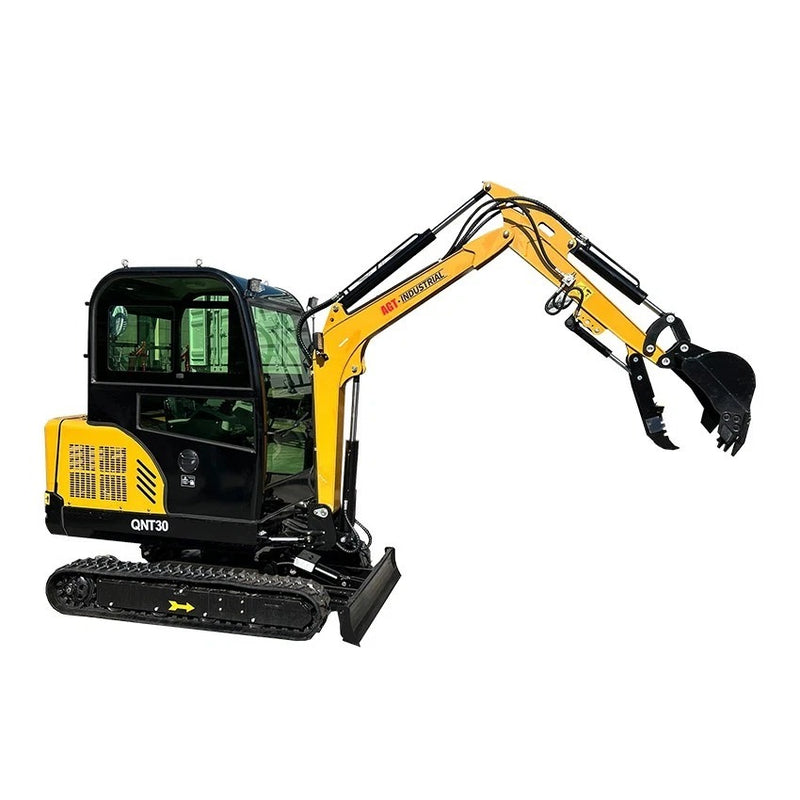

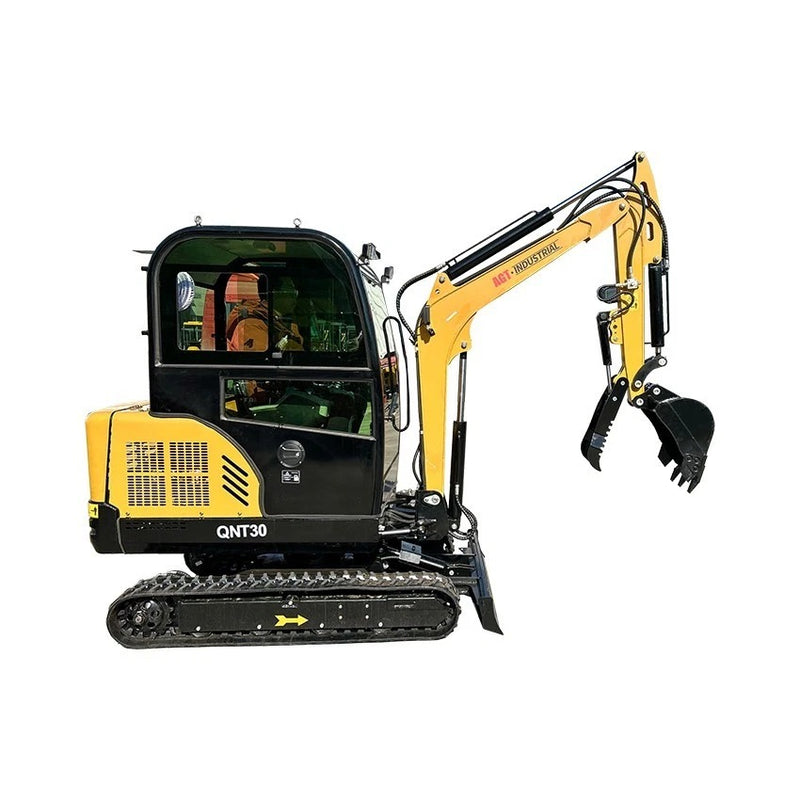

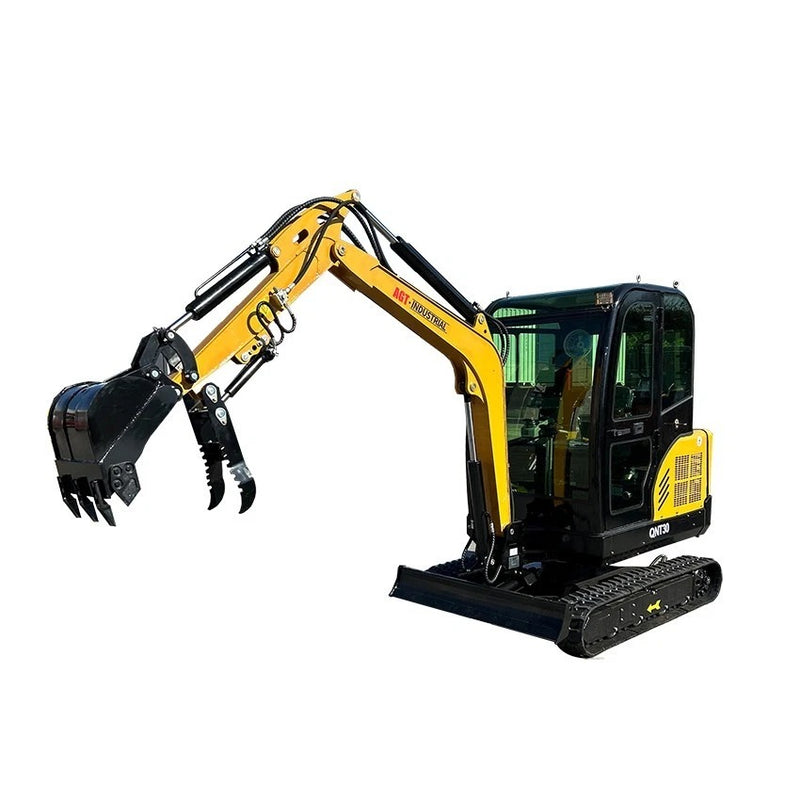

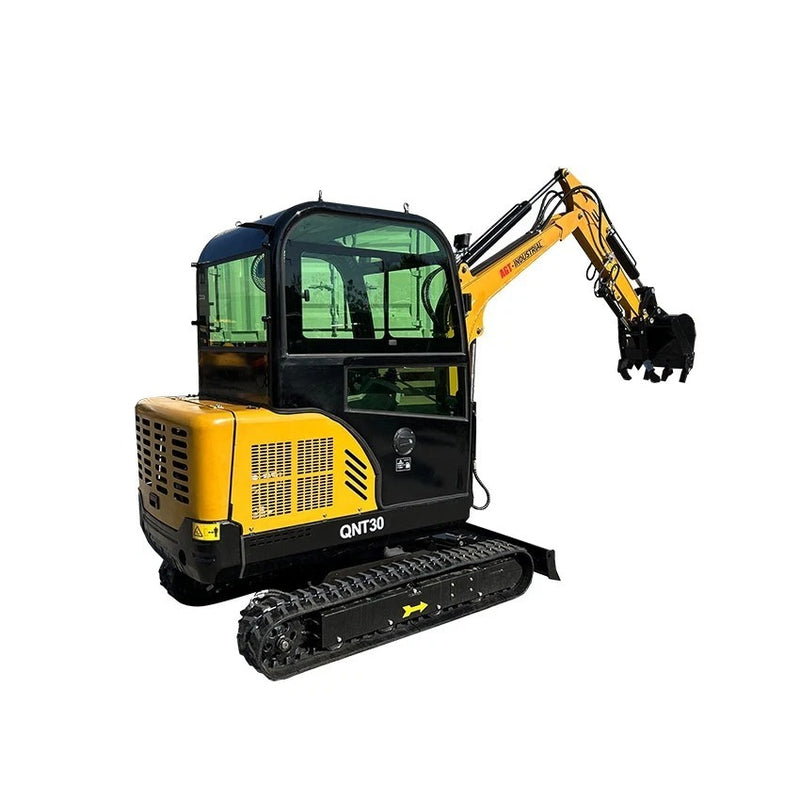

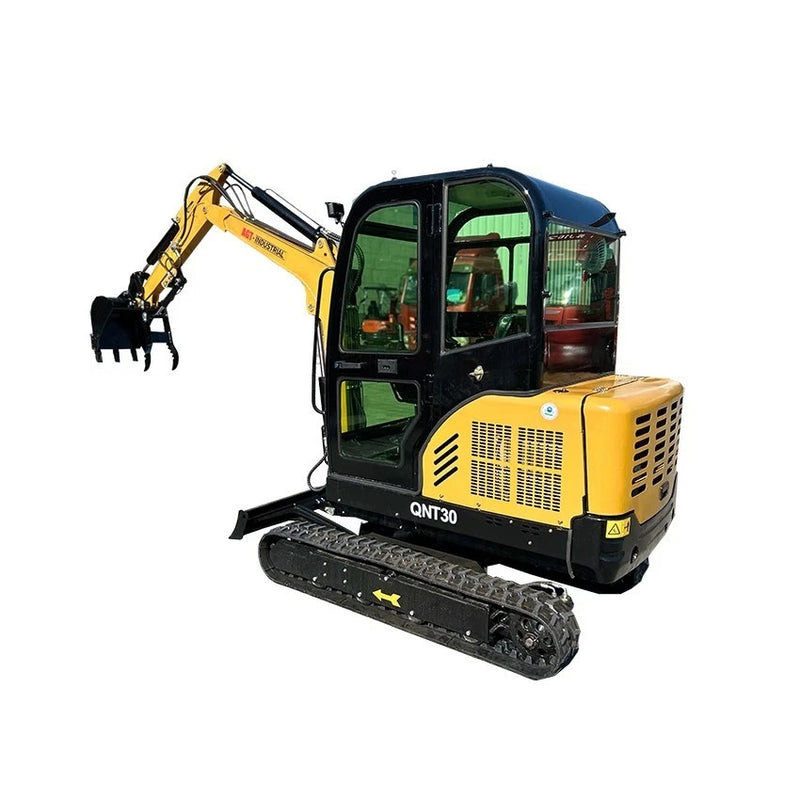

1.8 Ton Hydraulic Digger Tracked Mini Excavator w/ 25HP Kubota Diesel D902 Engine & Pilot Control | AGT-QNT30
Specification
- KUBOTA DIESEL D902 25HP 3 cylinder!
- Machine has a 360-degree swing
- Maximum deflection angle 127°
- 18 INCH bucket
- Maximum dig: 7'+
- Hydraulic thumb factory installed
- Maximum digging radius 12.6 ft Two side pilot operation
- Wiper LED Lighting
- Massive Bulldozing Blade
- The double-layer widened and thickened bulldozer has a longer service life- twice as thick as the one ton minis!
- Greasable Connections
- Armrests, with swing for easy entry
- No Air Conditioning
- Easy-to-Access Oil filter and Maintenance door
- Digital Gauges
-
LED Lights
- Defiectable Swing boom - multi-degree operation, large defiection angle, more flexible operation, and can meet your demands
- Pilot operation on both sides, large arm side swing, shock-proofseat. Equipped with an in-cab fan.
- Convenient and fast operation performance improves work efficiency. This is for the most challenging projects!
Description
| Basic Performance Parameters | ||
| Working Weight(kg) | ||
| Bucket capacity(m³) | 0.08 | |
| Travel speed low/high speed(Km/h) | 0-1.8 | |
| Maximum working height(mm) | 3600 | |
| Maximum unloading height(mm) | 2400 | |
| Loading distance at maximum unloading height (mm). | 650 | |
| Wheelbase(mm) | 1127 | |
| Ground clearance(mm) | 145 | |
| Bucket discharge angle | 40° | |
| Equipment Body | ||
| Bulldozer Width/Height(mm) | 1300/230 | |
| Overall Length(mm) | 5400 | |
| Overall Width(mm) | 1300 | |
| Overall Height(mm) | 2200 | |
| Engine | ||
| Engine Brand | Kubota902 | |
| Maximum power(Kw) | 11.8 | |
| Cooling method | Water cooling | |
| Fuel Type | Diesel | |
| Tracks | ||
| △-Rubber (bandwidth*pitch*number of sections) | 272*72*54 | |
Wide Applications
Small-Scale Construction
Foundation excavation and earthmoving in small construction projects. The wider body provides stability while the compact size allows access to various sites.
Garden & Landscape Construction
Terrain improvement and tree planting pit digging. The precise control and side swing capability make it ideal for detailed landscaping work.
Agricultural Production
Farmland transformation and irrigation ditch digging. The reliable Kubota engine ensures efficient performance in agricultural applications.
Municipal Engineering
Sidewalk paving and small pipeline laying. The compact design allows operation in urban environments with limited space.
Utility Work
Various utility and maintenance tasks requiring precise digging and material handling capabilities in restricted spaces.
