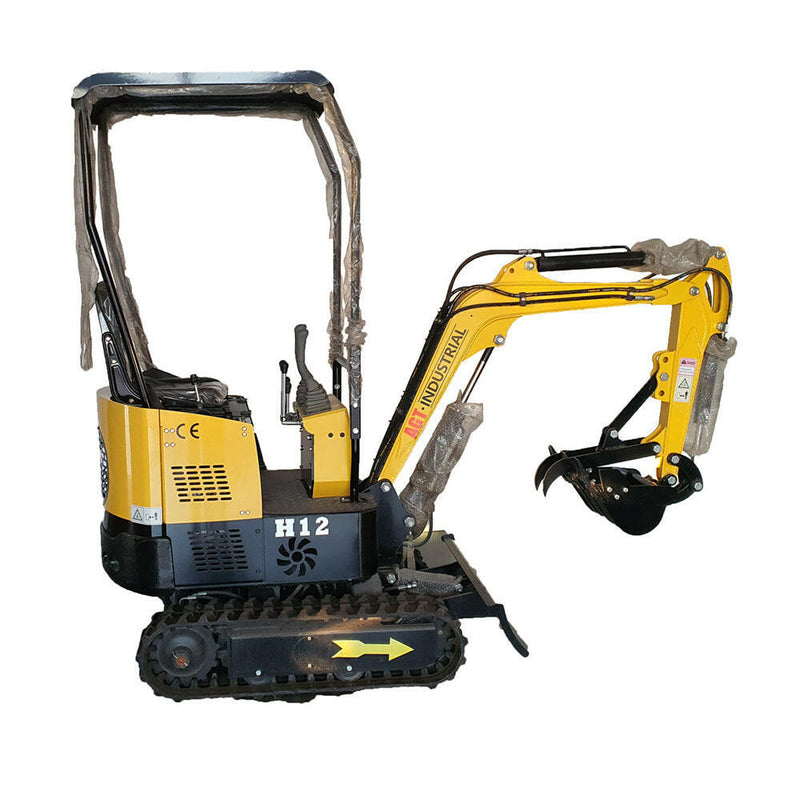

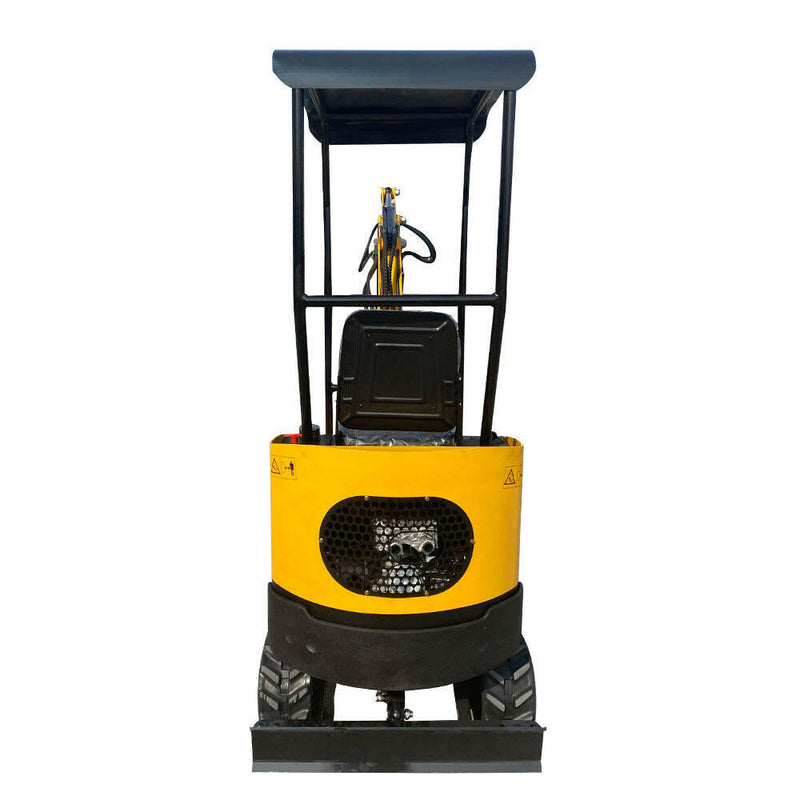

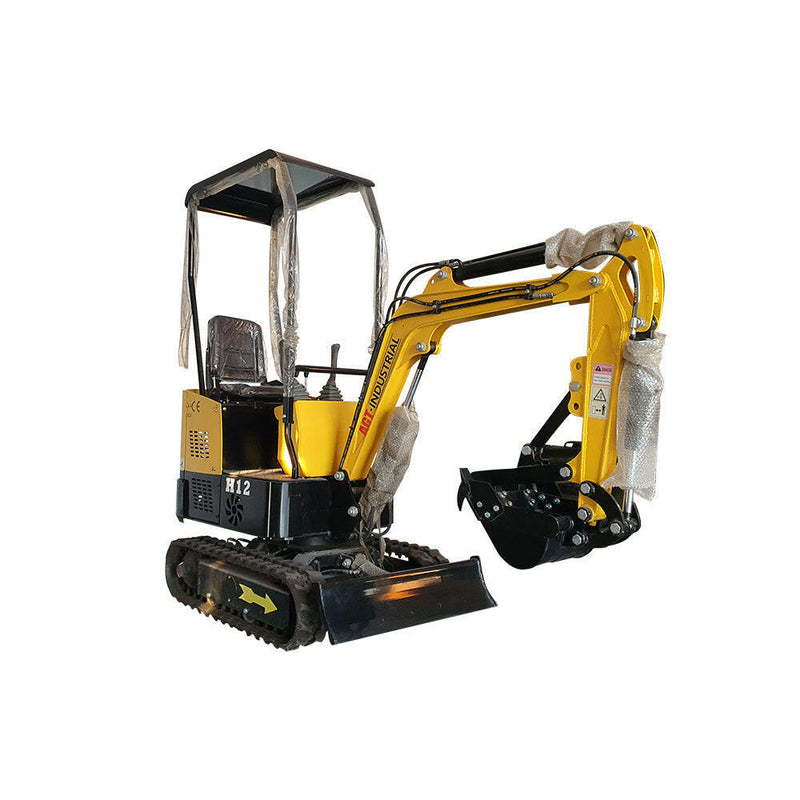

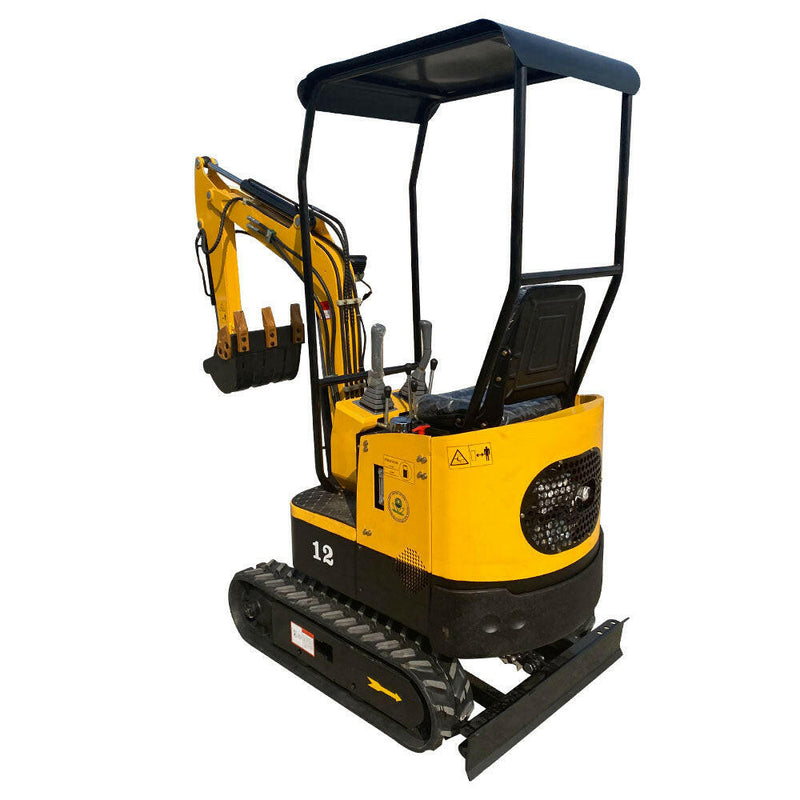

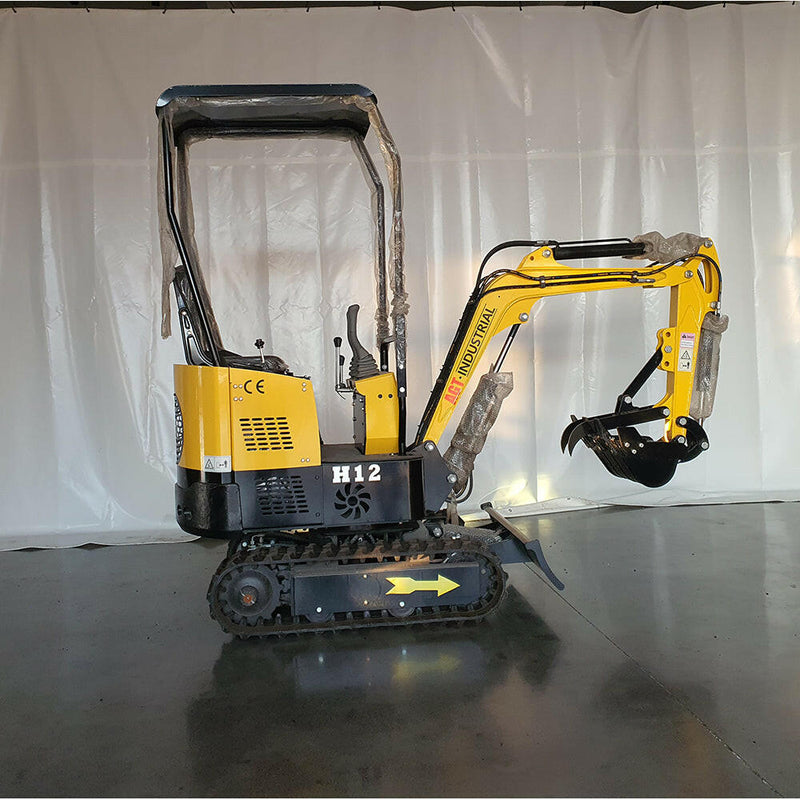

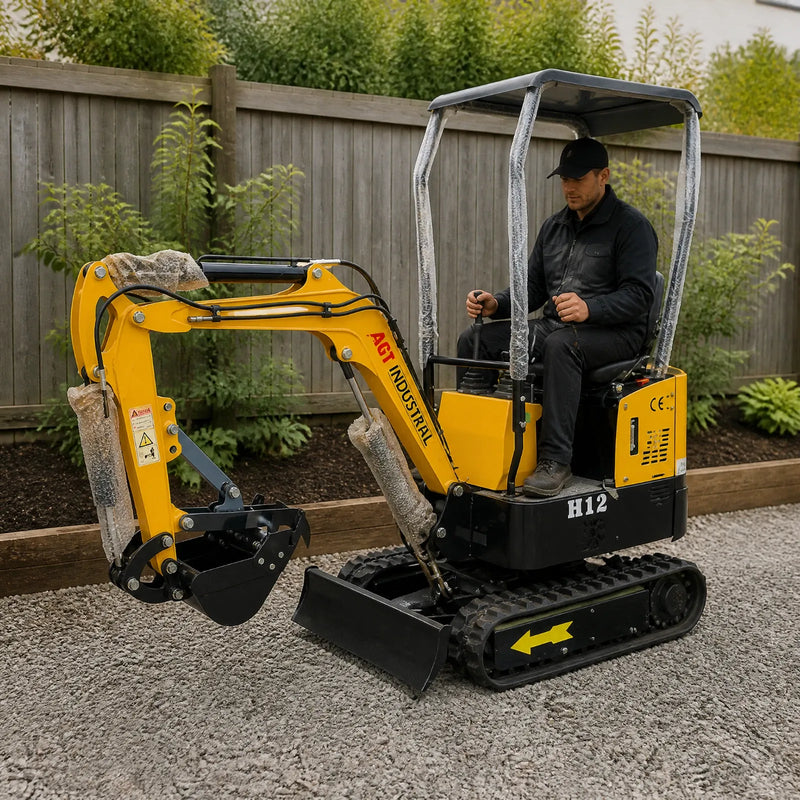

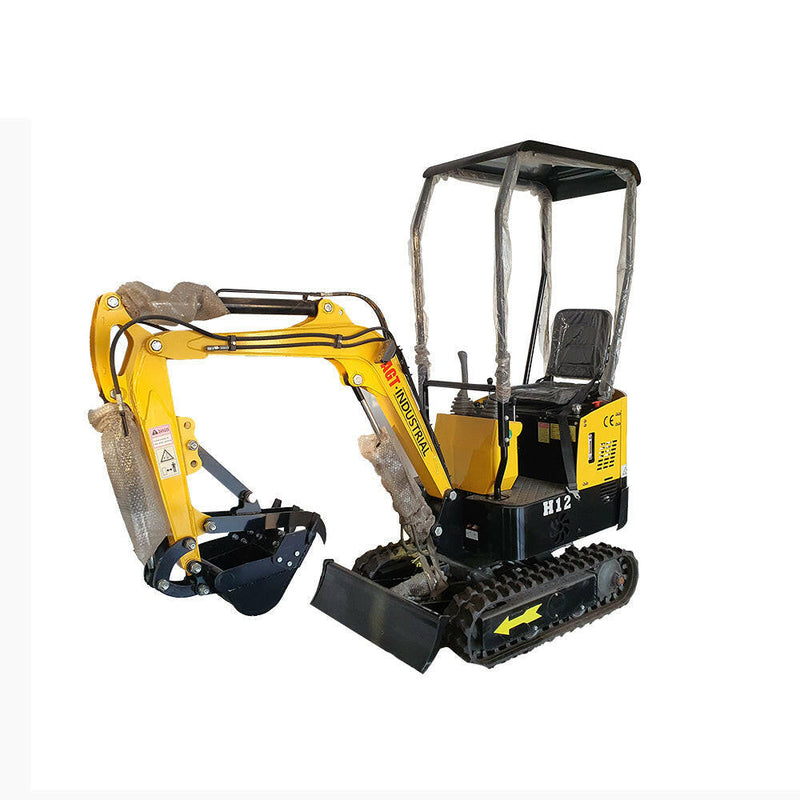

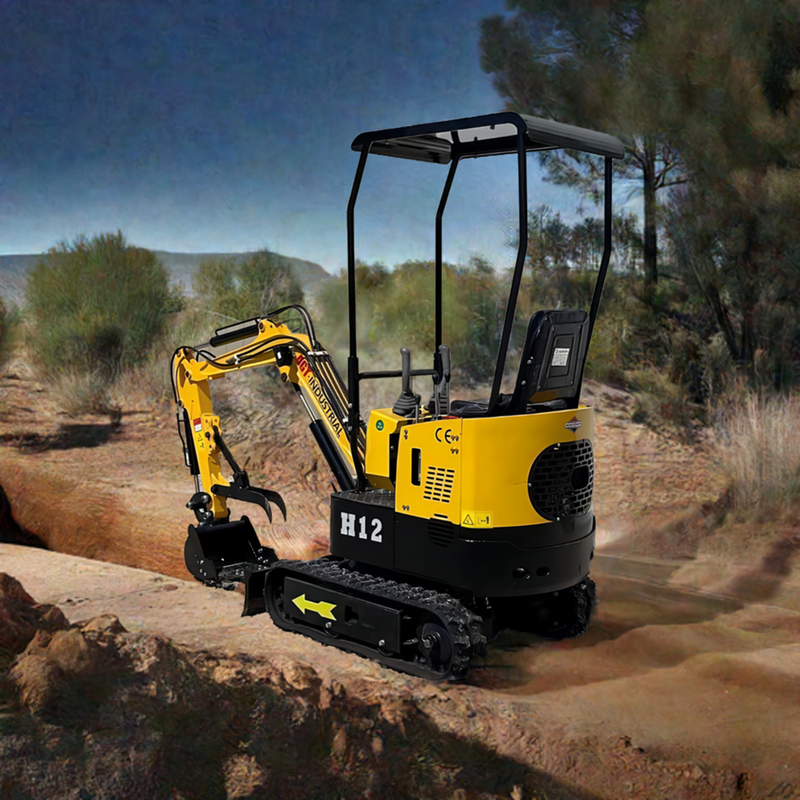

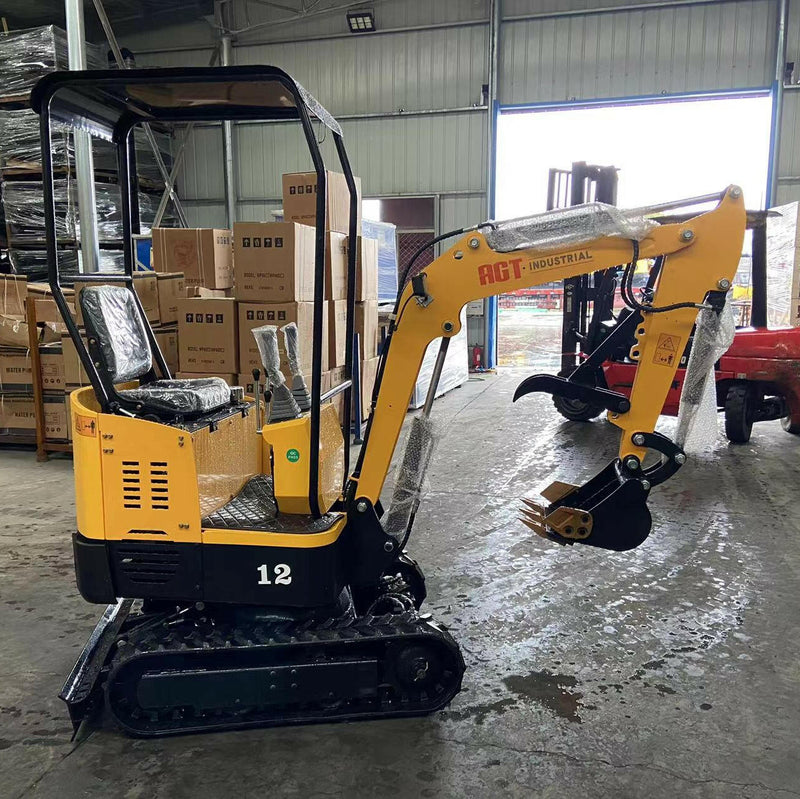

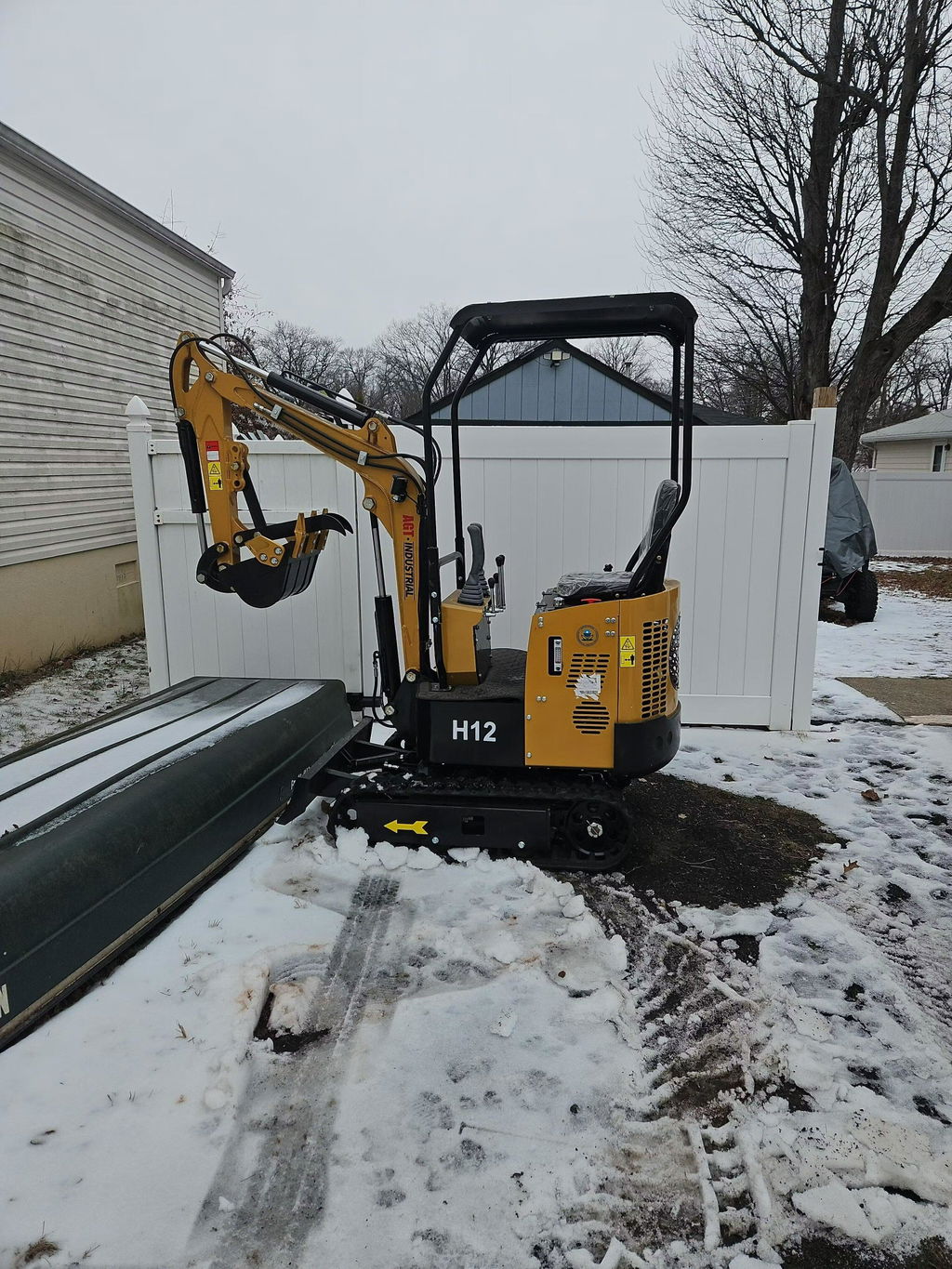

AGT 1 Ton Mini Excavator w/ B&S XR2100 13.5HP Engine, 65" Dig Depth, Compact Design | AGT-H12

Designed for small and medium-sized projects. With a compact design, 1-ton operating weight, and a maximum digging depth of 5.41 feet, AGT Mini Excavator has a compact and reliable design that ensures easy maneuverability in small areas such as farms, gardens, public spaces, parks, orchards, and farms.

In Action Video

AGT-H12 Manual

AGT-H12 Diagram

Related Videos:

Hydraulic Thumb Installation

Fan Installation

TECHNICAL SPECIFICATIONS

• Equipment Type: Mini Crawler Excavator

• Operating Weight: 1 Ton (2,094 lbs / 950 kg)

• Standard Bucket Capacity: 0.025 m³ (0.88 cu.ft)

• Bucket Digging Force: 6 kN (1,348 lbf)

• Arm Digging Force: 4 kN (899 lbf)

• Swing Speed: 10 rpm

• Travel Speed: 0–1.8 km/h (0–1.12 mph)

• Climbing Ability / Max Angle: 30% (approx. 16.7°)

DIMENSION

• Transport / Overall Length: 2,240 mm (88.2 in)

• Overall Width / Chassis Width: 930–958 mm (36.6–37.7 in)

• Overall Height: 2,200 mm (86.6 in)

• Wheelbase: 900 mm (35.4 in)

• Track Gauge / Track Width: 758 mm (29.8 in)

• Track Size: 180*72*37 (Width*Pitch Length*Links)

• Minimum Front Swing Radius: 1,330 mm (52.4 in)

• Tail Swing Radius: 800 mm (31.5 in)

WORKING RANGE

• Max Digging Depth: 1,644 mm (64.7 in / 65 in)

• Max Digging Height: 2,565 mm (101 in)

• Max Dumping / Unloading Height: 1,933 mm (76.1 in)

• Max Digging Radius: 2,960 mm (116.5 in)

• Max Vertical Digging Depth: 1,422 mm (56 in)

• Dozer Blade Width: 907 mm (35.7 in)

• Dozer Blade Height: 200 mm (7.9 in)

• Dozer Blade Lift Height: 140 mm (5.5 in)

• Dozer Blade Dig Depth: 270 mm (10.6 in)

ENGINE

• Engine Brand: Briggs & Stratton (B&S)

• Model: 13.5HP XR2100 Series

• Fuel Type: Gasoline (92#)

• Rated Power: 9.8 kW (13.5 HP)

• Rated Speed: 3600 rpm

• Number of Cylinders: 1

• Cooling Method: Forced Air Cooling

• Engine Oil Volume: 1.1 L (0.29 gal)

• Fuel Tank Capacity: 6.6 L (1.74 gal)

HYDRAULIC SYSTEM

• Main Pump Type / Model: Gear Pump / 06 (Tianjin Walking)

• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)

• Hydraulic Pressure: 16 MPa (2,320 PSI)

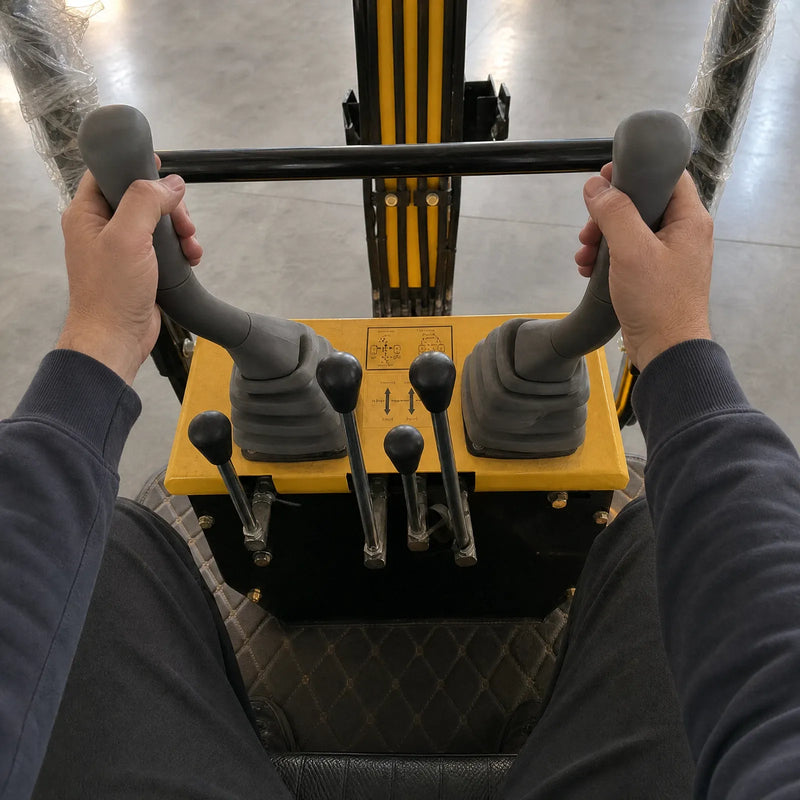

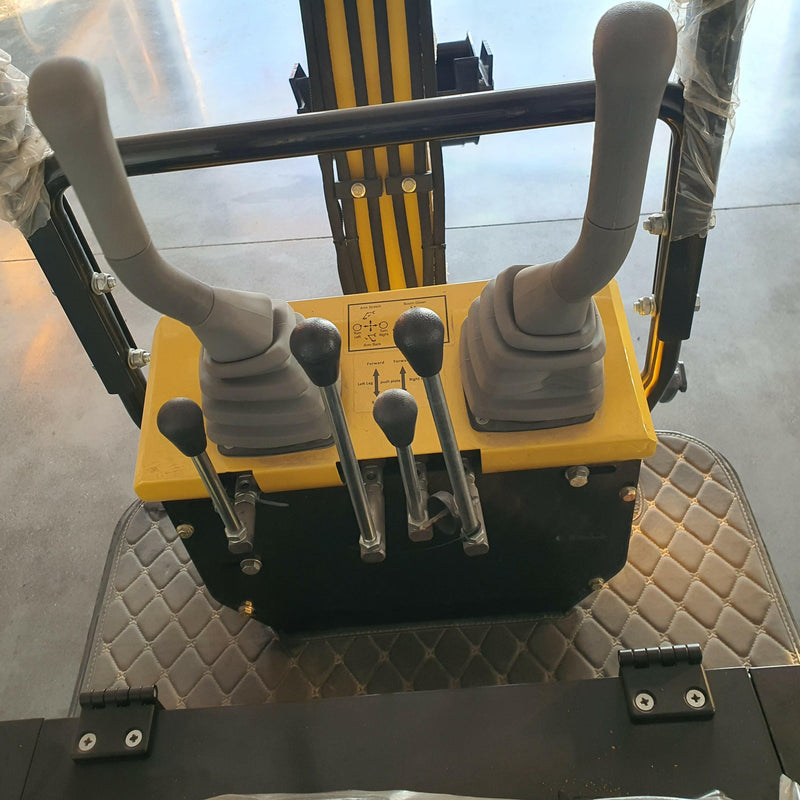

• Control Valve: 8-Way Manual Multi-Way Valve (North)

• Traveling Hydraulic Motor: BM6-315 (Liyuan)

• Rotary Hydraulic Motor: BM2-315

• Hydraulic Tank Capacity: 12 L (3.17 gal)

FEATURES

• Compact Structure Design

• Fan Cooled Gas Engine

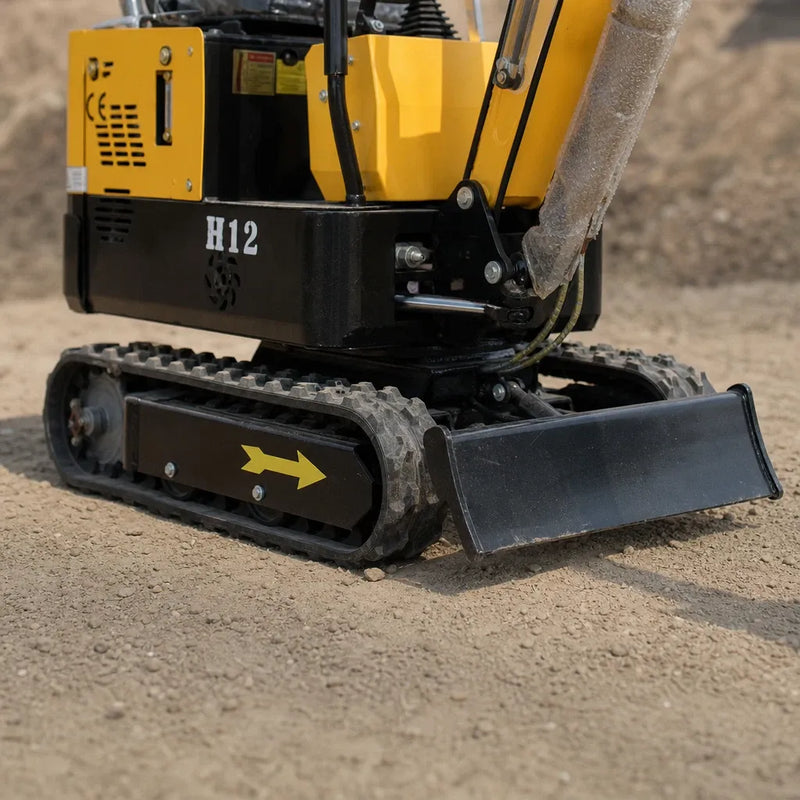

• Dozer Blade

• Canopy / Sunshade

• Armrest & Mechanical Tensioning
