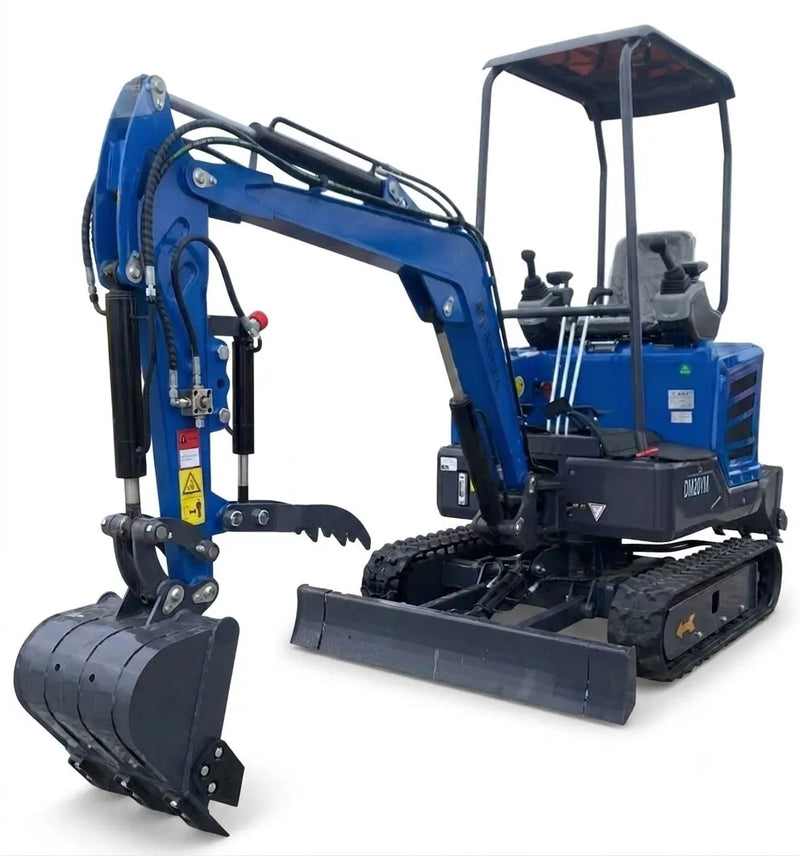

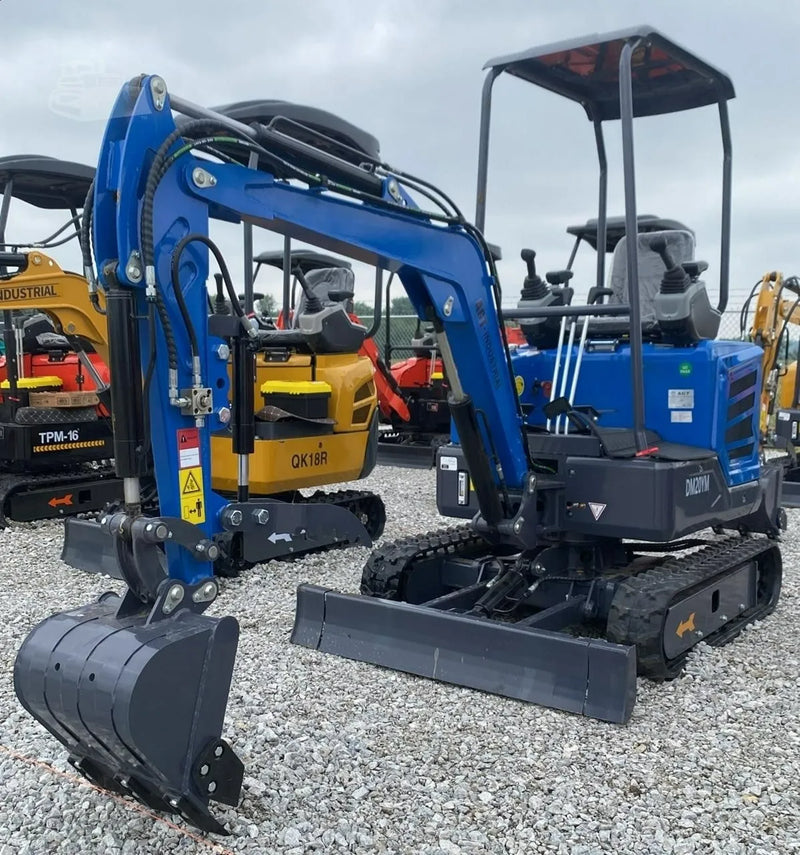

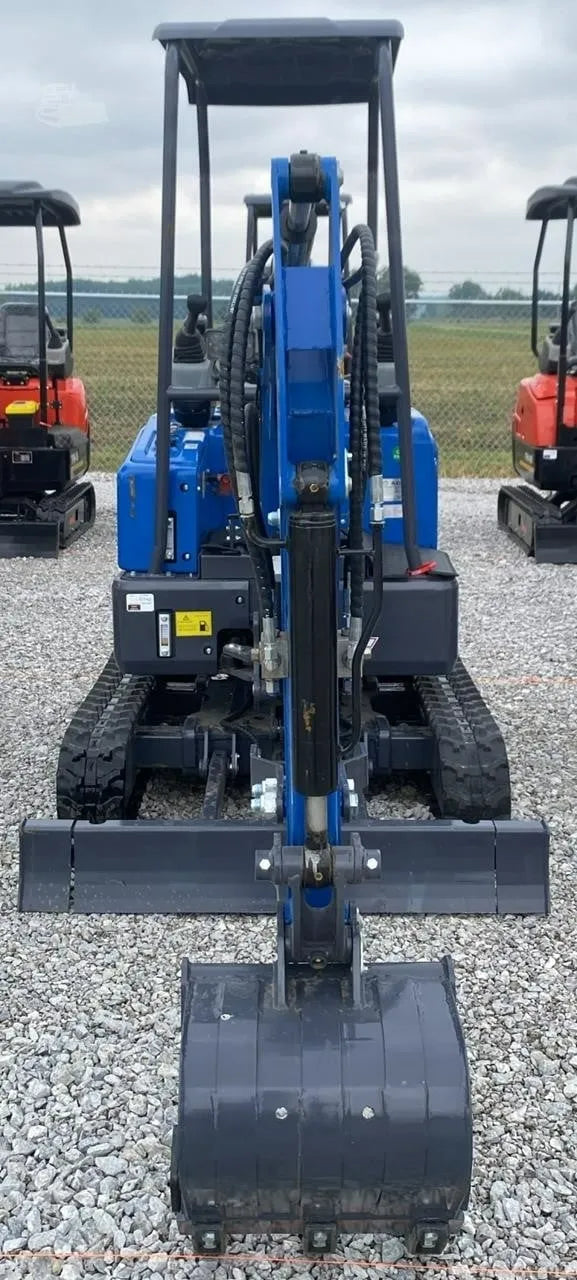

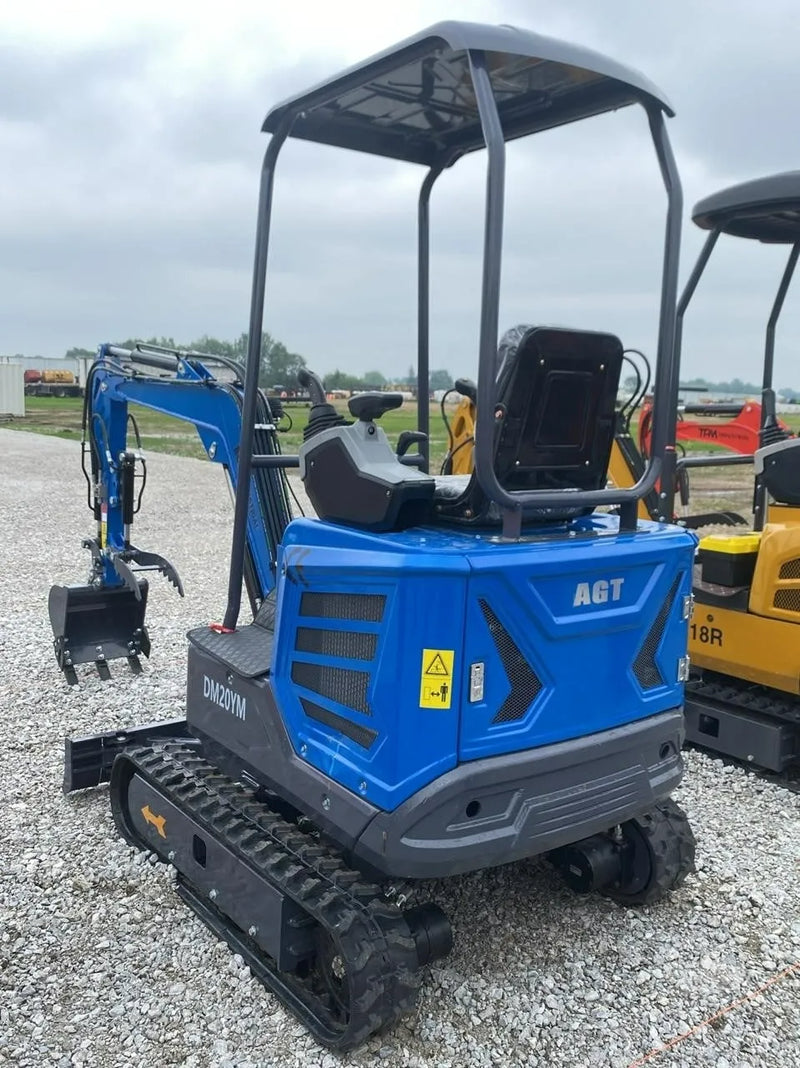

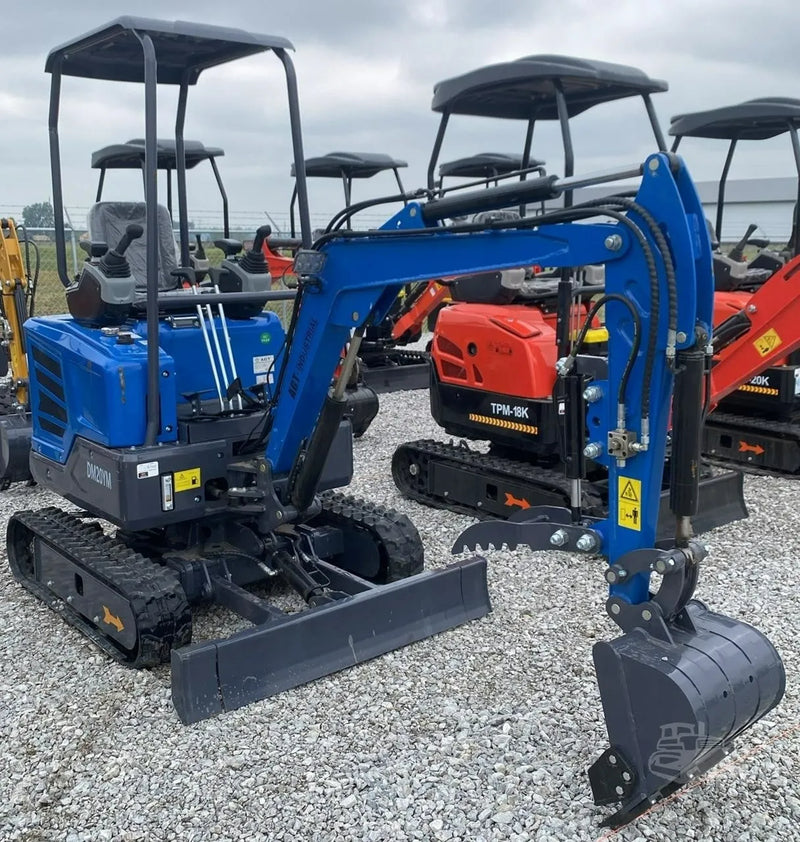

2 Ton Mini Excavator Yanmar Diesel Engine Retractable Tracks & Pilot Control | DM20YM

SPECIFICATIONS

Basic Performance

• Operating Weight: 1.3 Ton (~2,866 lbs) / 2 Ton Class

• Bucket Capacity: 0.03 m³ (1.06 cu. ft.)

• Travel Speed (Low/High): 0 - 2 km/h (0 - 1.24 mph)

• Climbing Ability: 30%

• Swing Speed: 10 rpm

• Bucket Digging Force: 8 kN

• Arm Digging Force: 6 kN

Working Range

A - Max. Digging Height: 2,890 mm (113.8 in)
B - Max. Dumping Height: 1,958 mm (77.1 in)
C - Max. Digging Depth: 2,257 mm (88.9 in)
D - Max. Vertical Digging Depth: 2,090 mm (82.3 in)
E - Max. Digging Radius: 3,305 mm (130.1 in)
F - Min. Swing Radius: 1,584 mm (62.4 in)
G - Min. Tail Swing Radius: 849 mm (33.4 in)
H - Dozer Blade Max. Lifting Height: 288 mm (11.3 in)
I - Dozer Blade Max. Digging Depth: 146 mm (5.7 in)
Side Swing Boom: Yes (Angle: 30° Left / 30° Right)

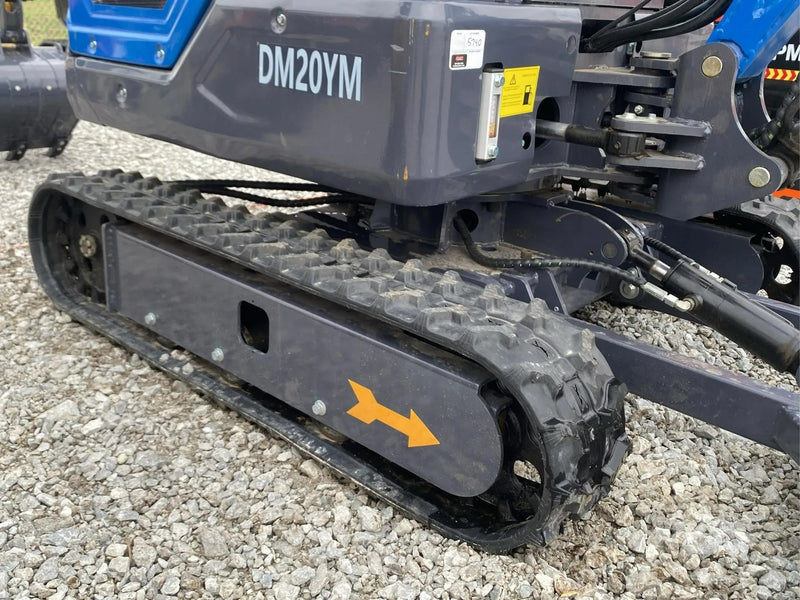

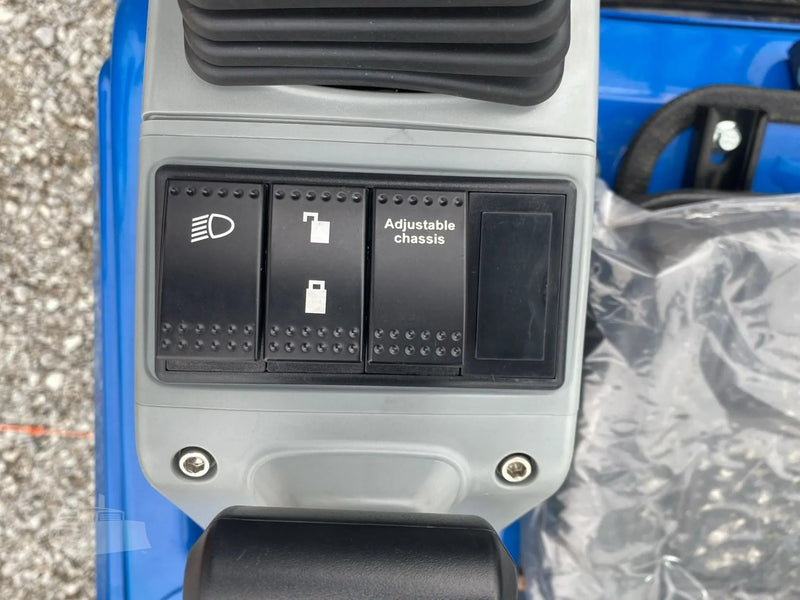

Retractable Undercarriage: Yes

Dimensions & Chassis

J - Overall Length: 3,200 mm (126 in)
K - Overall Width: 936 mm (36.9 in)
L - Overall Height: 2,210 mm (87 in)
M - Wheelbase: 1,092 mm (43 in)
N - Track Gauge: 755 mm (29.7 in)
Dozer Blade (Width × Height): 1,000 mm × 180 mm (39.4 in × 7.1 in)
Chassis Upgrade: DM20 Reinforced Lower Frame & Heavy-Duty Boom/Arm

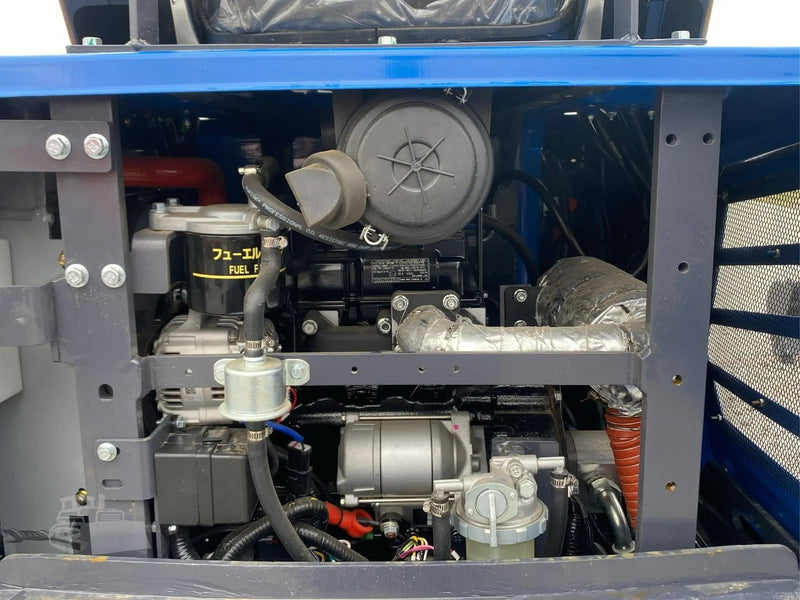

Engine

• Engine Brand: Yanmar

• Engine Model: 3TNV74F-SPTY1C

• Type: 3-Cylinder, Liquid-Cooled Diesel Engine

• Rated Power: 13.7 kW (18.4 HP) @ 3,000 rpm

• Fuel Type: Diesel

Hydraulic System

• Main Pump Type/Model: Gear Pump / 8+3

• Main Pump Max. Flow Rate: 28.8 L/min (7.6 GPM)

• Main Pump Rated Pressure: 16 MPa (2,320 PSI)

• Multi-Way Valve: Premium 9-Spool Semi-Hydraulic Control Valve

• Valve Rated Pressure: 18 MPa (2,610 PSI)

• 8-Way Central Rotary Joint: Included

• Hydraulic Oil Cooler: Included

• Travel Hydraulic Motor: BMER3-350 (Displacement: 350 cc)

• Swing Hydraulic Motor: BM1-315 (Displacement: 315 cc)

Tracks & Capacities

• Rubber Track Size (Width × Pitch × Links): 230 mm × 72 mm × 43

• Track Tensioning Form: Hydraulic Tensioning

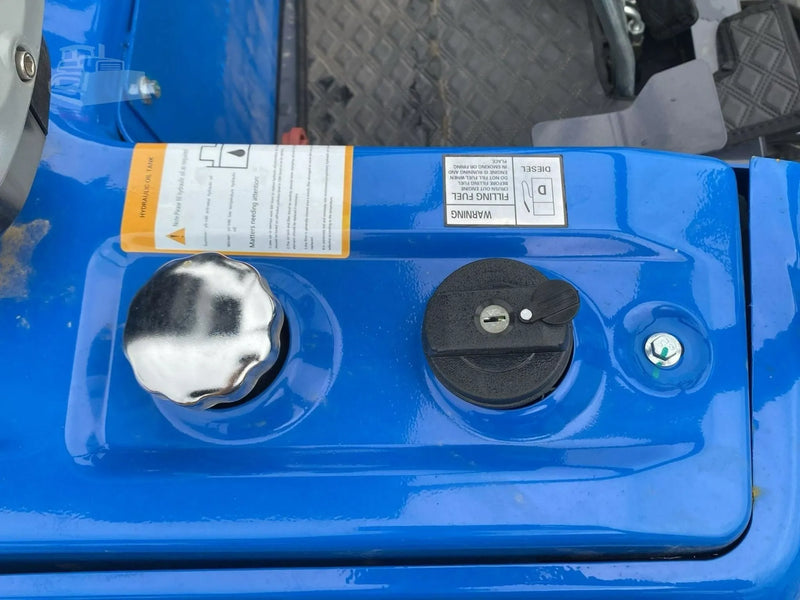

• Fuel Tank Capacity: 8.7 L (2.3 gal)

• Hydraulic Tank Capacity: 14.2 L (3.75 gal)

Premium Features Included

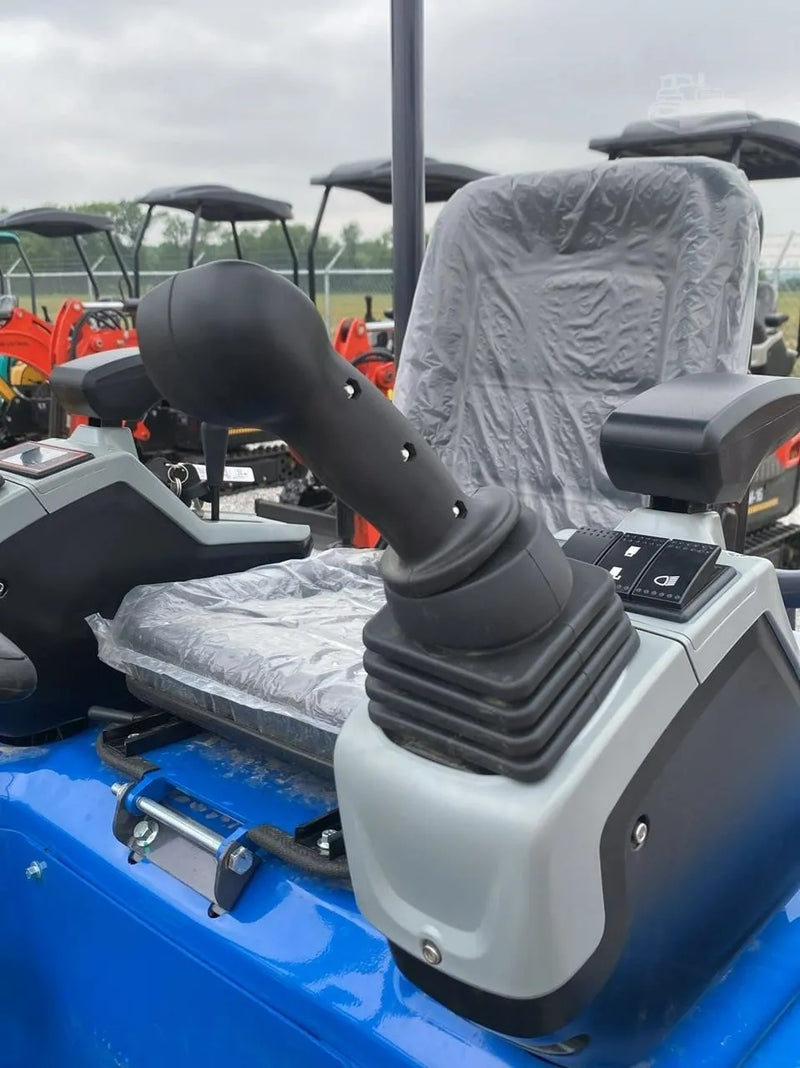

• Pilot Joystick Controls: Ergonomic, precise hydraulic operation

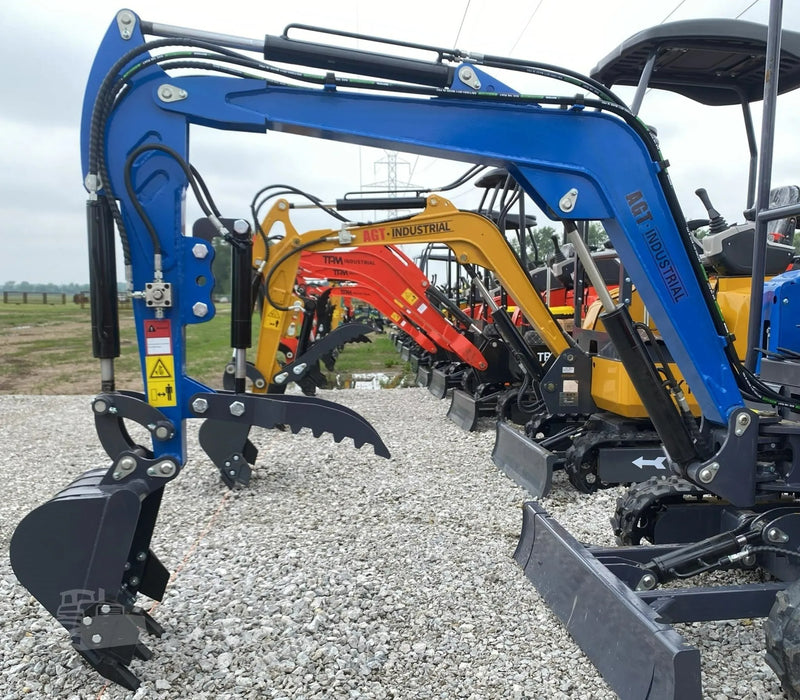

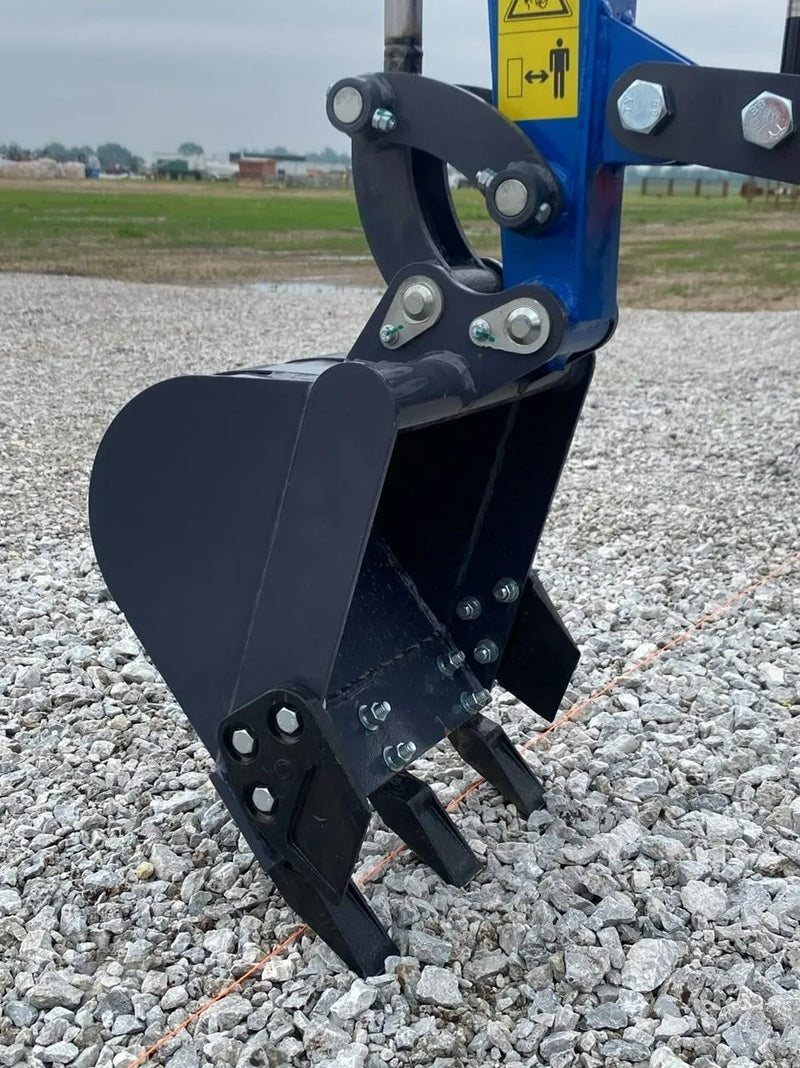

• Hydraulic Thumb Clip: Factory-installed for material handling

• Operator Protection: Heavy-duty Sun Canopy / Canopy Roof

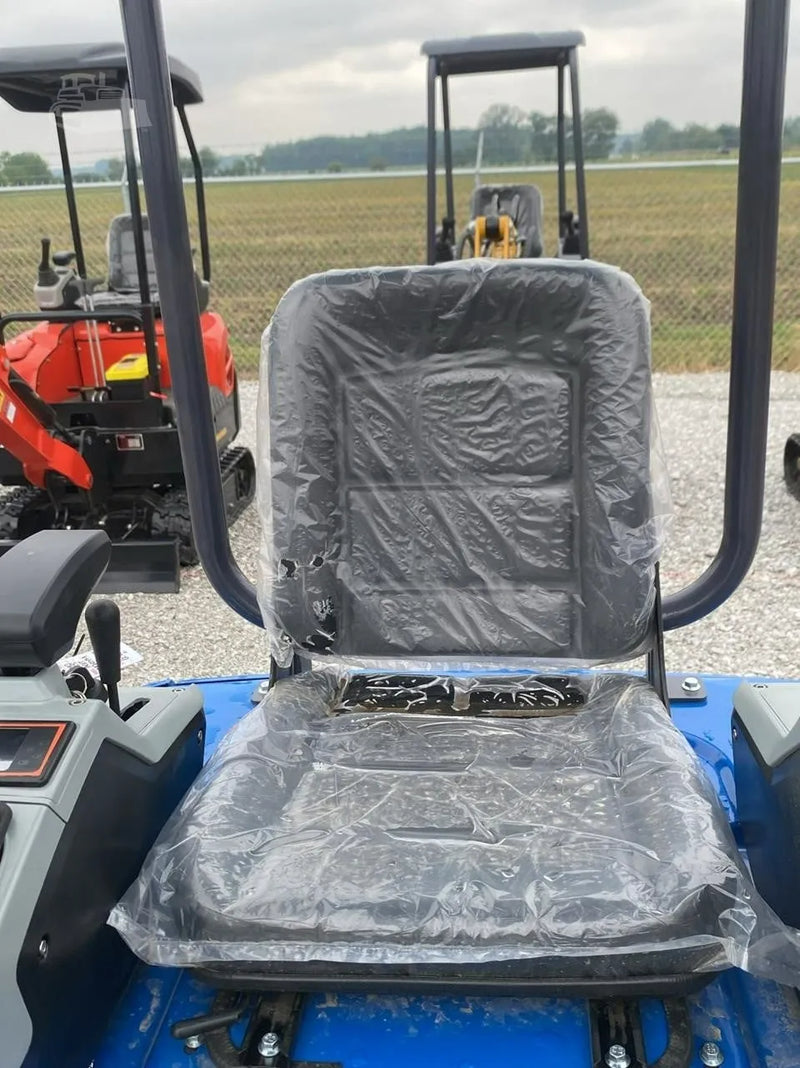

• Comfort & Safety: Safety Armrest & Integrated Counterweight
