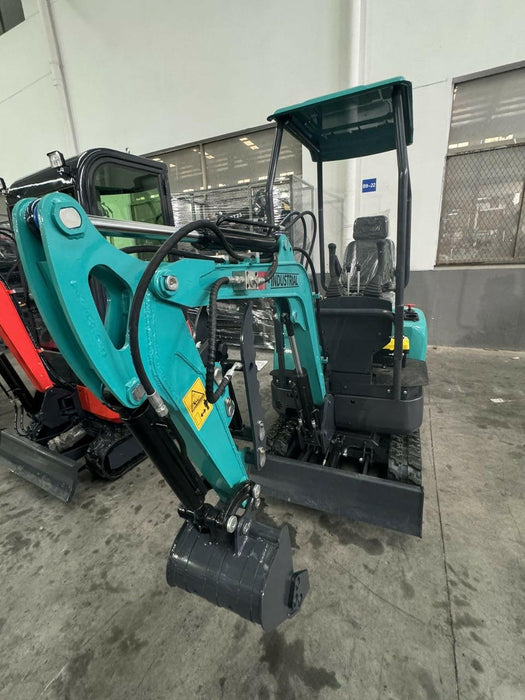

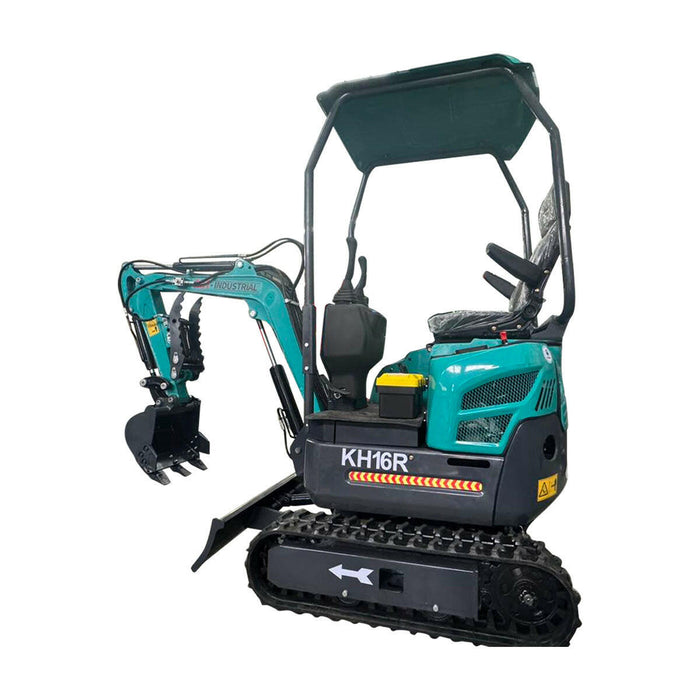

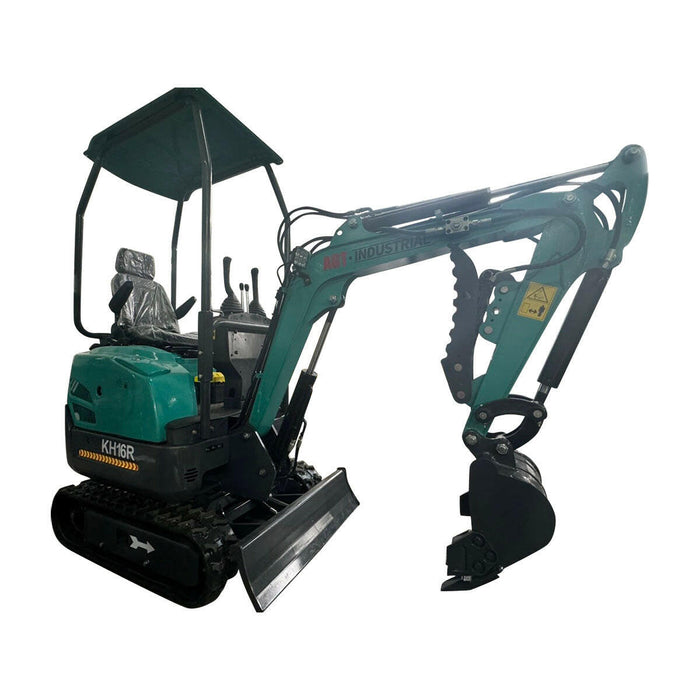

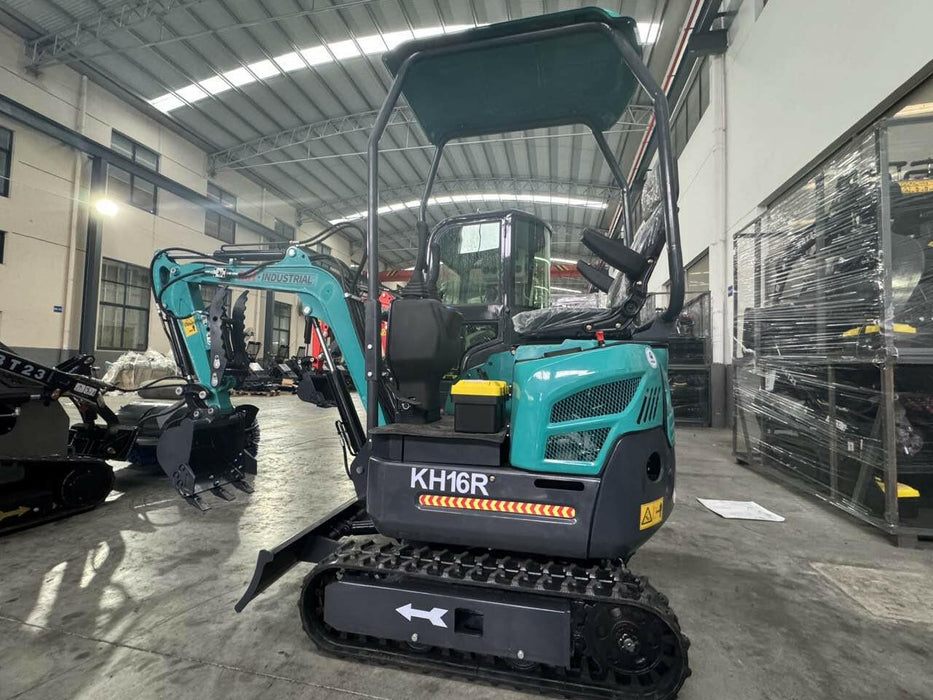

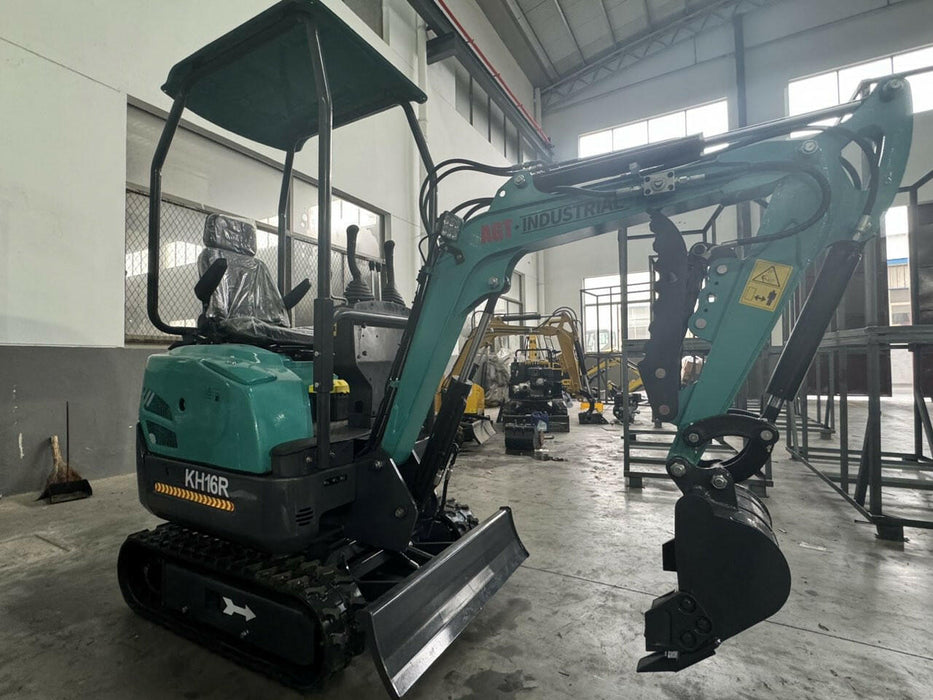

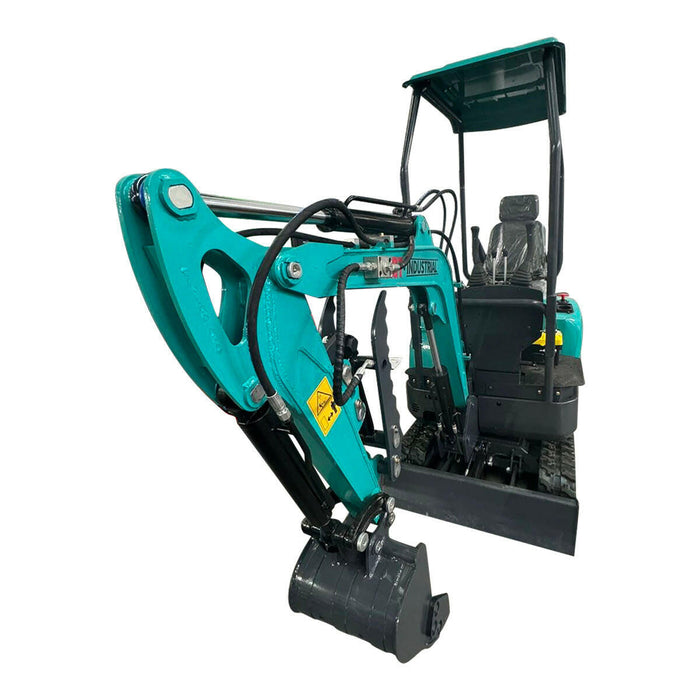

1 Ton, RATO Mini Small Excavator w/ Hydraulic Thumb | AGT-KH16R

1 Ton, RATO Mini Small Excavator w/ Hydraulic Thumb | AGT-KH16R

$8,415.00 - $8,415.00
$8,415.00
$8,415.00 - $8,415.00
$8,415.00
Product Image
Phone Icon
773-927-8098
Sales Contact Number
Phone Icon
agrotkindustrial@gmail.com
Sales Contact Email

The AGT-KH16R is a compact and versatile 1-ton mini excavator designed for various excavation tasks.

Dimension

  • Operating Weight: 0.9 Ton (1,984 lbs)
  • Overall Length: 2,870 mm (113 in)
  • Overall Width: 910 mm (36 in)
  • Overall Height: 2,283 mm (90 in)
  • Track Width: 180*72*37 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 1,670 mm (65.5 in)
  • Max Digging Height: 2,400 mm (94.5 in)
  • Max Dumping Height: 1,960 mm (77 in)
  • Max Reach at Ground: 3,060 mm (120.5 in)
  • Blade Width: 910 mm (36 in)
  • Blade Height: 220 mm (8.5 in)
  • Climbing Ability: 30°

Features

  • Hydraulic Thumb
  • Foot Pedal
  • LED Light
  • Auxiliary Hydraulics

Engine

  • Engine Brand: Rato
  • Fuel Type: Gasoline
  • Model: R420D
  • Rated Power: 10 kW (13.5 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Fuel Consumption: 0.5-1.2 L/hr
  • Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
  • Hydraulic Pressure: 16 MPa (2,320 PSI)
