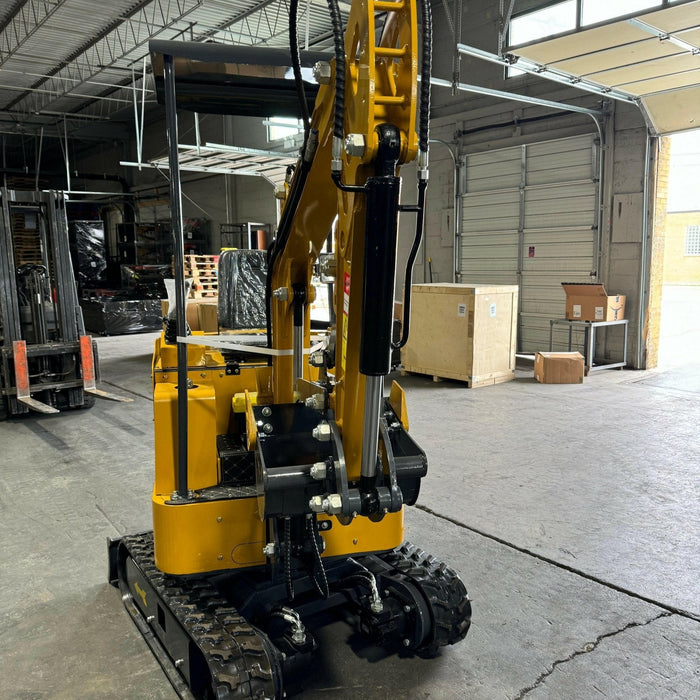

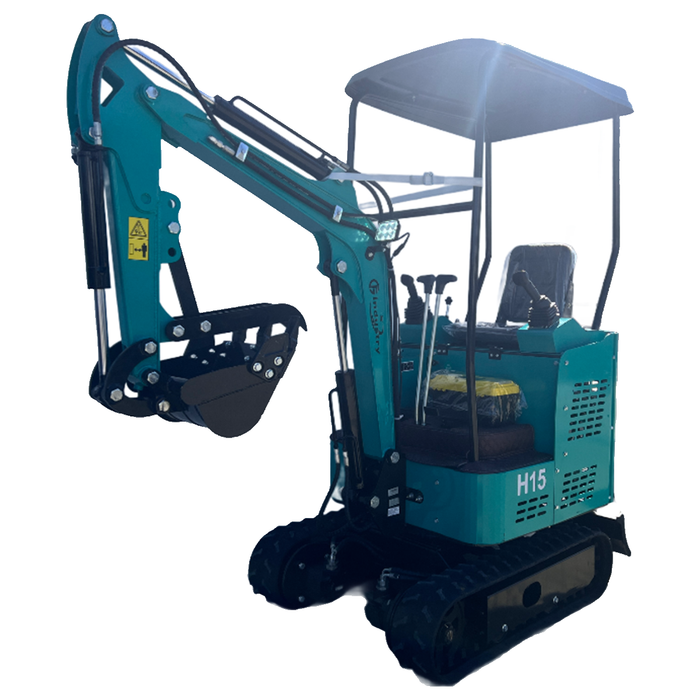

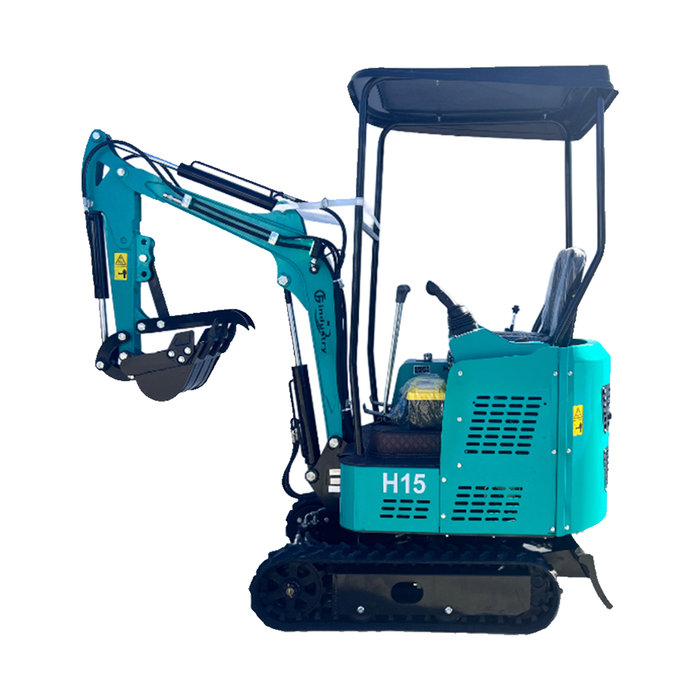

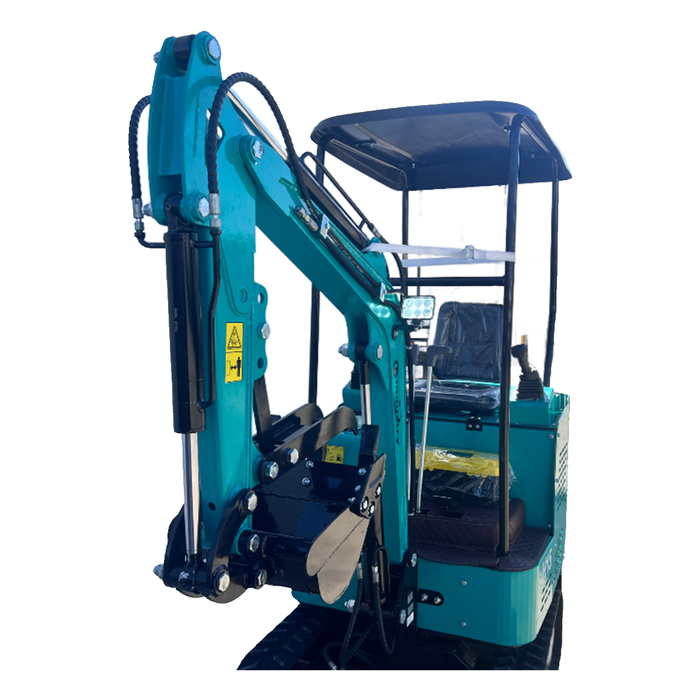

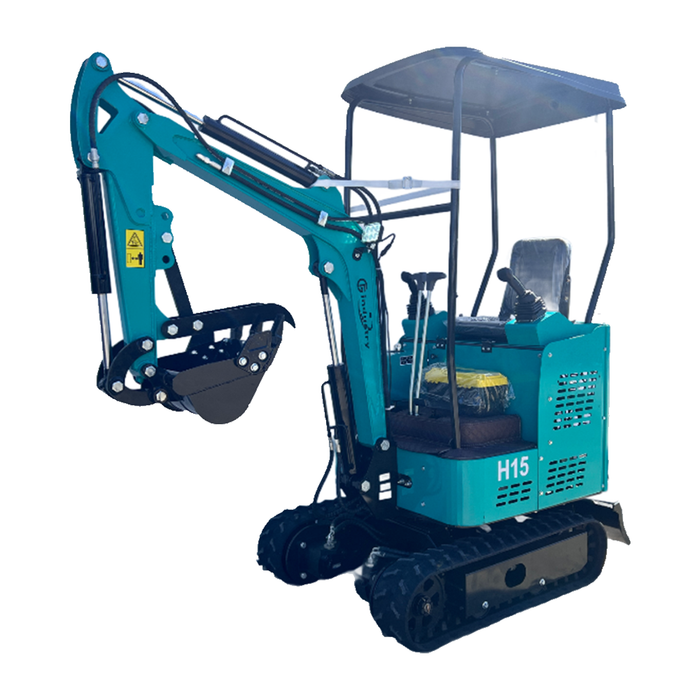

AGT 1 Ton Mini Excavator w/ R420D 11.5HP Engine, 65" Dig Depth, Pilot Control & LED Light | AGT-H15R

Save 5% Save 5%
Original price $5,980.99
Original price $5,980.99 - Original price $5,980.99
Original price $5,980.99
Current price $5,681.95
$5,681.95 - $5,681.95
Current price $5,681.95
Phone Icon
+1 (657) 509-0707
Phone Number
Phone Icon
agrotkindustrial@gmail.com
Sales Contact Email

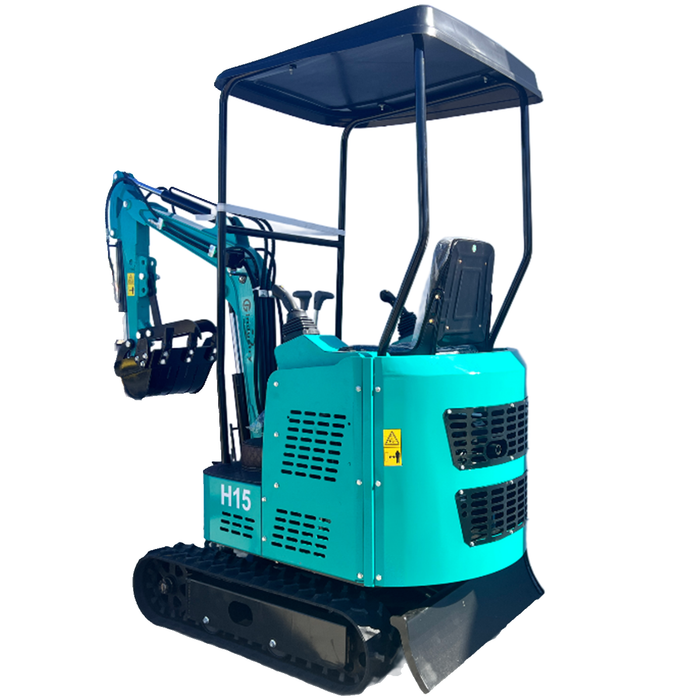

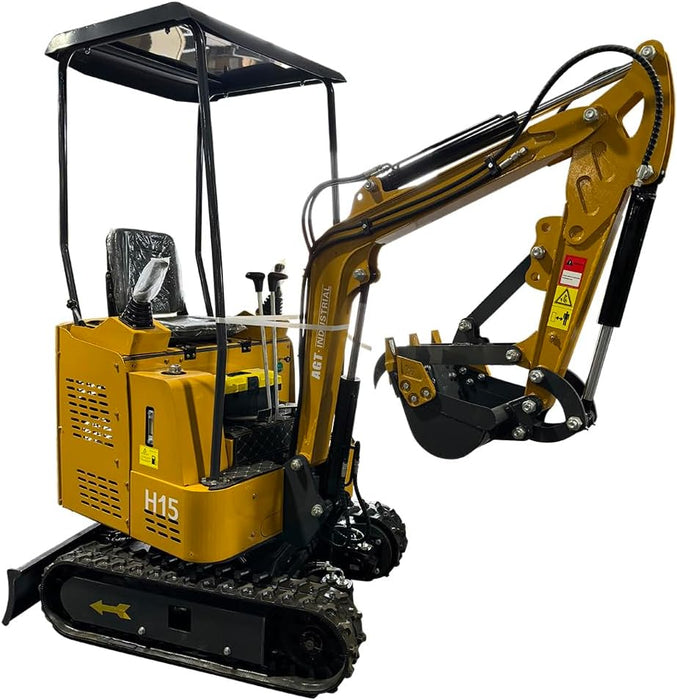

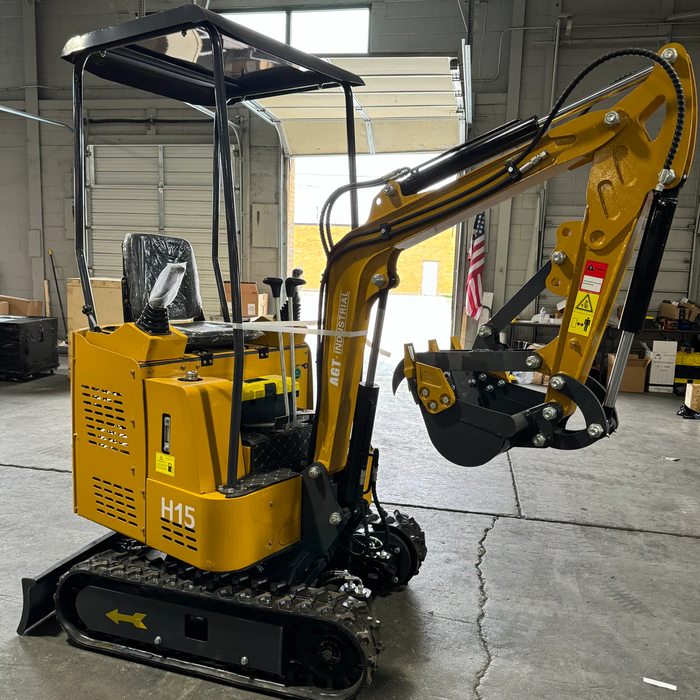

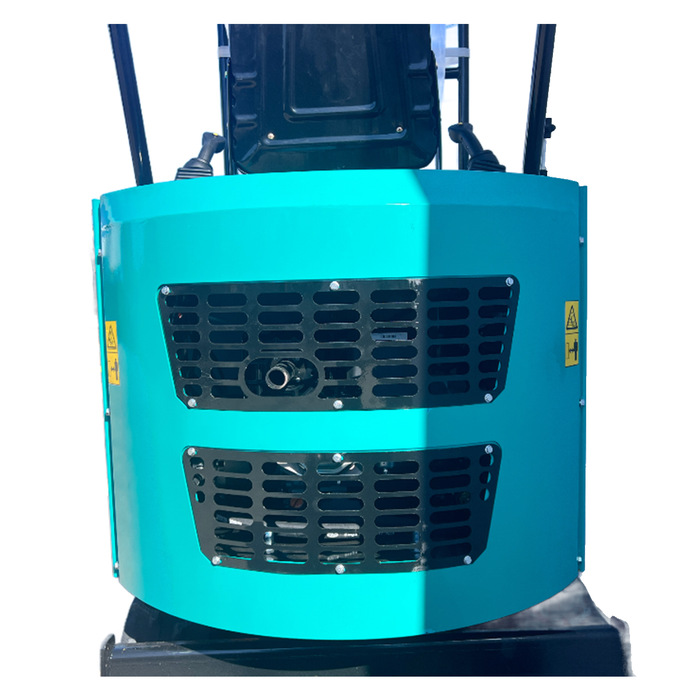

The AGT-H15R Mini Excavator is perfect for small to medium-sized projects, offering a compact 1-ton design and a maximum digging depth of 5.41 feet. Ideal for tight spaces like gardens, parks, and orchards, it combines maneuverability with enhanced safety features, including internal hydraulic hoses and rear-opening compartments for easy maintenance.

In Action Video

Manual

Dimension

  • Operating Weight: 1.05 Tons (2,315 lbs)
  • Overall Length: 2,140 mm (84 in)
  • Overall Width: 1,000 mm (40 in)
  • Overall Height: 2,210 mm (87 in)

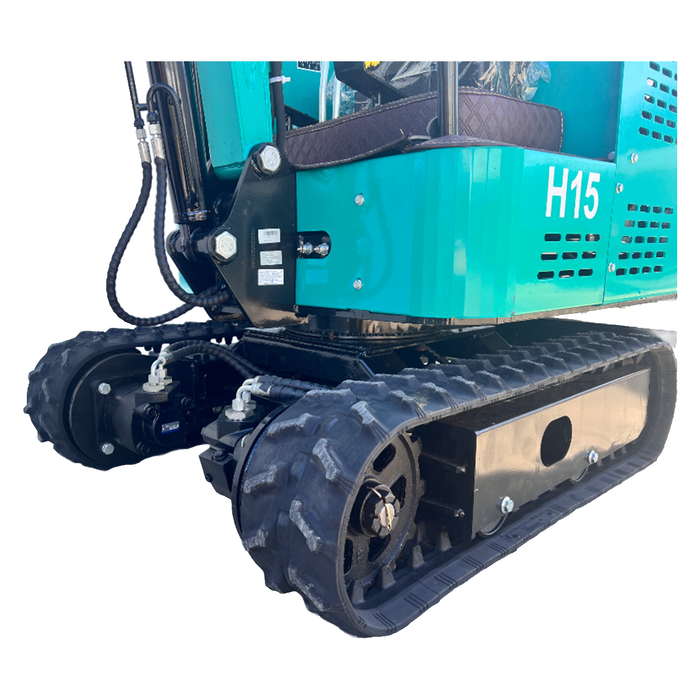

  • Track Width: 180*72*37 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 1,650 mm (65 in)
  • Max Digging Height: 2,610 mm (102.5 in)
  • Max Dumping Height: 1,850 mm (73 in)
  • Max Reach at Ground / Digging Radius: 2,850 mm (112 in)
  • Bucket Capacity: 0.025 m³ (0.88 cu ft)
  • Blade Width: 1,000 mm (40 in)
  • Blade Height: 400 mm (15.7 in)
  • Blade Max Lifting Height: 295 mm (11.5 in)
  • Blade Max Drop Depth: 270 mm (10.5 in)

Performance

  • Travel Speed: 0–1.8 km/h (0–1.12 mph)
  • Climbing Ability: 25% (15°)

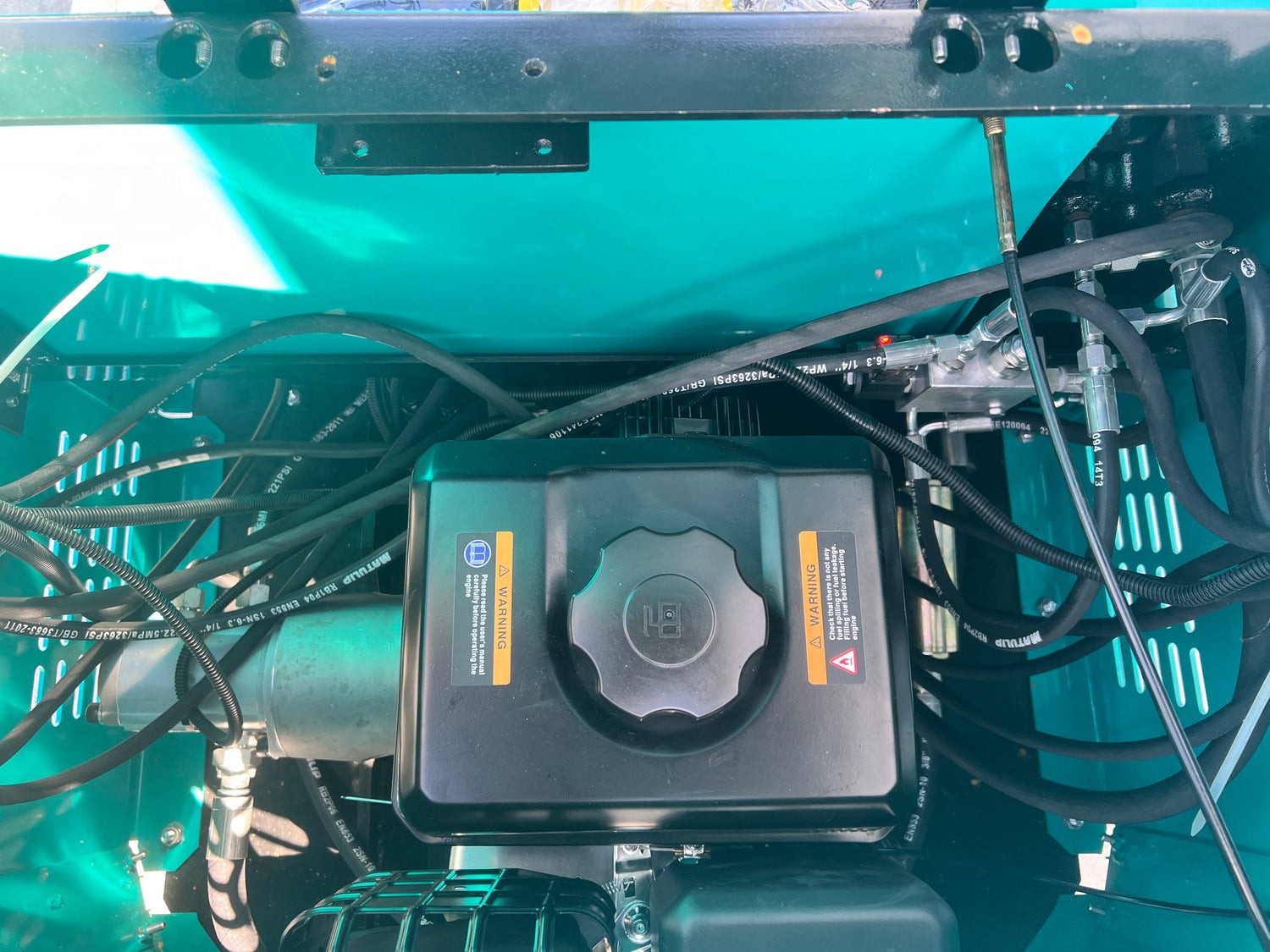

Engine

  • Engine Brand: Rato
  • Model: R420D
  • Fuel Type: Gasoline
  • Rated Power: 8.6 kW (11.5 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Cooling Method: Fan Cooling
  • Rated Speed: 3600 rpm

Hydraulic & Electrical

  • Main Pump Brand/Model: Gear Pump / 0603 (PGP51063G3LP)
  • Hydraulic Flow Rate: 23.4 L/min (6.2 GPM)
  • Hydraulic Pressure: 23.5 MPa (3,408 PSI)

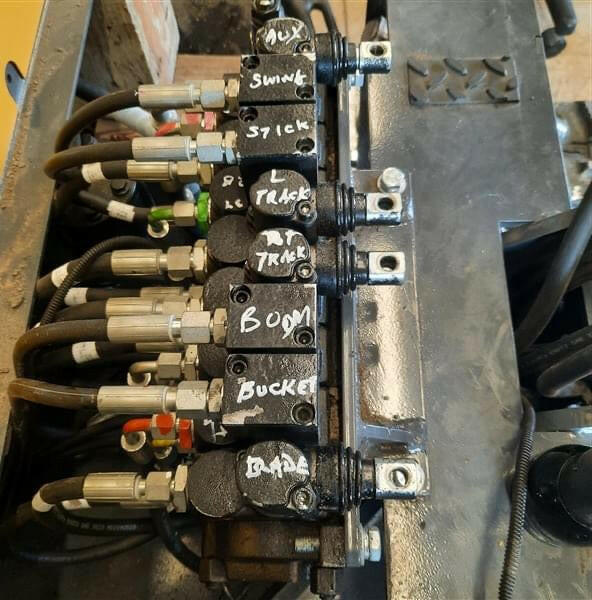

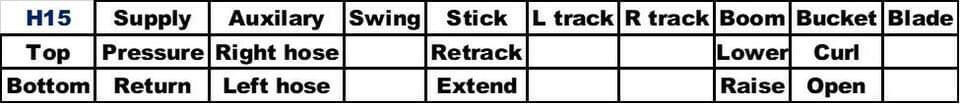

  • Multi-Way Valve: 8-Section Hydraulic Control Multi-Way Valve
  • Walking Hydraulic Motor: BM6K-315
  • Slewing Hydraulic Motor: BM2-315
  • Hydraulic Tank Capacity: 18 L (4.7 gal)

Features

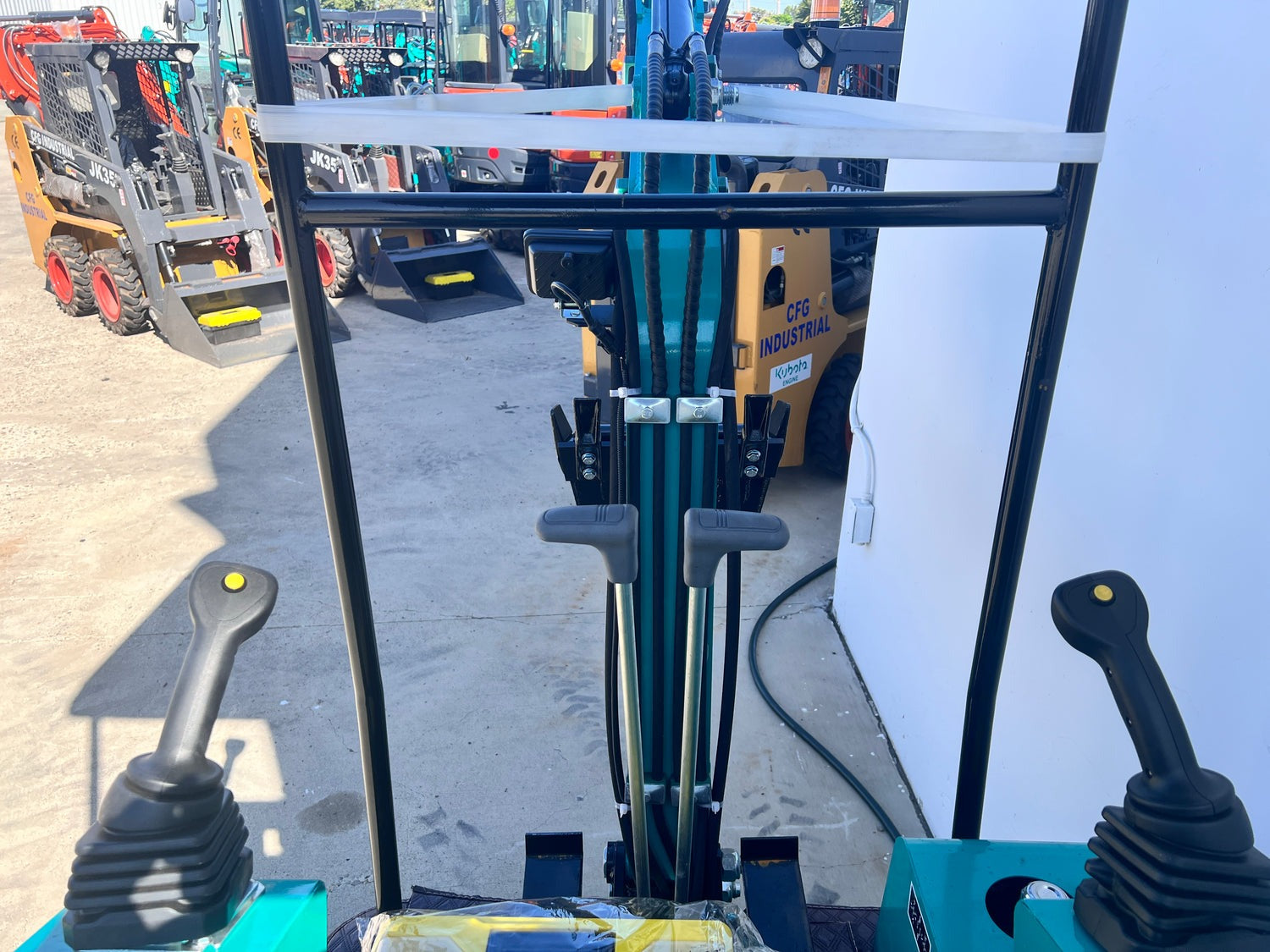

  • Pilot Control

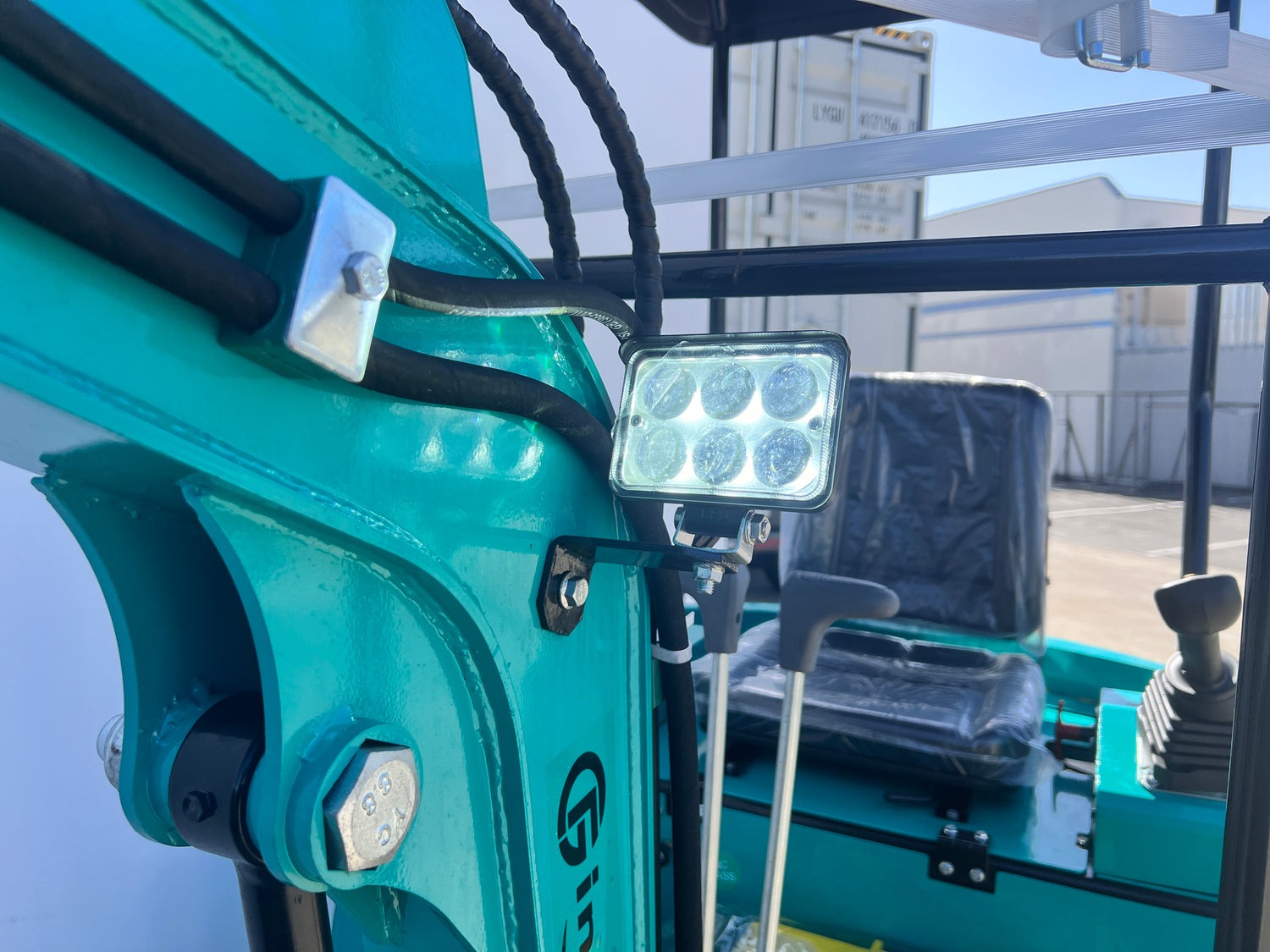

  • LED Light
