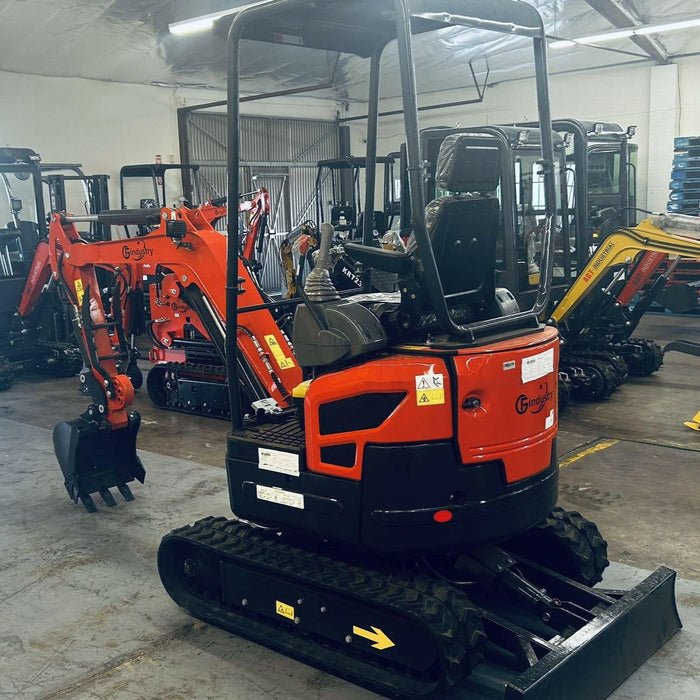

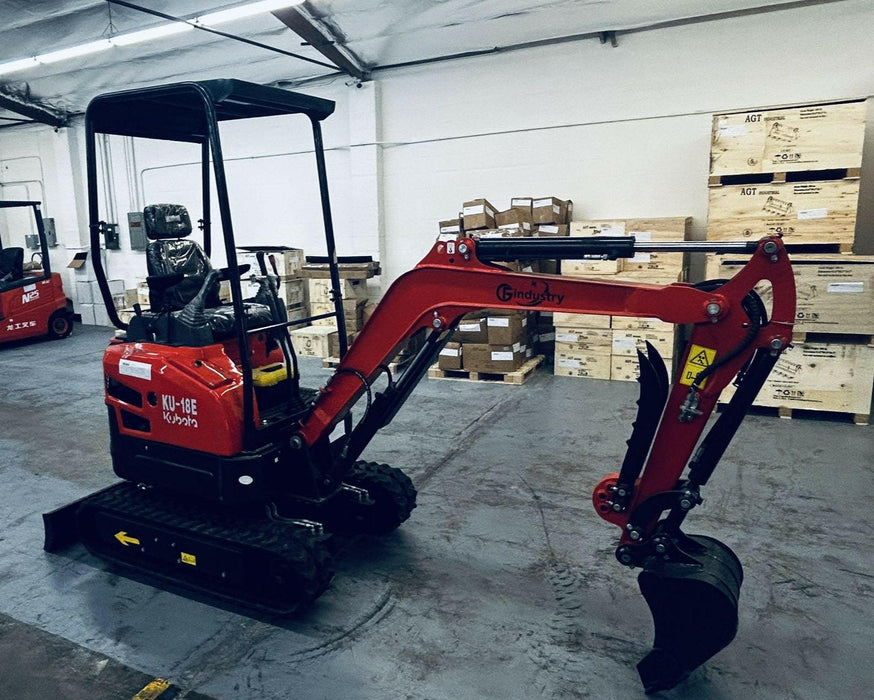

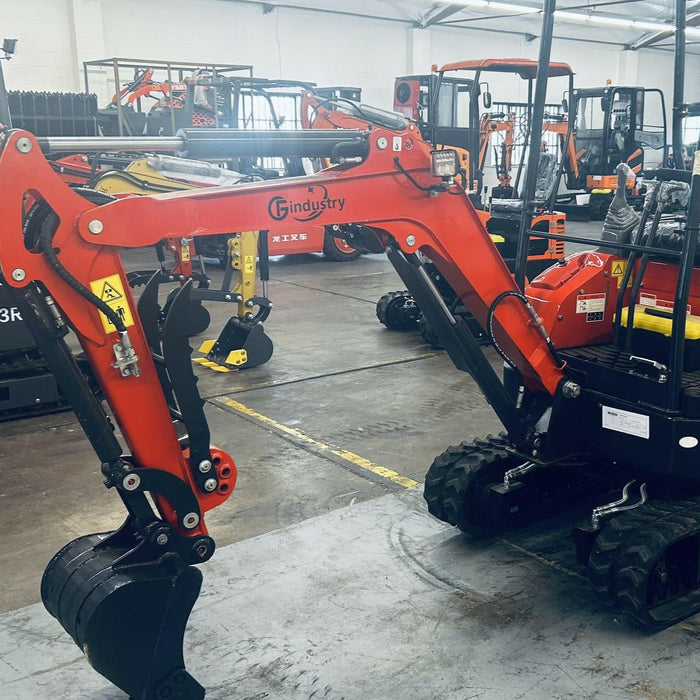

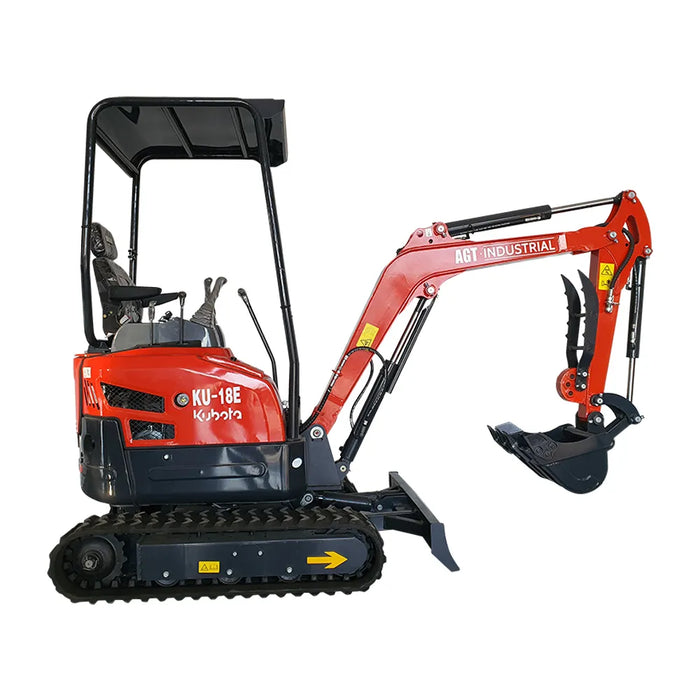

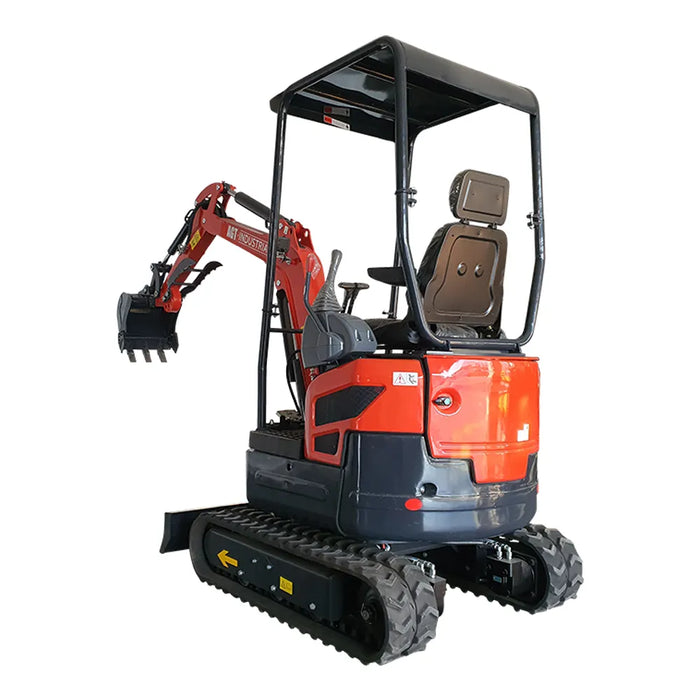

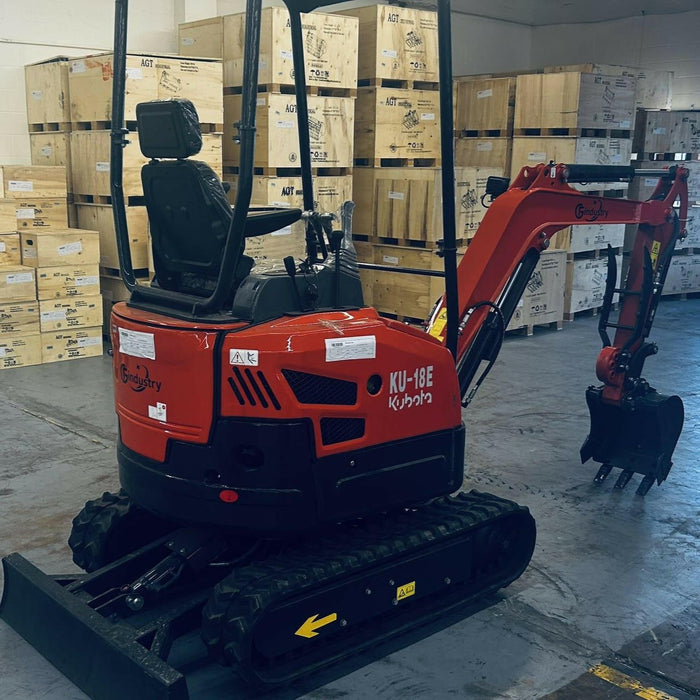

1.8 Ton, Kubota Engine Mini Excavator | KU18EC

1.8 Ton, Kubota Engine Mini Excavator | KU18EC

Save 14% Save 14%
$14,500.00
$14,500.00 - $14,500.00
$14,500.00
$12,500.00
$12,500.00 - $12,500.00
$12,500.00

The KU-18E Mini Excavator, powered by a Kubota engine and weighing 1.8 tons, delivers robust performance, precision, and durability for construction, landscaping, and utility projects, with ergonomic controls for maximum efficiency.

Technical Data:

  • Operation Weight: 1.8 Ton
  • Engine: Kubota Engine
  • Horse Power: 13.5

Specific Data:

Engine:

  • Brand: Kubota
  • Horsepower: 13.5 HP
  • Cooling Method: Liquid Cooling
  • Number of Cylinders: 3
  • Maximum Speed: 3,600 RPM
  • Fuel Type: Diesel

Dimensions:

  • Total Length: 2,925 mm
  • Overall Width: 958 mm
  • Total Height: 2,422 mm
  • Operating Specifications:
  • Operating Weight: 1.8 tons

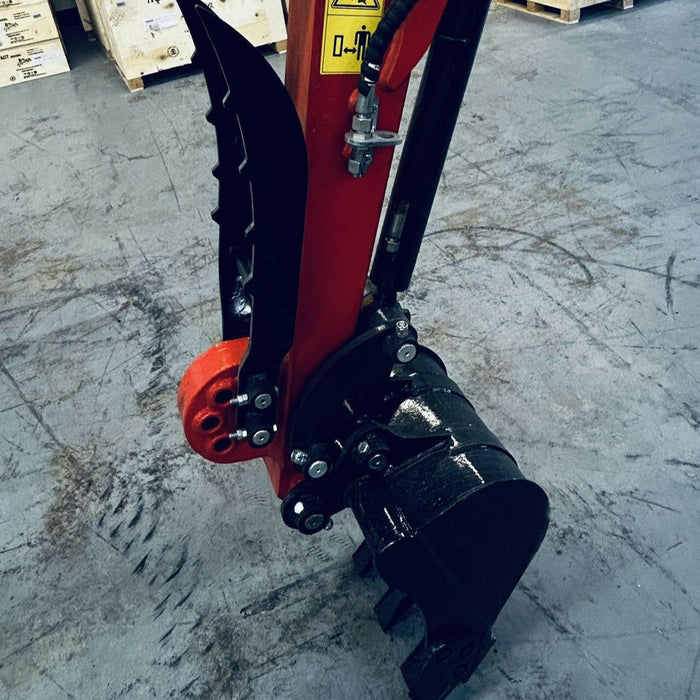

  • Bucket Capacity: 0.04 m3
  • Maximum Digging Depth: 2,120 mm
  • Maximum Digging Height: 3,310 mm
  • Maximum Unloading Height: 2,370 mm
  • Maximum Digging Radius: 3,640 mm
  • Climbing Ability: 30%
  • Swing Speed: 9 RPM
  • Side Swing Angle (Left/Right): 60°/50°

Hydraulic System:

  • Rated Set Pressure: 25 MPa
  • Main Pump Type: GP510803
  • Maximum Flow Rate of Main Pump: 21.6 L/min
  • Multi-Circuit Valve: 4 mechanical + 4 hydraulic
  • Rotary Hydraulic Motor Type: BM2-315
  • Traveling Hydraulic Motor Type: BM6-315

Capacities:

  • Tensioning Form: Hydraulic Tensioning

Dimension

  • Operating Weight: 1.8Ton (3,968 lbs)
  • Overall Length: 2,925 mm (115 in)
  • Overall Width: 958 mm (38 in)
  • Overall Height: 2,422 mm (95 in)
  • Track Size: 220*72*42 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 2,120 mm (83 in)
  • Max Digging Height: 3,310 mm (130 in)
  • Max Dumping Height: 2,370 mm (93 in)
  • Max Reach at Ground:  mm ( in)
  • Blade Width:  mm ( in)
  • Blade Height: mm ( in)
  • Blade Max Lifting Height: mm ( in)
  • Blade Max Drop Depth: mm ( in)

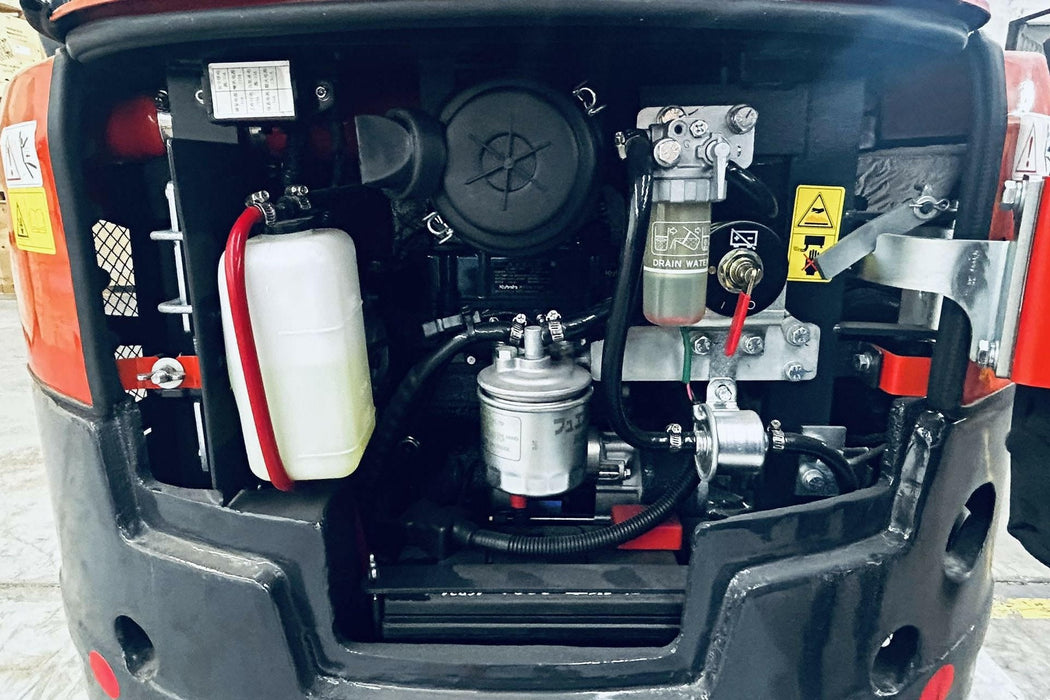

Engine

  • Engine Brand: Kubota
  • Fuel Type: Diesel
  • Model: D722-EF18
  • Rated Power: 10 kW (13.5 HP)
  • Displacement: 720 cc
  • Fuel Capacity: L ( gal)
  • Fuel Consumption: L/hr
  • Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
  • Hydraulic Pressure: 25 MPa (3,626 PSI)
  • Hydraulic Tank Capacity: L ( gal)

Features

  • Hydraulic Tensioning
  • LED Light

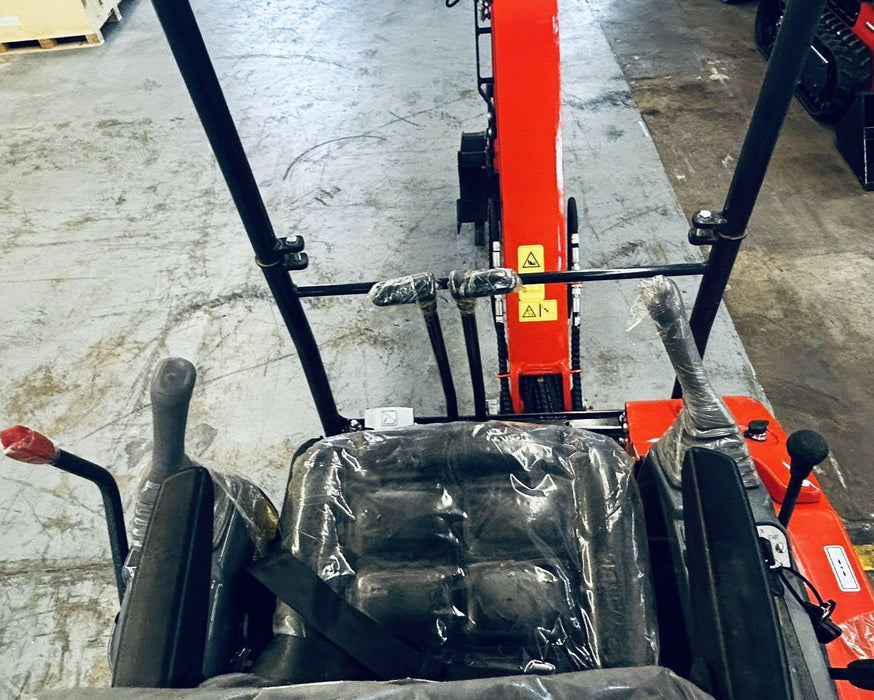

  • Pilot Control
