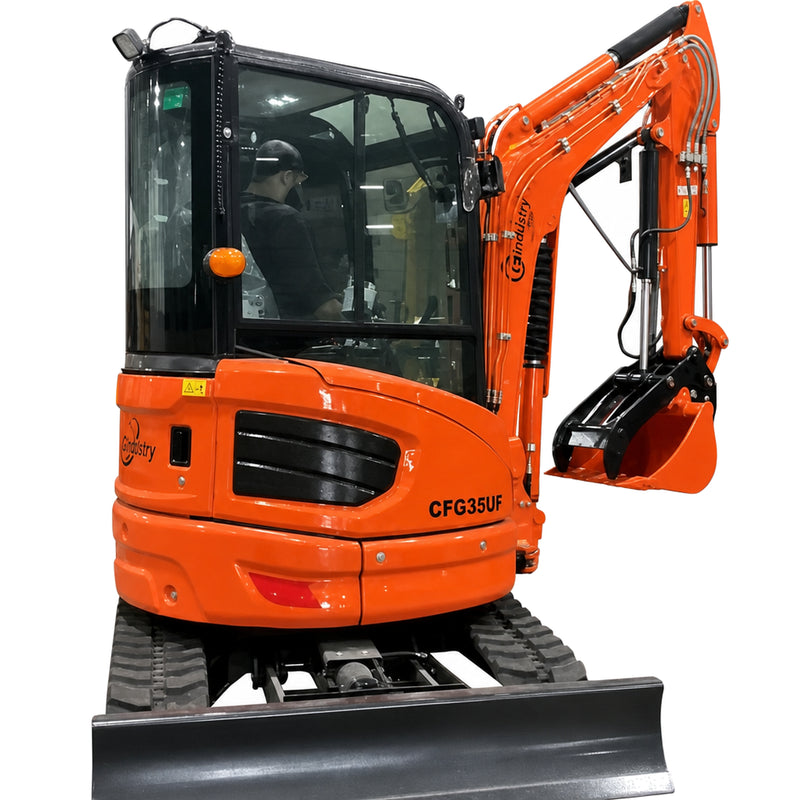

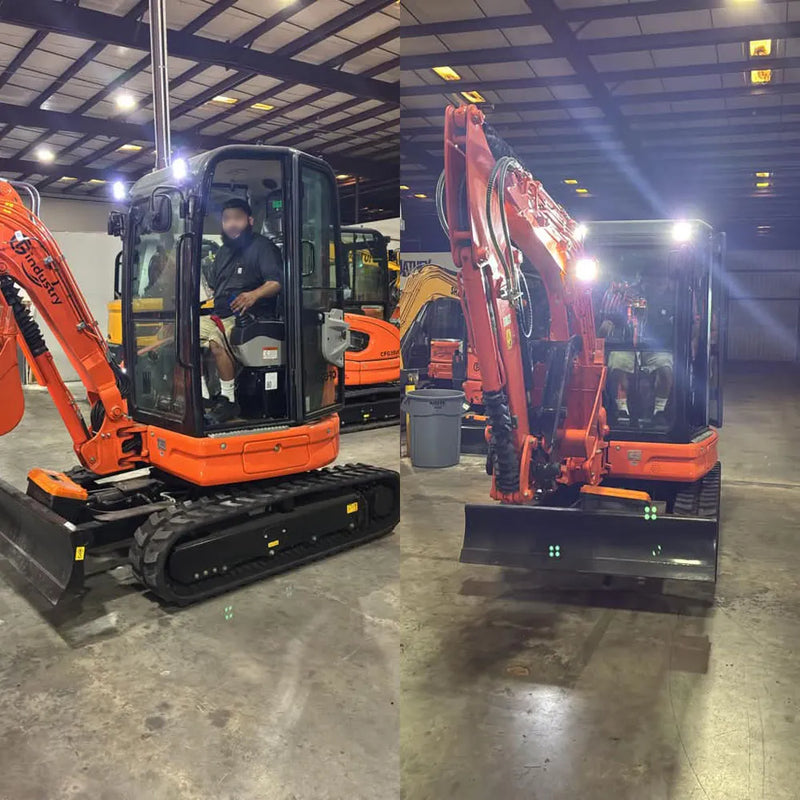

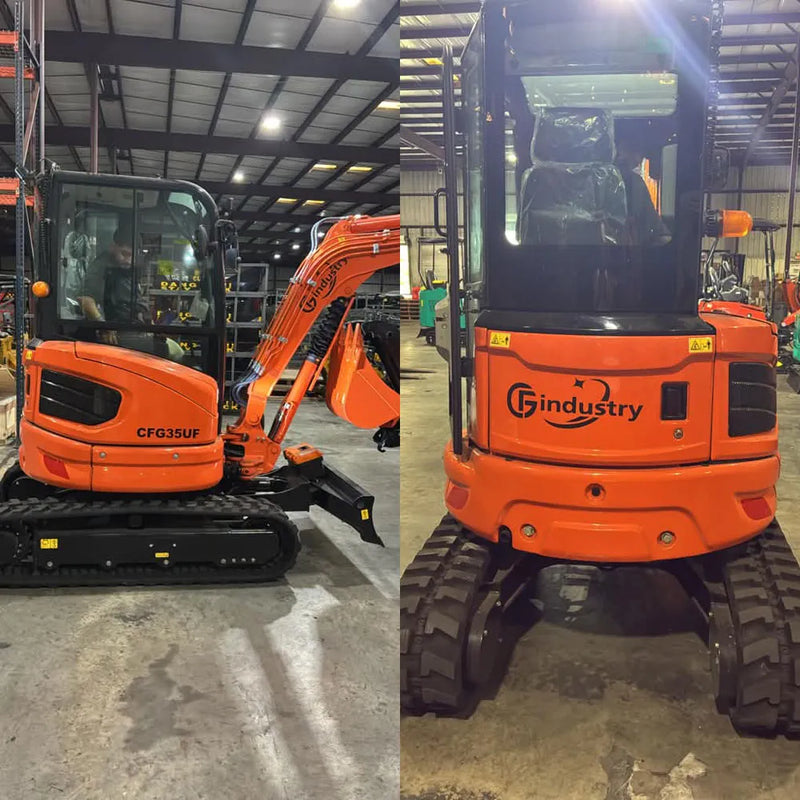

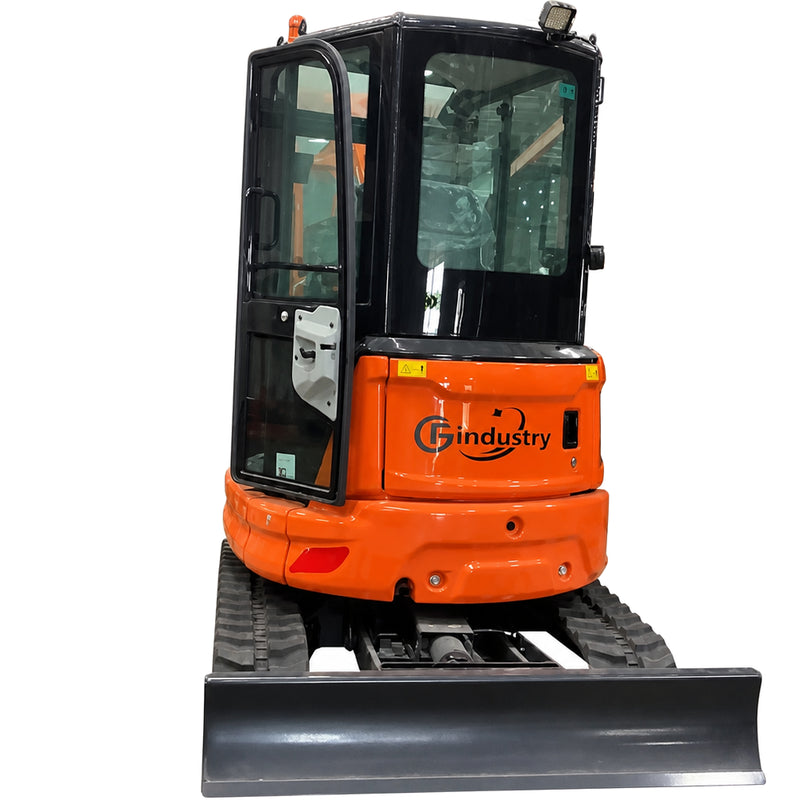

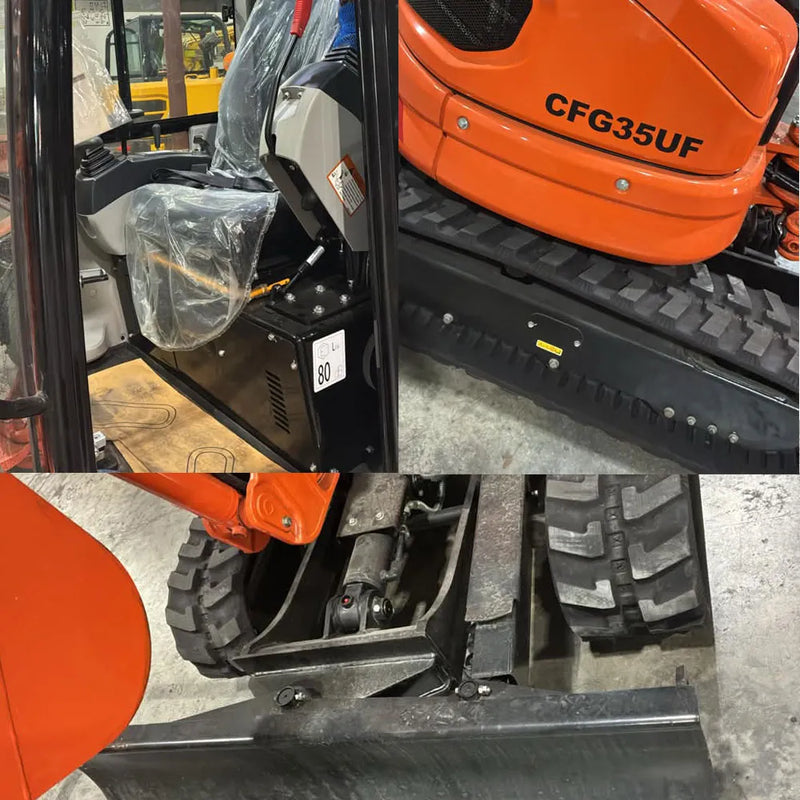

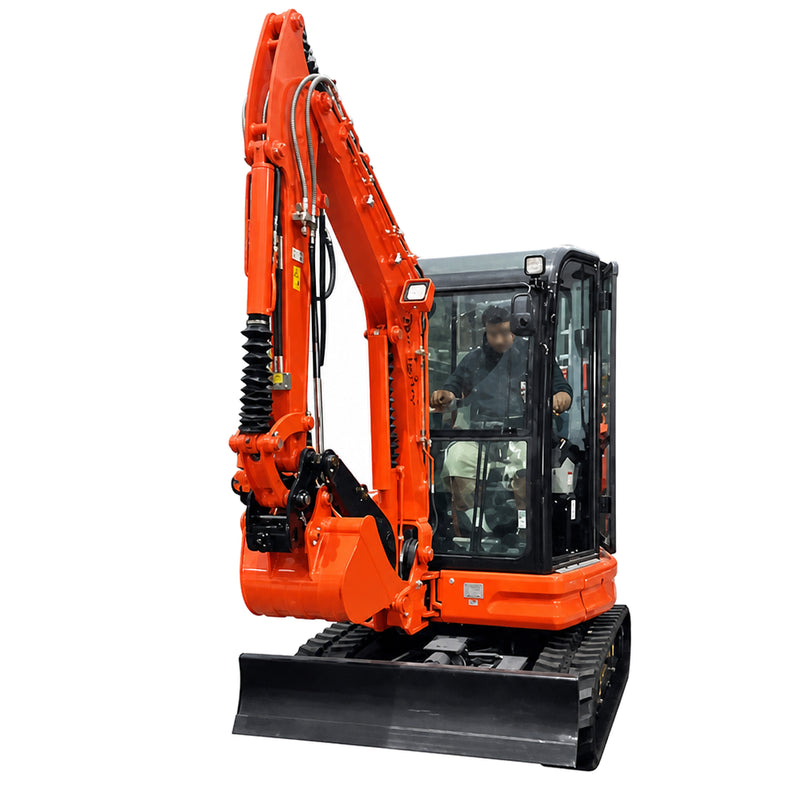

CFG 2.8 Ton Mini Excavator w/ Kubota D1105 20.6HP Diesel Engine, 110" Max Dig Depth, Enclosed Cab, Pilot Control & 4-Way Angle Blade | CFG35UF-L
Save 6%
Save 6%
Original price
$31,999.00
Original price
$31,999.00
-
Original price
$31,999.00
Original price
$31,999.00
Current price
$29,999.00
$29,999.00
-
$29,999.00
Current price
$29,999.00
| /
Next-level efficiency and operator control! The upgraded AGT CFG35UF-L 2.8 Ton Mini Excavator builds upon the dependable design of the original CFG35UF by introducing advanced operational features for demanding worksites. Engineered for heavy-duty excavating, trenching, and site preparation, it combines compact agility with zero-tail swing capability and superior hydraulic versatility.
Powered by a proven Kubota D1105 20.6 HP (15.4 kW) 3-cylinder water-cooled diesel engine, the CFG35UF-L boasts a maximum digging depth of 110 inches (2,800 mm), pilot hydraulic controls, and a fully enclosed all-weather cab. The upgraded -L edition elevates job site productivity with an integrated 4-Way Angle Dozer Blade, Dual Auxiliary Hydraulic Outputs for complex attachments, a Quick-Attach Coupler, and a convenient Pattern Change Valve (ISO/SAE Hand-Pattern Switch).
Uses 35 mm pin attachments
Envelope Diagram
![]()
![]()
Dimension
- Operating Weight: 2.8 Ton (5,600 lbs)
- Overall Length: 4,150 mm (163 in)
- Overall Width: 1,500 mm (59 in)
- Overall Height: 2,510 mm (99 in)
- Wheelbase: 1,560 mm (61.4 in)
- Overall Length of Track: 1,990 mm (78.3 in)
- Track Size: 300*55*78 (Width*Pitch Length*Links)
- Track Height: 475 mm (18.7 in)
- Chassis Ground Clearance: 325 mm (12.8 in)
- Platform Ground Clearance: 570 mm (22.4 in)
- Tail Swing Radius: 765 mm (30.1 in)
- Upper-Structure Width: 1,450 mm (57.1 in)
Working Range
- Max Digging Depth: 2,800 mm (110 in)
- Max Vertical Digging Depth: 2,590 mm (102 in)
- Max Digging Height: 4,235 mm (167 in)
- Max Dumping height: 3,040 mm (120 in)
- Max Reach at Ground Level: 4,665 mm (184 in)
- Digging Radius: 4,780 mm (188 in)
- Bucket Capacity: 0.04–0.13 m³ (1.41–4.59 cu ft)
- Dozer Blade Width: 1,500 mm (59 in)
- Dozer Blade Height: 325 mm (13 in)
- Blade Max Lifting Height: 325 mm (12.8 in)
- Blade Max Drop Depth: 300 mm (11.8 in)
- Side Swing Angle (L/R): 65° / 50°
PERFORMANCE
- Travel Speed (Low/High): 2.3 / 4.0 km/h (1.4 / 2.5 mph)
- Climbing Ability: 57% (30°)
Engine
- Engine Brand: Kubota
- Fuel Type: Diesel
- Model: D1105
- No. of Cylinders: 3
- Cooling Method: Water Cooling
- Rated Power: 15.4 kw (20.6 HP)
- Displacement: 1,123 cc
- Fuel Capacity: 26 L (6.9 gal)
HYDRAULIC & ELECTRICAL
- Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
- Hydraulic Pressure: 24.5 MPa (3,553 psi)
- Hydraulic Tank Capacity: 24 L (6.3 gal)
- Battery: 12V, 63Ah
Features

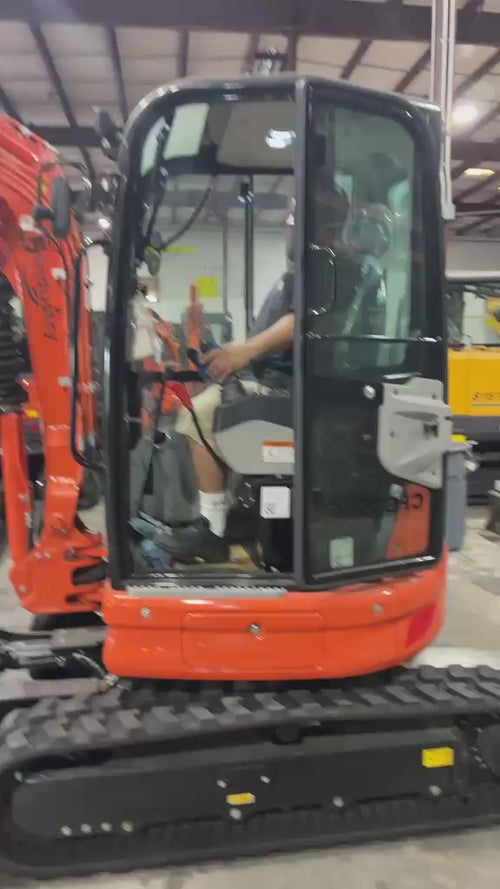

- Enclosed Cab
- Pilot Control (Intelligent Electrified Handles)

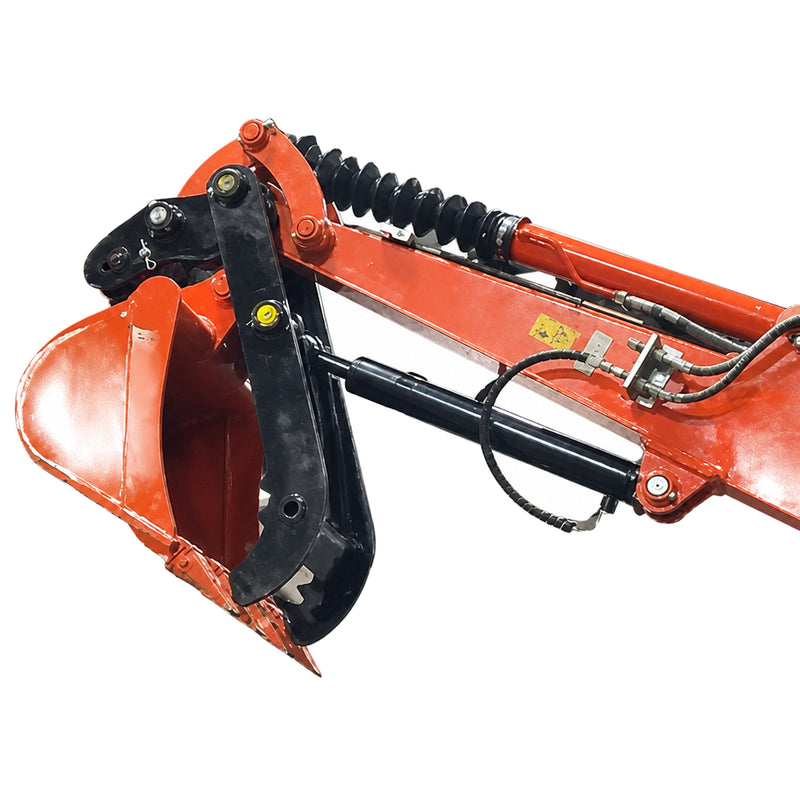

- Hydraulic Thumb
- Side Swing Boom
- Variable Speed Travel Motor (High/Low)
- LED Headlights
- Full Opening Engine Cover
