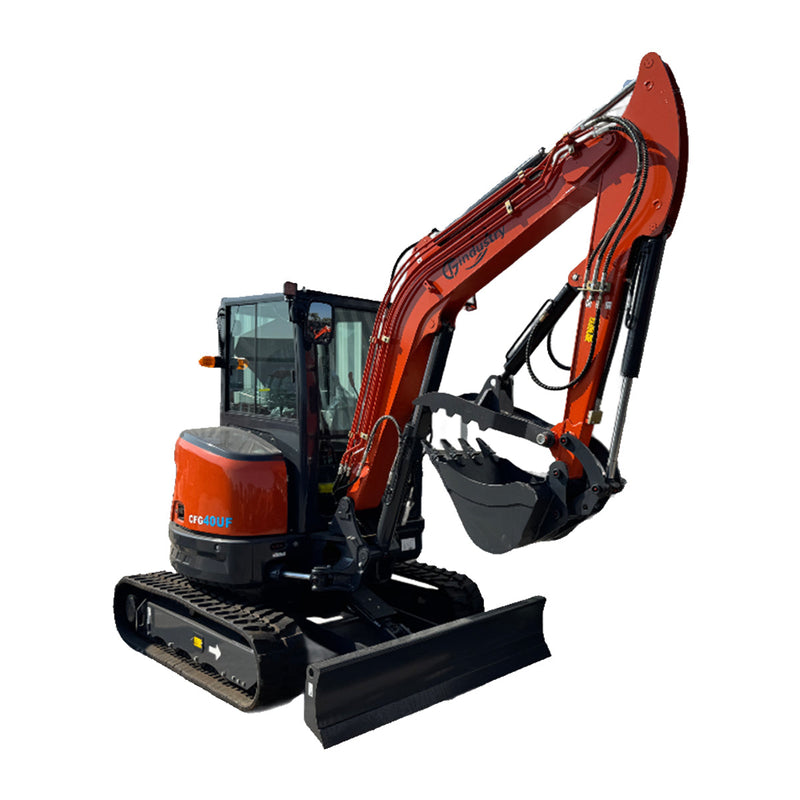

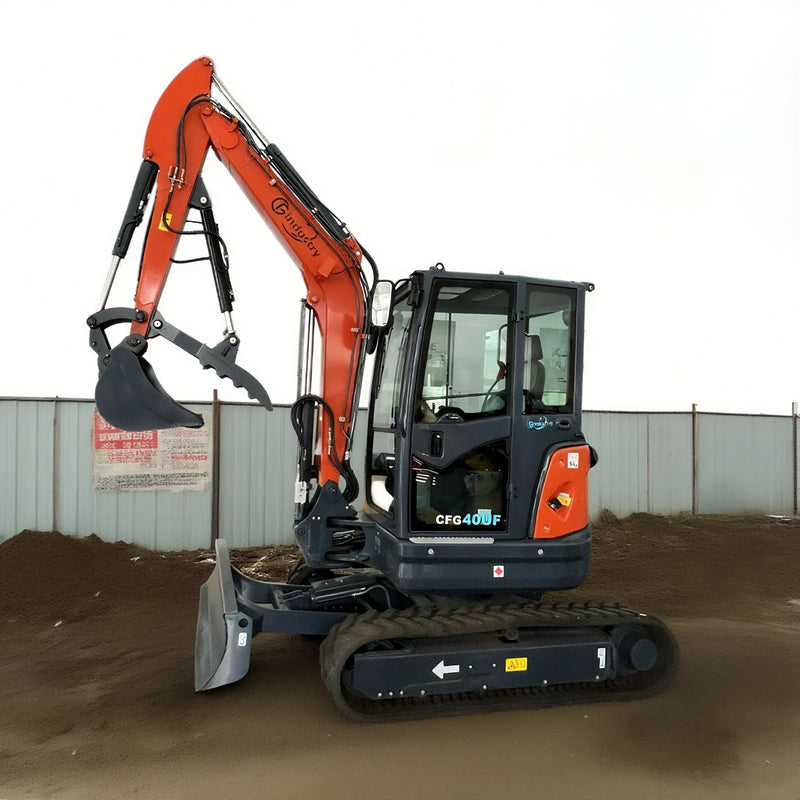

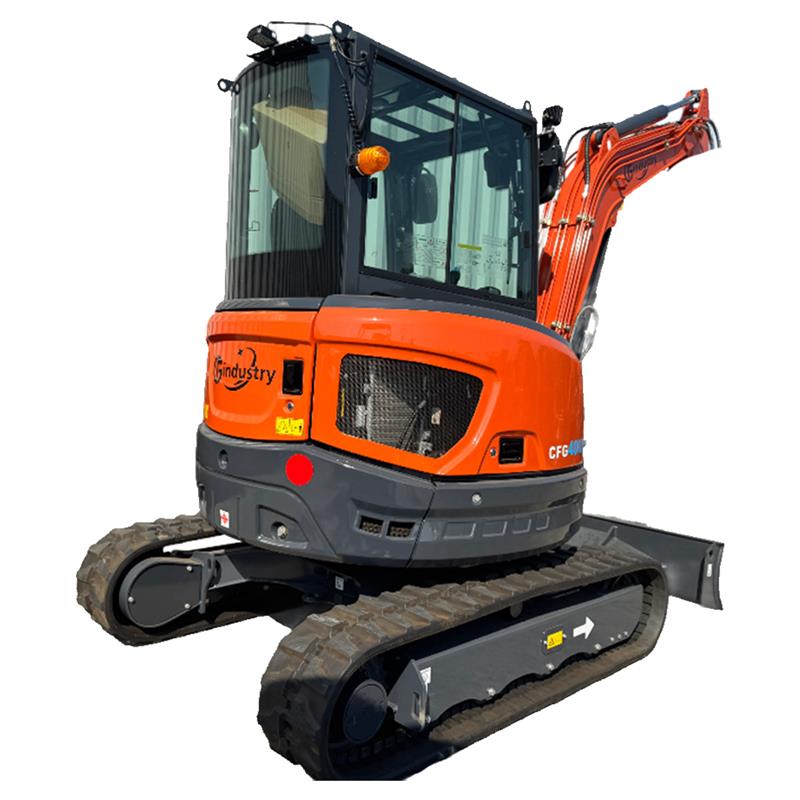

4 Ton, Kubota Diesel Engine Mini Excavator w/ Hydraulic Thumb & A/C | CFG-40UF

4 Ton, Kubota Diesel Engine Mini Excavator w/ Hydraulic Thumb & A/C | CFG-40UF

Save 2% Save 2%
$29,600.00
$29,600.00 - $29,600.00
$29,600.00
$29,100.00
$29,100.00 - $29,100.00
$29,100.00

This versatile excavator offers a cabin/canopy option and delivers exceptional performance with a Kubota D1703-E4B-SWD-1 engine, 0.11m3 bucket capacity, and maximum digging depth of 130.7". Designed for precision and power, it features rubber or steel tracks, a hydraulic thumb, and excellent reach, with a maximum digging force of 31.8kN. Easy to maneuver and maintain, it¡¯s ideal for demanding tasks in construction and landscaping.

In Action Video

Manual

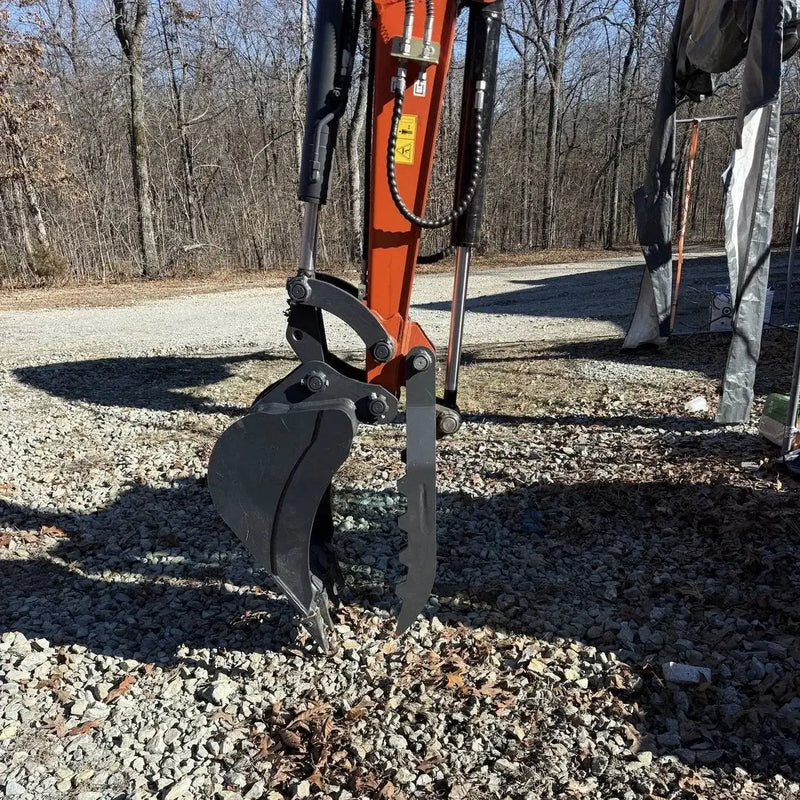

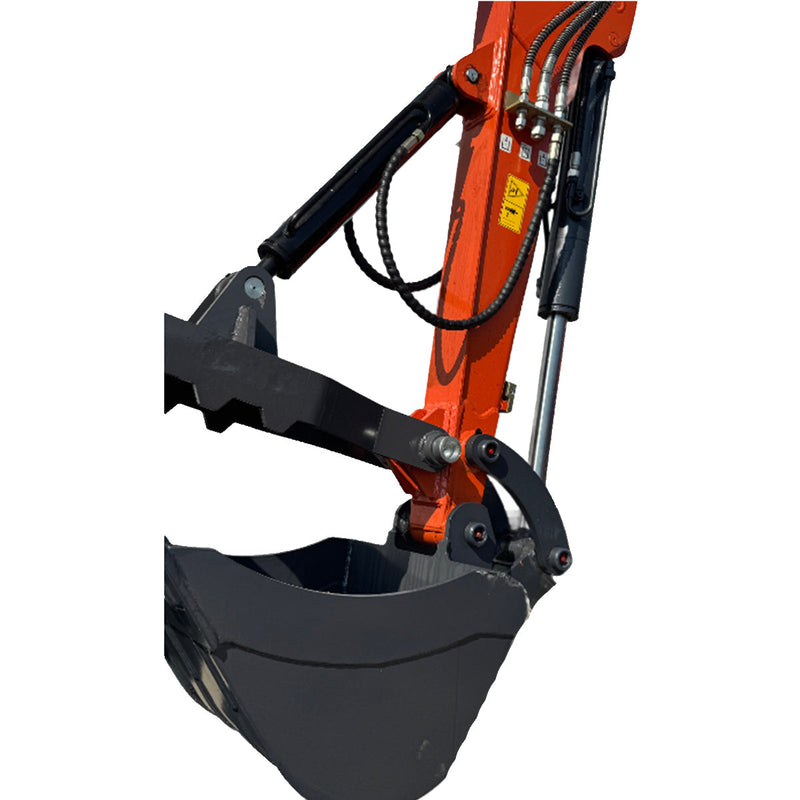

Uses 35 mm pin attachments. Replaced Radio with Hydraulic Thumb.

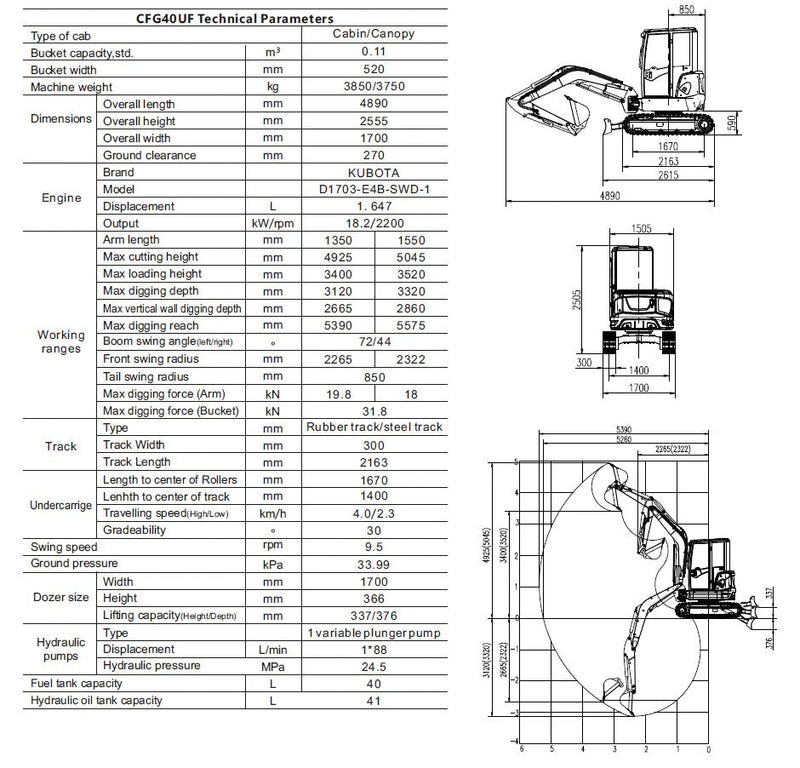

Dimension

  • Operating Weight: 3.8 Ton (8377 lb)
  • Overall Length: 4890 mm (192.5 in)
  • Overall Width: 1700 mm (67 in)
  • Overall Height: 2555 mm (100.5 in)

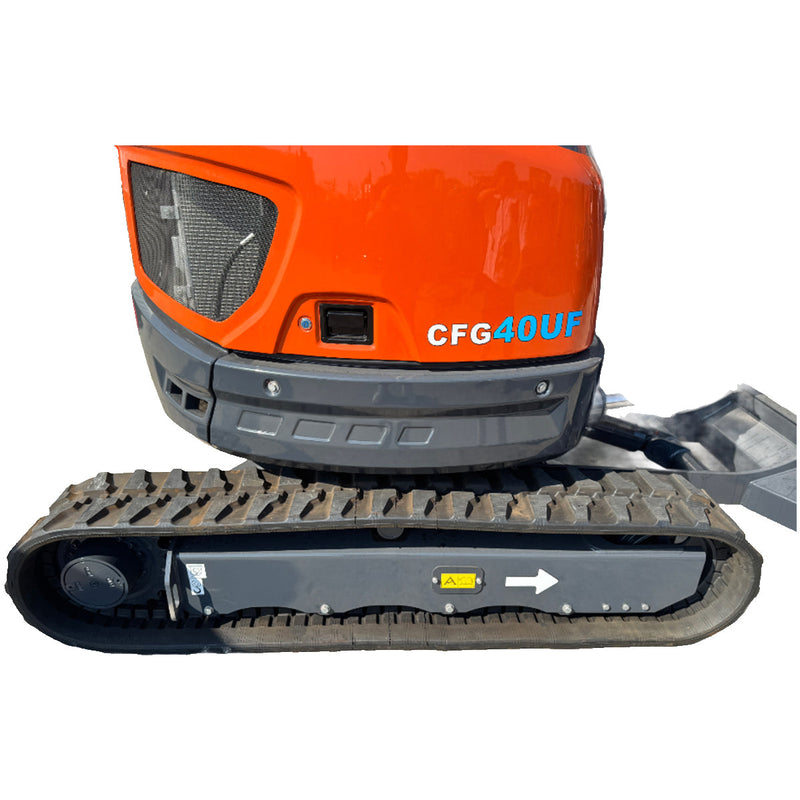

  • Track Size: 300*55*84 (W*P*L)

Working Range

  • Max Digging Depth: 3320 mm (131 in)
  • Max Digging Height: 5045 mm (198 in)
  • Max Dumping Height: 3520 mm (138 in)
  • Max Reach at Ground: 5575 mm (219 in)
  • Dozer Blade Width: 1700 mm (67 in)
  • Dozer Blade Height: 366 mm (14 in)
  • Blade Max Lifting Height: 336 mm (13 in)
  • Blade Max Drop Depth: 336 mm (13 in)

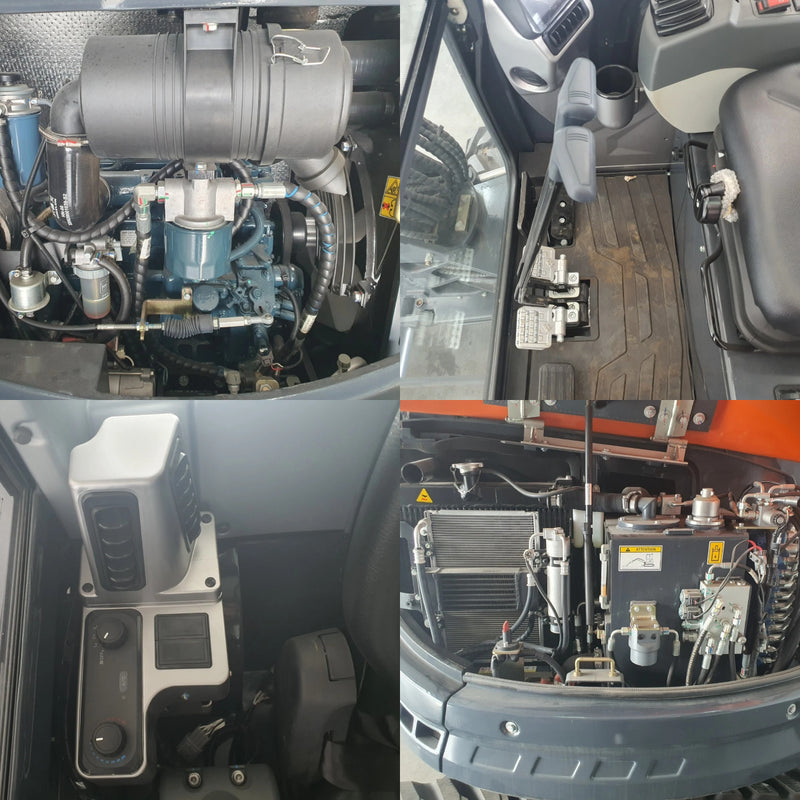

Engine

  • Engine Brand: Kubota
  • Fuel Type: Diesel
  • Model: D1703-E4B
  • Rated Power: 18.2 kW (24.4 HP)
  • Displacement: 1647 cc
  • Fuel Capacity: 40L (10.6 gal)
  • Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
  • Hydraulic Pressure: 24.5 MPa (3553 psi)
  • Hydraulic Tank Capacity: 41 L (10.8 gal)
  • Battery: 12V

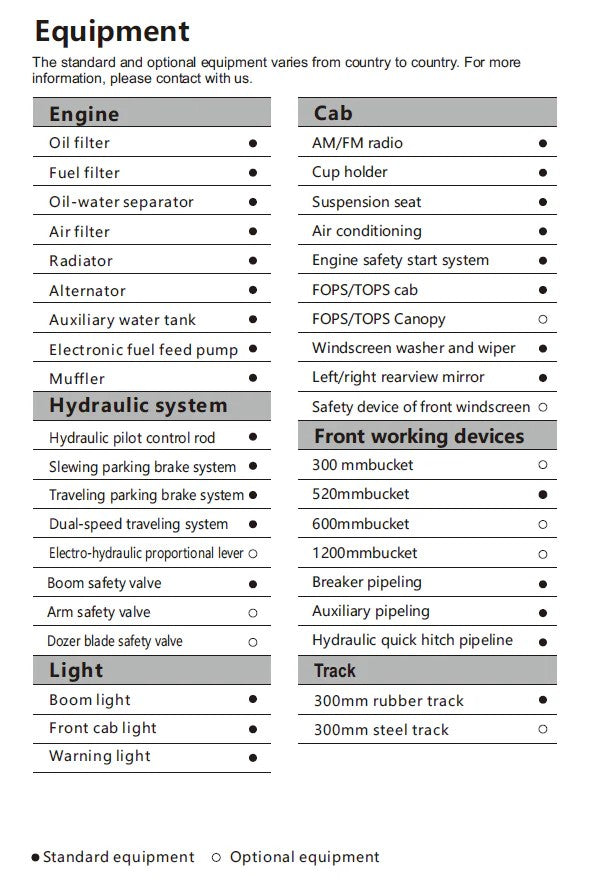

Features

  • Enclosed Cab
  • LED Lights
  • AM/FM Radio
  • AC
  • Rearview Mirror
  • Pilot Control

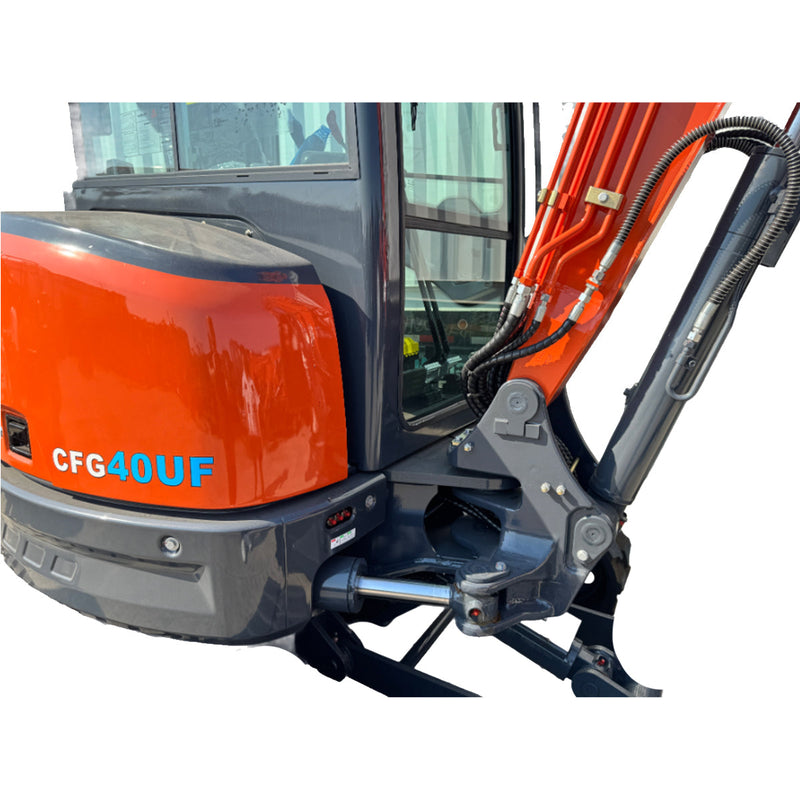

  • Side Swing Boom
