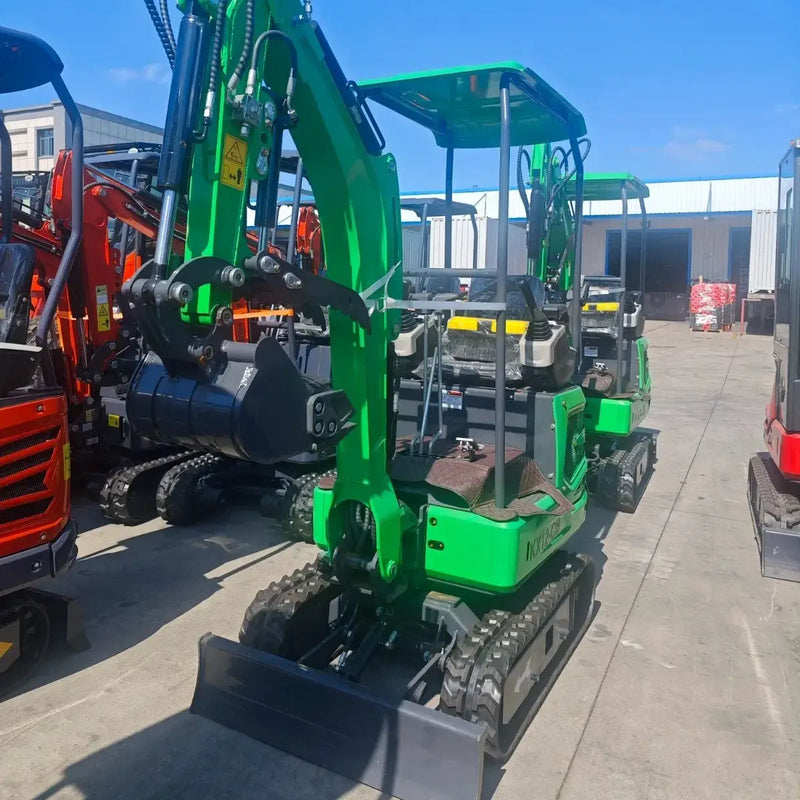

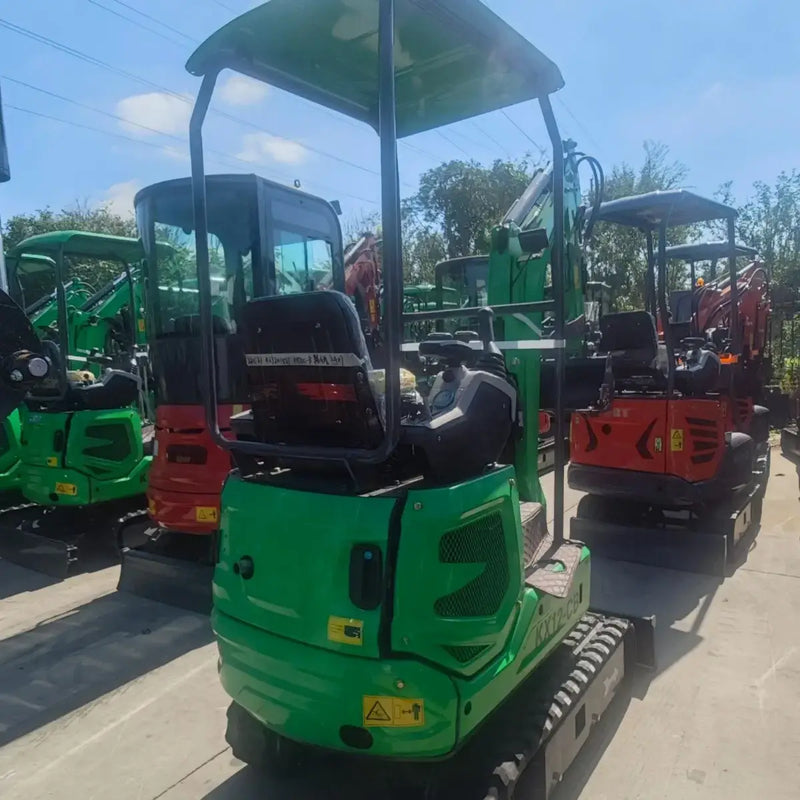

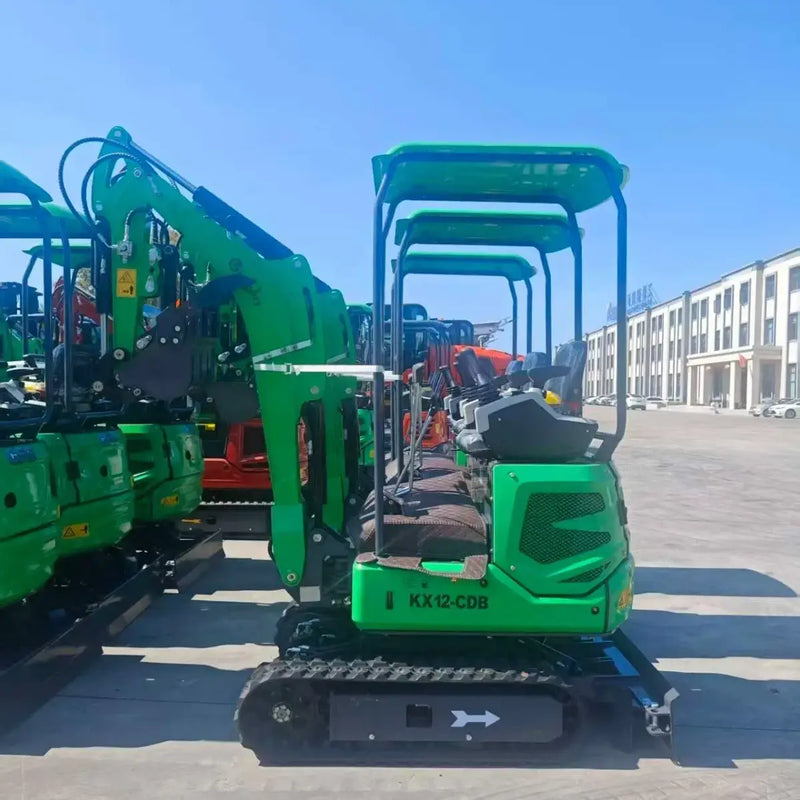

The AGT-KX12-CD(B) is a side-swing capable mini excavator powered by a reliable 13.5 HP Briggs & Stratton gasoline engine. Built for maneuverability and light construction work, it offers increased digging reach, a 0.03 m³ bucket, and a compact design suited for tight-access job sites. dual blade lifting functions, and a simple hydraulic system, the KX12-CD(B) delivers essential performance in an affordable, easy-to-maintain package.
Dimension
- Operating Weight: 0.9 Tons (1,984 lbs)
- Overall Length: 3,240 mm (127.5 in)
- Overall Width: 990 mm (39 in)
- Overall Height: 2,200 mm (86.5 in)

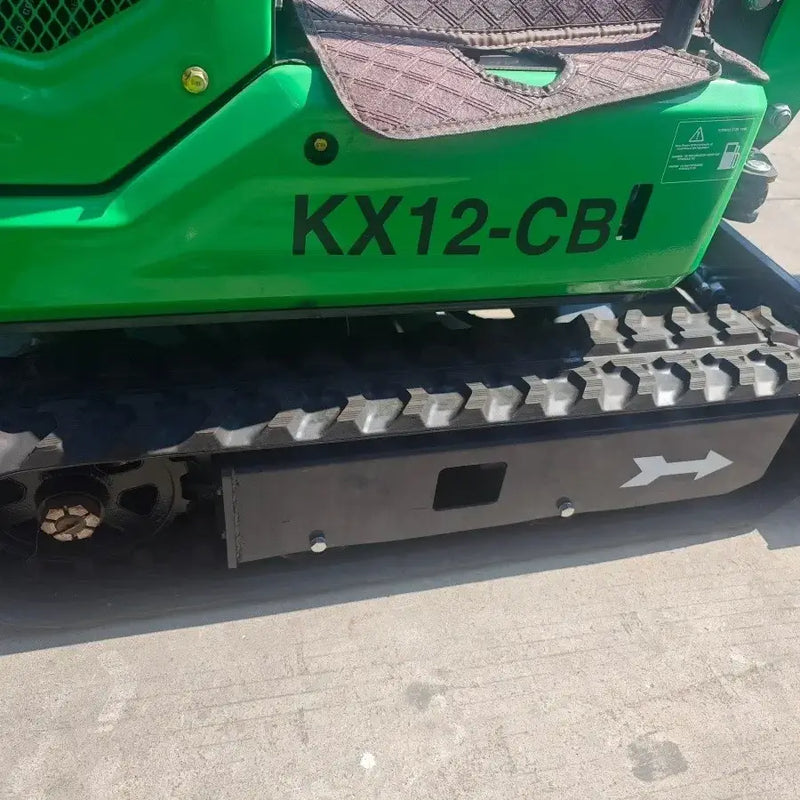

- Track Size: 180*72*37 (Width*Pitch Length*Links)
- Min Slewing Radius (Front): 1,470 mm (57.9 in)
- Min Slewing Radius (Tail): 800 mm (31.5 in)
Working Range
- Max Digging Height: 2,900 mm (114 in)
- Max Dumping Height: 2,100 mm (82.5 in)
- Max Reach at Ground: 3,250 mm (128 in)

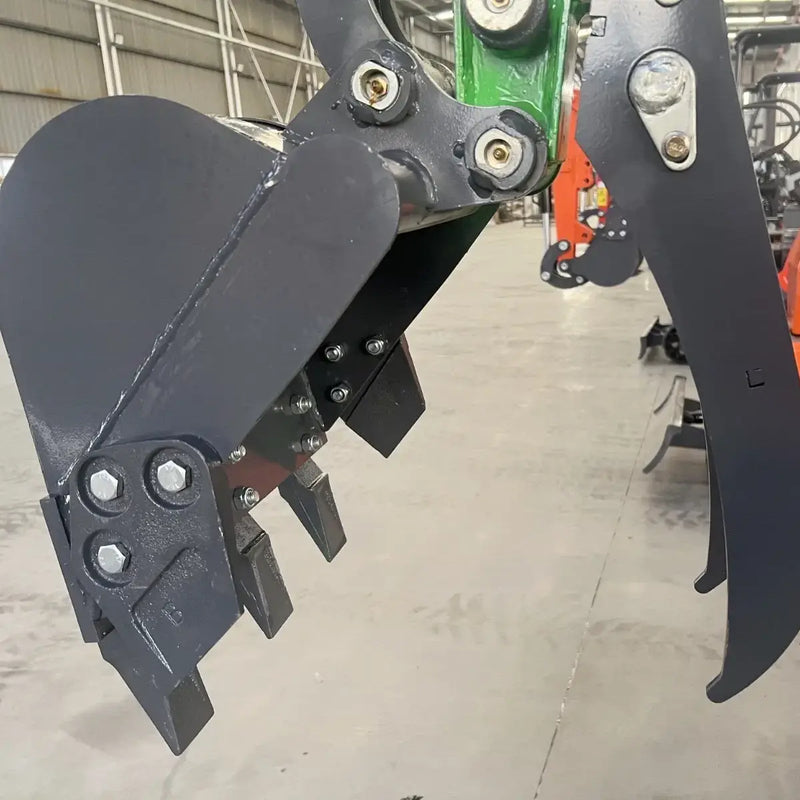

- Bucket Capacity: 0.03 m³ (1.06 cu ft)

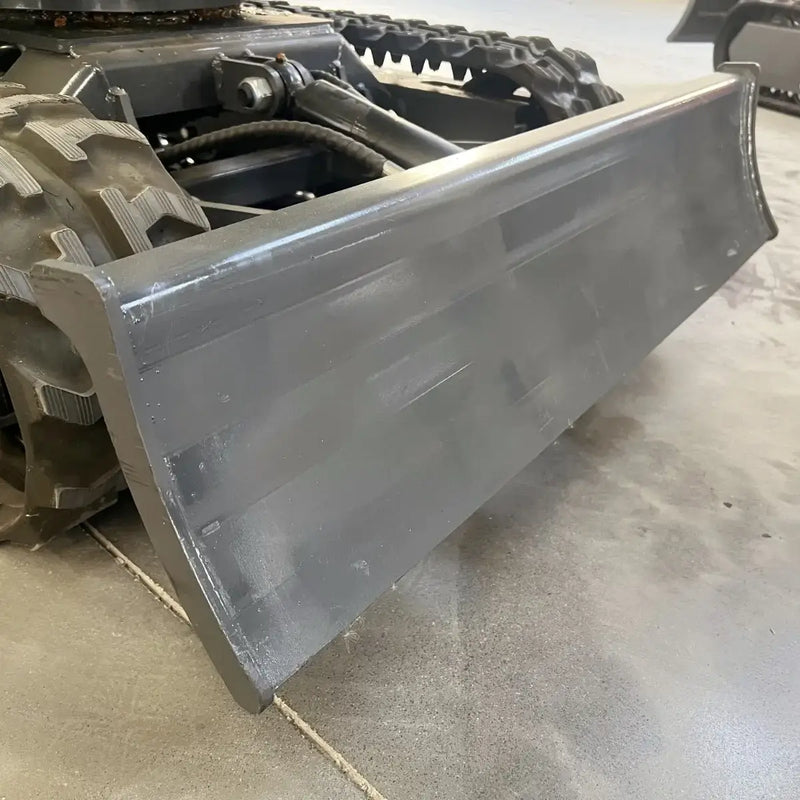

- Blade Width: 950 mm (37 in)
- Blade Height: 230 mm (9 in)
- Blade Max Lifting Height: 190 mm (7.5 in)
- Blade Max Drop Depth: 190 mm (7.5 in)
Performance
- Walking Speed: 0–1.8 km/h (0–1.12 mph)
- Climbing Ability: 11% (approx. 6.3°)

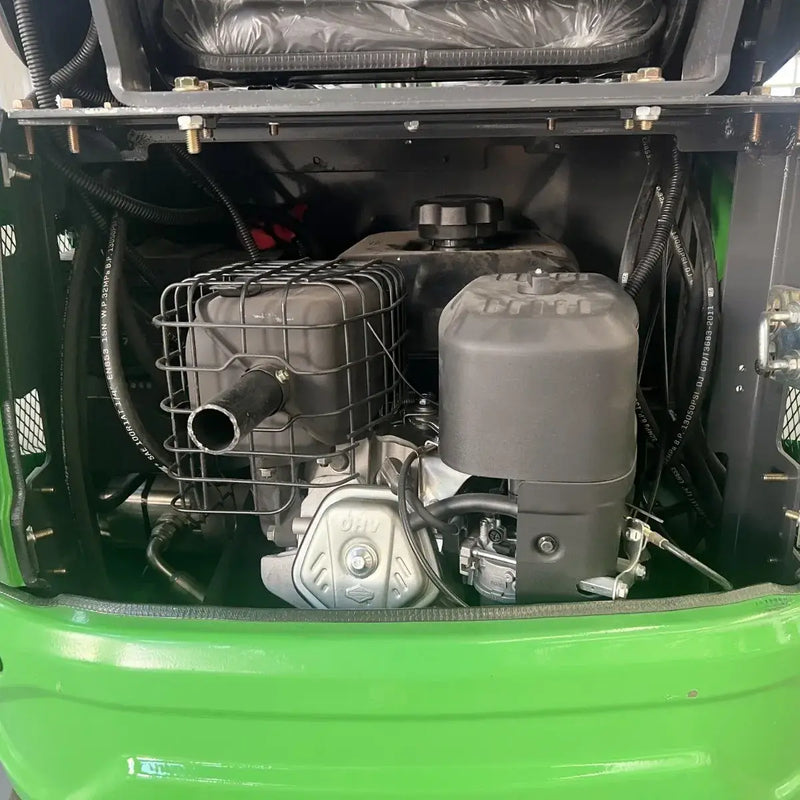

Engine
- Engine Brand: B&S (Briggs & Stratton)
- Model: XR Fuel Type: Gasoline
- Rated Power: 10 kW (13.3 HP)
- Displacement: 420 cc
- Fuel Capacity: 6.6 L (1.7 gal)
Hydraulics & Electrical
- Main Pump Type: Gear Pump / 06
- Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
- Hydraulic Pressure: 16 MPa (2,320 PSI)
- Multi-Channel Valve: 8-Connection
- Walking Hydraulic Motor: BM6-315
- Slewing Hydraulic Motor: BM2-315
- Hydraulic Tank Capacity: 18 L (4.7 gal)
- Battery: 12V, 45–60Ah
Features

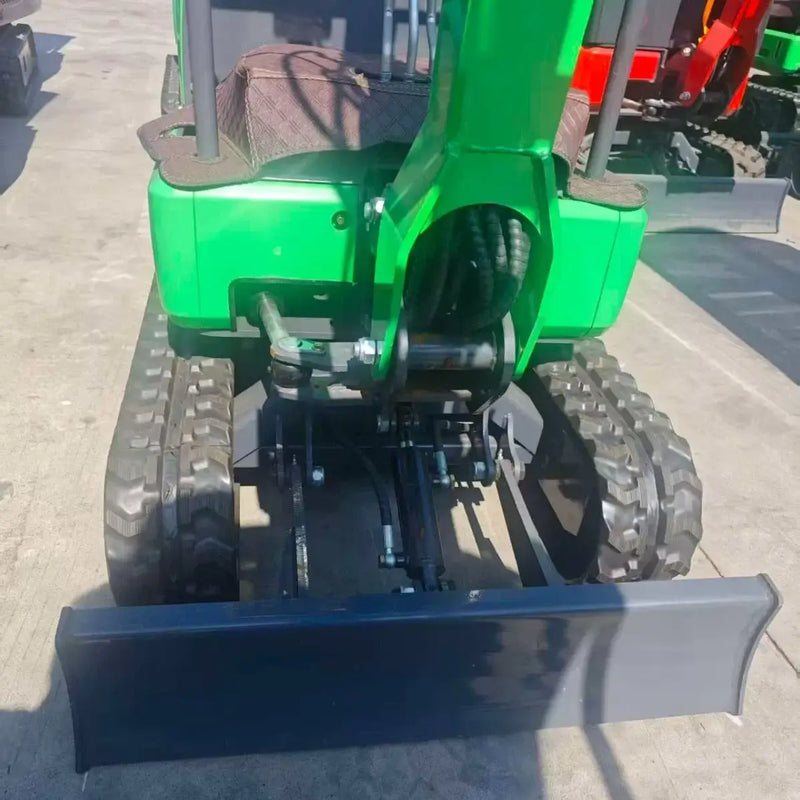

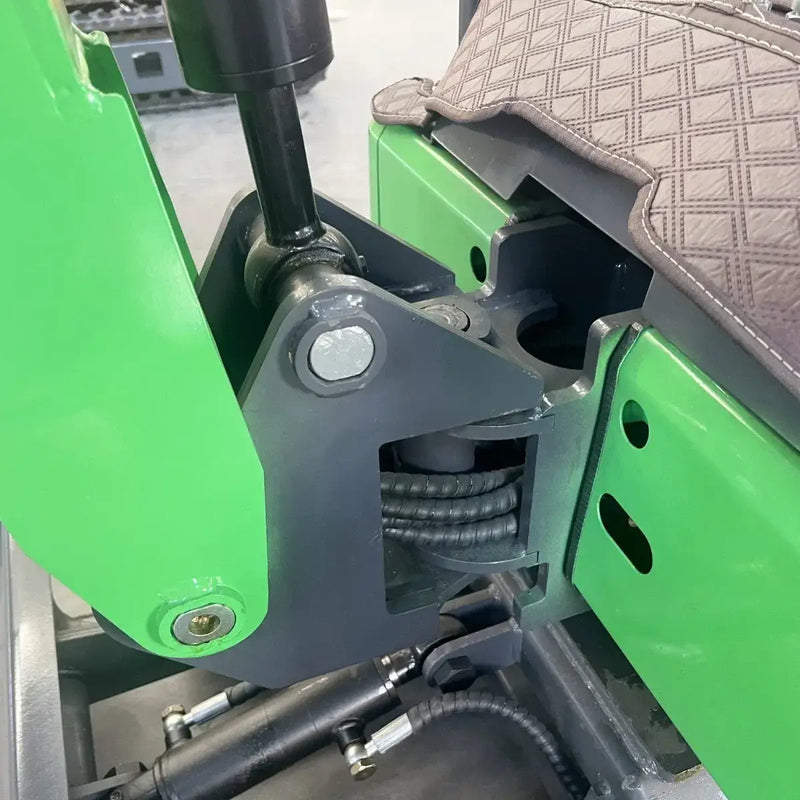

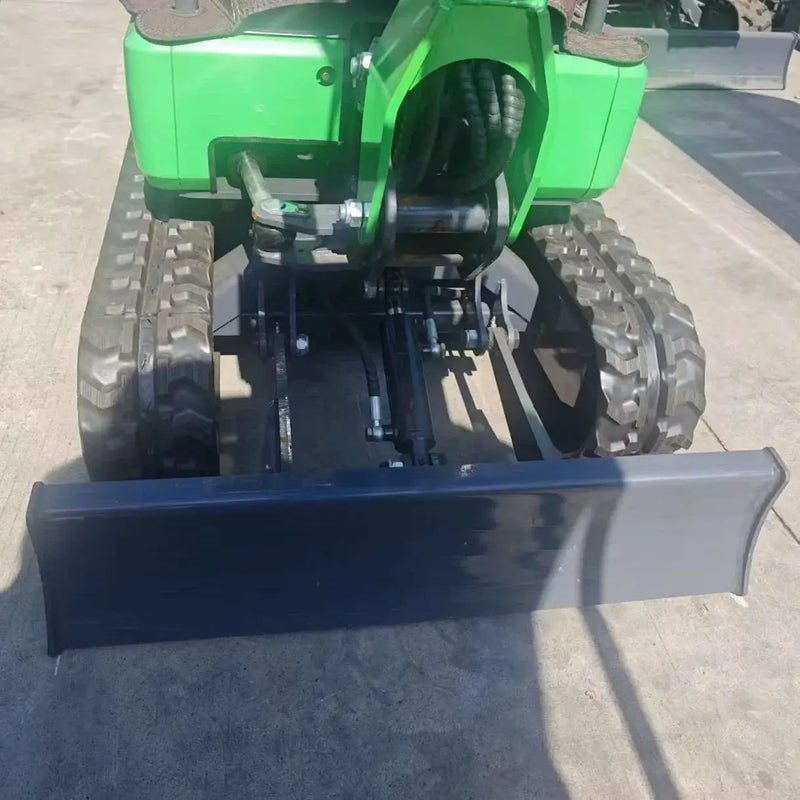

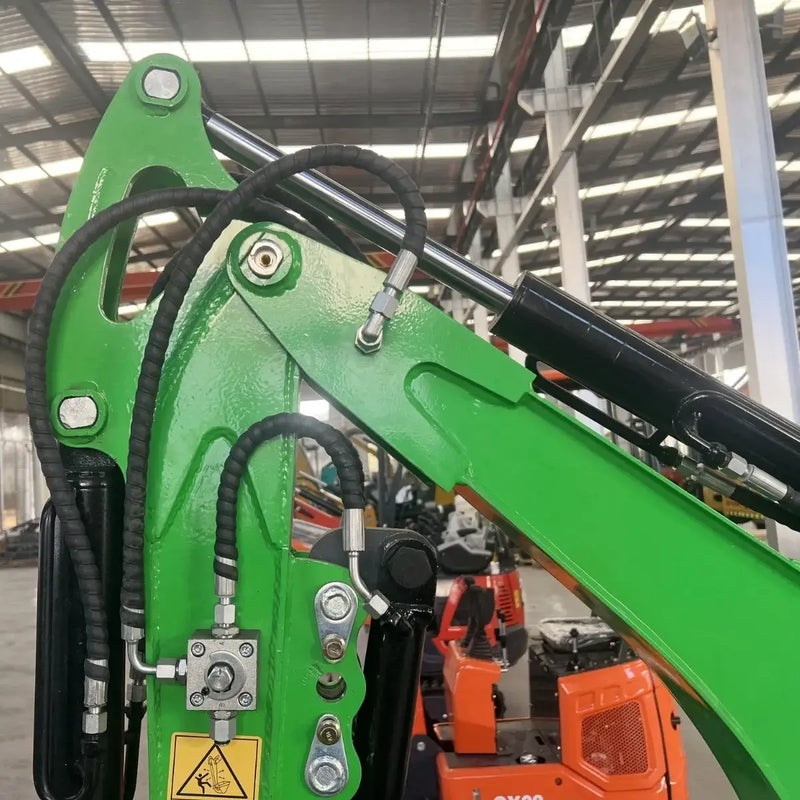

- Swing Boom

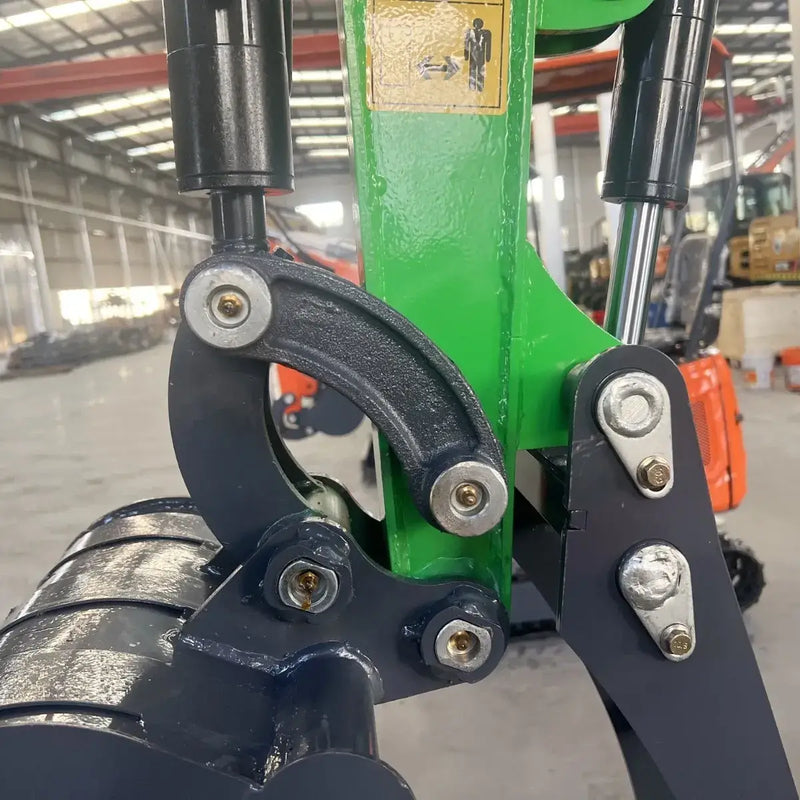

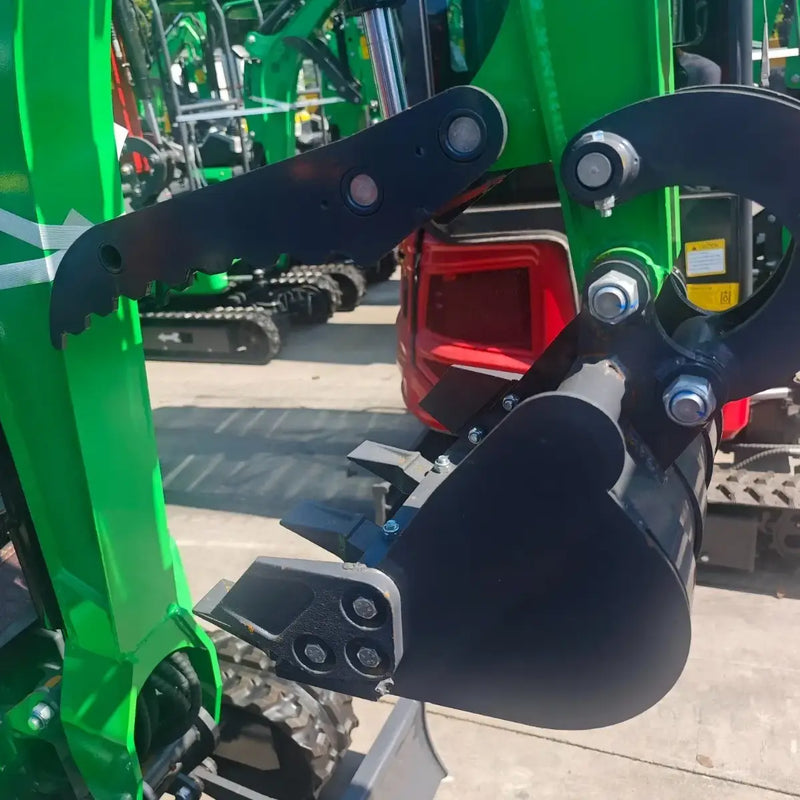

- Hydraulic Thumb

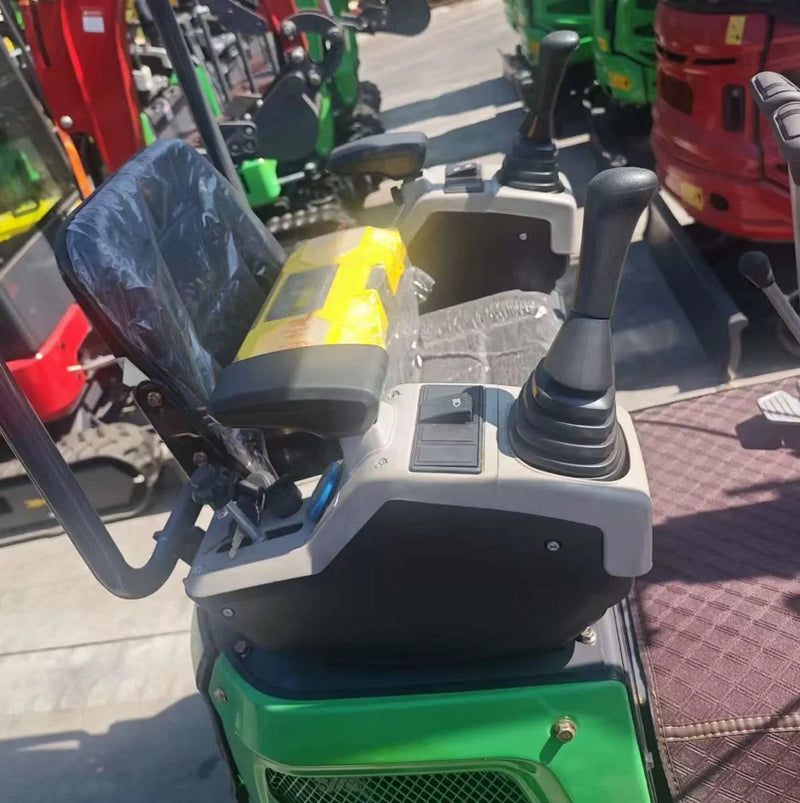

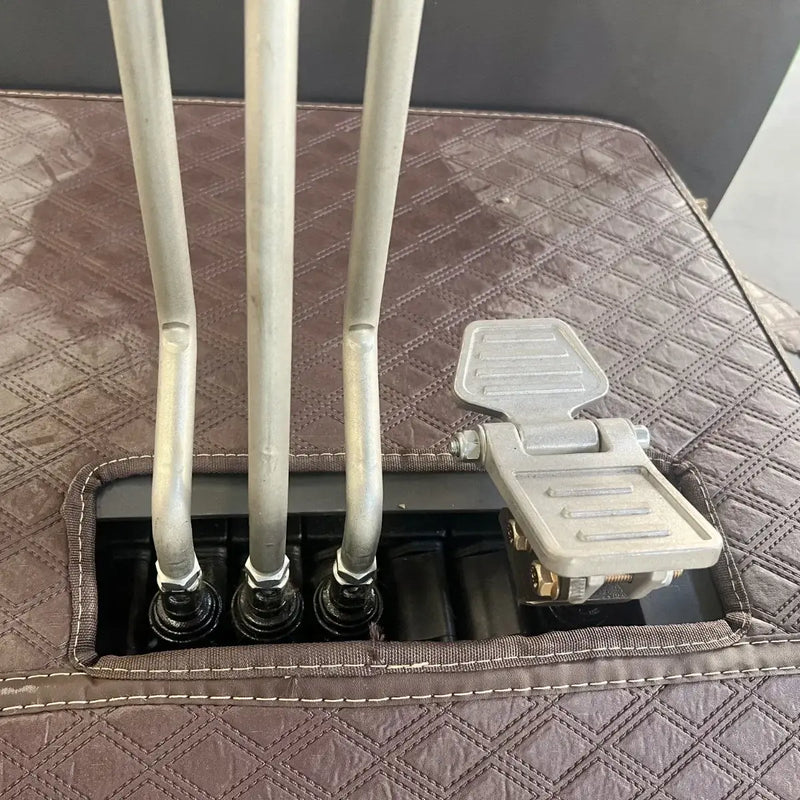

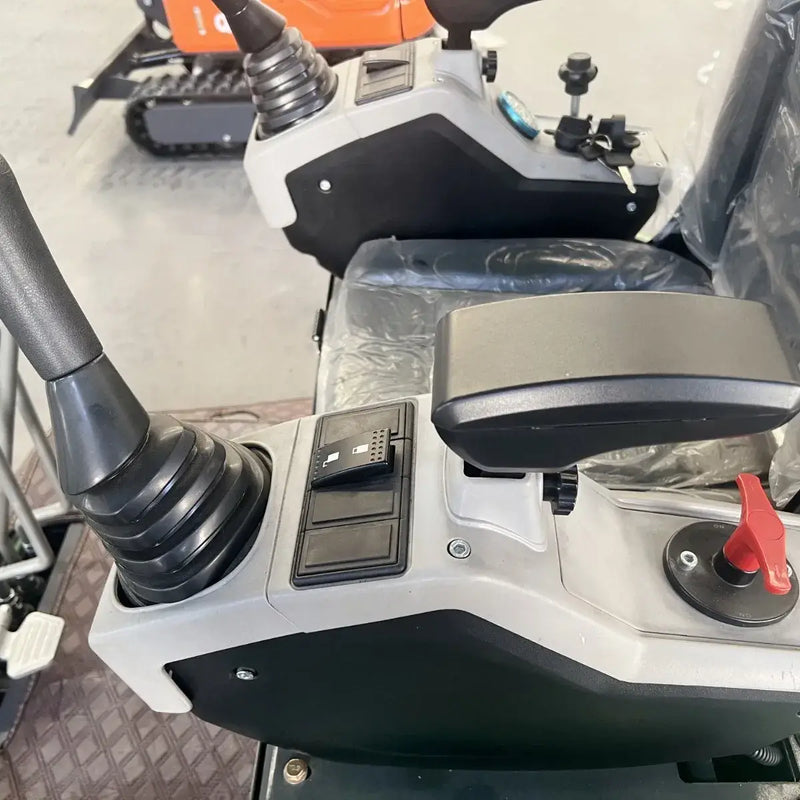

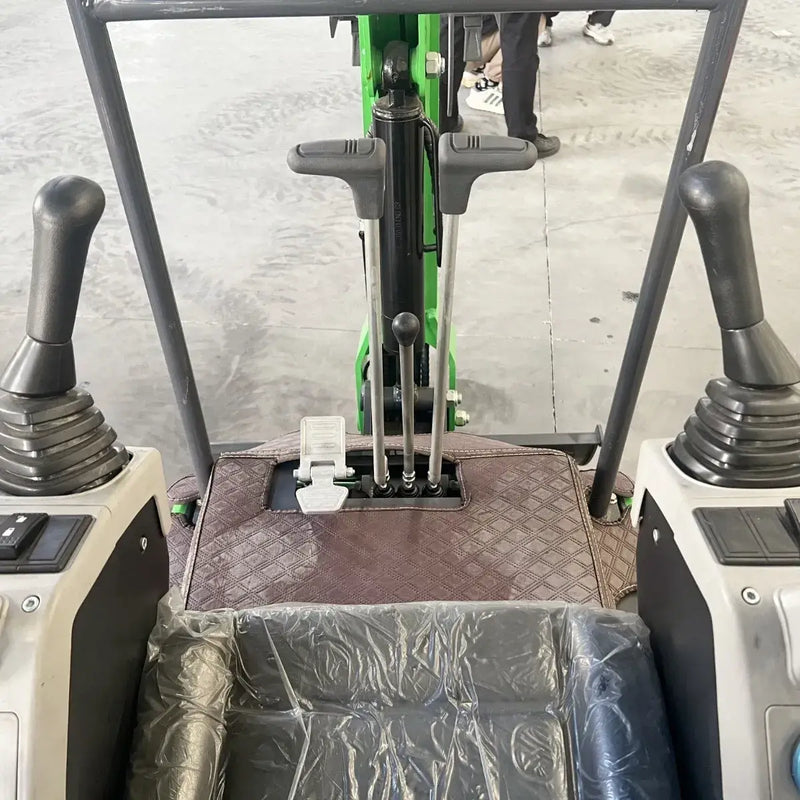

- Pilot Control

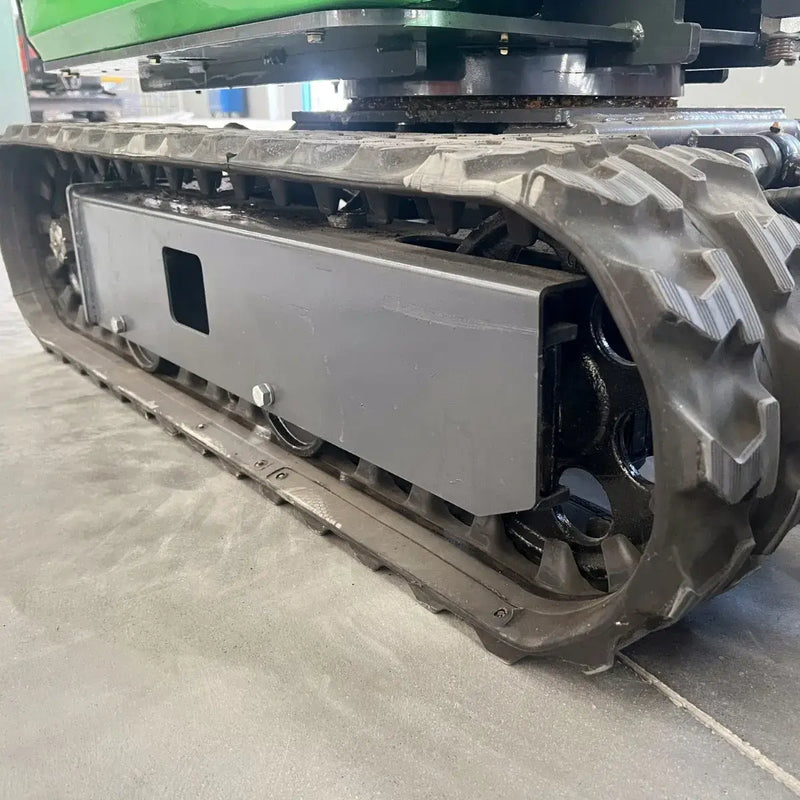

- Expandable Tracks
