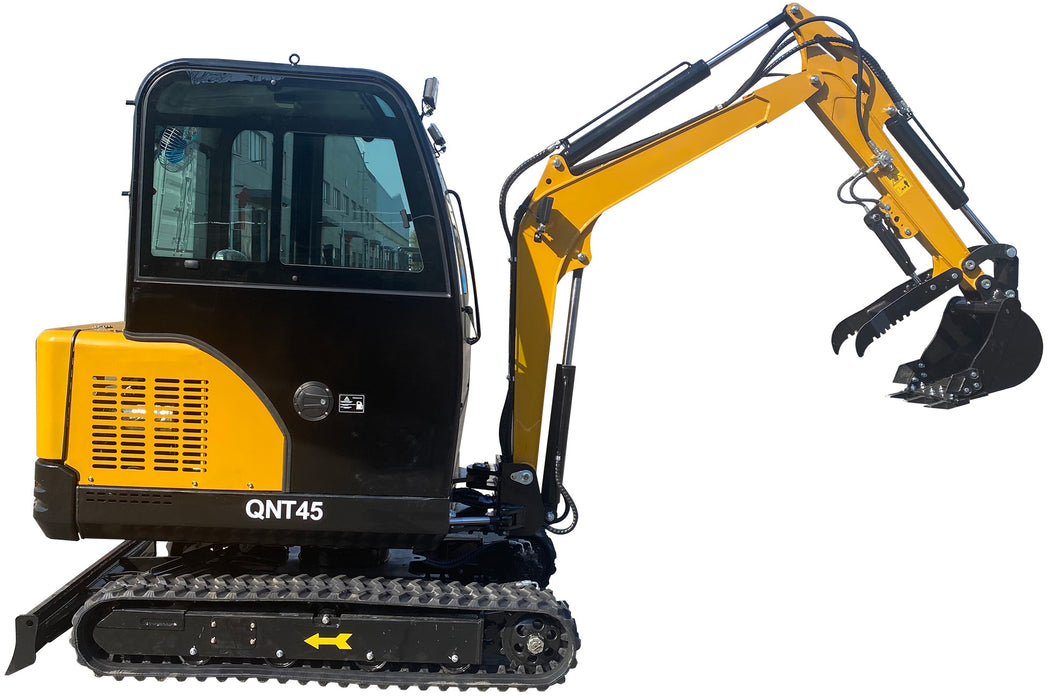

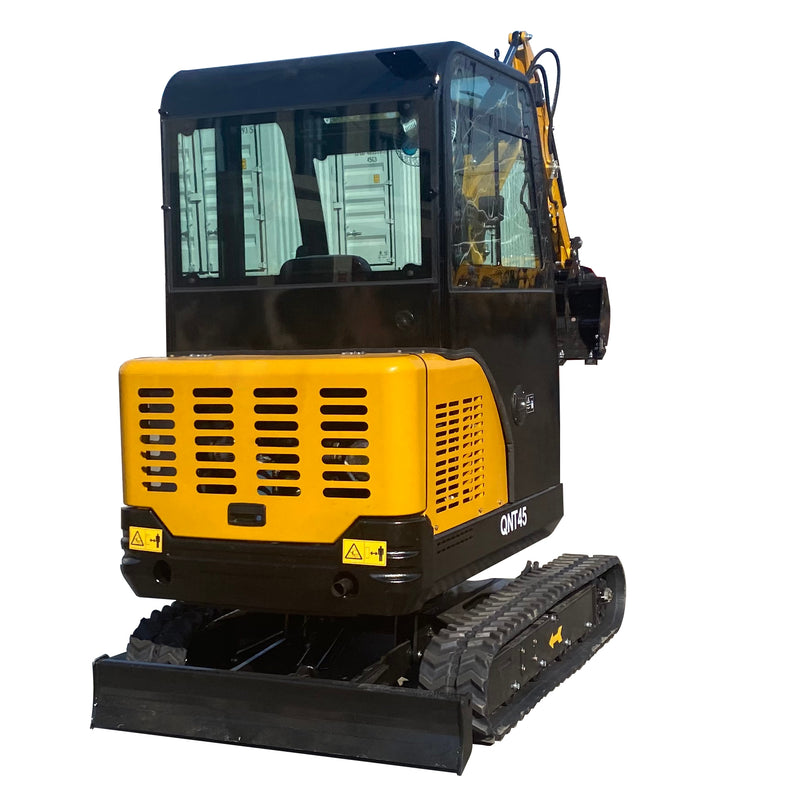

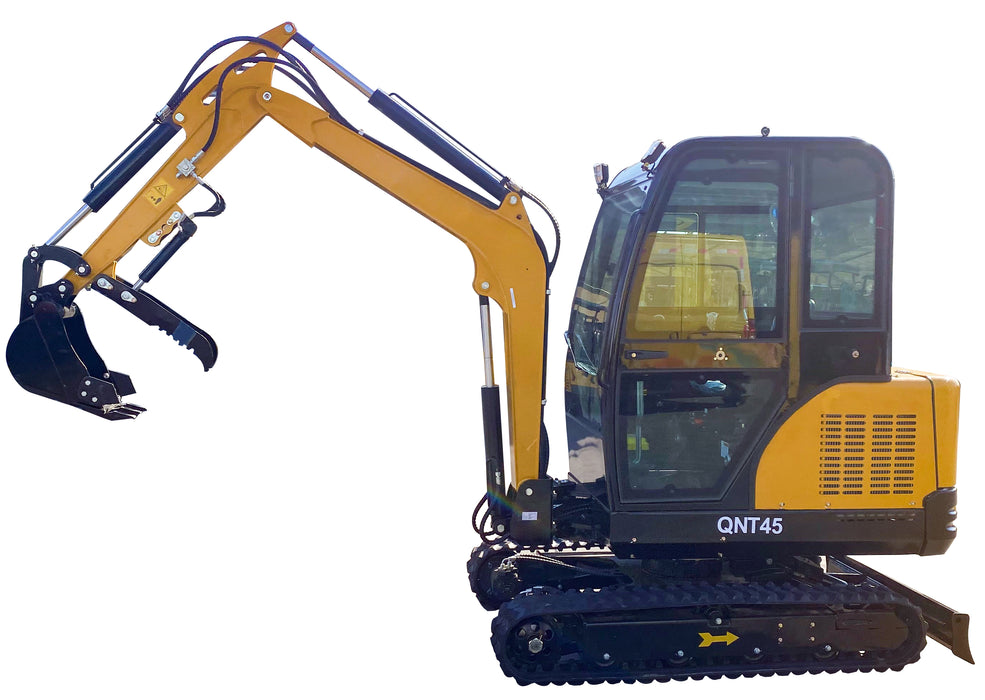

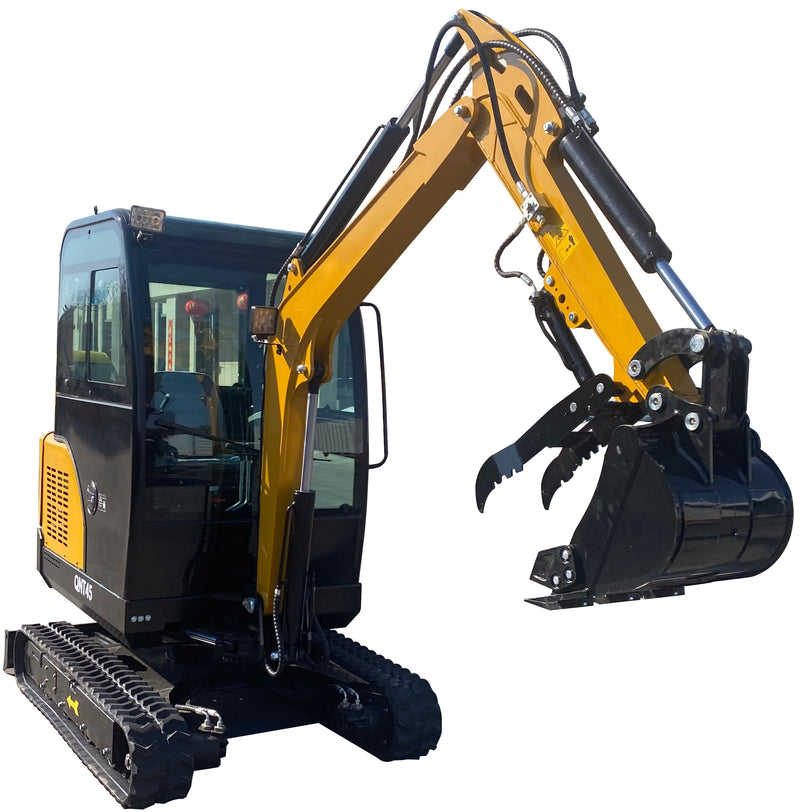

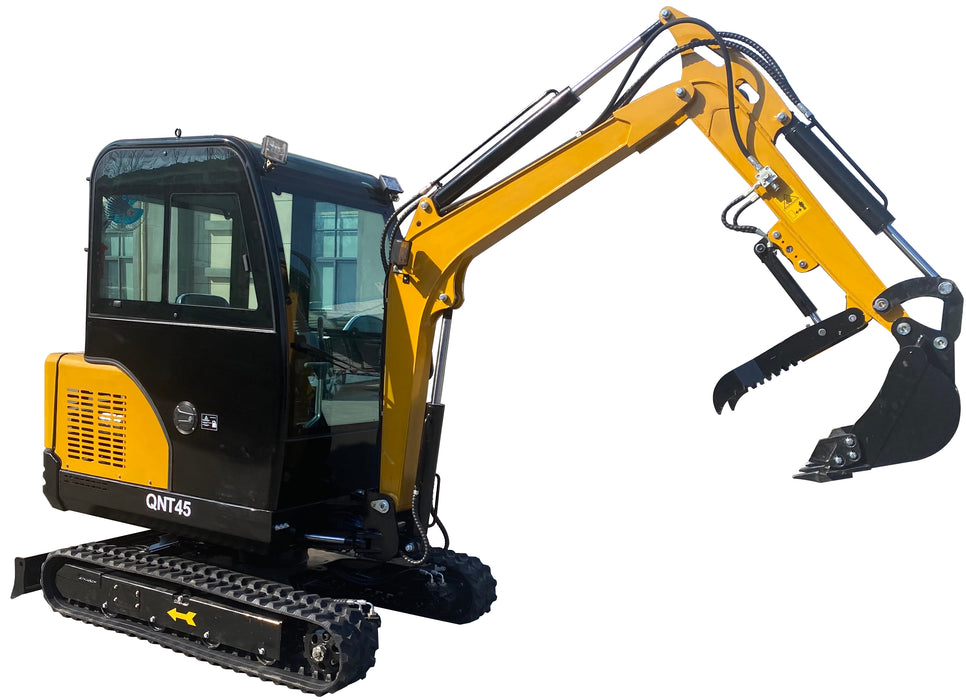

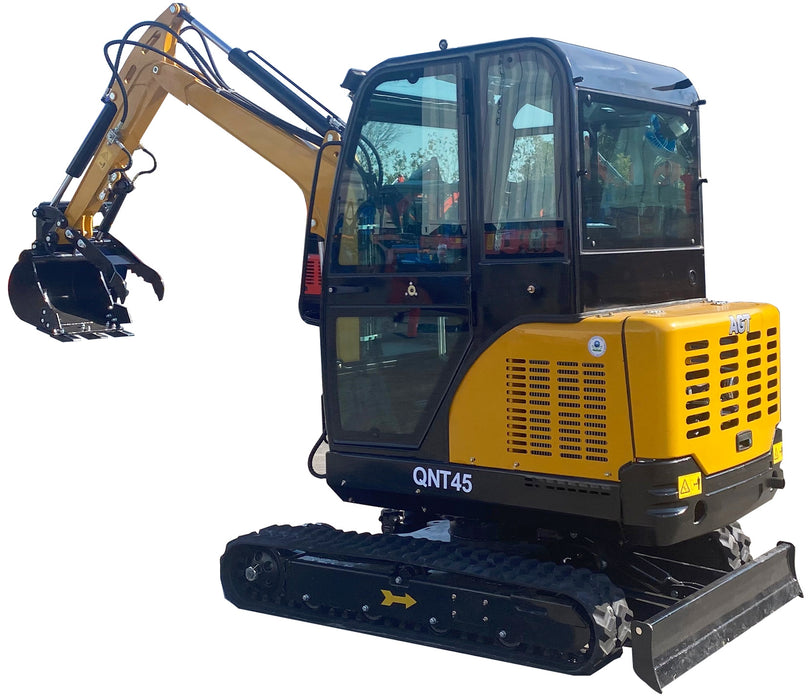

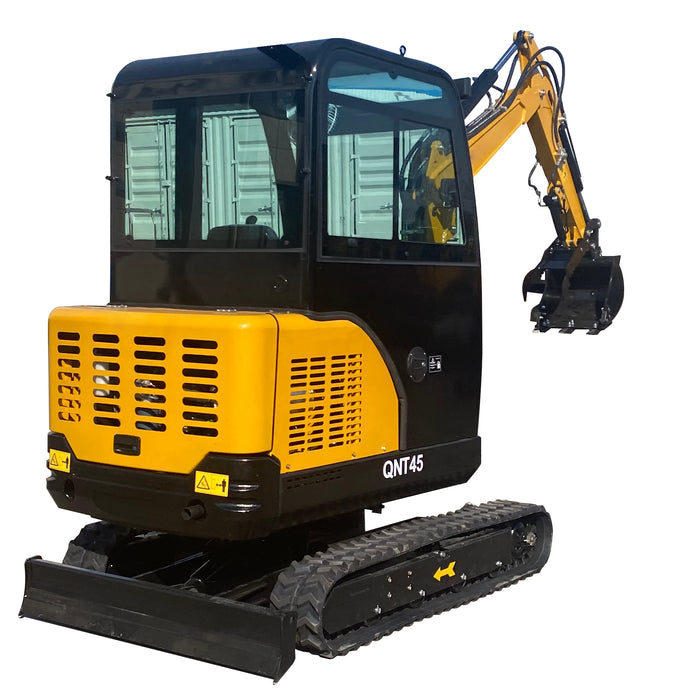

PILOT SYSTEM Mini Excavator Digger with Wider Cab Kubota Engine EPA| AGT QNT45
This ONT45 mini excavator is an ideal choice for small-scale engineering operations.lts most prominent feature is that it is much wider than ordinary miniexcavators, with an overallwidth of 1500mm, which can provide a more stable operation
The total weight of the equipment is 1810kg, equipped wth a bucket with a capacity of 0.06m:. in terms of power, it is equipped with a Kubota engine with amaximum power of 18.2Kw, adopting a water-cooling method and using diesel as fuel, ensuring eficient and stable operation performance.
It has a side swing function, with a lef and right side swing angle of 30" each. The maximum digging radius is 4200mm and the maximum digging depth is
2650mm, which can easily cope with various complex operation needs.
With a working weight of 1810kg, it ofers stabilty without sacicing agilty, traveling at speeds of 0-0.2 km/h for precise repositioning. The machine'scompact dimensions (4180 mm in lenath, 1500 mm in width, 2280 mm in height) ensure easy access to tioht areas.
Key Features & Benefits
Enhanced stability:Wider body design (1500mm) provides superior stability during operation, reducing shaking and improving safety.
Reliable Kubota Engine:Kubota diesel engine delivers 18.2 kW of power with water cooling for consistent pefomance in all conditions.
Excellent Digging Capabilities:Max digging depth of 2650 mm and maximum digging radius of 4200 mm, ideal for various excavation tasks.
Flexible Side swing:30° leftright side swing for effortless operation in tight spaces, 30% climbing ability handles sloped terrain.
Compact & Efficient Design:1500 mm width provides stability while maintaining access to confined areas, 0-0.2 km/h travel speeds for precise positioning.
Practical Engineering.20 L fuel tank and 28 L hydraulic oil tank reduce refueling stops, comfortable wider cab for operator comfort.
Performance specifications
- Working Weight: 1810 kg
- Bucket Capacity: 0.06 m³
- Travel Speed: 0~0.2 km/h
- Climbing Ability: 30%
- Maximum Digging Height: 3900 mm
- Maximum Unloading Height: 2600 mm
- Maximum Digging Depth :2650 mm
- Maximum Digging Radius:4200mm
- Side Swing:Available
- Side Swing Angle (L/R):30°
Equipment Dimensions
- Overall Length: 4180mm
- Overall Width:1500mm
- Overall Height:2280mm
- Bulldozer Width/Height:1500/200 mm
Engine Specifications
- Engine Brand: Kubota
- Maximum Power:18.2 kW
- Cooling Method:Water Cooling
- Fuel Type:Diesel
- Fuel Tank Capacity:20 L
- Hydraulic Oil Tank Capacity:28 L
