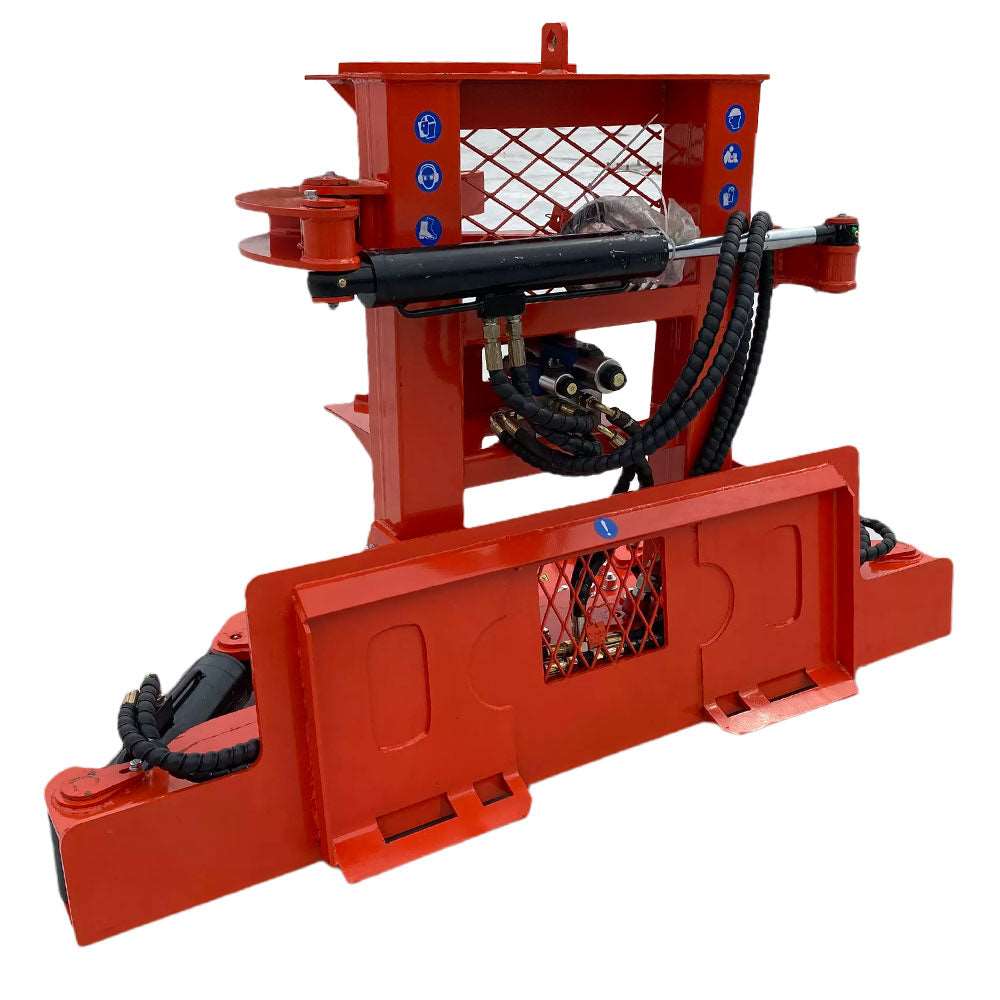

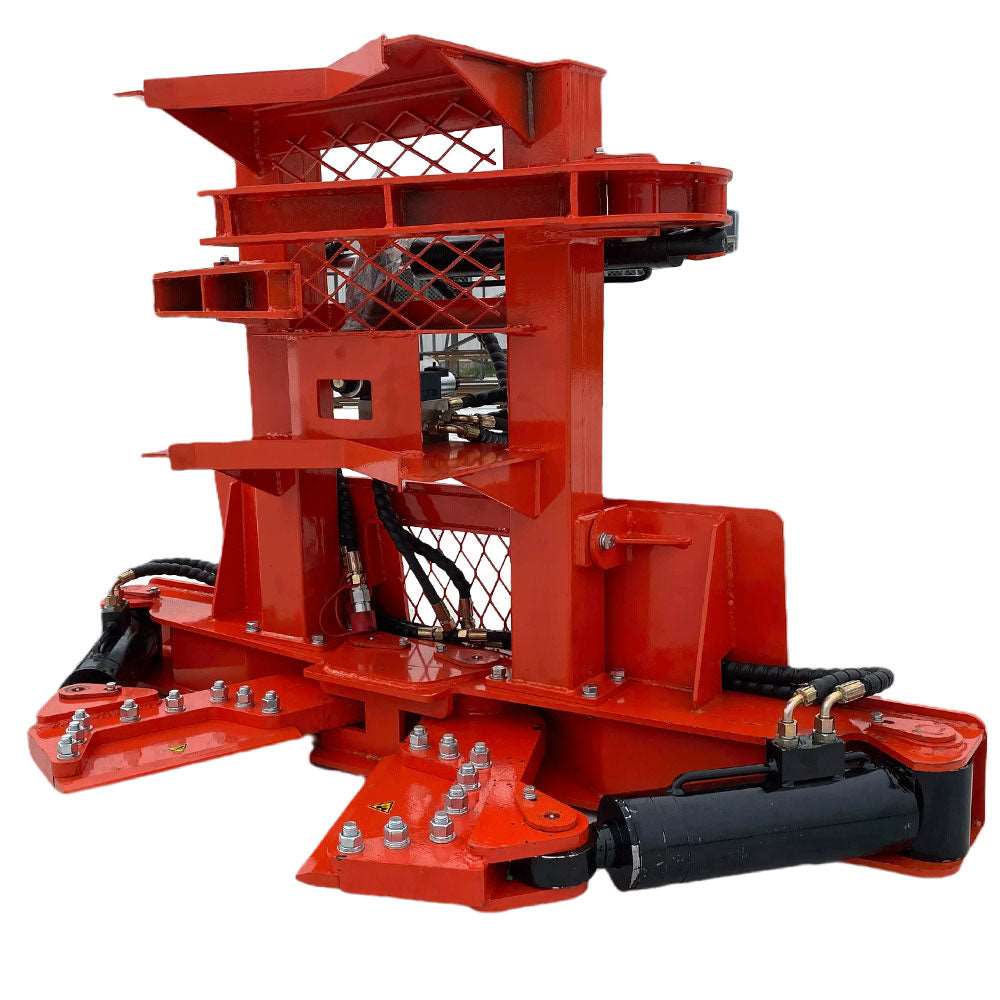

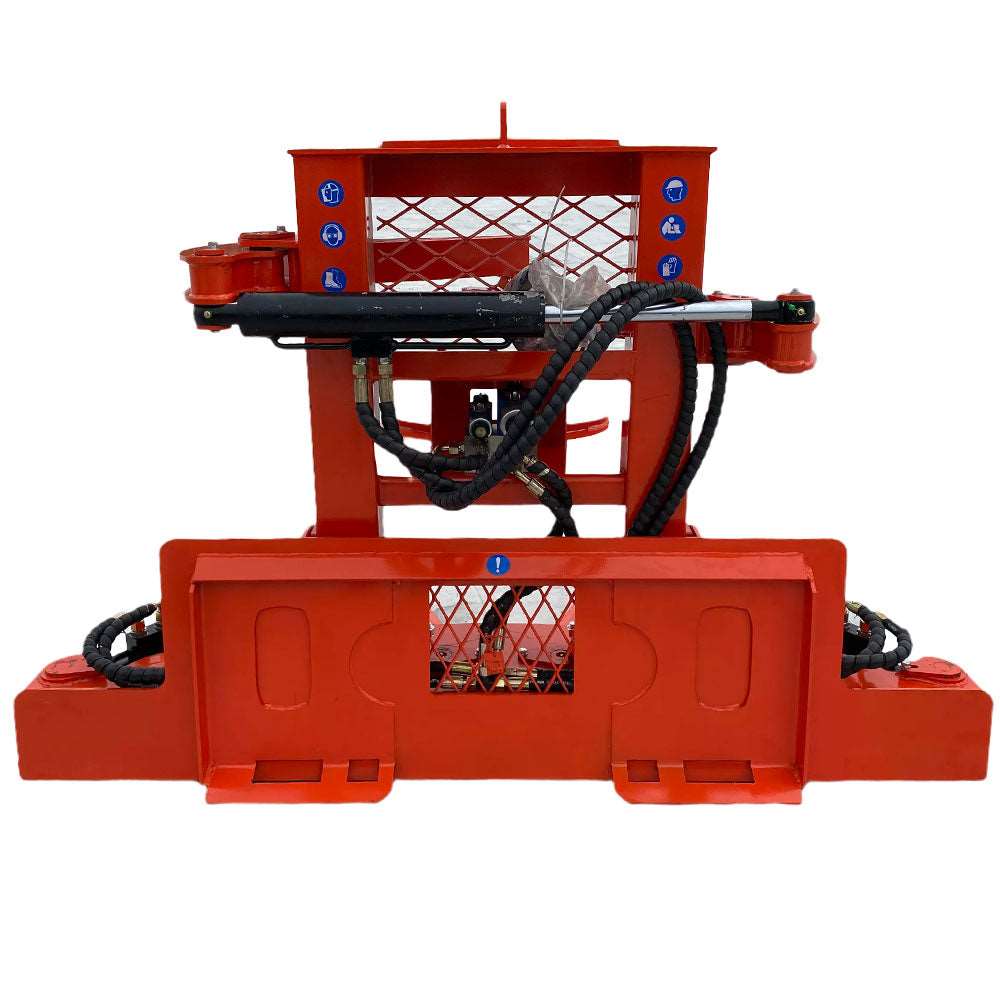

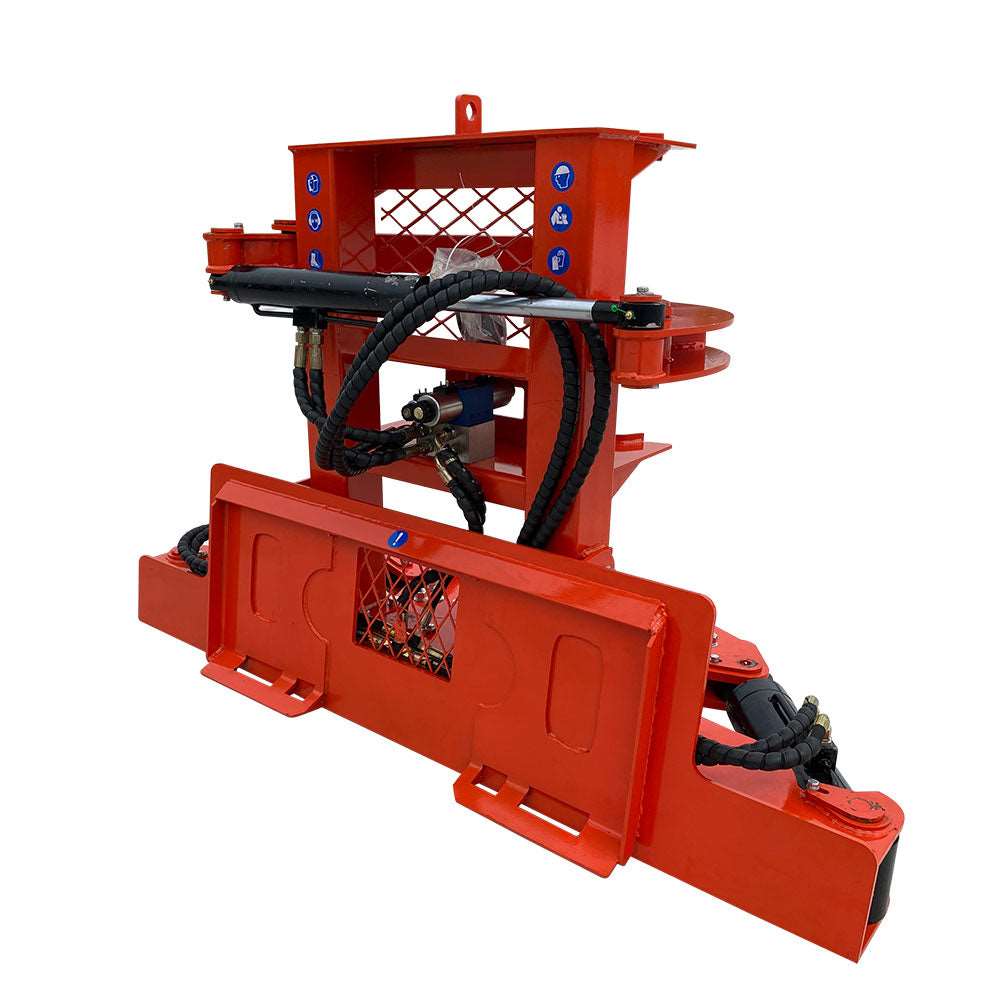

AGT-ECSSRB 11.9'' Tree Shear With Grapper-agrotkindustrial

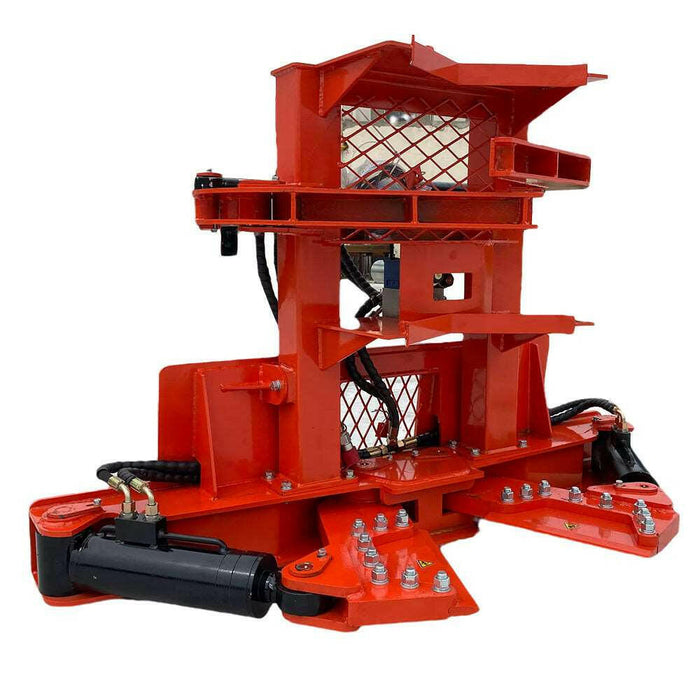

Tree Shear With Grapper, 16~21 Mpa | AGT-ECSSRB

SKU AGT-ECSSRB
Availability:
10 in stock, ready to be shipped
Save 5% Save 5%
$5,558.00
$5,558.00 - $5,558.00
$5,558.00
$5,299.00
$5,299.00 - $5,299.00
$5,299.00

Manual Download

Owner's Manual:  Click Here

Remote control Manual: Click here


Technical Details

Max cutting diameter  12"
proper diameter 0 - 15-3/4"
Weight 1587 lb
Dimension  76" × 38" × 53"
Flow 13-31 GPM
Max jaw opening 14"
Working pressure 20 MPa






Wiring diagram

1. connect to the skid steer.

2. connect the quick plug to the loader, operate the loader one-way control, one positive and one negative, and see which two solenoid controller lights are on.

3. plug the two you find in step two respectively to the large solenoid valve of the machine. The other two randomly find a plug to the small solenoid valve on it.

Features

1. The shear shape is equipped with blades driven by a pair of hydraulic cylinders to finish the shearing action and cut off the tree trunk.

2. Tree Shears are available with two different styles of shear arms. These are the standard arm and extended arm designs.

3. Equipped with a guarded hardline to improve hose protection from abusive elements.

4. The proper tree dia. is 0-15 3/4 in.

5. Tree Shear for skid steer loaders is the ideal tool for general land clearing.

6. Designed for a general land clearing where materials are no more than 14 inches in diameter, Tree Shears feature solid cast shearing arms that deliver 60% stronger performance compared to competing products.

Product Description

  • The shear shape equipped blades are driven by a pair of hydraulic cylinders to finish the shearing action and cut off the tree trunk.
  • Designed for a general land clearing where materials are no more than 14 inches in diameter.
  • Tree Shears feature solid cast shearing arms that deliver 60% stronger performance compared to competing products.
  • Tree Shears are available with two different styles of sheer arms. These are the standard arm and extended arm designs and are Equipped with a guarded hardline to improve hose protection from abusive elements


Details

1. The shear shape equipped blades are driven by a pair of hydraulic cylinders to finish the shearing action and cut off the tree trunk.
The proper tree dia. is 0-15.75in.


2. Designed for a general land clearing where materials are no more than 14 inches in diameter, Tree Shears feature solid cast shearing arms that deliver 60% stronger performance compared to competing products.



3. Tree Shears are available with two different styles of sheer arms. These are the standard arm and extended arm designs.


4. Equipped with a guarded hard line to improve hose protection from abusive elements.
