Technical Data：

Basic Performance Parameters

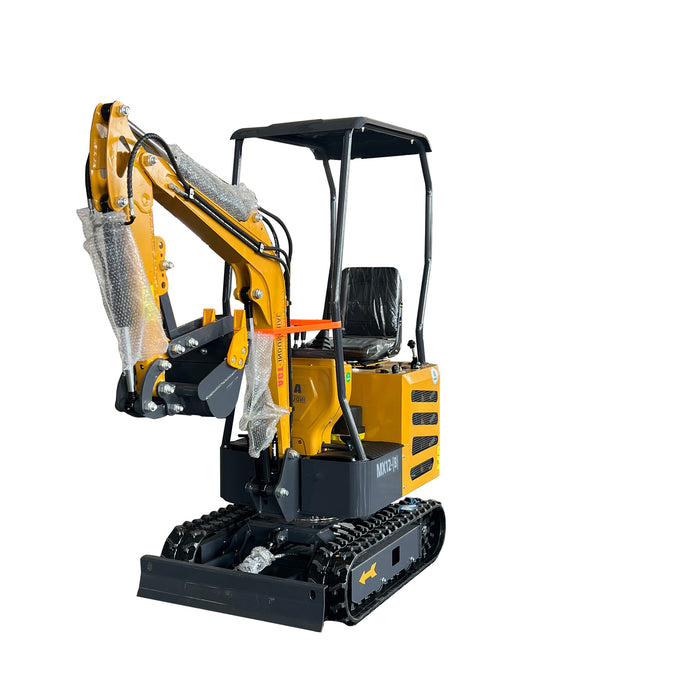

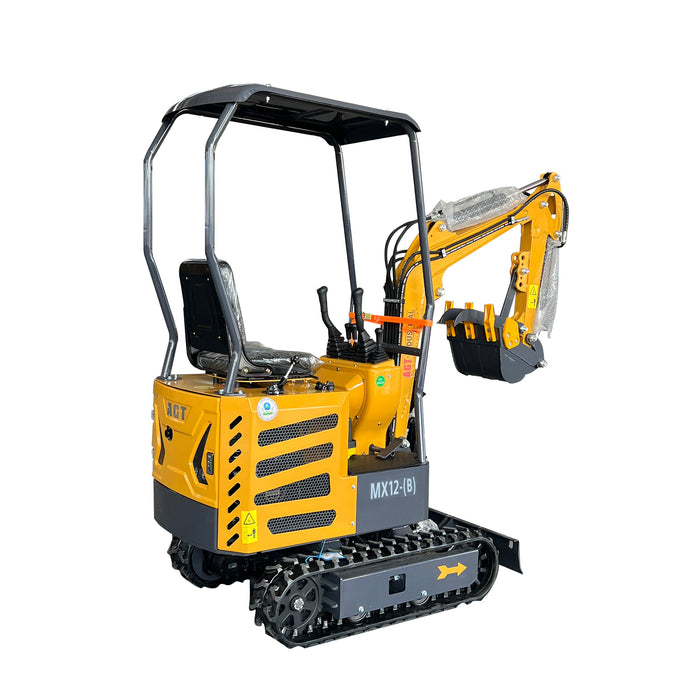

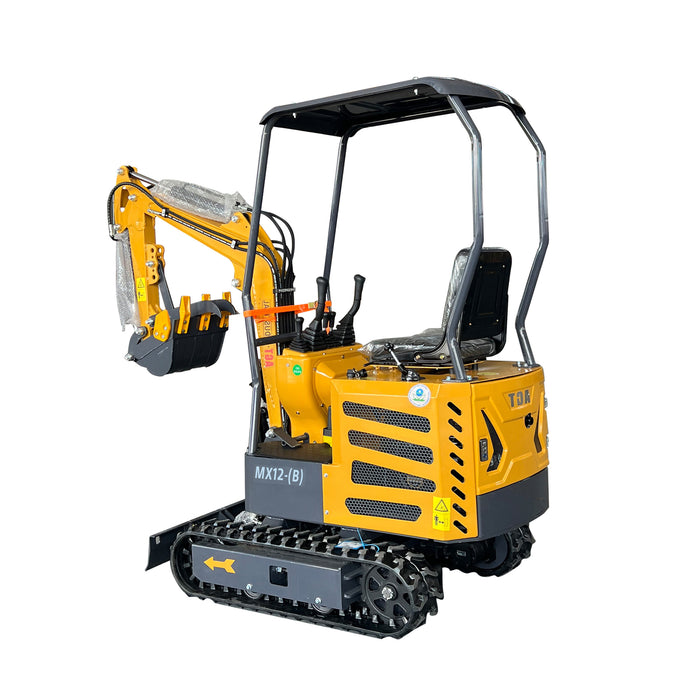

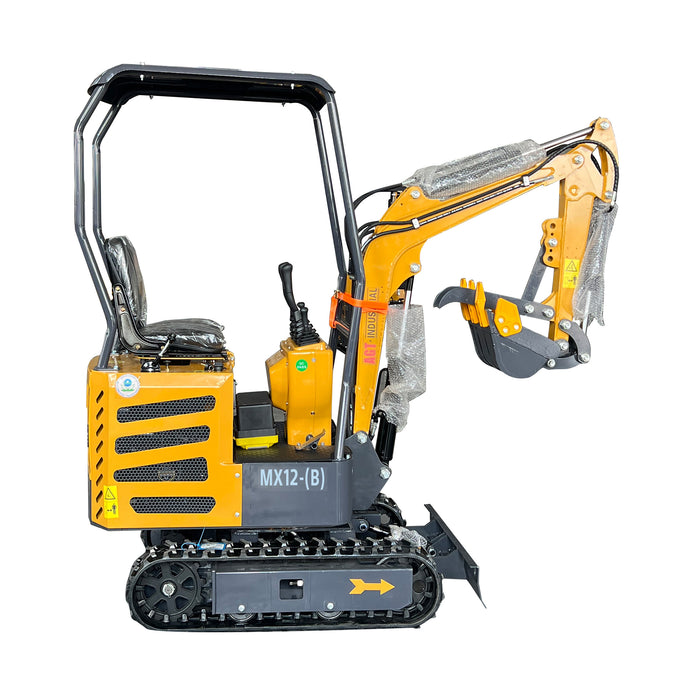

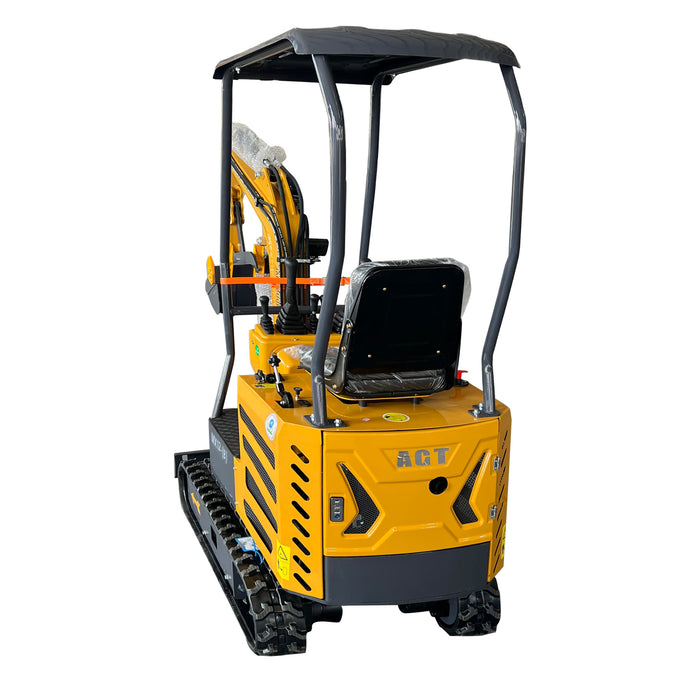

Model Information: MX12-B

Working Weight(kg): 840

Bucket capacity(m³): 0.025

Travel speed low/high speed(Km/h): 0-2

Climbing ability(%): 30

A:Maximum Digging Height(mm): 2589

B:Maximum Unloading Height(mm): 1789

C:Maximum Digging Depth(mm): 1764

D: Maximum vertical digging depth(mm): 1280

E:Max. digging radius(mm): 2605

F: Minimum turning radius(mm): 1395

G: Tail minimum turning radius(mm): 813

H: Maximum lifting height of bulldozer(mm): 383

I: Maximum digging height of bulldozer(mm): 176

Side Swing: NO

Side Swing Angle (L/R): NO

Undercarriage Expansion: NO

Equipment Body

J:Overall Length(mm): 2802

K:Overall Width(mm): 962

L:Overall Height(mm): 2212

M: Wheelbase(mm): 900

N: Track Gauge(mm):562

Bulldozer Width/Height: 900/170

Engine

Engine Brand: Briggs & Stratton XR2100

Maximum power(Kw): 9.8

Cooling method: fan cooling

Fuel Type: Gasoline

Hydraulic system

Rated set pressure(Mpa): 16

Main pump maximum flow (L/min): 21.6
