Technical Data：

Basic Performance Parameters

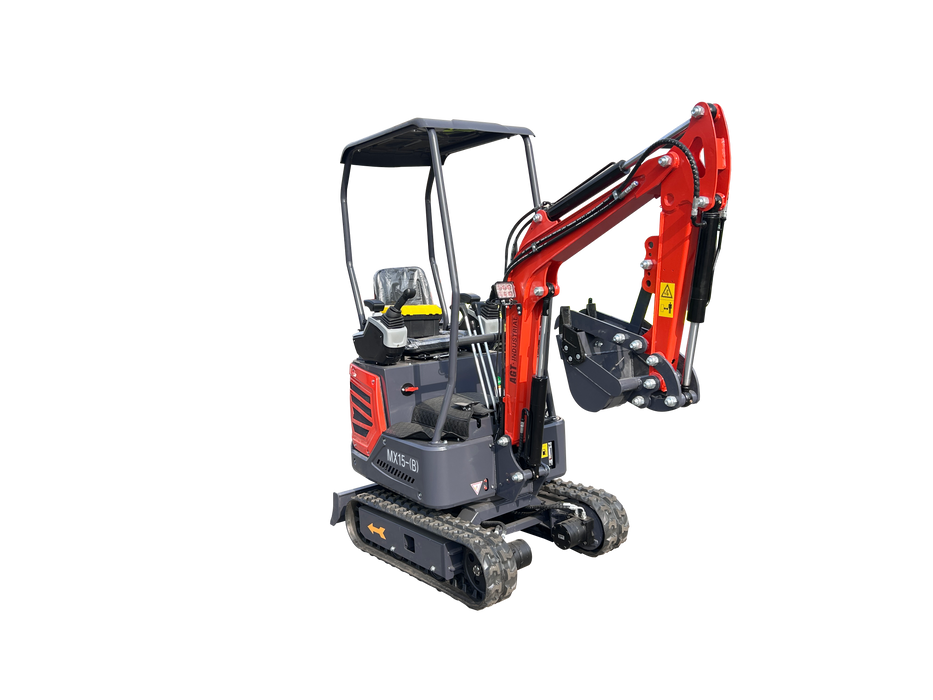

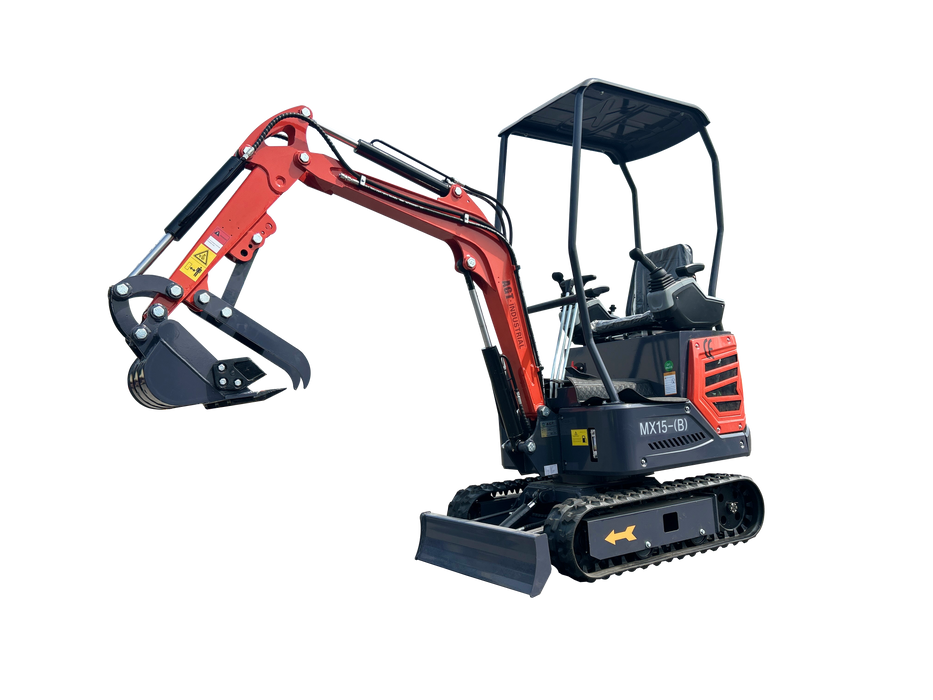

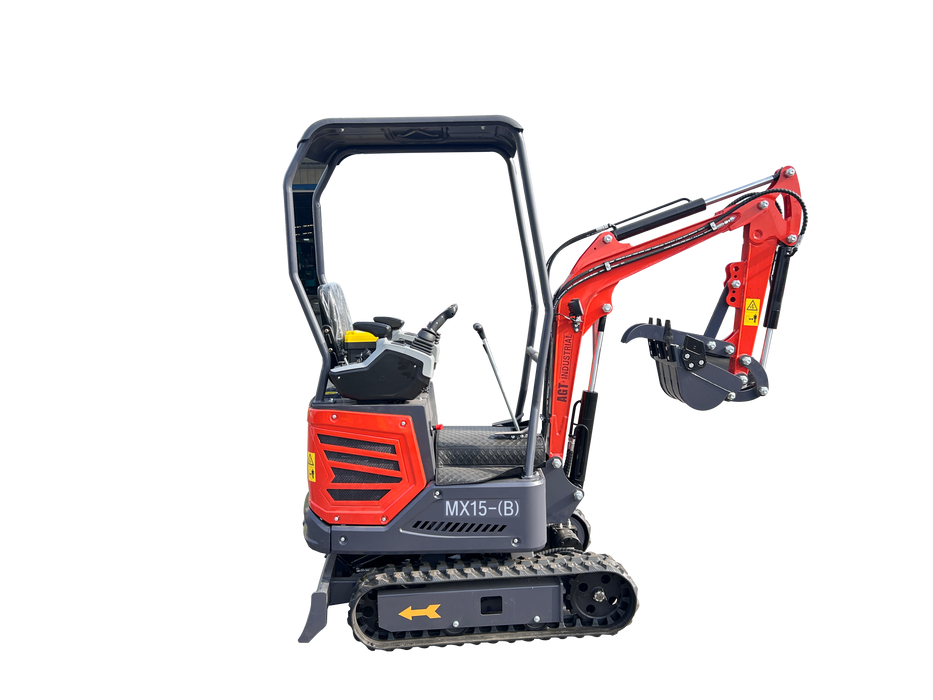

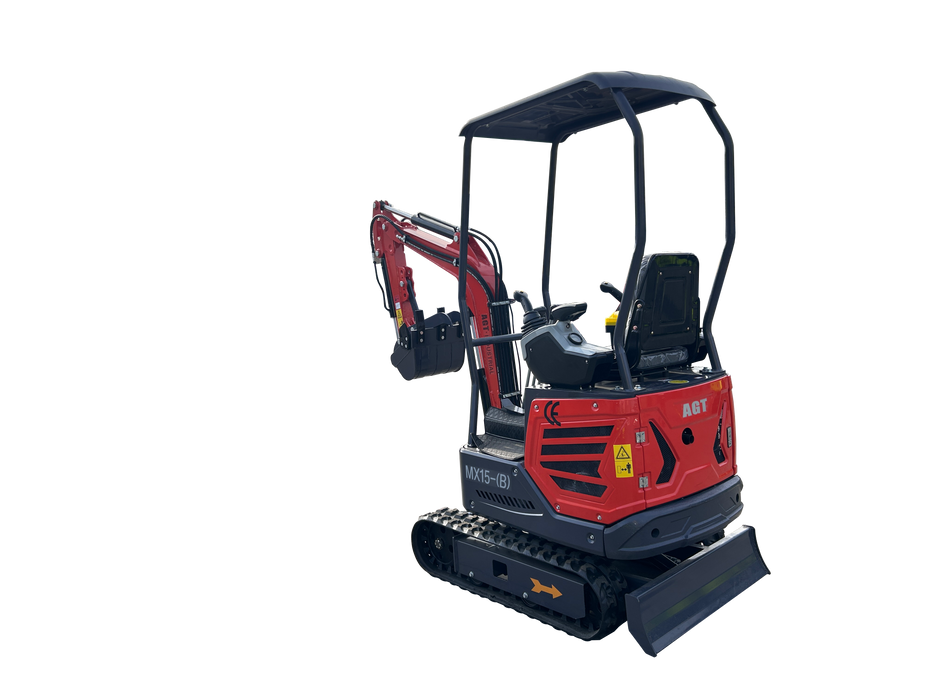

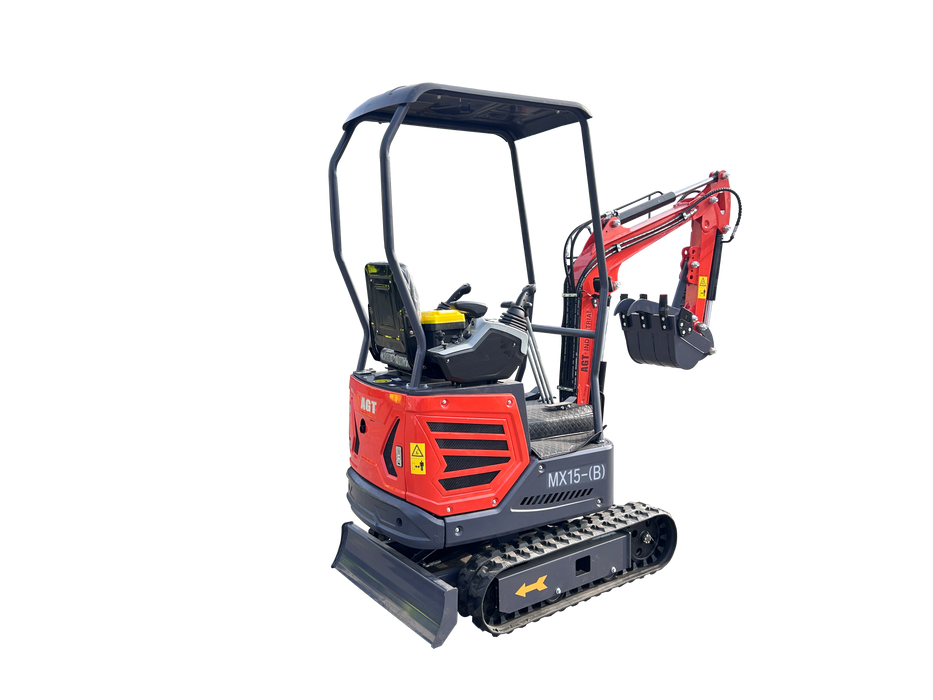

Model Information: MX15-(B）

Working Weight(kg): 900

Bucket capacity(m³): 0.025

Travel speed low/high speed(Km/h): 0-2

Climbing ability(%): 30

A:Maximum Digging Height(mm): 2583

B:Maximum Unloading Height(mm): 1742

E:Max. digging radius(mm): 3041

F: Minimum turning radius(mm): 1440

G: Tail minimum turning radius(mm): 828

H: Maximum lifting height of bulldozer(mm): 162

I: Maximum digging height of bulldozer(mm): 196

Side Swing: NO

Side Swing Angle (L/R): NO

Undercarriage Expansion: NO

Equipment Body

J:Overall Length(mm): 2882

K:Overall Width(mm): 962

L:Overall Height(mm): 2219

M: Wheelbase(mm): 900

N: Track Gauge(mm):762

Bulldozer Width/Height: 907/200

Engine

Engine Brand: B&S

Maximum power(Kw): 9.8

Cooling method: Fan cooling

Fuel Type: gasoline

Hydraulic system

Rated set pressure(Mpa): 16

Main pump maximum flow (L/min): 21.6
