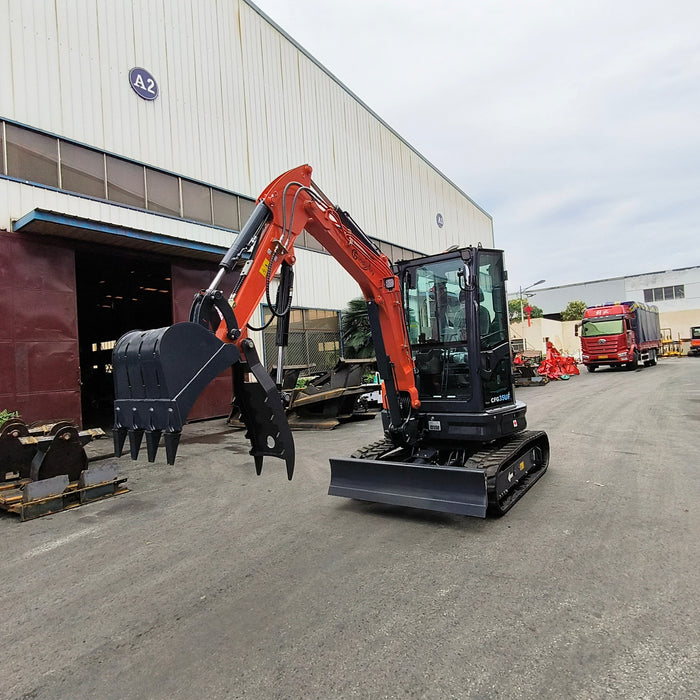

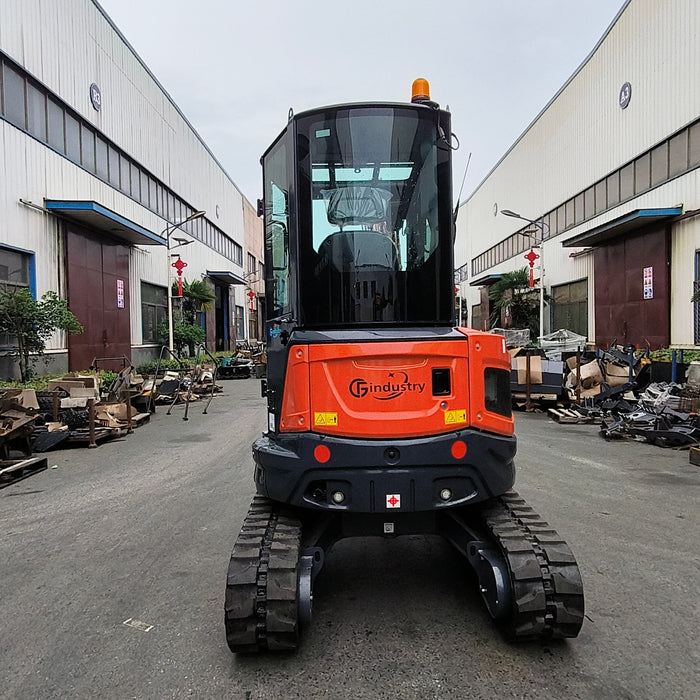

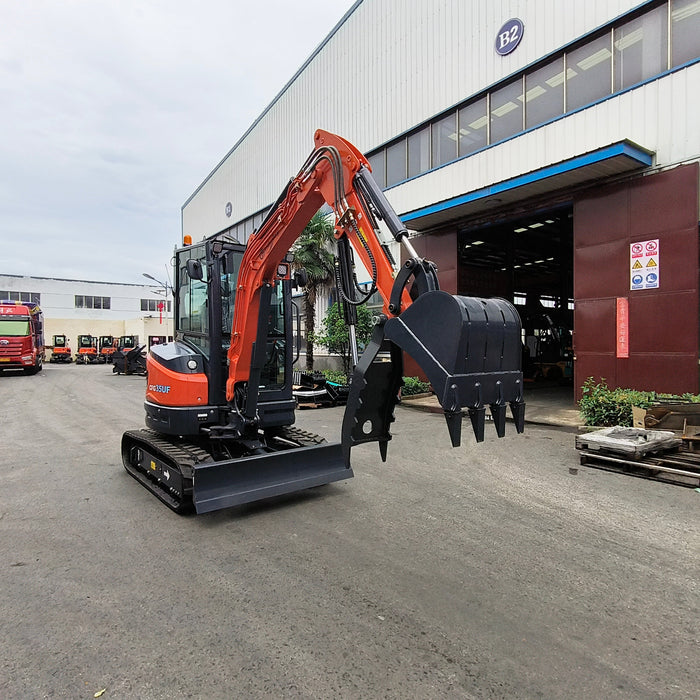

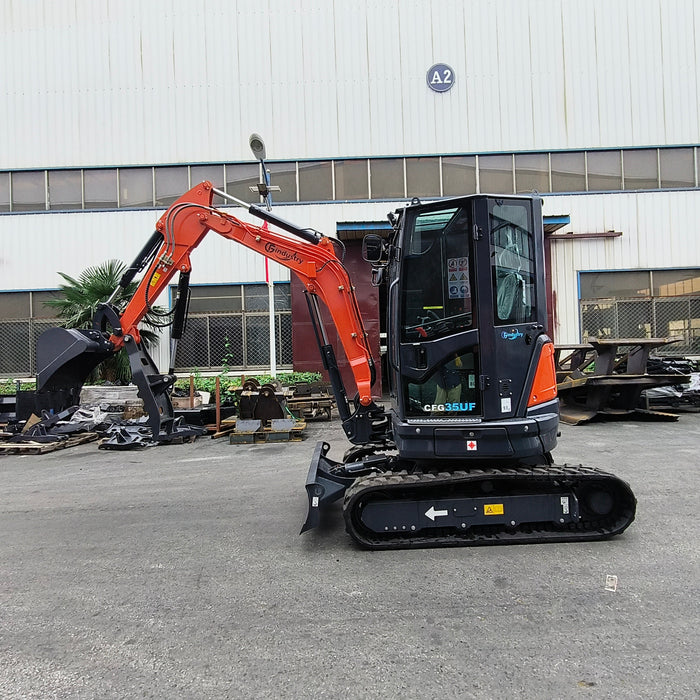

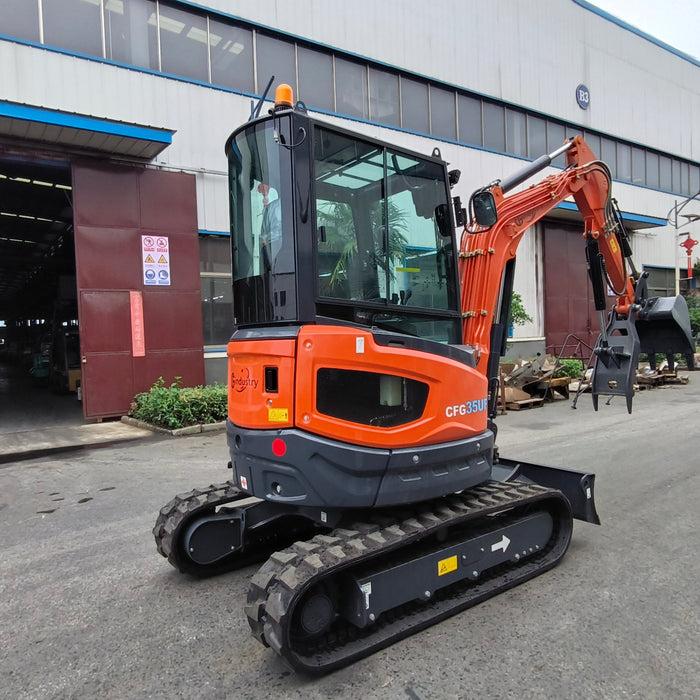

CFG-35UF 2.8-Ton 20 HP Compact Excavator with Kubota Engine

Specific Data:

1. Powerful & Fuel-Efficient Engine

• Engine Model: KUBOTA D1105 (water-cooled diesel)

• Displacement: 1.123L | Cylinders: 3

• Power Output: 15.4 kW (20.6 HP) @ 2,400 rpm

• Fuel Consumption: 258 g/kW·h (optimized for cost efficiency)

2. High-Performance Hydraulic System

• Hydraulic Pump: Piston pump (HP5VS28-AV1ORB2S1MA-L1-1-T921)

• Flow Rate: 67.2 L/min | Working Pressure: 24.5 MPa

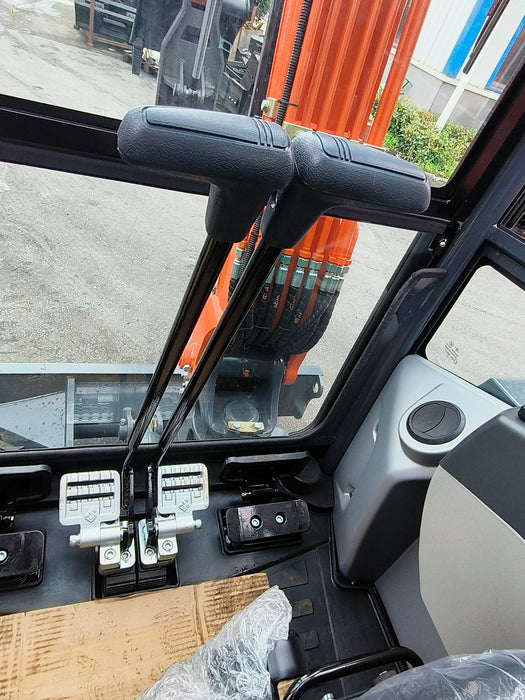

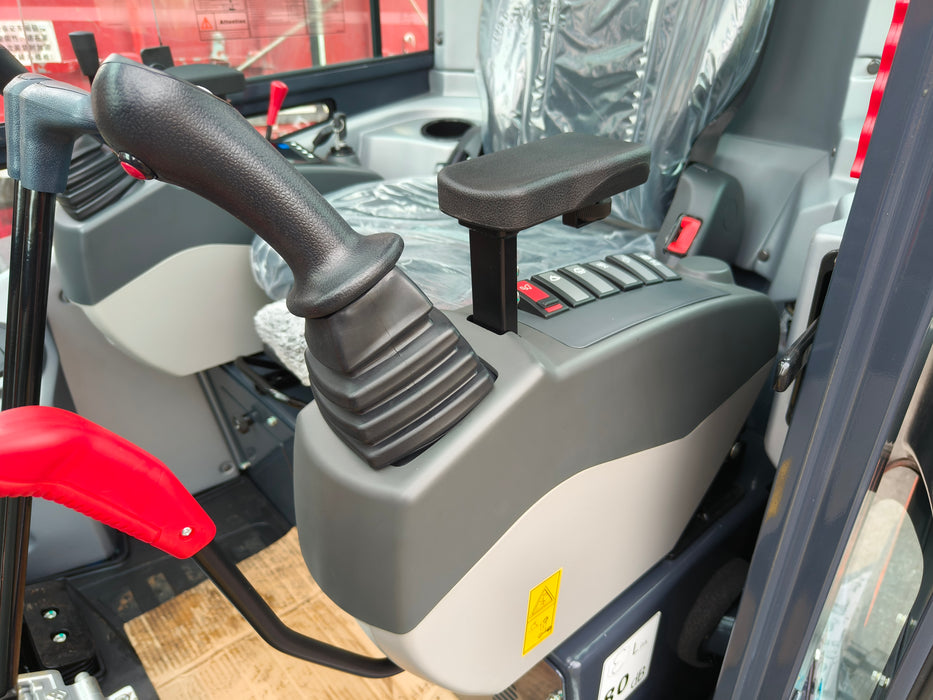

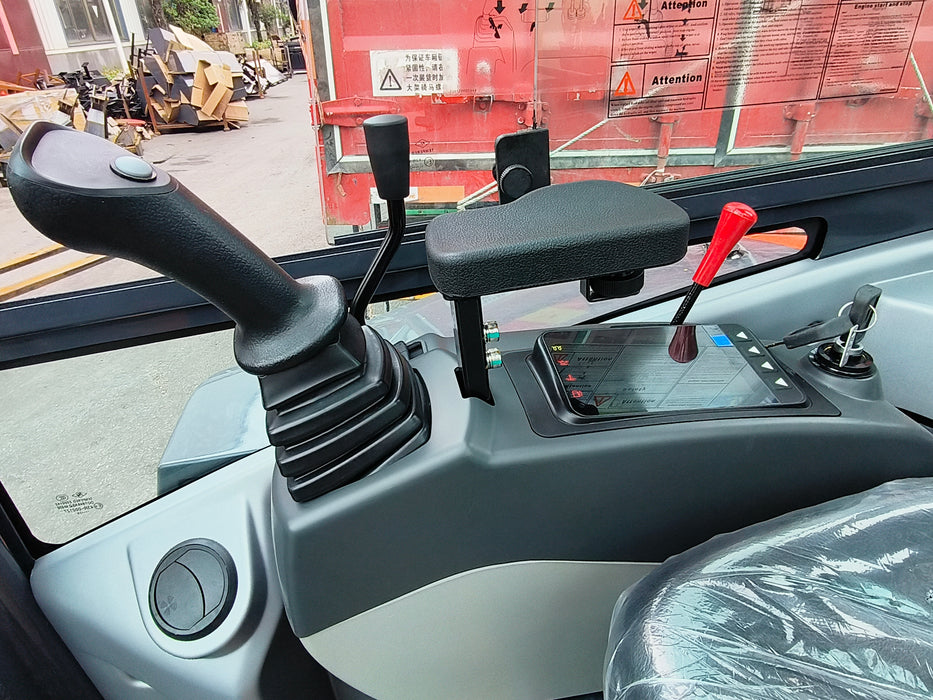

• Pilot Control: Proportional hydraulic joysticks for smooth operation of boom, arm, bucket, and swing.

• Hydraulic Cylinders (Standard Backhoe):

  • Boom: φ75×φ40 mm | Arm: φ70×φ40 mm | Bucket: φ65×φ35 mm

  • Dozer: φ90×φ45 mm | Swing: φ65×φ35 mm

• Swing Motor: Variable piston motor (HM5X15001670-2B-SHA)

• Travel Motor: Piston polar variable motor (LTM03CB)

3. Robust Swing & Travel Mechanism

• Max. Swing Torque: 5,099 N·m | Speed: 9 rpm

• Swing Brake: Hydraulic + spring pressure (normally closed)

• Travel Speed: Up to 4.4 km/h (high) / 2.6 km/h (low)

• Gradeability: 30° slope capability

• Track Tensioning: Hydraulic adjustment for optimal stability

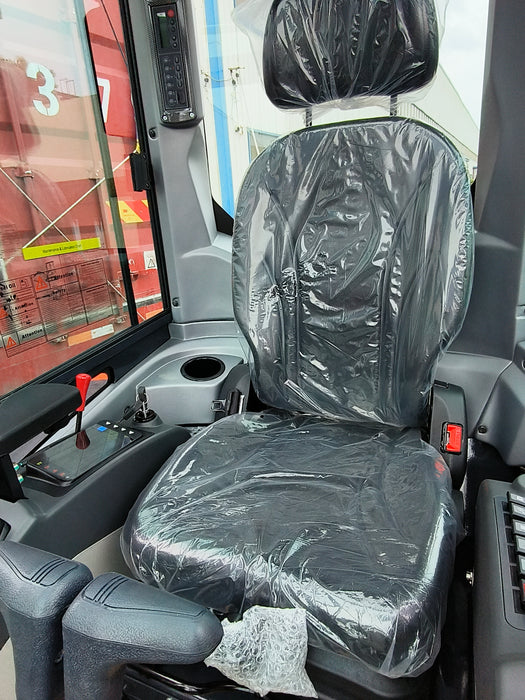

4. Operator-Centric Design

• Hydraulic Cooling: Engine-driven oil cooler (Model: 4842.336.0000v1)

• Electric System: 12V battery (63Ah) + 1.7 kW starter + 40A alternator

• Fuel Tank Capacity: 26L for extended operation

5. Versatile Attachments & Options

• Standard Bucket: 580 mm (0.08 m³)

• Optional Buckets: 300 mm (0.04 m³), 480 mm (0.065 m³), 1,000 mm (0.13 m³)

• Standard Arm Length: 1,350 mm

Applications:

• Trenching & utility work

• Landscaping & agriculture

• Road maintenance & demolition

• Light industrial projects
