AGT-QNT30 kubota engine compact excavator

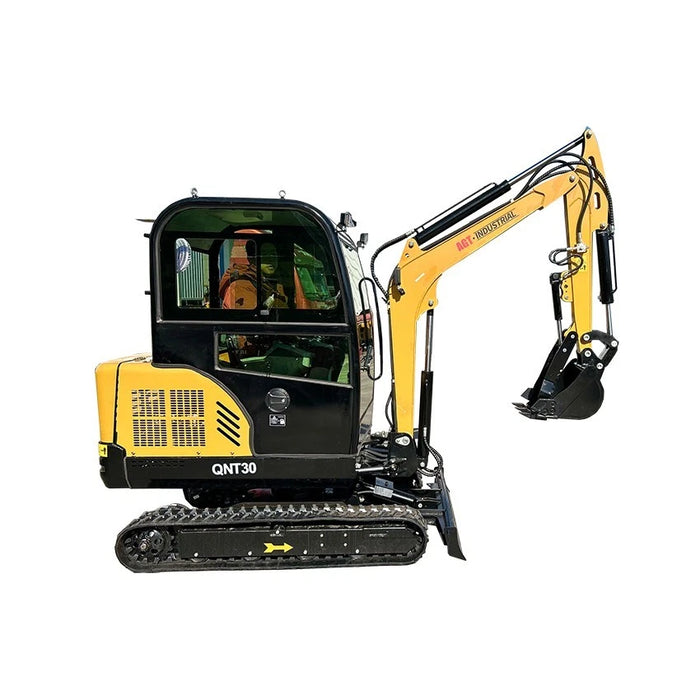

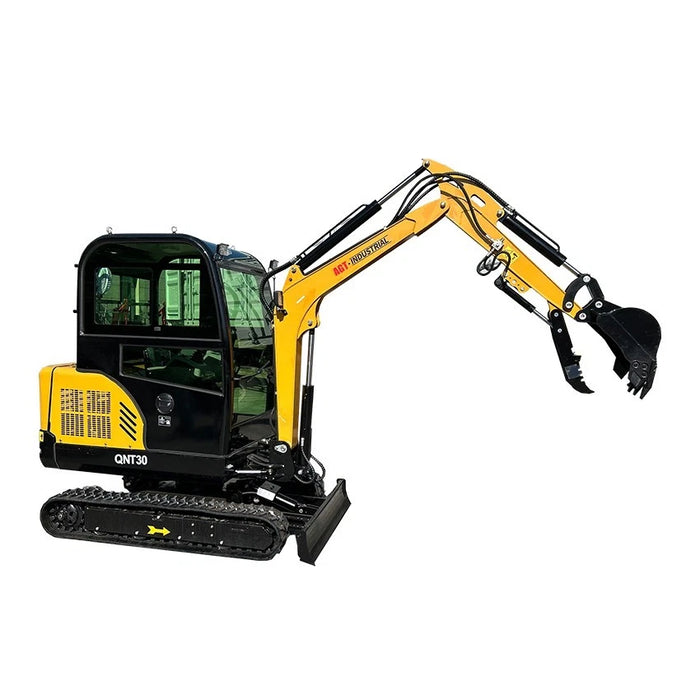

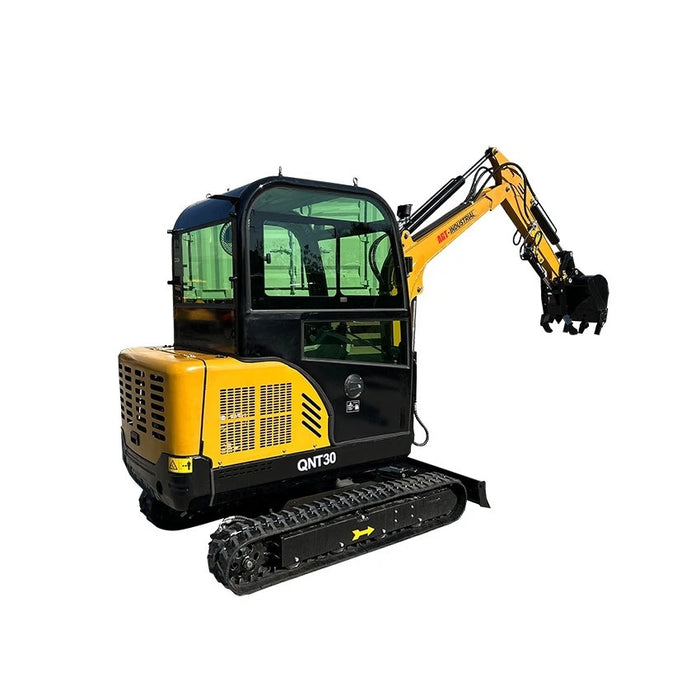

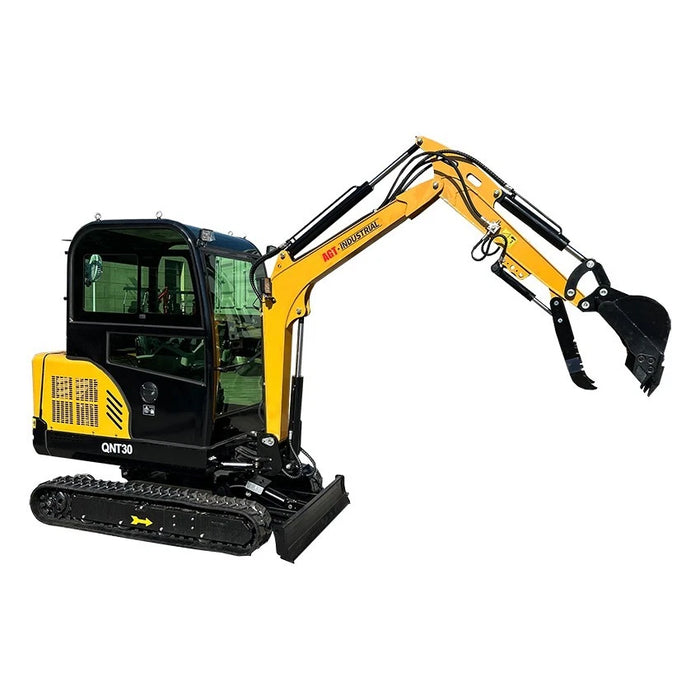

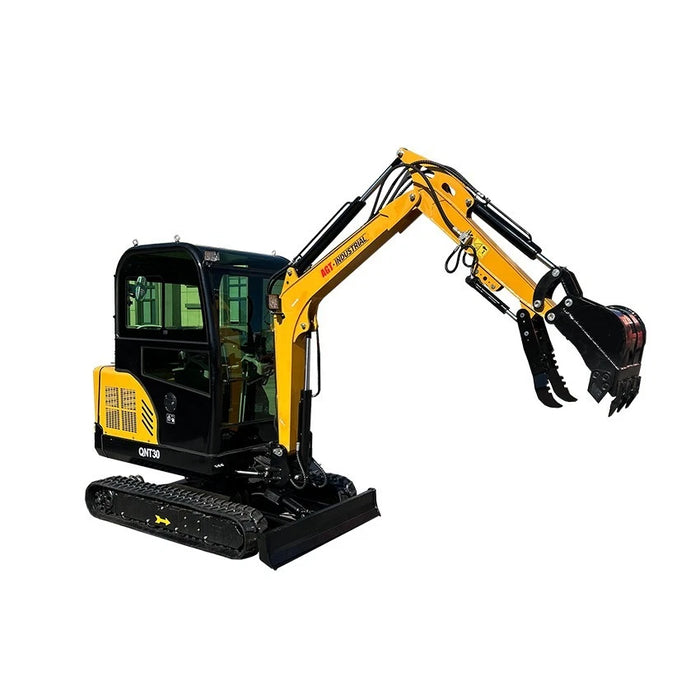

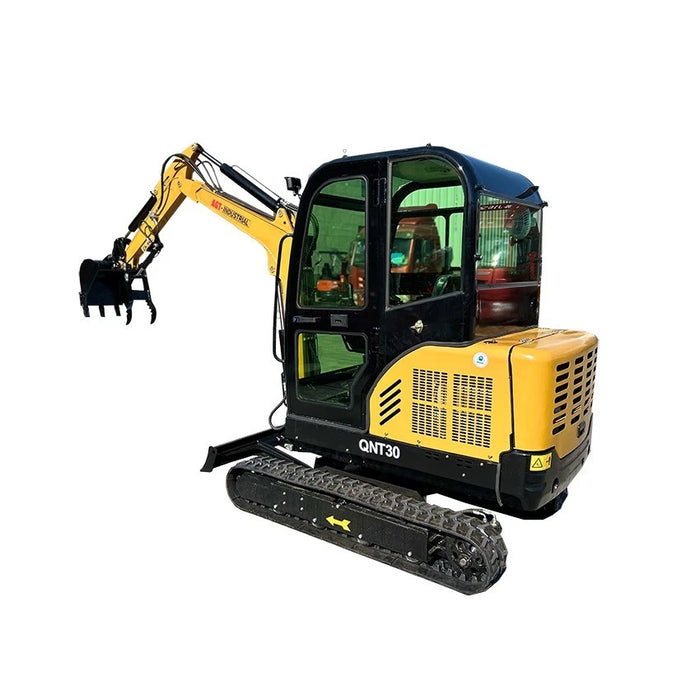

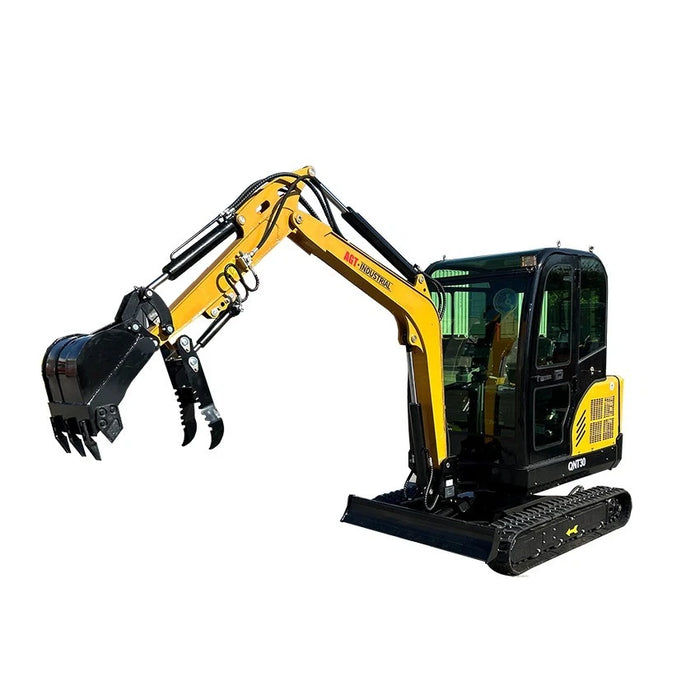

AGT-QNT30 Mini Excavator Digger Kubota Diesel Engine w/ Swing Boom&Hydraulic Thumb

$16,900.00 - $16,900.00
$16,900.00
$16,900.00 - $16,900.00
$16,900.00
Pay with Ease Visa Mastercard American Express Discover JCB
Trusted Delivery UPS tforce FedEx

Fast, Free shipping

1-Year Warranty

Lifetime Tech Support

Notice: No Unloading Service

Feature:

  • Small size, easy to transport, can be loaded onto light trucks or small trailers
  • Famous brand mechanical system parts ensure stable quality.
  • Dynamic arm deflection design to meet the narrow working conditions, reinforced rubber tracks to protect the road, and extended hydraulic lines for various attachments.
  • Mini Excavators are equipped with a backup hydraulic pipeline, with which a lot of tools could be attached to fulfill a wide range of works. That includes but is not limited to Pavement Breaking, Trees Planting, Pipeline Installation,Tunnel Excavation, Building Foundations, Indoor Breaking, Farmland Clearing, Foundation Digging, etc.

Basic Performance Parameters:
  • Machine Weigh(kg): 1720
  • Bucket capacity(m³)：0.08
  • Walking speed(Km/h)：0-1.8
  • Gradeability(%)：11
  • Maximum excavation height(mm)：3600
  • Maximum unloading height(mm)：2400
  • Maximum digging radius(mm)：4200
  • Minimum radius of gyration(mm)：2050
  • Minimum gyration radius of the tail(mm)：1200
  • Maximum lifting height of bulldozer：170
  • Maximum digging height of bulldozer：300
Size:
  • Total length(mm): 5400
  • Total width(mm): 1300
  • Total height(mm): 2200
  • Tread width(mm): 1500
  • Track gauge(mm): 1070
  • Bulldozer width/height(mm): 1300/230


Engine：
  • Engine Brand: Kubota
  • Engine model: 902
  • Maximum power(Kw): 11.8
  • Maximum Rotation Speed(rpm): 3000
  • Number of cylinders: 3
  • Cooling method: water-cooling
  • Engine oil change volume(L): 2.7
  • Fuel type: diesel
  • Fuel label: 0#
  • Theoretical fuel consumption(L/h): 0.89
Hydraulic System：
  • Main pump type/model: GP5183
  • Main pump brand: Tianjin Walking
  • Rated set pressure(Mpa): 16.8
  • Max. flow rate of main pump(L/min): 21.6
  • multi-way valve: 4 Mechanical+4 Hydraulic Control
  • Multi way valve brand: Taiheng
  • Rated set pressure(Mpa): 16.3
  • Walking hydraulic motor type: BM6-390
  • Walking Motor Brand: Ken/Liyuan
  • Motor Displacement: 390
  • Rotary hydraulic motor type: 2.5K
  • Displacement: 400


Track：
  • Rubber (track width * pitch * number of sections): 230*72*54
