Technical Data：

Basic Performance Parameters

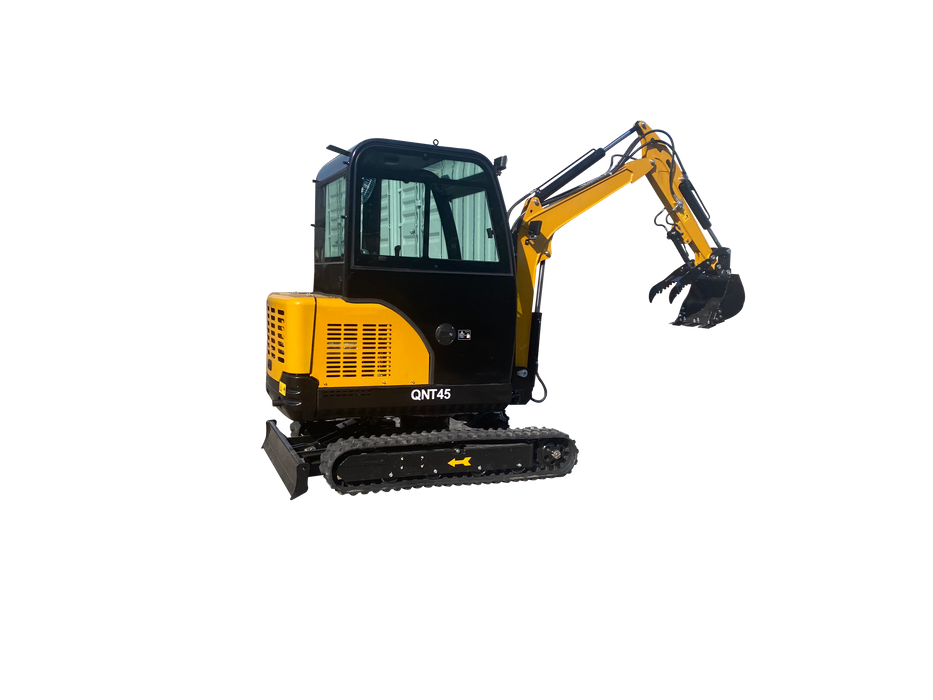

Model Information: QNT45

Working Weight(kg): 2400

Bucket capacity(m³): 0.08

Travel speed low/high speed(Km/h): 0-1.8

Climbing ability(%): 11

A:Maximum Digging Height(mm): 3600

B:Maximum Unloading Height(mm): 2400

E:Max. digging radius(mm): 4200

F: Minimum turning radius(mm): 2050

G: Tail minimum turning radius(mm): 1200

H: Maximum lifting height of bulldozer(mm): 170

I: Maximum digging height of bulldozer(mm): 300

Side Swing: NO

Side Swing Angle (L/R): NO

Undercarriage Expansion: NO

Equipment Body

J:Overall Length(mm): 5400

K:Overall Width(mm): 1300

L:Overall Height(mm): 2200

M: Wheelbase(mm): 1500

N: Track Gauge(mm):1070

Bulldozer Width/Height: 1300/230

Engine

Engine Brand: Kubota 1703

Maximum power(Kw): 26

Cooling method: water cooling

Fuel Type: diesel fuel

Hydraulic system

Rated set pressure(Mpa): 16

Main pump maximum flow (L/min): 21.6
