PTO Shaft, 1-3/8", Series 4, 6 Spline, 32.67"-41.16"

PTO Shaft, 1-3/8", Series 4, 6 Spline, 32.67"-41.16"

SKU AGT-T4-830HP
Availability:
Out of stock
Sold out
$160.00
$160.00 - $160.00
$160.00
$129.00
$129.00 - $129.00
$129.00

Click here for more tractor pto shafts

Features:

1. Spline & Round End: Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x Round End. Constructed in the 6-spline end.

2. Telescope Tube Design: Compressed Length: 32.67" ; Extended Overall Length: 41.16".

3. It has 35HP—53HP Speed, 26Kw-39KW, and 460N.m—360N.m torque at 540rpm-1000rpm.It allows two sides of the PTO drive line shaft to spin at different speeds.

4. Quality T4 Pto Shaft: This T4 PTO shaft is a well-forged series4 driveline shaft with CE certification.

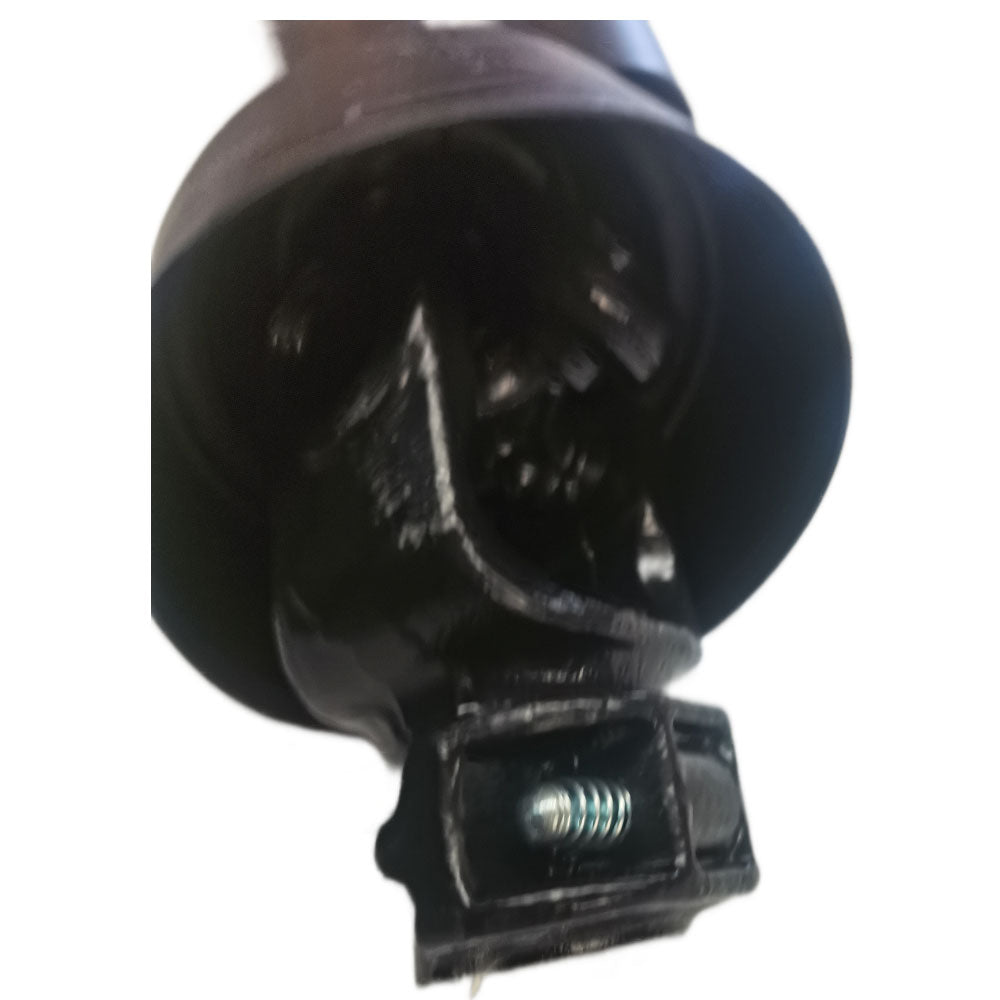

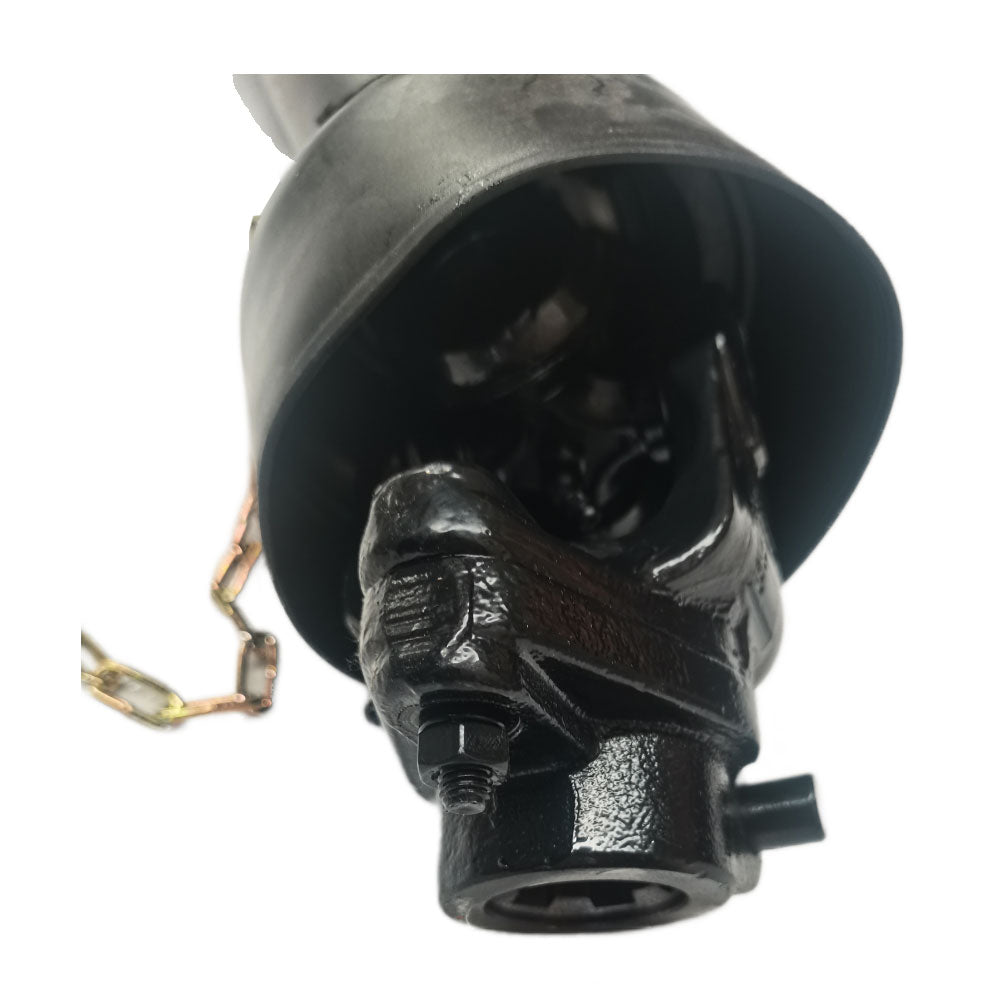

5. It consists of a solid 16Mncarburized steel universal joint and Drive Shaft Material 45 # Forged Pieces.

Product Description:

AGT PTO shaft has a standard size of 1 3/8", which can match perfectly with the same size and type of implements and tractors, featuring superior driving force for your machinery.

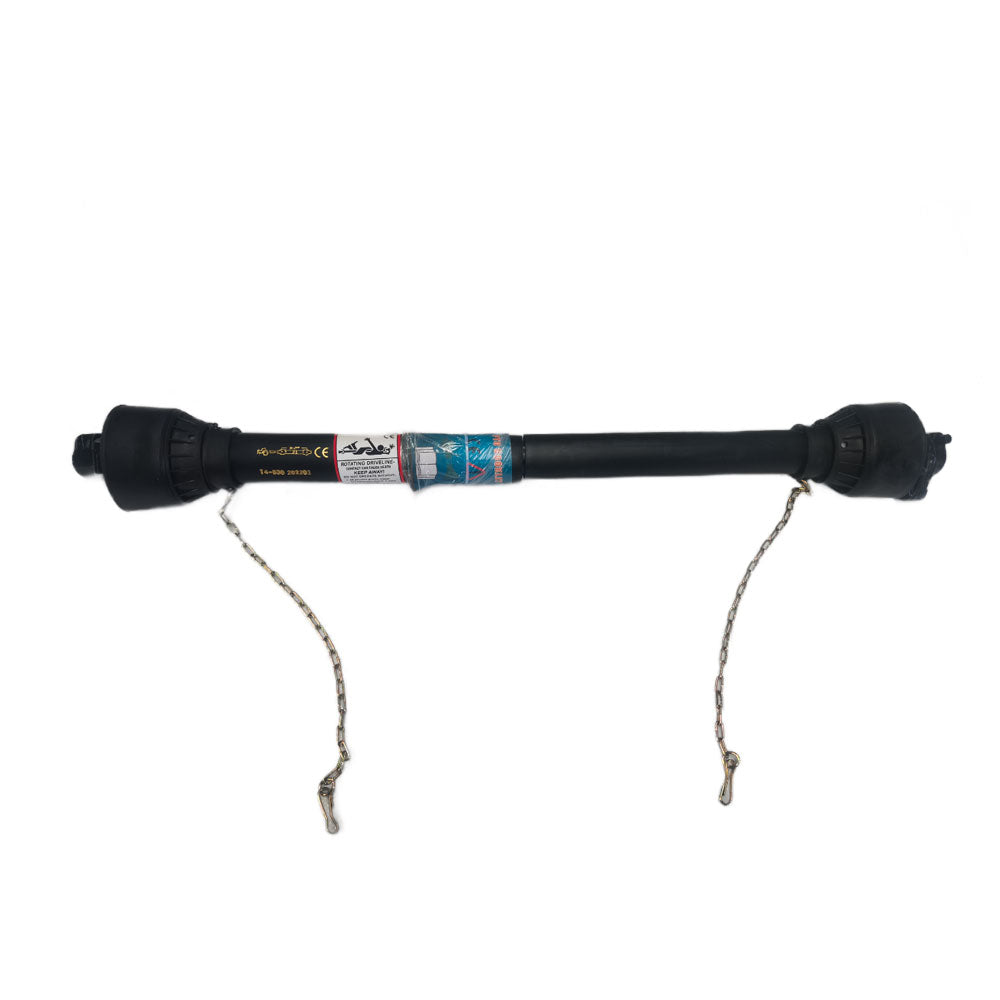

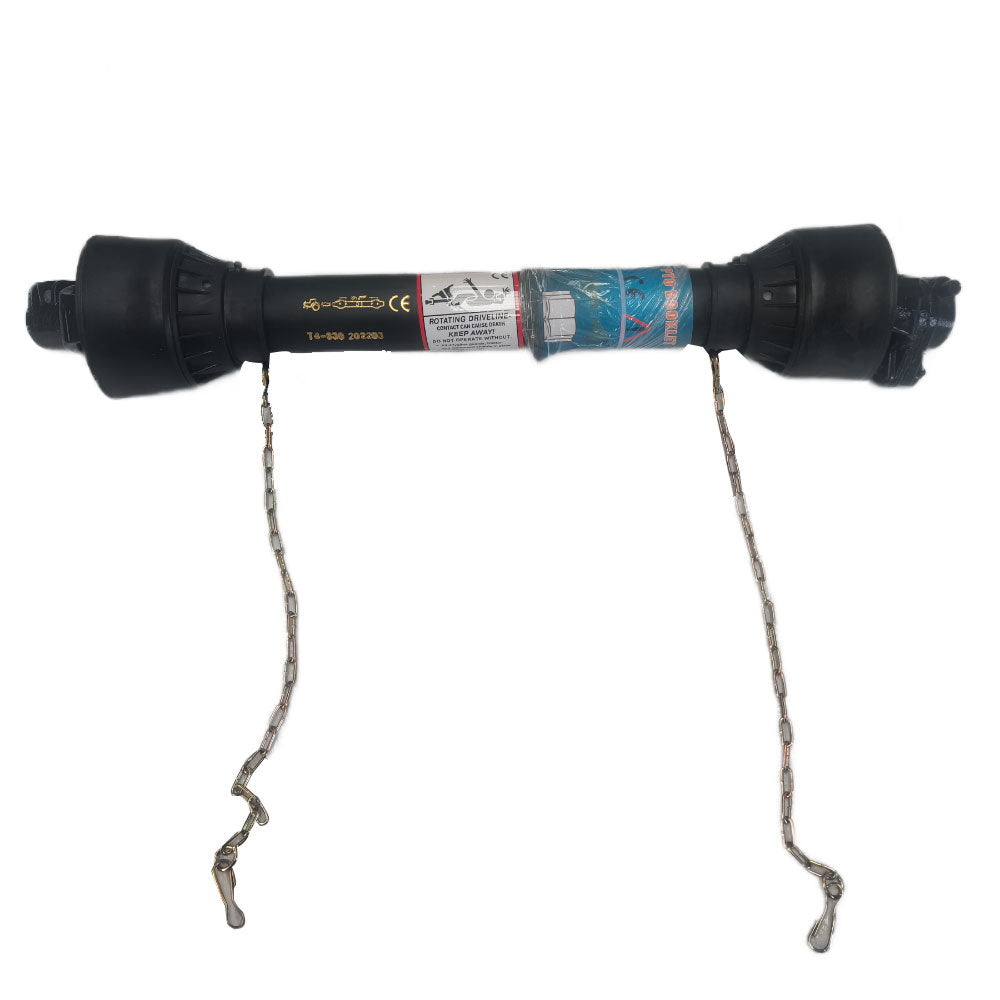

Tiller PTO shaft is designed with a telescoping steel tube, a universal joint and yokes.

PTO shafts are durable and robust in working with all kinds of agricultural machinery.

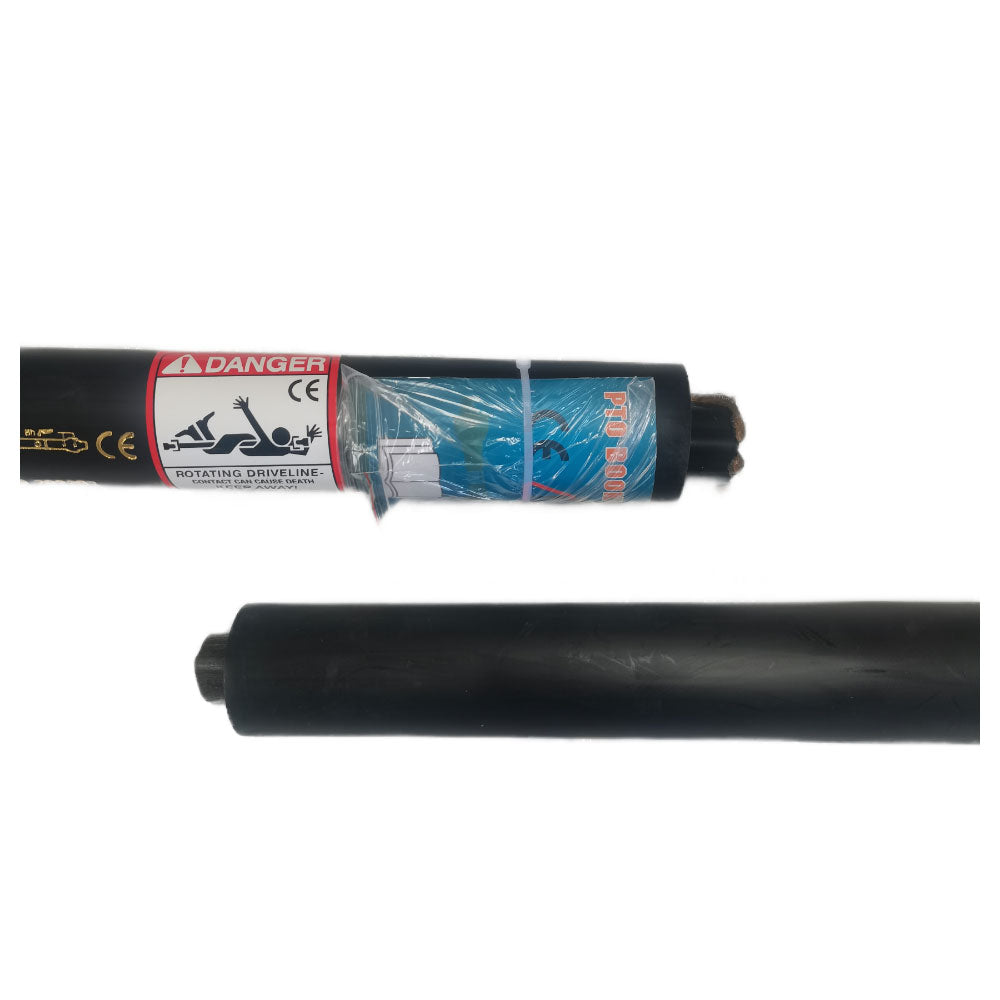

Safer Use & Compact: The PTO extender shaft is full-tested and well-assembled in a compact structure, ready for hassle-free direct replacement as a high-efficient power transmission tool. The security chain and plastic shield avoid potential dangers in the transmission process.

Wide Application: The PTOshaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more.

Specifications:

Max Length 41 5/32 Inches
Retracted Length 32 43/64 Inches
Product Width 5 1/2 Inches
Product Height 5 1/2 Inches
Package Size 6" x6" x 34"
Undershelf Capacity 23.15lb
Steel Tube 16Mn
Drive Shaft Material 45 # Forged Pieces
Spline End 1-3/8-in Z6, 1-3/8-in Shear Bolt Torque Limter
PTO Speed 540rpm—1000rpm
PTO Torque 460N.m—360N.m
Tractor Power 35HP—53HP
