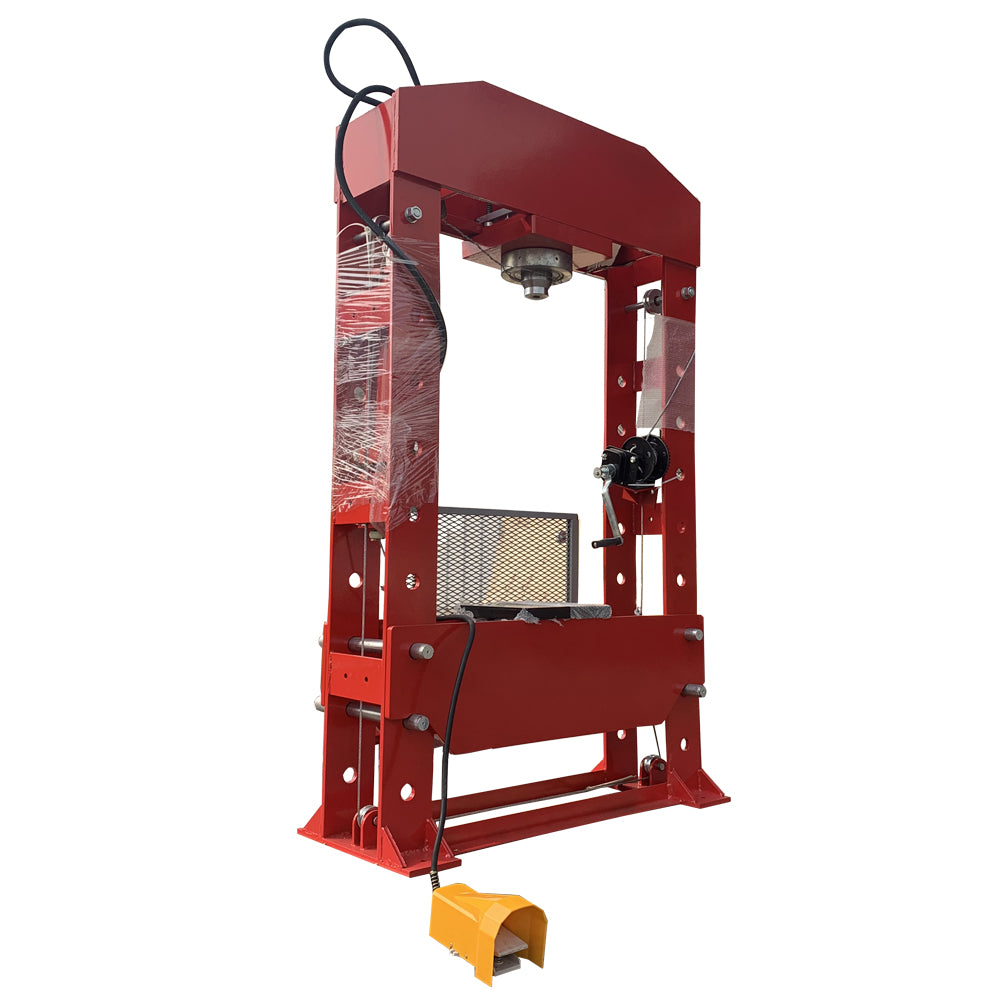

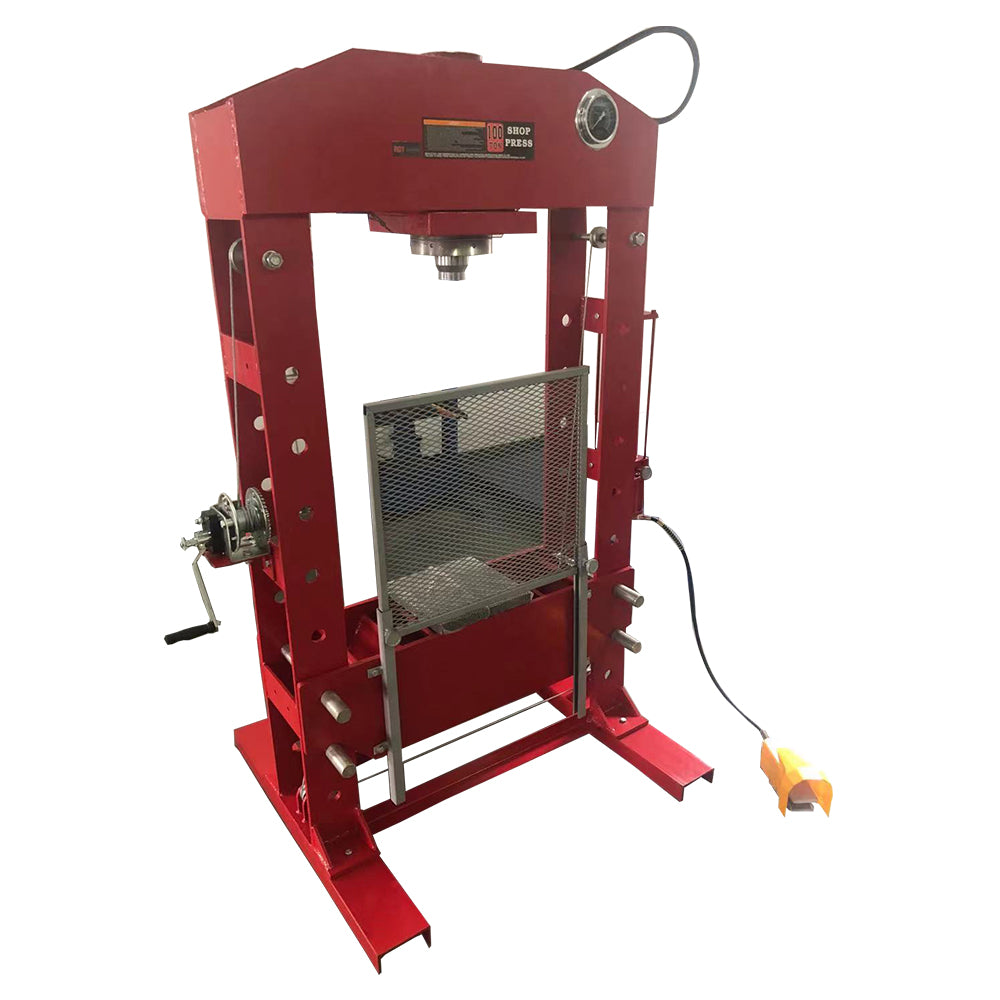

75 Ton Hydraulic Shop Press | AGT-SP75
SKU AGT-SP75
Availability:
Only 4 left!
Save 3%
Original price
$3,599.00
Original price
$3,599.00
-
Original price
$3,599.00
Original price
$3,599.00
Current price
$3,499.00
$3,499.00
-
$3,499.00
Current price
$3,499.00
Click here for more about our shop press
Technical Details:
| Pressing force capacity | 75 ton |
| Air pressure | 110-125 psi |
| Cylinder bore | 5’’ |
| Ram stroke | 10" |
| Bed depth | 11.75’’ |
| Bed width | 30’’ |
| Upright opening | 42.5’’ |
| Dimension | 41" × 19" × 80" |
| Shipping Weight | 992.08 lbs |
Details:
Features:
- A dual hydraulic cylinder works pneumatically (125 PSI) and manually so you have total control, steady ram speed and smooth overall workflow
- Heavy constructed full-welded H frame to add rigidity and durability Pressing head moves from side to side for multi-work positioning.
- 4-in oil filled gauge readable in US and metric tons allows one to monitor pressing force accurately.
- Non-slip safety clutch and steel cable crank winch for pressing bed raising and lowering.
- Overload press valve prevents use beyond capacity.Protective grid guard for operation safety.
- Air/manual operating hydraulic cylinder provides steady ram speed 7-position bed height options for ultimate work flexibility.
