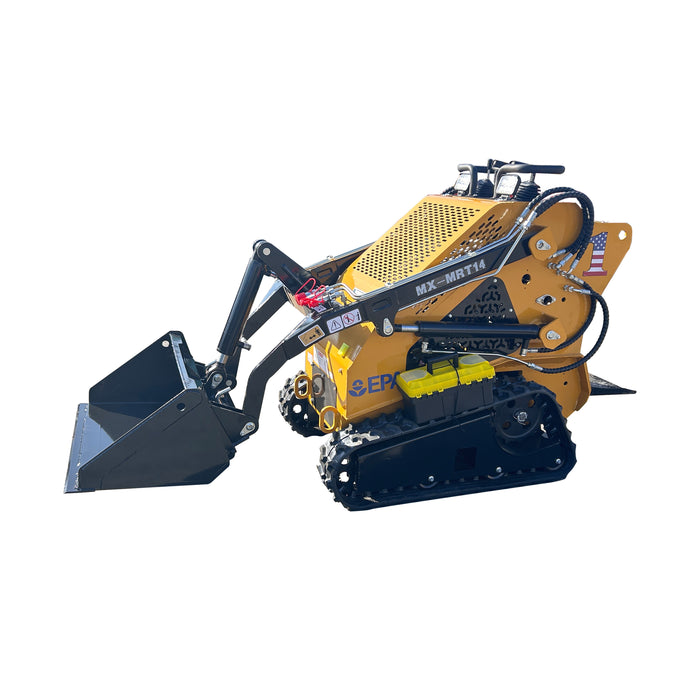

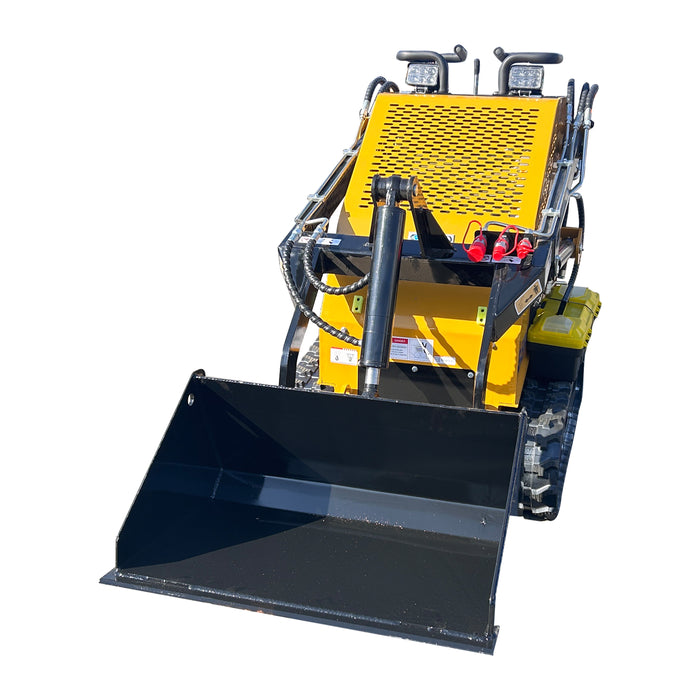

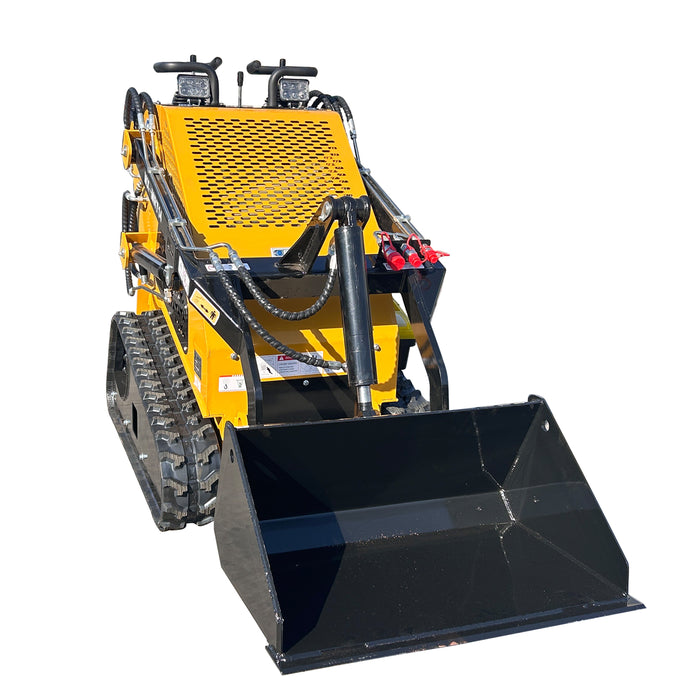

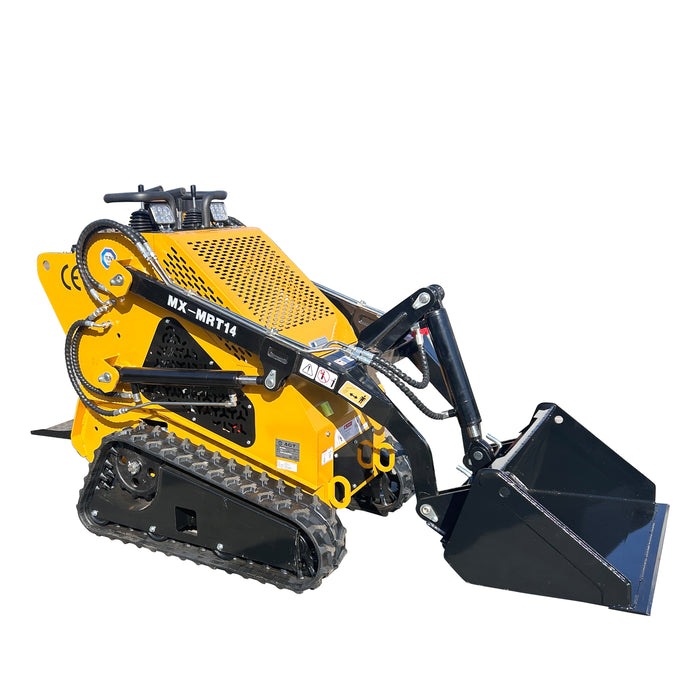

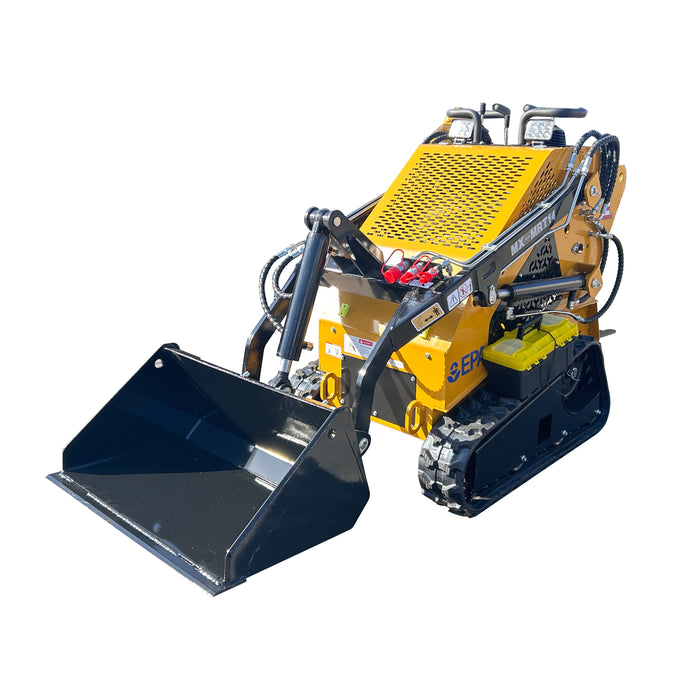

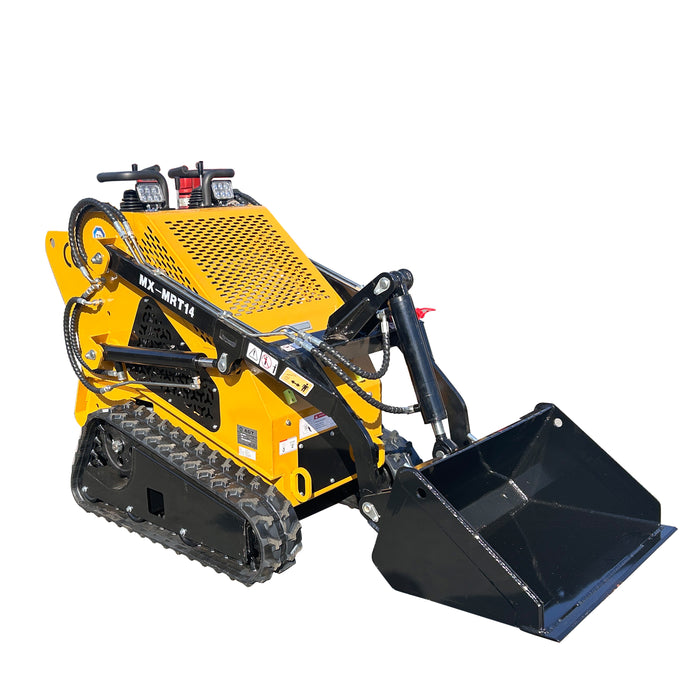

AGT 0.7 Ton, RATO Engine 13.5HP Stand-On Skid Steer Track Loader Crawler | AGT-MX-MRT14

AGT 0.7 Ton, RATO Engine 13.5HP Stand-On Skid Steer Track Loader Crawler | AGT-MX-MRT14

SKU MX-MRT14
Availability:
Only 2 left!
$5,500.00 - $5,500.00
$5,500.00
$5,500.00 - $5,500.00
$5,500.00

Technical Data:

Model Information
Configuration Status
√Standard,    △Optional ,   ×None 		MX-MRT14
Basic Performance Parameters
Working Weight(kg) 700

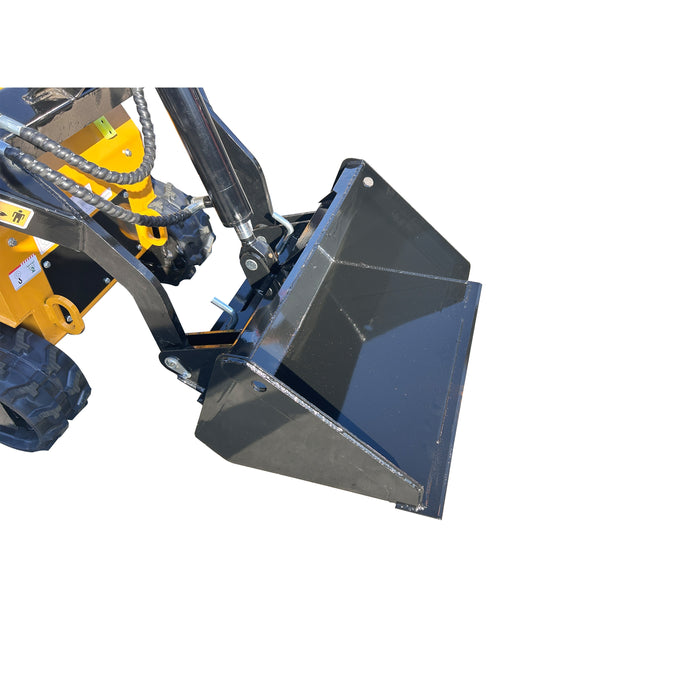

Bucket capacity(m³) 0.1
Travel speed low/high speed(Km/h) 4
Maximum lifting force (Kg) 200
Maximum working height(mm) 2285
Maximum pin height (mm) 1967
Maximum unloading height(mm) 1575
Loading distance at maximum unloading height (mm). 661
Wheelbase(mm) 905
Ground clearance(mm) 163
Bucket discharge angle 23°
Equipment Body
Bucket width(mm) 1120
Overall Length(mm) 2135/2432
Overall Width(mm) 904
Overall Height(mm) 1364
Body width(mm) 810
Slewing radius(mm) 1493

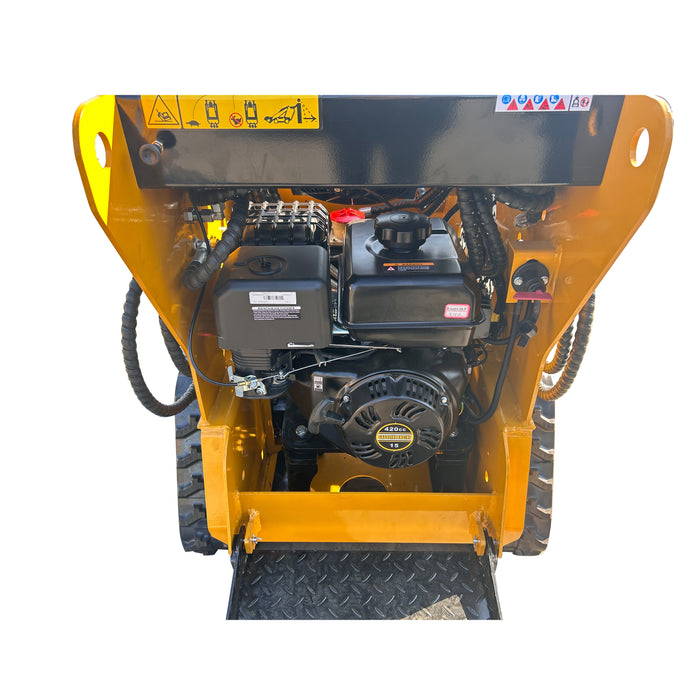

Engine
Engine Brand Rato
Engine model R420D
Maximum horsepower(ps) 13.5
Maximum power(Kw) 9.8
Maximum speed(rpm) 3600
Number of cylinders  1
Cooling method Fan cooling
Engine oil replacement(L) 1.1
Fuel Type Gasoline
Fuel Grade 92#
Tracks
△-Rubber (bandwidth*pitch*number of sections) 180*72*37
Fuel tank
Fuel tank(L) 6.6
Hydraulic oil tank(L) 33
