12V 20,000 lb Electric Winch With Wire Rope | AGT-2000EW

12V 20,000 lb Electric Winch With Wire Rope | AGT-2000EW

SKU AGT-2000EW
Availability:
Out of stock
Sold out
$999.00
$999.00 - $999.00
$999.00
$527.00
$527.00 - $527.00
$527.00

Free shipping from Chicago in the US.

  • Excavators and loaders require a forklift to unload，if you don't have a forklift, rent one or use a trailer to unload the excavator at the closest Freight location.
  • Support pick up.

We provide a one-year warranty. We will be responsible for any quality problems with the machine

If you need any replacement parts or you encountered some problems after warranty, you are also welcome to contact us via service@agrotkindustrial.com

 We have a remote control for this electric winch kit

Technical Details:

Performance 12VDC
Single line rated pull 20000lb  ( 9071kg )

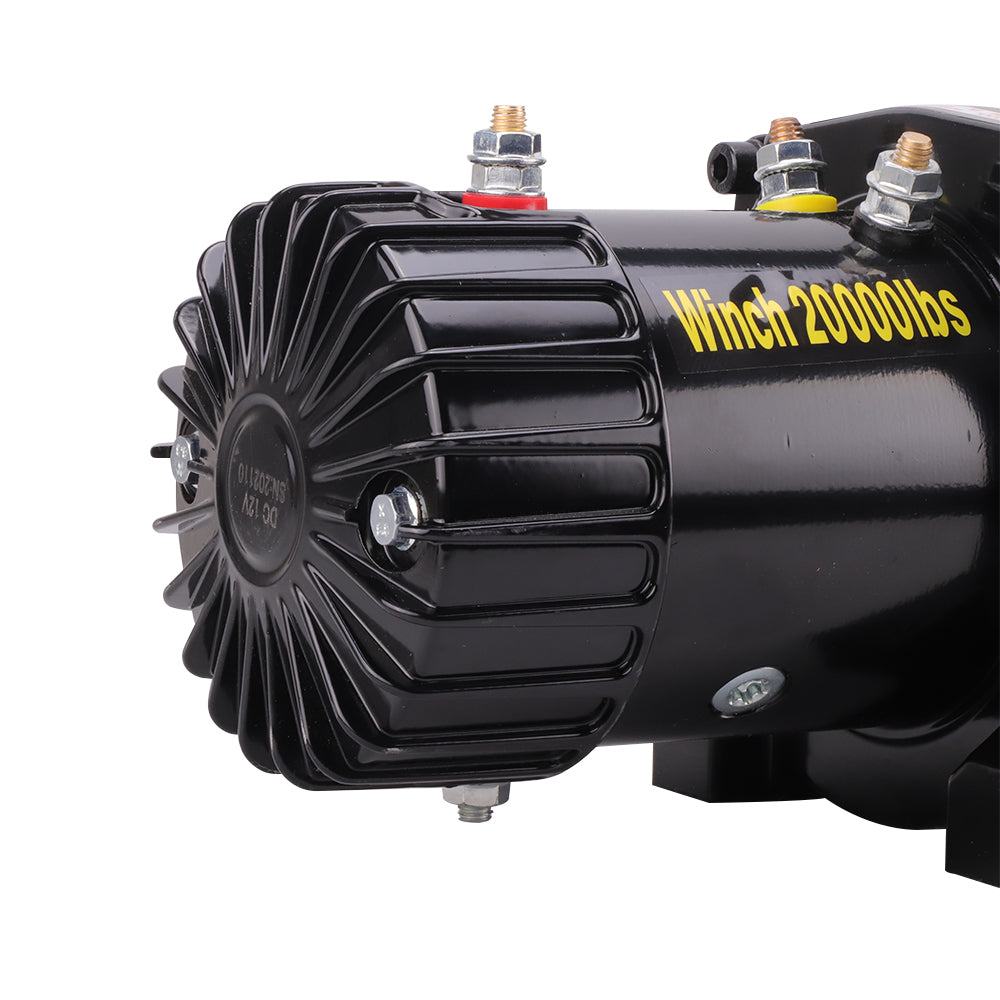

Motor 6.0hp/4.5kw,Series Wound
Control Remote switch,12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear reduction ratio 265:1

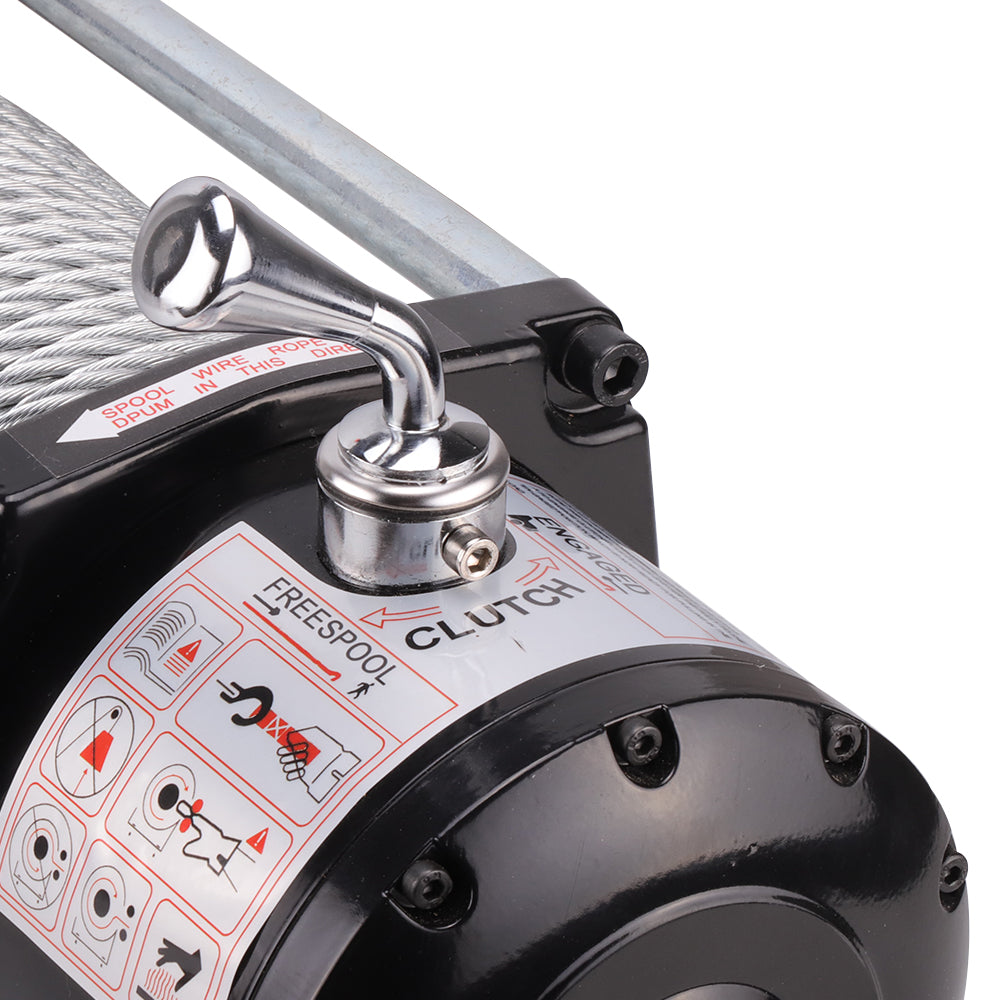

Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum size Diameler2.52" ± (64mm )Length8.82"  ± (224mm)
Cable 88ft of 3/8" ±diameter (27m of 9.5mm diameter)
Falrtead 4-Way  Roller Fairlead
Remote Control Included
Ba11ory Rooommended:650CCA minimum for winching
Battery Leads 2 gauga,72'(1.83m)
NW/GW 51kg / 55KG
Overall dj.mentions (LxWxH)21.3'x6.3 x8.6 (552x160x218mm)
Mounting Bolt Pattern 10.00 ± 0.015  x4.5 ± 0.010  ± (254x114 .3mm)
Meas 61x19.Sx48.5(1pc)


Pull, Speed, Amperes, Volts(First Layer)

Line Pull (lbs./kg) Line Speed FPM(m/min) Motor(Amps)
0 22.0ft( 6.8m ) 80
4000 ( 1814 ) 11.5ft ( 3.5m ) 170
6000 ( 2722 ) 9.8ft (3.0m) 210
8000 ( 3629 ) 8.2ft ( 2.5m ) 250
10000 ( 4536 ) 6.8ft ( 2.1m ) 300
12000 ( 5443 ) 5.6ft ( 1.7m ) 360
20000 ( 9071 ) 4.8ft ( 1.5m ) 450


Line Pull and Rope Capacity in Layer

Layer Rated Line Pull (lbs./kgs) Tatal Rope On Drum (tf/m)
1 20000 ( 9071 ) 24 ( 11 )
2 12000 ( 5440 ) 17.6 ( 5.4 )
3 9530 ( 4322 ) 37.0 ( 11.4 )
4 7920 ( 3590 ) 63.0 ( 19.4 )
5 6770 ( 3075) 88.0 ( 26.8 )


    Features

    1. For car, boat, trucks, jeeps, modified vehicles and multi purpose utility trailers.

    2. SAFE & LONG LASTING: The IP67 waterproof construction protects the engine form rain and moisture.

    3. Our towing winch also has strong corrosion resistance and overload protection, ensuring the safety during operation.

    4. DUAL CONTROL MODE: The ATV/UTV winch kit features dual remote-control mode, including a wireless remote control and a wired control switch.

    5. Improved Material: Black frosted spray paint reduces external damage. The insulation performance and durability of the winch are greatly improved.

    Packaging

    • Dimension: 24.01’’ × 9.13’’ × 13.22’’ (L x W x H)
    • Shipping Weight: 117.72 lbs

    Warranty:

    • We offer 1 year waranty on all of our selling goods. If you have any question about our goods or services, please do not hesitate to contact us online or via email, we will be glad to help you solve the issue. Thanks.
