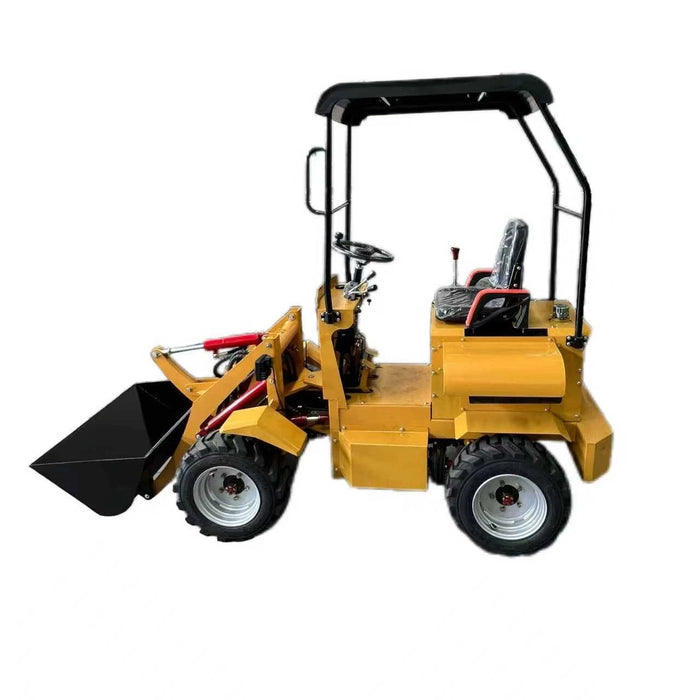

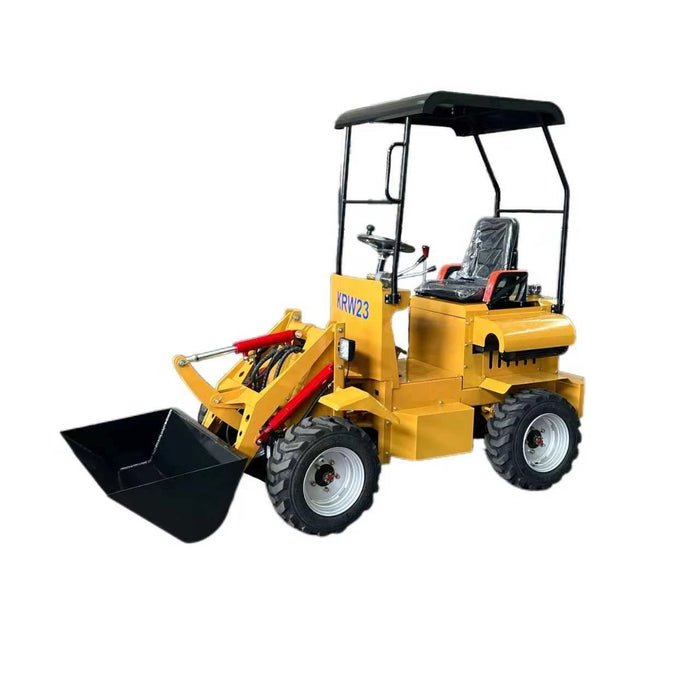

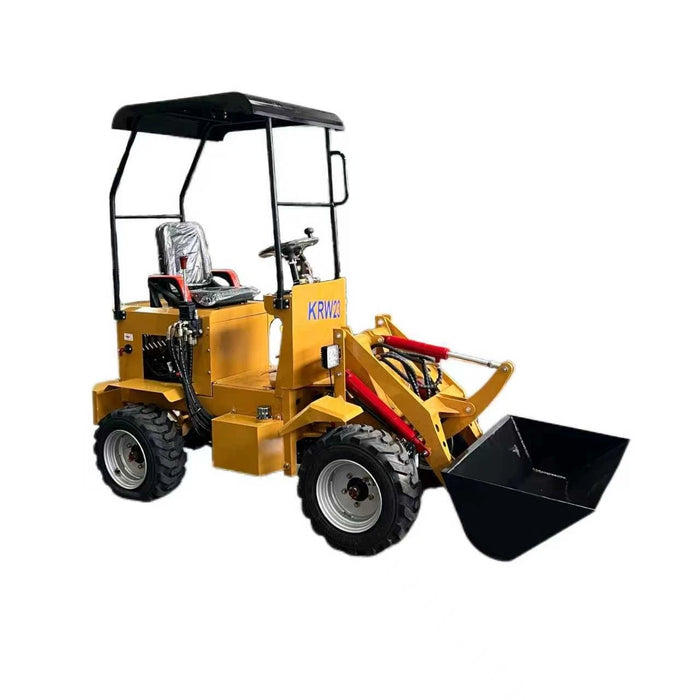

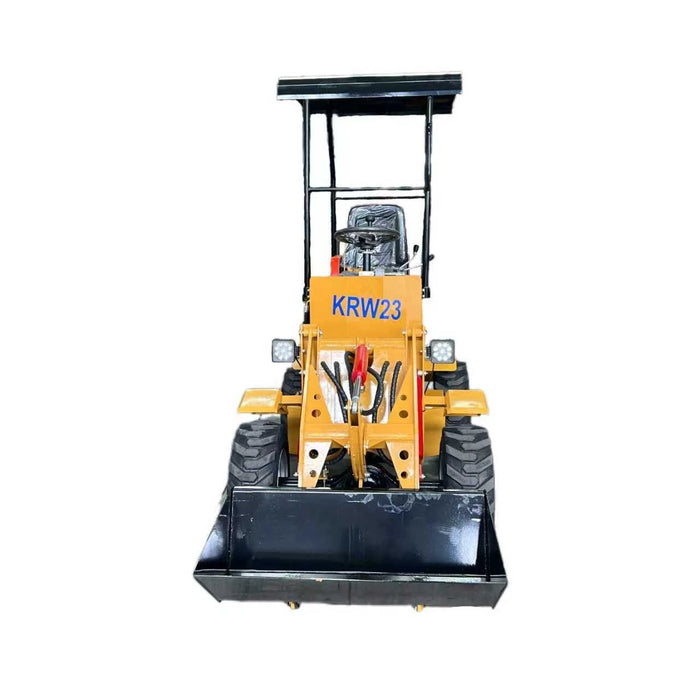

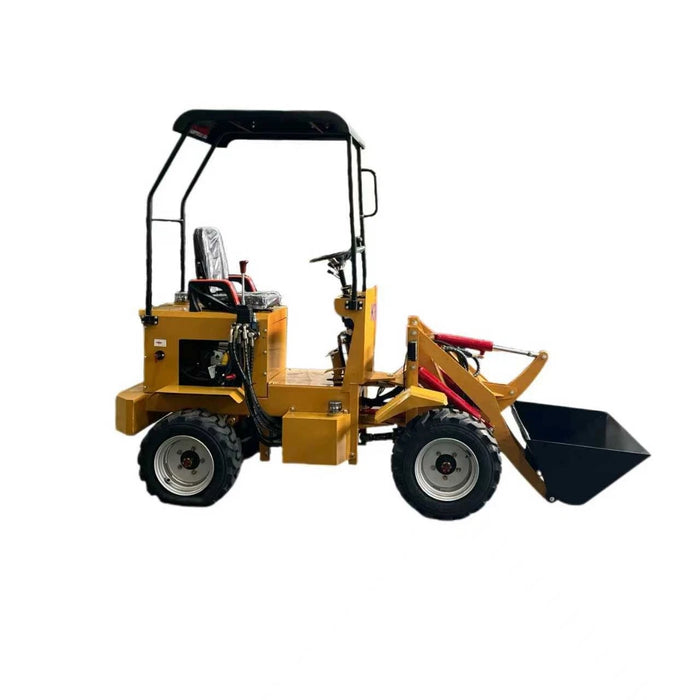

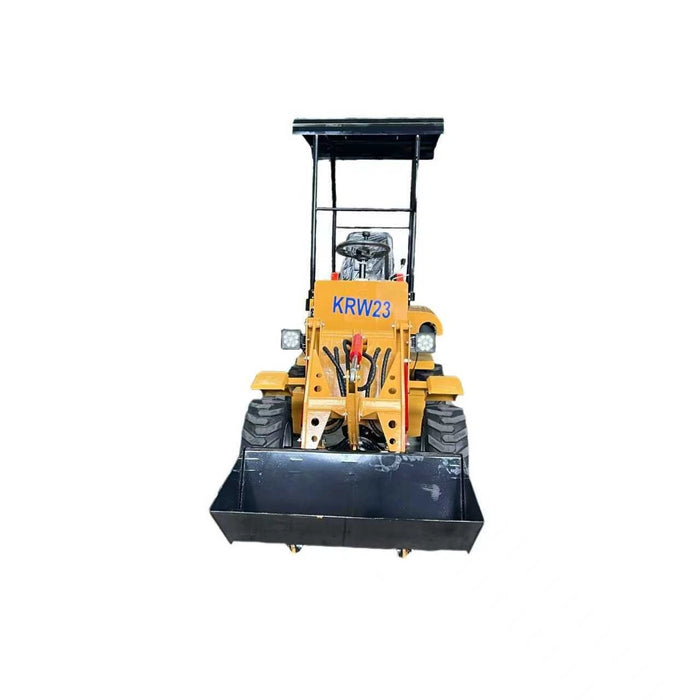

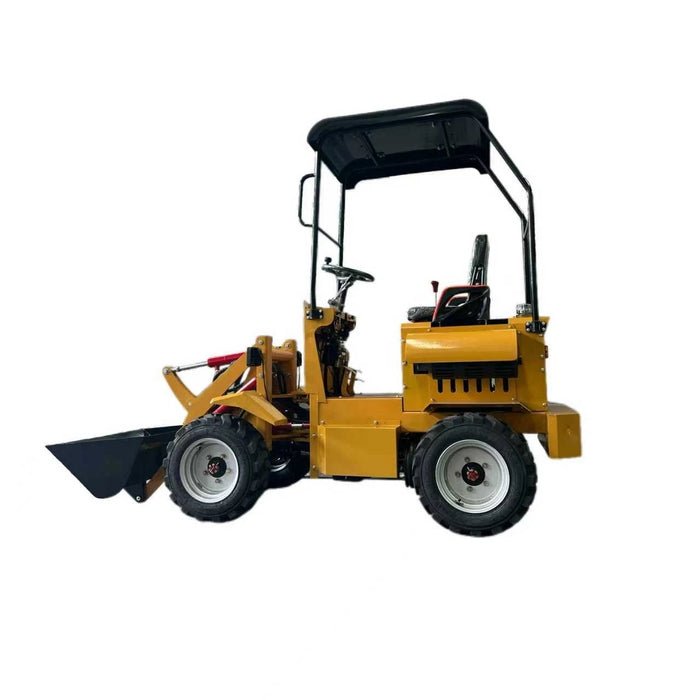

AGT Mini Skid Compact Track Loader Wheeled 24HP RATO Gasoline Engine USA Stock-KRW23

Strong Lifting for Its Class: 300 kg max lifting force and 2300 mm working height handle small - medium lifting tasks efficiently, fitting light construction/logistics needs.

Good Mobility & Flexibility: 10 - 15 Km/h speed saves position - adjusting time. Compact size (2600×1100×2000 mm) and 1400 mm wheelbase work well in narrow spaces.

Reliable & Fuel - Saving Engine: 24 HP Rato engine ensures stability. Air - cooling eases maintenance; 92# gasoline (5 L/h consumption) cuts costs.

Efficient Bucket Design: 0.25 m³ capacity matches its power. 1000 mm width and 90° discharge angle boost loading/unloading efficiency.

Stable Hydraulic System: Gear pump (20 L/min flow) enables smooth, precise movements, enhancing comfort and reducing risks.

Technical Specifications
Model Information Configuration Status (Standard, Optional)    KRW23
Basic Performance Parameters
Working Weight (kg)    700
Bucket capacity (m³)    0.25
Travel speed low/high (Km/h)    10/15
Maximum lifting force (Kg)    300
Maximum working height (mm)    2300
Maximum unloading height (mm)    1650
Wheelbase (mm)    1400
Bucket discharge angle (°)    90°
Equipment Body
Bucket width (mm)    1000
Overall Length (mm)    2600
Overall Width (mm)    1100
Overall Height (mm)    2000
Engine
Engine Brand    Rato
Max. Horsepower (HP)    24
Cooling method    Air-cooled
Fuel Type    Gasoline
Fuel Grade    92#
Theoretical fuel consumption (L/h)    5
Hydraulic system
Main pump model    Gear pump
Max. flow rate of main pump (L/min)    20
Tracks
Wheels    23*8.5-12
Fuel tank
Fuel tank (L) / Hydraulic oil tank (L)    10 / 12.8
