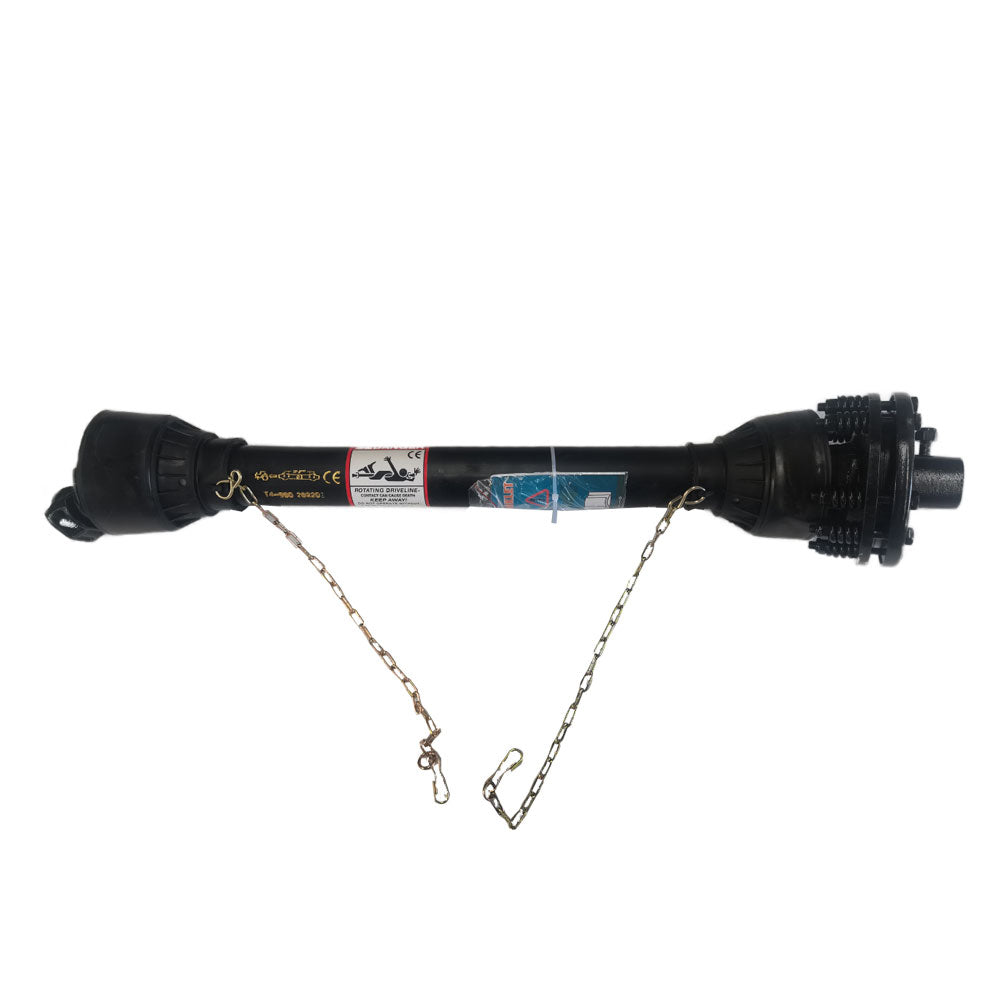

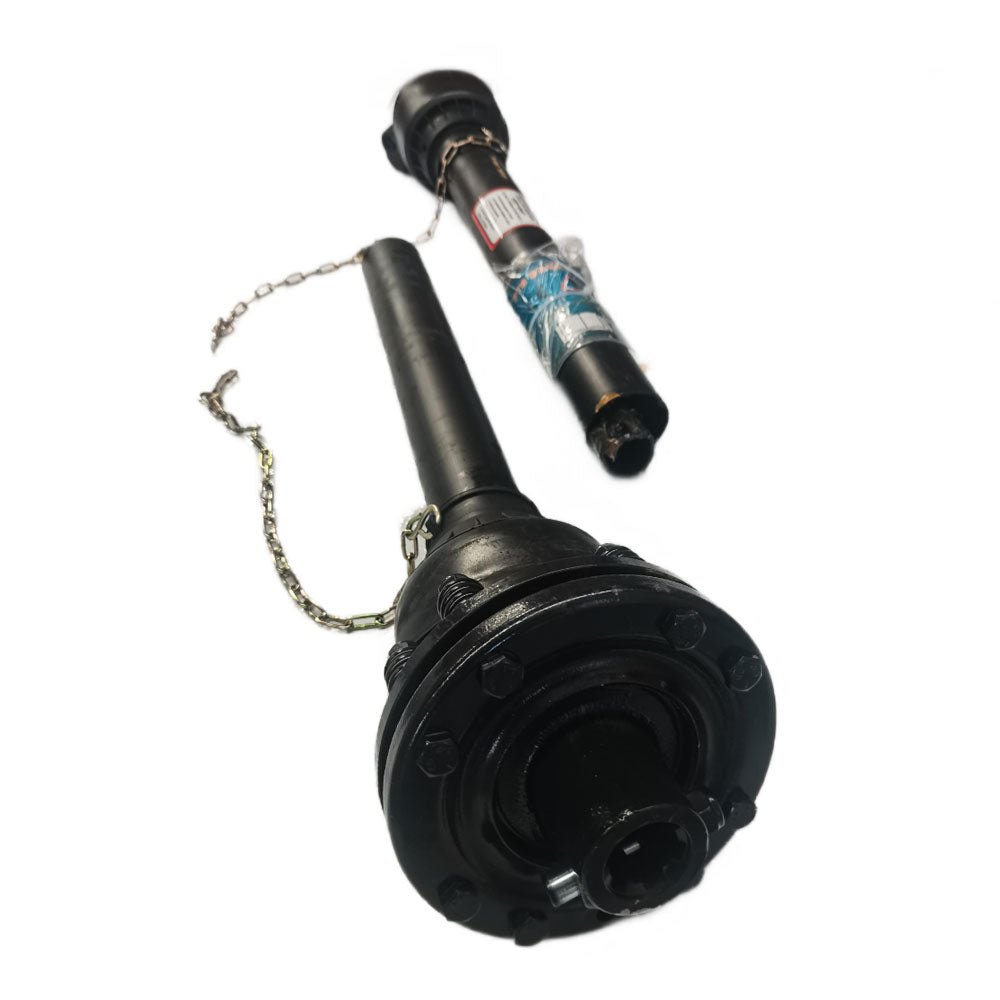

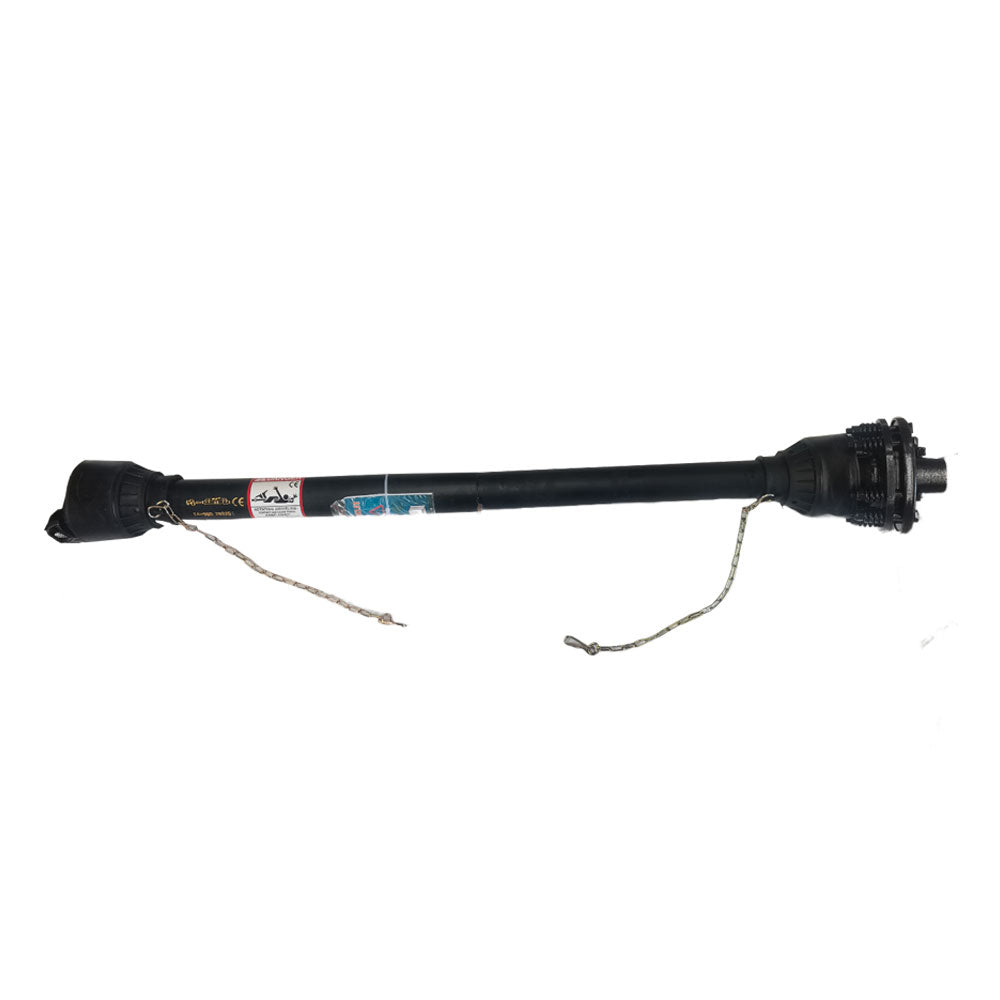

PTO Shaft, 1-3/8",Series 4, 6 Spline , 38.9"-49.66"

PTO Shaft, 1-3/8",Series 4, 6 Spline , 38.9"-49.66"

SKU AGT-T4-990EP
Availability:
40 in stock, ready to be shipped
Save 23% Save 23%
$179.00
$179.00 - $179.00
$179.00
$138.00
$138.00 - $138.00
$138.00

Free shipping from Chicago in the US.

  • Excavators and loaders require a forklift to unload，if you don't have a forklift, rent one or use a trailer to unload the excavator at the closest Freight location.
  • Support pick up.

We provide a one-year warranty. We will be responsible for any quality problems with the machine

If you need any replacement parts or you encountered some problems after warranty, you are also welcome to contact us via service@agrotkindustrial.com

Click here for more tractor pto shafts

Features:

1. Spline & Round End: Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x Round End.

2. Telescope Tube Design: Compressed Length: 38.9" ; Extended Overall Length: 49.66".

3. It has 35HP—53HP Speed, 26Kw-39KW, and 460N.m—360N.m torque at 540rpm-1000rpm.It allows two sides of the PTO drive line shaft to spin at different speeds.

4. Quality T4 Pto Shaft: This T4 PTO shaft is a well-forged series4 driveline shaft with CE certification.

5. It consists of a solid 16Mncarburized steel universal joint and Drive Shaft Material 45 # Forged Pieces.

Product Description:

AGT PTO shaft has a standard size of 1 3/8", which can match perfectly with the same size and type of implements and tractors, featuring superior driving force for your machinery.

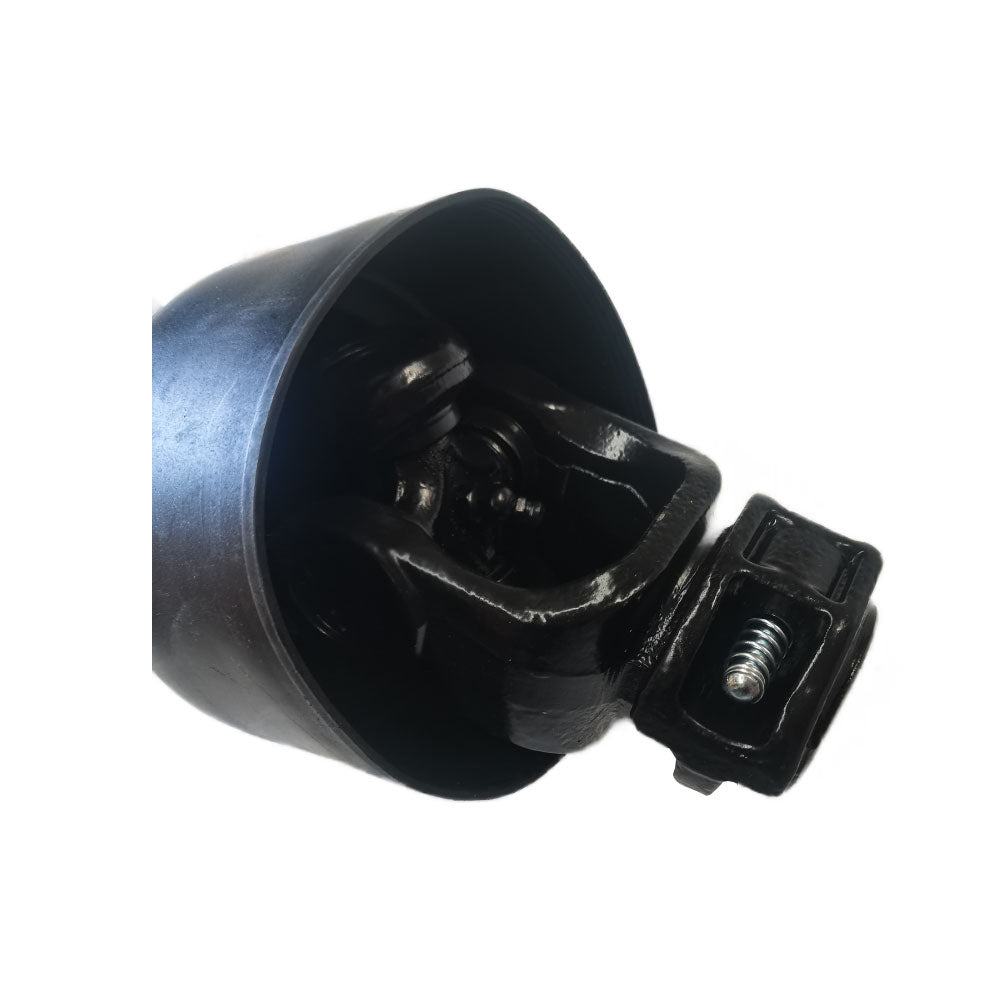

Tiller PTO shaft is designed with a telescoping steel tube, a universal joint and yokes.

PTO shafts are durable and robust in working with all kinds of agricultural machinery.

Safer Use & Compact: The PTO extender shaft is full-tested and well-assembled in a compact structure, ready for hassle-free direct replacement as a high-efficient power transmission tool. The security chain and plastic shield avoid potential dangers in the transmission process.

Wide Application: The PTOshaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more.

Specifications:

Max Length 49 21/32 Inches
Retracted Length 38 29/32 Inches
Product Width 7 3/32 Inches
Product Height 7 3/32 Inches
Package Size 8" x8" x 42"
Undershelf Capacity 37.26lb
Steel Tube 16Mn
Drive Shaft Material 45 # Forged Pieces

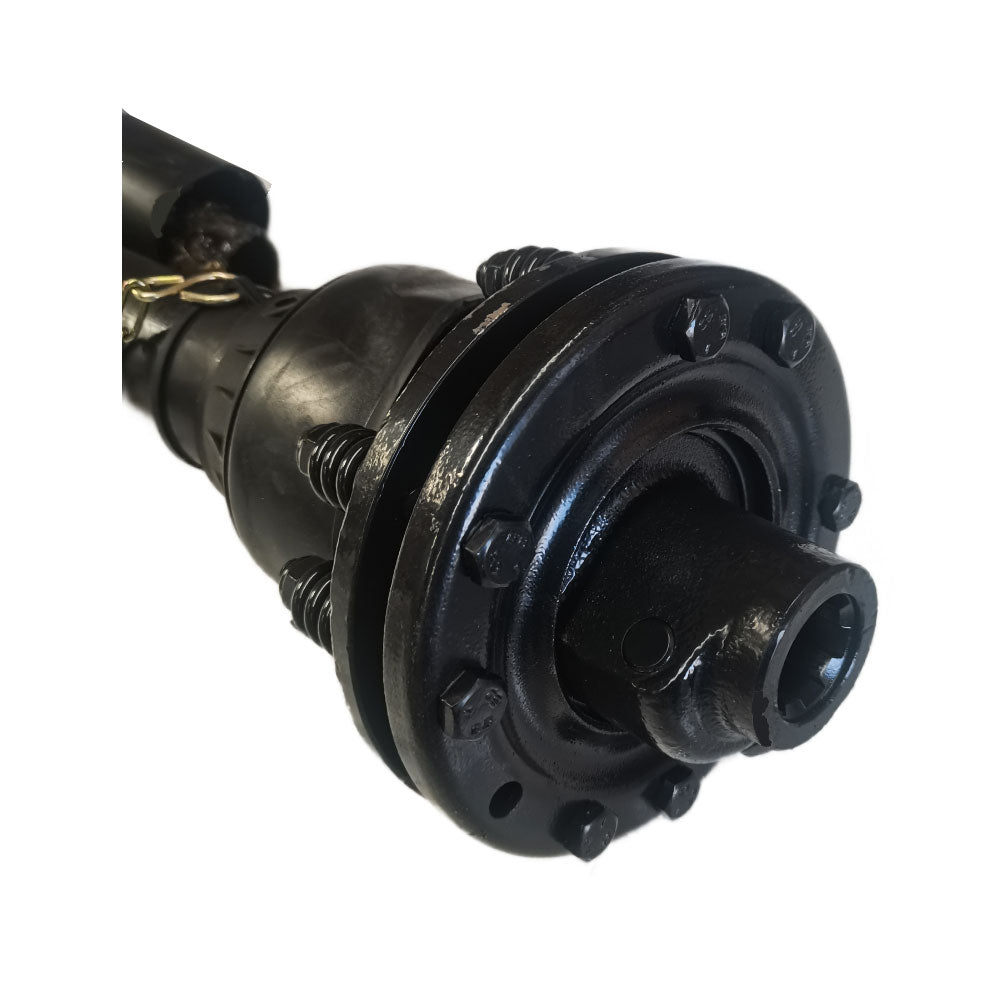

Spline End 1-3/8-in Z6, 1-3/8-in Friction Torque Limiter
PTO Speed 540rpm—1000rpm
PTO Torque 460N.m—360N.m
Tractor Power 35HP—53HP
